BenQ HT1070 Manuel utilisateur

HT1070

Digital Projector

Home Cinema Series

User Manual

V1.01

Table of contents

Important safety

instructions................... 3

Overview....................... 7

Projector features.....................................7

Shipping contents......................................8

Projector exterior view...........................9

Controls and functions..........................11

Positioning your

projector..................... 16

Choosing a location................................16

Obtaining a preferred projected

image size..................................................17

Connection .................18

HDMI connection...................................19

Smart devices connection.....................20

Component Video connection............22

Video connection....................................23

Computer/PC connection.....................24

Connecting video source devices........25

Playing sound through the projector..26

Operation ...................27

Starting up the projector ......................27

Adjusting the projected image.............30

Menu Functions..........32

About the OSD Menus..........................32

Using the Basic OSD menu...................34

Using the Advanced OSD menu..........38

Securing the projector...........................39

Utilizing the password function...........39

Switching input signal.............................42

Picture menu ..........................................43

Audio Setup menu ................................48

Display menu ..........................................49

System Setup : Basic menu ..................51

System Setup : Advanced menu .........52

Information menu ..................................54

Shutting down the projector...............55

Advanced OSD menu structure .........56

Maintenance ............... 59

Care of the projector............................59

Lamp information...................................60

Troubleshooting ........ 66

Specifications.............. 67

Projector specifications.........................67

Dimensions ..............................................68

Timing chart.............................................69

Warranty and

information................. 75

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that

you follow the instructions mentioned in this manual and marked on the product.

1. Please read this manual before

you operate your projector. Save

it for future reference.

2. Do not look straight at the

projector lens during operation.

The intense light beam may damage

your eyes.

3. Refer servicing to qualified

service personnel.

4. In some countries, the line voltage is

NOT stable. This projector is

designed to operate safely within a

mains voltage between 100 to 240

volts AC, but could fail if power cuts

or surges of ±10 volts occur. In areas

where the mains voltage may

fluctuate or cut out, it is

recommended that you connect

your projector through a power

stabilizer, surge protector or

uninterruptible power supply

(UPS).

5. Do not block the projection lens with

any objects when the projector is

under operation as this could cause

the objects to become heated and

deformed or even cause a fire. To

temporarily turn off the lamp, press

BLANK on the remote control.

Important safety instructions4

6. The lamp becomes extremely hot

during operation. Allow the projector

to cool for approximately 45 minutes

prior to removing the lamp assembly

for replacement.

7. Do not operate lamps beyond the

rated lamp life. Excessive operation of

lamps beyond the rated life could

cause them to break on rare

occasions.

8. Never replace the lamp assembly or

any electronic components unless the

projector is unplugged.

9. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

10. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause death

if you should come into contact with

live parts. The only user serviceable

part is the lamp which has its own

removable cover.

Under no circumstances should you

ever undo or remove any other

covers. Refer servicing only to suitably

qualified professional service

personnel.

11. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

Important safety instructions 5

12. Do not place this projector in any of

the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm clearance

from walls and free flow of air around

the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled

up.

- Locations where excessive humidity,

dust, or cigarette smoke may

contaminate optical components,

shortening the projector's life span and

darkening the image.

- Locations near fire alarms

- Locations with an ambient temperature

above 40°C / 104°F

- Locations where the altitudes are higher

than 3000 m (10000 feet).

13. Do not block the ventilation holes.

- Do not place this projector on a blanket,

bedding or any other soft surface.

- Do not cover this projector with a cloth

or any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

14. Always place the projector on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of more

than 10 degrees left to right, nor at angle

of more than 15 degrees front to back.

Using the projector when it is not fully

horizontal may cause a malfunction of,

or damage to, the lamp.

15. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

3000 m

(10000 feet)

0 m

(0 feet)

Important safety instructions6

16. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector,

doing so may result in accidents and

possible injury.

17. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet,

disconnect it from the power supply's

wall socket and call BenQ to have the

projector serviced.

18. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling Mount Kit for

mounting the projector and ensure it

is securely installed.

Ceiling mounting the

projector

We want you to have a pleasant

experience using your BenQ

projector, so we need to bring this

safety matter to your attention to

prevent possible damage to person

and property.

If you intend to mount your projector

on the ceiling, we strongly

recommend that you use a proper

fitting BenQ projector ceiling mount

kit and that you ensure it is securely

and safely installed.

If you use a non-BenQ brand

projector ceiling mount kit, there is a

safety risk that the projector may fall

from the ceiling due to an improper

attachment through the use of the

wrong gauge or length screws.

You can purchase a BenQ projector

ceiling mount kit from the place you

purchased your BenQ projector.

BenQ recommends that you also

purchase a separate Kensington lock

compatible security cable and attach it

securely to both the Kensington lock

slot on the projector and the base of

the ceiling mount bracket. This will

perform the secondary role of

restraining the projector should its

attachment to the mounting bracket

become loose.

Hg - Lamp contains mercury. Manage

in accordance with local disposal

laws. See www.lamprecycle.org.

Overview 7

Overview

Projector features

•Full HD compatible

The projector is compatible with Standard Definition TV (SDTV) 480i, 576i, Enhanced

Definition television (EDTV) 480p, 576p and High Definition TV (HDTV) 720p, 1080i/p

60Hz formats, with the 1080p format providing a true 1:1 image reproduction.

•High picture quality

The projector provides excellent picture quality due to its high resolution, excellent

home theater brightness, high contrast ratio, vivid color and rich gray-scale

reproduction.

•High brightness

The projector features super high brightness to achieve excellent picture quality in

ambient light conditions, outperforming ordinary projectors.

•Vivid color reproduction

The projector features a 6-segment color wheel to produce realistic color depth and

range unattainable with lesser segment color wheels.

•Rich gray-scale

When viewed in a darkened environment, the automatic gamma control provides

excellent gray-scale display which reveals details in shadows and in night or darkened

scenes.

•Dual OSD

Two types of OSD menus are designed for different usage customs: the Basic OSD is

intuitive and consumerlike, while the Advanced OSD offers traditional usability.

•Wide variety of inputs and video formats

The projector supports a wide variety of inputs for connection to your video and PC

equipment, including component video, and composite video, as well as dual HDMI,

PC.

•3D function

To enjoy the 3D movies, videos, and sporting events in a more realistic way by

presenting the depth of the images through HDMI.

•Built-in speaker(s)

Built-in speaker(s) providing mixed mono audio when an audio input is connected.

•SmartEco

SmartEco™ technology saves lamp power consumption up to 70% depending on the

content brightness level when SmartEco mode is selected.

•SmartEco™ starts your dynamic power saving

The SmartEco™ technology offers a new way of operating the projector lamp system

and saves lamp power depending on the content brightness level.

•Longest lamp life with SmartEco™ technology

The SmartEco™ technology lowers the power consumption and increases the lamp

life.

•ECO BLANK saves the lamp power

By pressing the ECO BLANK button to hide the image and immediately lower the lamp

power at the same time.

Overview8

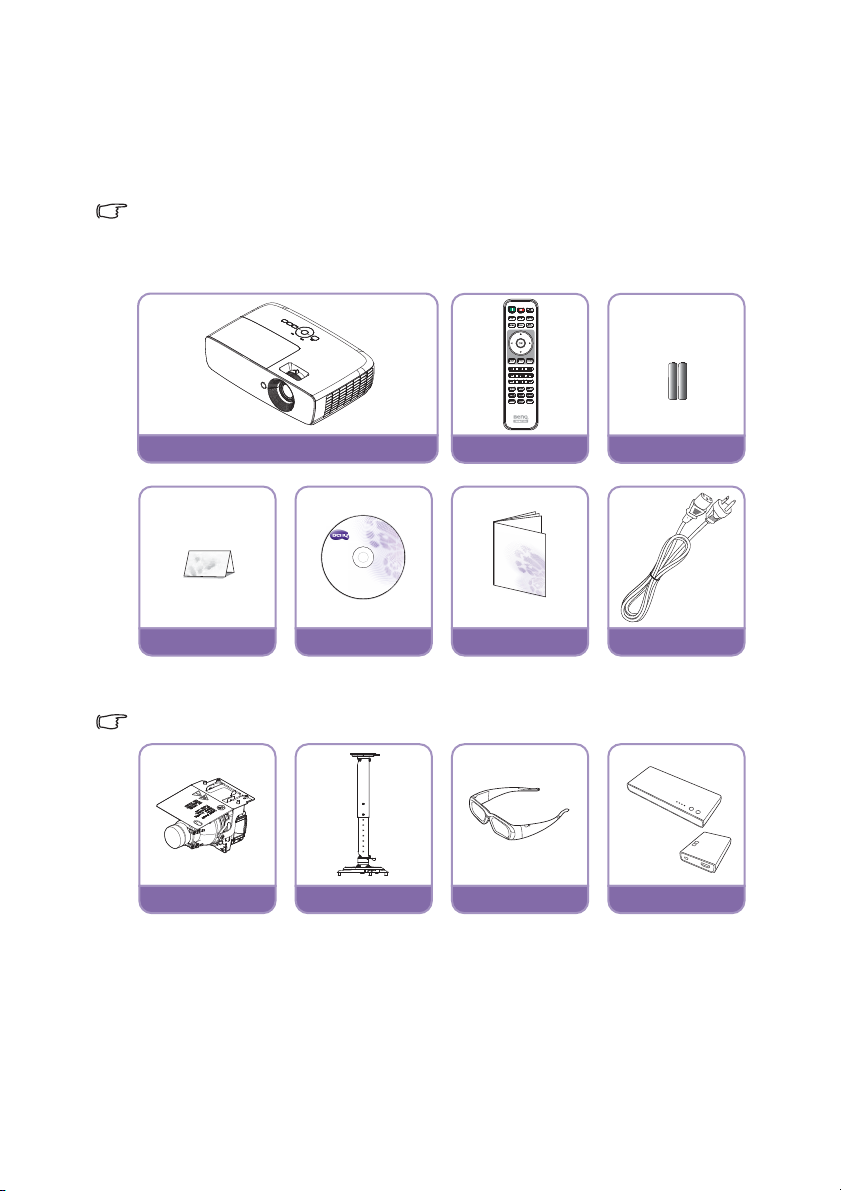

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items

are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

*The warranty card is only supplied in some specific regions. Please consult your dealer for

detailed information.

Europe sku doesn't have VGA cable in standard accessories.

Other accessories

For below accessories, please consult your dealer for detailed information.

Batteries

Warranty card User manual CD Quick start guide Power cable

Remote ControlProjector

Spare lamp kit Ceiling mount kit 3D Glasses

Wireless FHD Kit

(WDP02)

Overview 9

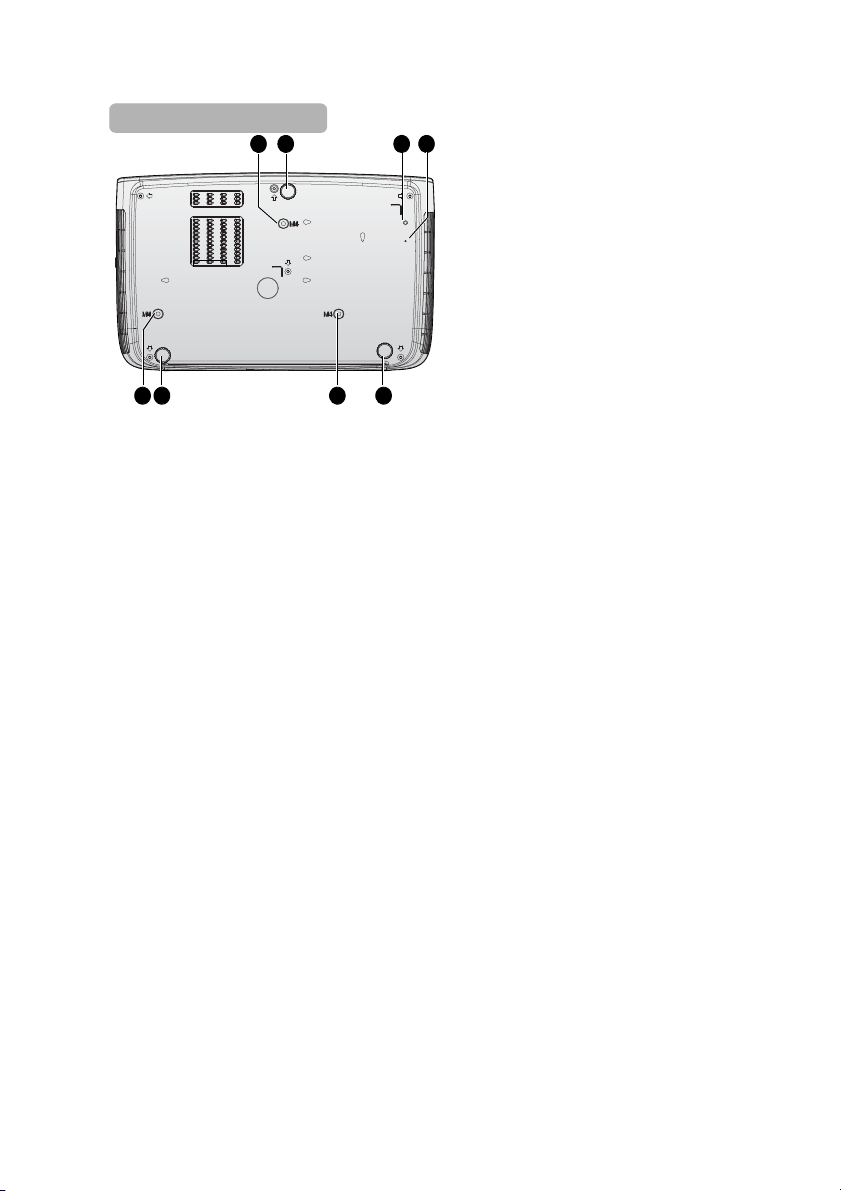

Projector exterior view

1. Lamp compartment cover

2. Front IR remote sensor

3. Projection lens

4. External control panel

(See "Control Panel" on page 11 for

details.)

5. Focus ring and Zoom ring

6. Vent (cool air intake)

7. HDMI 1 input jack

8. HDMI 2 / MHL dual mode port

Also can be charging connected

MHL compatible smart device as

long as the power is fed to the

projector.

9. RS-232 control port

Used to interface with a PC or

home theater control/automation

system.

10. VIDEO input jack

11. AUDIO input jack (R)

12. AUDIO input jack

13. USB Type A 1.5A

Used for charging the receiver box

of the Wireless.

14. USB Mini B input jack

Used for service.

15. Rear adjuster foot

16. Kensington anti-theft lock slot

17. Rear IR remote sensor

18. AUDIO output jack

19. AUDIO input jack (L)

20. Front adjuster foot

21. COMPUTER PC input jack

22. AC power cord inlet

Front/upper side

Rear/lower side

11 12

147 8 9 10 13

2215 20 1521 19 18 17 16

Overview10

23. Ceiling mount holes

24. Front adjuster foot

25. WDP02 Bracket Screw Hole

26. WDP02 Bracket Fixed Hole

27. Rear adjuster foot

Bottom side

23 27 23 27

24 25 26

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels BenQ Projecteur

BenQ

BenQ MX766 Manuel utilisateur

BenQ

BenQ MX863UST Manuel utilisateur

BenQ

BenQ MP524 Manuel utilisateur

BenQ

BenQ MP610 - SVGA DLP Projector Manuel utilisateur

BenQ

BenQ SH960+ Manuel utilisateur

BenQ

BenQ LK952 Manuel utilisateur

BenQ

BenQ W1070 Manuel utilisateur

BenQ

BenQ Portable Series Manuel utilisateur

BenQ

BenQ MS550 Manuel utilisateur

BenQ

BenQ x3100i Manuel utilisateur

BenQ

BenQ LU9915 Manuel utilisateur

BenQ

BenQ PB2120 - SVGA DLP Projector Manuel utilisateur

BenQ

BenQ MS506 Manuel utilisateur

BenQ

BenQ PU9730 Manuel utilisateur

BenQ

BenQ PB8120 - SVGA DLP Projector Manuel utilisateur

BenQ

BenQ MX720 Manuel utilisateur

BenQ

BenQ MX703 Manuel d'utilisation et d'entretien

BenQ

BenQ PROFESSIONAL PB8253 Manuel utilisateur

BenQ

BenQ PB8230 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ MP515 - SVGA DLP Projector Manuel utilisateur

BenQ

BenQ W1140 Manuel utilisateur

BenQ

BenQ HT4550i Manuel utilisateur

BenQ

BenQ W7000 Manuel utilisateur

BenQ

BenQ MX618ST Manuel d'utilisation et d'entretien

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
