Welcome

MP515 ST/MP525 ST

Digital Projector

User Manual

Table of contents2

Table of contents

Important safety

instructions .........................3

Introduction........................7

Projector features .................................. 7

Shipping contents.................................. 8

Projector exterior view.......................... 9

Controls and functions ....................... 10

Positioning your

projector............................14

Choosing a location............................. 14

Obtaining a preferred projected

image size ............................................. 15

Connection .......................18

Connecting a computer or monitor... 19

Connecting Video source devices....... 20

Operation ..........................23

Starting up the projector..................... 23

Adjusting the projected image ............ 24

Using the menus.................................. 26

Securing the projector......................... 27

Switching input signal......................... 30

Magnifying and searching for details . 31

Selecting the aspect ratio..................... 31

Optimizing the image.......................... 33

Setting the presentation timer ............ 37

Hiding the image ................................. 38

Freezing the image............................... 39

Utilizing FAQ function ....................... 39

Operating in a high altitude

environment ........................................ 40

Locking control keys ........................... 40

Adjusting the sound ............................ 41

Personalizing the projector menu

display...................................................41

Shutting down the projector ...............42

Menu operation ...................................43

Maintenance......................51

Care of the projector............................51

Lamp information................................52

Troubleshooting ...............58

Specifications ....................59

Warranty and Copyright

information.......................64

Regulation statements ......65

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of

information technology equipment. However, to ensure safe use of this product, it is

important that you follow the instructions mentioned in this manual and marked on

the product.

Safety Instructions

1. Please read this manual before you

operate your projector. Save it for

future reference.

2. Do not look straight at the projector

lens during operation. The intense

light beam may damage your eyes.

3. Refer servicing to qualified service

personnel.

4. Always open the lens shutter or

remove the lens cap when the

projector lamp is on.

5. In some countries, the line voltage is

NOT stable. This projector is

designed to operate safely within a

mains voltage between 100 to 240

volts AC, but could fail if power cuts

or surges of ±10 volts occur. In areas

where the mains voltage may

fluctuate or cut out, it is

recommended that you connect your

projector through a power stabilizer,

surge protector or uninterruptible

power supply (UPS).

6. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

Important safety instructions4

Safety Instructions (Continued)

7. When the auto blank sensor does

not work and the projector is under

operation, do not block the

projection lens with any objects as

this could cause the objects to

become heated and deformed or

even cause a fire. To temporarily

turn off the lamp, press BLANK on

the projector or remote control.

8. The lamp becomes extremely hot

during operation. Allow the

projector to cool for approximately

45 minutes prior to removing the

lamp assembly for replacement.

9. Never replace the lamp assembly or

any electronic components unless

the projector is unplugged.

10. Do not operate lamps beyond the

rated lamp life. Excessive operation

of lamps beyond the rated life

could cause them to break on rare

occasions.

11. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

12. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury

or resulting in damage to the

projector.

Important safety instructions 5

Safety Instructions (Continued)

13. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause death

if you should come into contact with

live parts. The only user serviceable

part is the lamp which has its own

removable cover.

Under no circumstances should you

ever undo or remove any other covers.

Refer servicing only to suitably

qualified professional service

personnel.

14. Do not block the ventilation holes.

- Do not place this projector on a

blanket, bedding or any other soft

surface.

- Do not cover this projector with a

cloth or any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

15. Do not place this projector in any of

the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm

clearance from walls and free flow of

air around the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows

rolled up.

- Locations where excessive humidity,

dust, or cigarette smoke may

contaminate optical components,

shorten the projector's life span and

darken the image.

- Locations near fire alarms

- Locations with an ambient

temperature above 40°C / 104°F

- Locations where the altitudes are

higher than 3000 m (10000 feet).

3000 m

(10000 feet)

0 m

(0 feet)

Important safety instructions6

Safety Instructions (Continued)

16. Always place the projector on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of

more than 10 degrees left to right,

nor at angle of more than 15 degrees

front to back. Using the projector

when it is not fully horizontal may

cause a malfunction of, or damage

to, the lamp.

17. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector,

doing so may result in accidents and

possible injury.

18. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet,

disconnect it from the power outlet

and call BenQ to have the projector

serviced.

19. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling Mount Kit for

mounting the projector and ensure it

is securely installed.

Introduction 7

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly

design to deliver high reliability and ease of use.

The projector offers the following features.

• Wall color correction allowing projection on surfaces of several predefined colors

• Quick auto search speeding up the signal detecting process

• Selectable password protected function

• 3D color management allowing color adjustments to your liking

• Selectable quick cooling function making the projector cool in a shorter time

• FAQ to troubleshoot operational problems with one quick key press

• Presentation timer for better control of time during presentations

• High quality manual zoom lens

• One-key auto-adjustment to display the best picture quality

• Digital keystone correction to correct distorted images

• Adjustable color balance control for data/video display

• High brightness projection lamp

• Multi-language On-Screen Display (OSD) menus

• Switchable normal and economic modes to reduce the power consumption

• Less than 1 W power consumption in standby mode

• Built-in speaker providing mixed mono audio when an audio input is connected

• Component HDTV compatibility (YPbPr)

• Optical short throw lens to reduce projection distance greatly without sacrificing

picture quality

• The apparent brightness of the projected image will vary depending on the ambient

lighting conditions, selected input signal contrast/brightness settings, and is directly

proportional to projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers

specifications. This is normal and expected behavior.

Introduction8

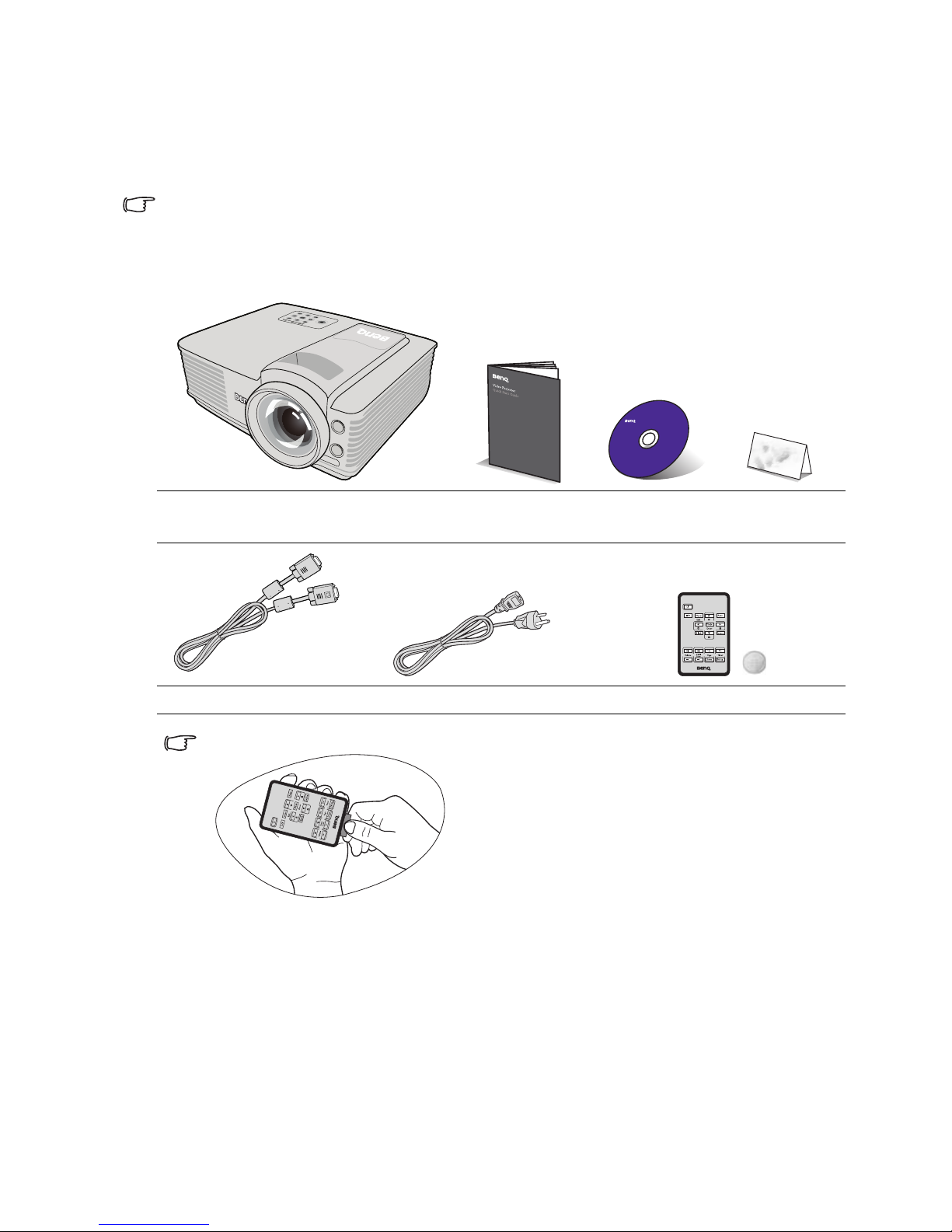

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these

items are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those

illustrated.

*The warranty card is only supplied in some specific regions. Please consult your dealer for

detailed information.

Pull the tab before using the remote control.

Optional accessories

Projector Quick start

guide

User manual

War ranty

card*

VGA cable Power cord Remote control with battery

1. Spare lamp kit

2. Ceiling mount kit

3. RS232 cable

4. Soft carry case

Introduction 9

Projector exterior view

1. External control panel

(See "Controls and functions" on

page 10 for details.)

2. Vent (heated air exhaust)

3. Quick-release button

4. Lens cover

5. Focus ring and Zoom ring

6. Vent (cool air intake)

7. Front IR remote sensor

8. Auto blank sensor

9. Projection lens

10. AC power cord inlet

11. Kensington anti-theft lock slot

12. Rear adjuster foot

13. Ceiling mount holes

14. Lamp cover

15. RS232 control port

16. RGB (PC)/Component Video

(YPbPr/ YCbCr) signal input jack

17. HDMI input port

18. S-Video input jack

Video input jack

19. Audio (L/R) input jacks

PUSH

Front/upper side

10 12

Rear/lower side

15 16 18 19

14 13

Introduction10

Controls and functions

Projector

1. Focus ring

Adjusts the focus of the projected

image.

"Fine-tuning the image size and clarity"

on page 25

2. Zoom ring

Adjusts the size of the image.

"Fine-tuning the image size and clarity"

on page 25

3. POWER indicator light

Lights up or flashes when the

projector is under operation.

"Indicators" on page 57

4. Menu/Exit

Turns on the On-Screen Display

(OSD) menu. Goes back to previous

OSD menu, exits and saves menu

settings.

"Using the menus" on page 26

5. Power

Toggles the projector between standby

mode and on.

"Starting up the projector" on page 23,

"Shutting down the projector" on page

6. Left/

Starts the FAQ function.

"Utilizing FAQ function" on page 39

7. BLANK

Used to hide the screen picture.

"Hiding the image" on page 38

8. TEMPerature warning light

Lights up red if the projector's

temperature becomes too high.

"Indicators" on page 57

9. LAMP indicator light

Indicates the status of the lamp. Lights

up or flashes when the lamp has

developed a problem.

"Indicators" on page 57

10. AUTO

Automatically determines the best

picture timings for the displayed

image.

"Auto-adjusting the image" on page 24

11. Keystone/Arrow keys ( / Up, /

Down)

Manually corrects distorted images

resulting from an angled projection.

"Correcting keystone" on page 25

12. Right/

Activates panel key lock.

When the On-Screen Display (OSD)

menu is activated, the #6, #11, and #12

keys are used as directional arrows to

select the desired menu items and to

make adjustments.

"Locking control keys" on page 40,

"Using the menus" on page 26

For details, see the info provided behind

the hand sign .

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels BenQ Projecteur

BenQ

BenQ HT2150ST Manuel utilisateur

BenQ

BenQ MP771 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ MX863UST Manuel utilisateur

BenQ

BenQ MX520 Manuel utilisateur

BenQ

BenQ PB2140/PB2240 Manuel utilisateur

BenQ

BenQ RS232 Commands Manuel utilisateur

BenQ

BenQ MX511 Manuel utilisateur

BenQ

BenQ i500 Manuel utilisateur

BenQ

BenQ SX914 Manuel d'utilisation et d'entretien

BenQ

BenQ LU9255 Manuel utilisateur

BenQ

BenQ W3000 Manuel utilisateur

BenQ

BenQ MW851UST Manuel utilisateur

BenQ

BenQ PB8120 - SVGA DLP Projector Manuel utilisateur

BenQ

BenQ PB8140/PB8240/PB8250 Manuel utilisateur

BenQ

BenQ TH685 Manuel utilisateur

BenQ

BenQ TH963 Manuel utilisateur

BenQ

BenQ MX711 Manuel utilisateur

BenQ

BenQ LX820ST Manuel utilisateur

BenQ

BenQ LX810STD Manuel utilisateur

BenQ

BenQ MP625P Manuel utilisateur

BenQ

BenQ mp612 Manuel utilisateur

BenQ

BenQ Portable Entertainment Series Manuel utilisateur

BenQ

BenQ PB7230 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ MW519 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
