Welcome

MP615P/MP625P

Digital Projector

User Manual

Table of contents

Important safety

instructions .........................3

Introduction........................7

Projector features .................................. 7

Shipping contents.................................. 8

Projector exterior view.......................... 9

Controls and functions ....................... 10

Projector .............................................. 10

Positioning your

projector............................14

Choosing a location............................. 14

Obtaining a preferred projected image

size........................................................ 15

Connection .......................18

Connecting a computer or monitor... 19

Connecting Video source devices....... 20

Operation ..........................24

Starting up the projector..................... 24

Adjusting the projected image ............ 25

Using the menus.................................. 27

Securing the projector......................... 28

Switching input signal......................... 31

Magnifying and searching for details . 32

Selecting the aspect ratio..................... 32

Optimizing the image.......................... 34

Setting the presentation timer ............ 38

Remote paging operations .................. 39

Hiding the image ................................. 39

Freezing the image............................... 40

Utilizing FAQ function ....................... 40

Operating in a high altitude

environment ........................................ 41

Adjusting the sound.............................41

Adjusting the sound level ....................41

Personalizing the projector

menu display ........................................42

Shutting down the projector ...............42

Menu operation ...................................43

Maintenance......................53

Care of the projector............................53

Lamp information................................54

Troubleshooting ...............60

Specifications ....................61

Dimensions...........................................62

Ceiling mount installation...................62

Timing chart.........................................63

Warranty and Copyright

information.......................66

Regulation statements ......67

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that you

follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before you

operate your projector. Save it for

future reference.

2. Do not look straight at the projector

lens during operation. The intense

light beam may damage your eyes.

3. Refer servicing to qualified service

personnel.

4. Always open the lens shutter or

remove the lens cap when the

projector lamp is on.

5. In some countries, the line voltage is

NOT stable. This projector is designed

to operate safely within a mains

voltage between 100 to 240 volts AC,

but could fail if power cuts or surges

of ±10 volts occur. In areas where the

mains voltage may fluctuate or cut

out, it is recommended that you

connect your projector through a

power stabilizer, surge protector or

uninterruptible power supply (UPS).

6. Do not block the projection lens with

any objects when the projector is

under operation as this could cause

the objects to become heated and

deformed or even cause a fire. To

temporarily turn off the lamp, press

BLANK on the projector or remote

control.

Important safety instructions4

Safety Instructions (Continued)

7. The lamp becomes extremely hot

during operation. Allow the

projector to cool for approximately

45 minutes prior to removing the

lamp assembly for replacement.

8. Do not operate lamps beyond the

rated lamp life. Excessive operation

of lamps beyond the rated life could

cause them to break on rare

occasions.

9. Never replace the lamp assembly or

any electronic components unless

the projector is unplugged.

10. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

11. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause

death if you should come into

contact with live parts. The only

user serviceable part is the lamp

which has its own removable cover.

Under no circumstances should you

ever undo or remove any other

covers. Refer servicing only to

suitably qualified professional

service personnel.

12. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

Important safety instructions 5

Safety Instructions (Continued)

13. Do not place this projector in any of

the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm clearance

from walls and free flow of air around the

projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled up.

- Locations where excessive humidity, dust,

or cigarette smoke may contaminate

optical components, shortening the

projector's life span and darkening the

image.

- Locations near fire alarms

- Locations with an ambient temperature

above 40°C / 104°F

- Locations where the altitudes are higher

than 3000 m (10000 feet).

14. Do not block the ventilation holes.

- Do not place this projector on a blanket,

bedding or any other soft surface.

- Do not cover this projector with a cloth or

any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

15. Always place the projector on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of more

than 10 degrees left to right, nor at angle

of more than 15 degrees front to back.

Using the projector when it is not fully

horizontal may cause a malfunction of, or

damage to, the lamp.

3000 m

(10000 feet)

0 m

(0 feet)

Important safety instructions6

Safety Instructions (Continued)

16. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

17. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector, doing

so may result in accidents and possible

injury.

18. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet, disconnect

it from the power supply's wall socket

and call BenQ to have the projector

serviced.

19. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling Mount Kit for

mounting the projector and ensure it

is securely installed.

Introduction 7

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly

design to deliver high reliability and ease of use.

The projector offers the following features.

• Wall color correction allowing projection on surfaces of several predefined colors

• Quick auto search speeding up the signal detecting process

• Selectable password protected function

• 3D color management allowing color adjustments to your liking

• Selectable quick cooling function makes the projector cool in a shorter time

• Presentation timer for better control of time during presentations

• One-key auto-adjustment to display the best picture quality

• Digital keystone correction to correct distorted images

• Adjustable color balance control for data/video display

• High brightness projection lamp

• Multi-language On-Screen Display (OSD) menus

• Switchable normal and economic modes to reduce the power consumption

• Component HDTV compatibility (YPbPr)

• Less than 1 W power consumption in standby mode

• Built-in speaker providing mixed mono audio when an audio input is connected

The MP625P also offers the following features.

• HDMI compatibility

• The apparent brightness of the projected image will vary depending on the ambient

lighting conditions, selected input signal contrast/brightness settings, and is directly

proportional to projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers

specifications. This is normal and expected behavior.

Introduction8

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items

are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those

illustrated.

*The warranty card is only supplied in some specific regions. Please consult your dealer for

detailed information.

Optional accessories

Projector Power cord VGA cable

Quick start guide User manual CD Warranty card*

Pull the tab before using the remote

control.

Remote control with battery

1. Spare lamp kit

2. Ceiling mount kit

3. Soft carry case

4. RS232 cable

Introduction 9

Projector exterior view

1. External control panel

(See "Projector" on page 10 for

details.)

2. Lamp cover

3. Zoom ring

4. Focus ring

5. Lens cover

6. Vent (heated air exhaust)

7. Front IR remote sensor

8. Projection lens

9. Quick-release button

10. USB input jack

11. S-Video input jack

12. RGB signal output jack

13. RGB (PC)/Component video

(YPbPr/ YCbCr) signal input jack

14. Audio input jack

15. Video input jack

16. RS-232 control port

17. Audio output jack

18. HDMI input jack

19. AC power cord inlet

20. Kensington anti-theft lock slot

21. Ceiling mount holes

22. Rear adjuster foot

23. Speaker

Front/upper side

Rear/lower side

15 16 17

10 18 12 13 14

15 16 1719 921 22

20 23

(MP615P)

(MP625P)

Introduction10

Controls and functions

Projector

6. Mode/Enter

Selects an available picture setup mode.

See "Selecting a picture mode" on page 34

for details.

Activates the selected On-Screen Display

(OSD) menu item. See "Using the menus"

on page 27 for details.

7. SOURCE

Displays the source selection bar. See

"Switching input signal" on page 31 for

details.

8. Power/POWER indicator light

Toggles the projector between standby

mode and on.See "Starting up the

projector" on page 24 and "Shutting down

the projector" on page 42 for details.

Lights up or flashes when the projector is

under operation. See "Indicators" on page

59 for detail.

9. TEMPerature indicator light

Lights up red if the projector's

temperature becomes too high. See

"Indicators" on page 59 for details.

10. Right/AUTO

When the On-Screen Display (OSD)

menu is activated, the #4, #5, and #10 keys

are used as directional arrows to select the

desired menu items and to make

adjustments. See "Using the menus" on

page 27 for details.

Automatically determines the best picture

timings for the displayed image. See

"Auto-adjusting the image" on page 25 for

details.

11. Menu/Exit

Turns on th e On -S creen Display (OSD)

menu. Goes back to previous OSD menu,

exits and saves menu settings.

1. Focus ring

Adjusts the focus of the projected image.

See "Fine-tuning the image size and clarity"

on page 26 for details.

2. Zoom ring

Adjusts the size of the image. See "Fine-

tuning the image size and clarity" on page

26 for details.

3. LAMP indicator light

Indicates the status of the lamp. Lights up

or flashes when the lamp has developed a

problem. See "Indicators" on page 59 for

details.

4. Keystone/Arrow keys ( / Up, /

Down)

Manually corrects distorted images

resulting from an angled projection. See

"Correcting keystone" on page 26 for

details.

5. Left/BLANK

Used to hide the screen picture. See "Hiding

the image" on page 39 for details.

Autres manuels pour MP615P

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels BenQ Projecteur

BenQ

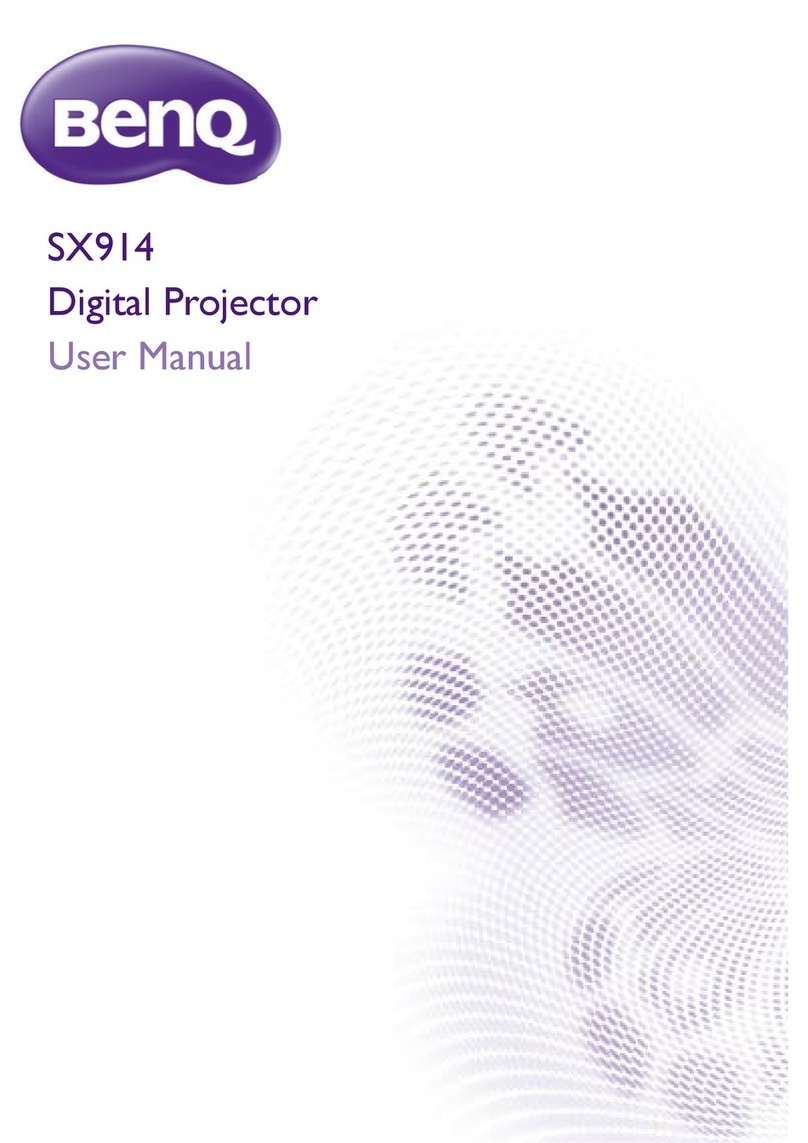

BenQ SX914 Manuel utilisateur

BenQ

BenQ BH3002 Manuel utilisateur

BenQ

BenQ SH910 Manuel utilisateur

BenQ

BenQ HT2050 Manuel utilisateur

BenQ

BenQ LX890USTD Manuel utilisateur

BenQ

BenQ HC1200 Manuel utilisateur

BenQ

BenQ MX768 Manuel utilisateur

BenQ

BenQ MP623 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ Joybee GP2 Manuel utilisateur

BenQ

BenQ W700 Manuel utilisateur

BenQ

BenQ PB6100 - SVGA DLP Projector Manuel utilisateur

BenQ

BenQ 5Series Manuel utilisateur

BenQ

BenQ GV10 Manuel utilisateur

BenQ

BenQ MX766, MW767, MX822ST Manuel utilisateur

BenQ

BenQ TH690ST Manuel utilisateur

BenQ

BenQ MX613ST Manuel utilisateur

BenQ

BenQ SP870 - XGA DLP Projector Manuel utilisateur

BenQ

BenQ W6000 - DLP Projector - HD 1080p Manuel utilisateur

BenQ

BenQ W7000+ Manuel utilisateur

BenQ

BenQ PB8120 - SVGA DLP Projector Manuel d'instructions d'installation

BenQ

BenQ V5000i Manuel utilisateur

BenQ

BenQ L710 Series Manuel utilisateur

BenQ

BenQ Portable Series Manuel utilisateur

BenQ

BenQ MP730 - WXGA DLP Projector Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
