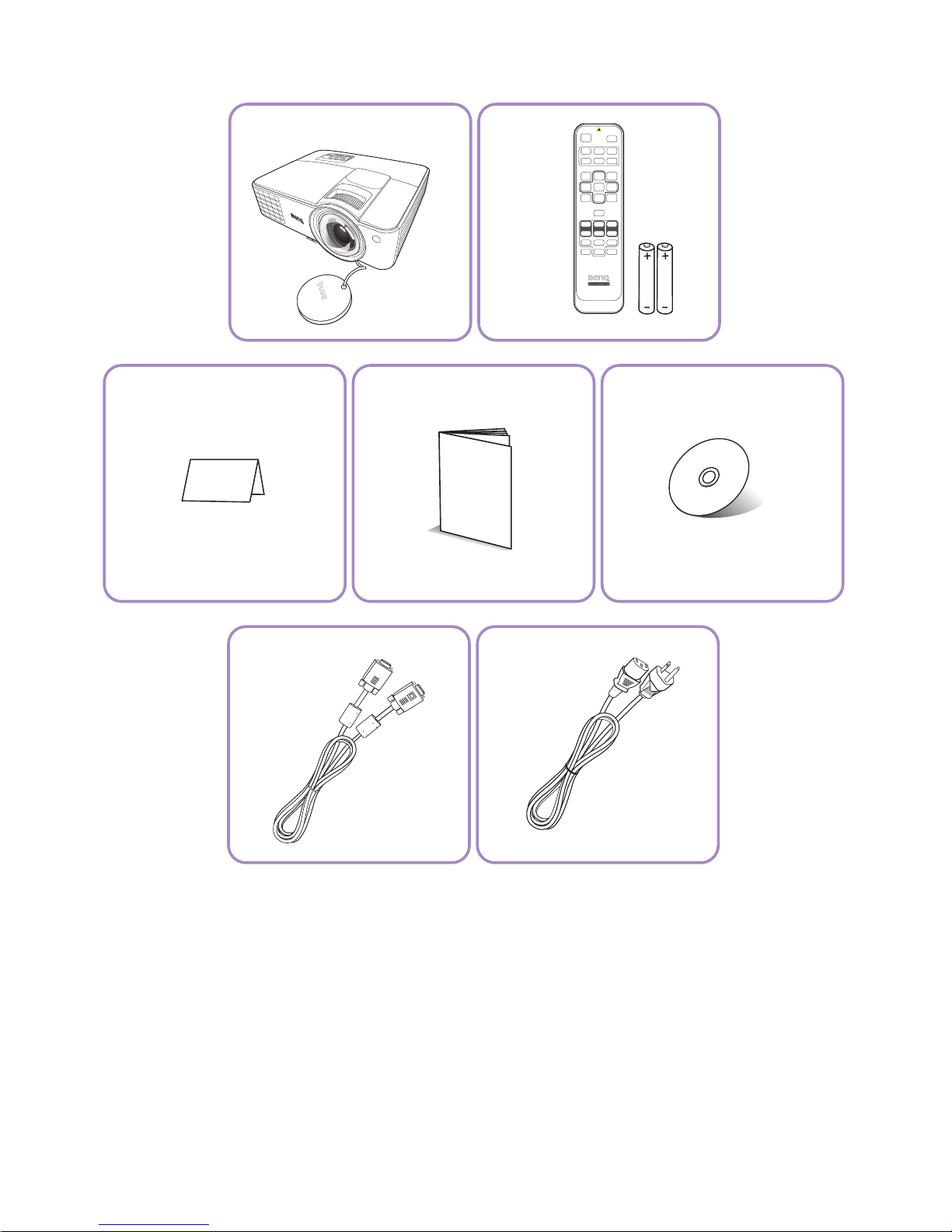

BenQ MX818ST Manuel utilisateur

Projection dimensions

Diagonal

Inch mm

(mm)

Vertical offset

(mm)

Distance from screen

(mm)

Screen size

The screen aspect ratio is 4:3 and the projected picture is 4:3

All measurements are approximate and may vary from the actual sizes.

BenQ recommends that if you intend to permanently install the projector, you should physically test the

projection size and distance using the actual projector in situ before you permanently install it, so as to make

allowance for this projector's optical characteristics. This will help you determine the exact mounting position

so that it best suits your installation location.

80 2032 1219 1626 988 183

100 2540 1524 2032 1235 229

120 3048 1829 2438 1481 274

150 3810 2286 3048 1852 343

180 4572 2743 3658 2222 411

200 5080 3048 4064 2469 457

220 5588 3353 4470 2716 503

240 6096 3658 4877 2963 549

270 6858 4115 5486 3333 617

300 7620 4572 6096 3704 686

Screen size

Screen

Center of lens

Projection distance

<H>

<W>

Vertical offset

MX818ST/MX819ST

Projection dimensions

Diagonal

Inch mm

(mm)

Vertical offset

(mm)

Distance from screen

(mm)

Screen size

The screen aspect ratio is 16:10 and the projected picture is 16:10

All measurements are approximate and may vary from the actual sizes.

BenQ recommends that if you intend to permanently install the projector, you should physically test the

projection size and distance using the actual projector in situ before you permanently install it, so as to make

allowance for this projector's optical characteristics. This will help you determine the exact mounting position

so that it best suits your installation location.

Screen size

Screen

Center of lens

Projection distance

<H>

<W>

Vertical offset

MW820ST

80 2032 1077 1723 842 54

100 2540 1346 2154 1053 67

120 3048 1615 2585 1263 81

150 3810 2019 3231 1579 101

180 4572 2423 3877 1895 121

200 5080 2692 4308 2105 135

220 5588 2962 4739 2316 148

240 6096 3231 5169 2526 162

270 6858 3635 5816 2842 182

300 7620 4039 6462 3158 202

Wall mount installation

Minimum installation requirements

Computer

Resolution: XGA


Resolution: XGA

Diagram

Reference

SMART

Board

660

Smart

Board

680

Promethean

ActivBoard

164

Promethean

ActivBoard

178

ClassBoard2

77.5

Hitachi

StarBoard

FX-63

StarBoard

FX-77

Image Diagonal (inches)

Image Height (mm)

Image Width (mm)

Distance from floor to

bottom of image (mm)

Distance from screen

surface to projector

rear case (mm)

Distance from top case

to the top of image

(mm)

Distance from top of

wall mount to ceiling

(mm)

Minimum Ceiling Height

(mm)

Computer Resolution:

WXGA

Image Resolution: WXGA

Diagram

Reference

SMART

Board

685

Promethean

ActivBoard

387

Hitachi

FX-TRIO-

88W

Hitachi

FX-DUO-

88W

Image Diagonal (inches) D 87 87 88 88

Image Height (mm) H 1171 1171 1181 1181

Image Width (mm) W 1874 1874 1887 1887

Distance from floor to

bottom of image (mm) f 900 900 900 900

Distance from screen surface

to projector lens (mm) a 916 916 926 926

Distance from top case to

the top of image (mm) b 6.8 6.8 7.5 7.5

Distance from top of wall

mount to ceiling (mm) c 50 50 50 50

Minimum Ceiling Height

(mm) e 2461.8 2461.8 2472.5 2472.5

Wall mount installation

Minimum Ceiling Height (mm) = f+H+b+60+274+c

150

180

274

Ceiling

floor

Distance from floor to

bottom of image

screen

Projection

area Wall plate

232.6

•The dimensions are based on the BenQ wall mount (P/N: 5J.J4R10.001).

•All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you

intend to permanently install the projector, you should physically test the projection size and distance

using the actual projector in situ before you permanently install it, so as to make allowance for this

projector's optical characteristics. This will help you determine the exact mounting position so that it best

suits your installation location.

•The dimensions supplied are offered as a guide only and may differ depending on several factors relating to

any specific installation.

•The dimensions are based on the projector being configured with zero keystone correction.

•The dimensions assume that the wall mount arm is positioned 90° from the bottom case of projector and

screen surface.
