Belkin F5D5131-16 - 10/100 Switch Manuel utilisateur

User

Manual

F5D5131ea16

F5D5131ea24

Share large files at faster

network speeds, with

maximum efficiency

Connect

16-Port 10/100

Network Switch

24-Port 10/100

Network Switch

1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Getting to Know your Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3 Connecting Networking Devices to your Switch . . . . . . . . . . . . . . . 4

4 Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5 Placement of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

8 Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table of Contents

Congratulations on your purchase of this high-quality Belkin 16- or

24-Port Network Switch. Backward-compatible with 10Mbps networks,

the Switch easily migrates your network from conventional Ethernet to a

multiple-segment, 100Mbps Fast Ethernet connection. It delivers dedicated

100Mbps links to each directly attached LAN segment or PC, enabling your

servers and workstations to transfer large AV and graphic files efficiently

throughout your network. This makes the Switch an excellent way to

increase the throughput of interconnected Ethernet and Fast Ethernet hubs

or server farms.

Engineered for convenient setup and operation, each Switch features a

durable metal chassis that can be placed on the desktop or integrated into

a 19-inch rack, using the included rack-mount kit. All ports auto-negotiate

between a 10- or 100Mbps network and adjust for straight-through or

crossover cables, so you don’t have to worry about cable type.

Introduction

section

Getting to Know your Switch

Features

• High-speed, dedicated 10/100 Ethernet ports

– 16 ports (Belkin 16-Port 10/100 Network Switch F5D5131-16)

– 24 ports (Belkin 24-Port 10/100 Network Switch F5D5131-24)

• Standards

– IEEE 802.3u 100Base-Tx

– IEEE 802.3 10Base-T

• 1U chassis, place on your desk or 19-inch rack

• Internal power supply (100–240VAC/50–60Hz universal input)

• Auto MDI/MDIX ports

• Auto-negotiation between 10- and 100Mbps on all ports

• Auto-negotiation for full and half duplex on all ports

• Collision detection on all ports

• IEEE 802.3x PAUSE frames flow control to prevent packets from being

dropped under heavy loads

• Back-pressure flow control in half-duplex operation

• Support for up to 4K MAC address entries

• Store-and-forward switching to ensure compatibility with standards-

based hubs, switches, and cards from any vendor

• A Belkin Limited Lifetime Warranty and free, 24-hour

technical support

Package Contents

• Belkin 16- or 24-Port 10/100 Network Switch

• AC Power Cord

• Kit for 19” Rack Installation

• Self-Adhesive Rubber Pads for Desktop

• User Manual (CD-Rom)

Introduction

Front-Panel LEDs

Belkin 16- and 24-Port 10/100 Network Switches feature two rows of LEDs

that provide information about connection speed, link/activity, plus a

separate Power LED.





       

       





(a) Power (POWER) LED

• Green – Power on, normal operation

• Off – Power off, no power to the Switch

(b) Link and Activity (Link/Act) LED

• Solid Green – 100Base-Tx network device is correctly connected to the

Switch through this port

• Blinking Green – Data is being transmitted and received through this port

at 100Mbps

• Solid Orange – 10Base-T network device is correctly connected to the

Switch through this port

• Blinking Orange – Data is being transmitted and received through this

port at 10Mbps

• Off – No link is established

(b)

(a)

Introduction Getting to Know your Switch

section

Connecting your Switch to your Computers

1. Power down all your equipment.

2. Connect a Category 5e or 6 Ethernet cable between each computer’s

network interface card (NIC) and one of the numbered ports on the front

of the Switch.

3. All switch ports can automatically negotiate speeds at

full- and half-duplex modes to allow users to attach 10Base-T and

100Base-Tx network devices.

4. Connect the power cord into the power socket in the rear of the Switch;

now plug the other end of the power cord into a power source (wall jack

or power strip).

Connecting Networking Devices to your Switch

Connecting your Switch to another Switch

1. Connect a Category 5e or 6 cable between one of the numbered ports

on the front of the Switch and one of the numbered ports on the other

Switch to which you are cascading or connecting.

2. All switch ports can automatically negotiate speeds at

full- and half-duplex modes to allow users to attach 10Base-T and

100Base-Tx network devices, network switches, or hubs.

3. All ports support auto MDI and MDIX functionality. When cascading or

connecting switches or hubs, the user can use a straight-through or

crossover cable.

Important: When connecting two switches together, use a single cable.

If multiple cables are used, loops may occur resulting in unwanted

collisions. This will result in poor network performance.

Cabling Distances

• 328 ft. (100m)

Recommended Cabling Standard

• Category 5, 5e, or 6 for Ethernet (10Mbps) and Fast Ethernet (100Mbps)

connections

Connecting Networking Devices to your Switch

section

988

Placement of the Switch

This Switch segments your network, significantly increasing both bandwidth

and throughput. Each port on the Switch can be attached to any Ethernet,

Fast Ethernet, or Gigabit Ethernet device, such as another switch, or a

server’s network adapter. All ports operate at 10/100Mbps full and half

duplex, providing up to 200Mbps of bandwidth to the attached device.

Bridging Functions

This Switch provides fully transparent bridging functions. It automatically

learns node addresses that are subsequently used to filter and forward

all traffic based on the destination address. When traffic passes between

devices attached to the same shared collision domain, those packets are

filtered from the Switch. But when traffic must be passed between unique

segments (i.e., different ports on the Switch), the high-speed switching

fabric forwards the packets at near-zero latency.

Switching Functions

Store-and-forward switching is used to forward traffic to other ports. This

scheme ensures data integrity and provides a clean data stream.

Sample Application

This Switch is designed to operate as a small workgroup switch. It can

provide 10- or 100Mbps connections to workstations and to high-speed

servers. It can also provide a 100Mbps uplink to the network backbone.

Applications

The Switches can be placed on a flat surface or in a 19-inch rack.

Placement on a Flat Surface

1. Affix the four included rubber feet on the bottom of the Switch in the area

that is clearly marked on each of the four corners.

2. Make sure the Switch is placed in an area

that allows for proper ventilation.

3. Place on a flat surface.

Placement in a 19-Inch Rack

1. Do not affix the four rubber feet on the Switch when

rack-mounting. If already affixed, remove.

2. Attach the mounting bracket to each side of the Switch with

the included screws.

3. Place the Switch in the rack and align the holes of the

mounting bracket with the correct hole in the rack.

4. Place and tighten the screws of each mounting bracket into the rack.

Placement of the Switch

section

1110

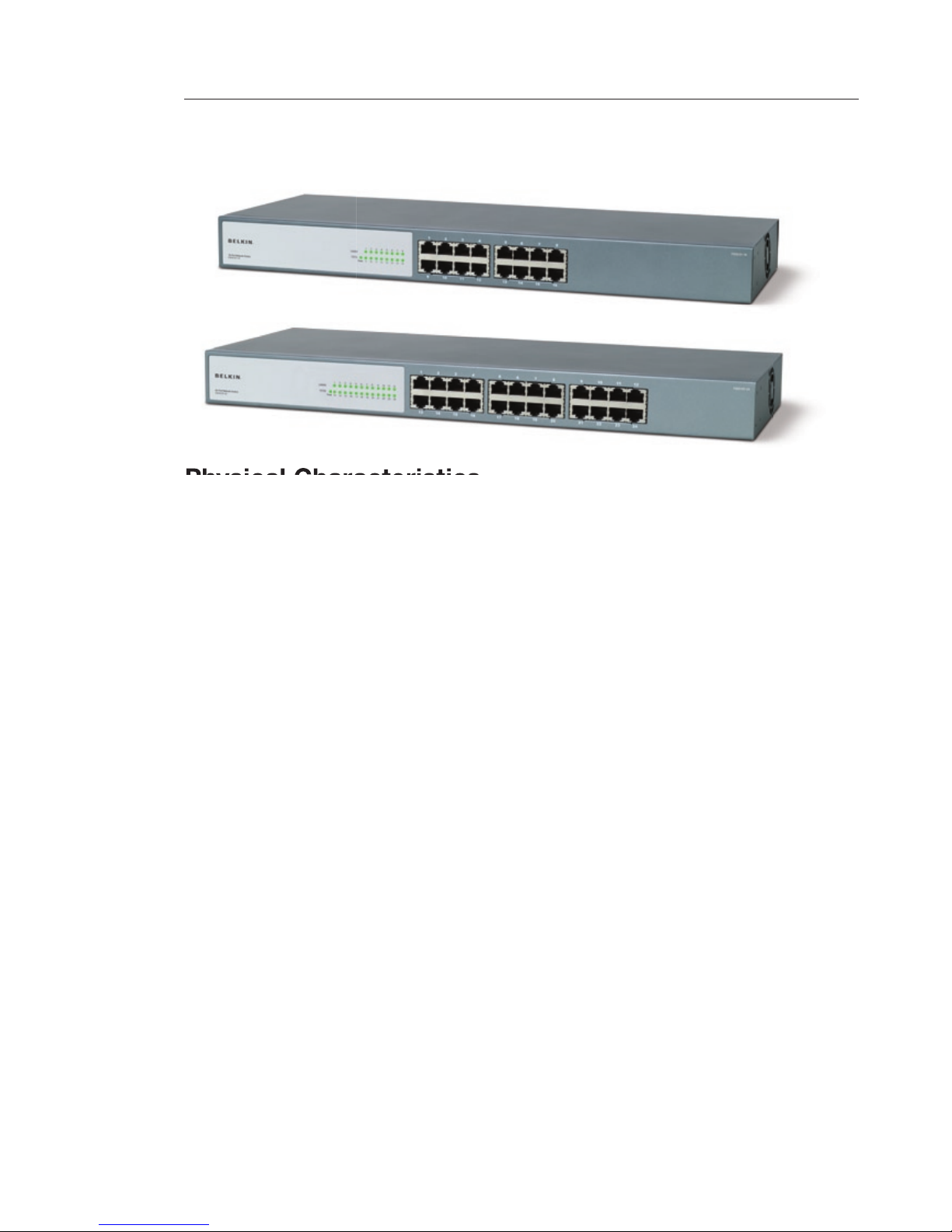

Physical Characteristics

Standards Conformance IEEE Std 802.3-2002

Communication Rate 10- and 100Mbps

Communication Mode Full or half duplex at 10/100Mbps

Media Supported 10Base-T: 100-Ohm Category 3 or

better twisted-pair 100Base-Tx: 100-Ohm

Category 5 or better twisted-pair

Number of Ports F5D5131-16: 16 RJ45 100Base-Tx ports

F5D5131-24: 24 RJ45 100Base-Tx ports

Indicator Panel Power

Ports: Link/Act

Power Requirement Input Voltage: 100–240V AC @ 50–60Hz

Power Consumption 7.78W maximum

Temperature Operating: 0 ~ 40° C (32 ~ 98° F)

Storage: -40 ~ 70° C (-40 ~ 158° F)

Humidity 10% to 90% non-condensing

Immunity EN 61000-4-2/3/4/5/6/8/11

Emissions FCC Class A, CISPR Class A,EN 61000-3-2/3

Safety CSA/CUS (CSA 60950-1 & UL 60950-1) TÜV/

GS (EN 60950-1)

Physical Dimensions 17.32 x 6.77 x 1.69 in. (44 x 17.1 x 4.4cm)

Physical Characteristics

Product Specifications
