Belkin 4x4 USB Peripheral Switch Manuel utilisateur

Belkin Ltd.

+44 (0) 1933 35 2000

Rushden,

United Kingdom

Belkin B.V.

+31 (0) 20 654 7300

Schiphol-Rijk,

The Netherlands

Belkin GmbH

+49 (0) 89 143405 0

Munich,

Germany

Belkin SAS

+33 (0) 1 41 03 14 40

Boulogne-Billancourt,

France

Belkin Nordic

+46 (0) 8 5229 1870

Kista,

Sweden

All trade names are registered trademarks of

respective manufacturers listed.

P74077uk-A

User Manual

F1U400uk

4x4 USB

Peripheral Switch

Share four USB devices with up to

four computers

Overview

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Feature Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Operating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Unit Display Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation

Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Switching Through Software

Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Switching USB Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Automatic Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Courtesy Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Naming Your Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Manual Push-Button Selectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

TABLE OF CONTENTS

Introduction

Congratulations on your purchase of the Belkin 4x4 USB Peripheral Switch

(the Switch). This innovative product lets you access four USB devices,

such as printers, cameras, scanners, and external hard drives, from up to

four computers simultaneously. It is designed to give you immediate,

convenient push-button or software switching access to your USB devices.

This manual will provide details about your new Switch, from installation

and operation to troubleshooting, in the unlikely event of a problem.

For quick and easy installation, please refer to the Quick Installation Guide

included with your Switch.

OVERVIEW

Package Contents

• Belkin 4x4 USB Peripheral Switch

• Software Installation CD

• USB Cable

• User Manual

• Quick Installation Guide

• Registration Card

• 5V DC, 2.5A AC Power Supply

Feature Overview

4x4 USB Peripheral Switch Software

The Switch features a user-friendly software interface that allows you to share up

to four USB peripherals among up to four connected computers.

Light-Emitting Diode (LED) Display

The LED displays on the top panel of the Switch function as status monitors.

They indicate which device is being accessed by a computer.

Manual Push-Button Selectors

Located conveniently on top of the Switch, manual push-button selectors make

for easy switching and port selection. Each button controls a USB device that

can be switched to whichever computer port you desire.

OVERVIEW

Courtesy Alert

The courtesy alert notifies other users that a device is in use. However, it does

not restrict other users from taking control of the device.

Equipment

Cables

To connect to the Switch, each computer requires a USB device cable (A to B).

Recommended Belkin device Cables

• F3U133-XX-GLD

• F3U133-XX

Operating Systems

The Belkin 4x4 USB Peripheral Switch is for use with computers running:

Platforms

• Windows® 98 SE, Me, 2000, XP

OVERVIEW

Computer-

Indicating LEDs

Push-Button

Selectors

Device-

Indicating LEDs

CPU/

KVM

Console

Reset

Serial 02

Serial 01

Network

USB Device Ports

Power Jack

Computer Ports

5V/2.5A

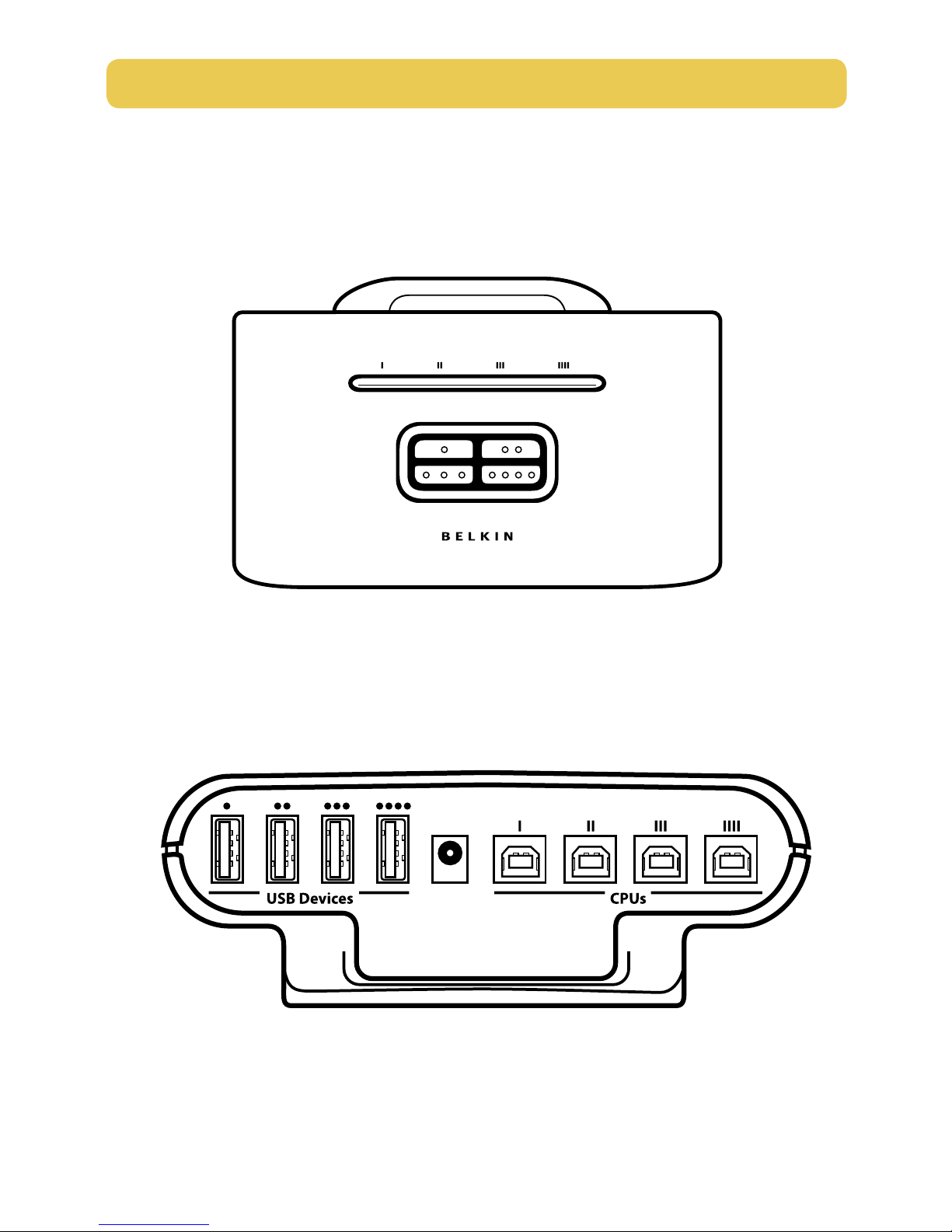

Unit Display Diagrams

Top View of the 4x4 USB Peripheral Switch

Back View of the 4x4 USB Peripheral Switch

OVERVIEW

Wall

Mount Slots

Bottom View of the 4x4 USB Peripheral Switch

OVERVIEW

Specifications

Part No.: F1U400

Power: 5V DC, 2.5A AC Adapter (required)

USB Device Port Connector: USB Type A Receptacle

USB Computer Port Connector: USB Type B Receptacle

Manual Push Buttons: 4

LED Indicators: 8

USB Device Ports: 4

USB Computer Ports: 4

Enclosure: High-Impact Plastic

Dimensions: 1.9 (H) x 6.0 (W) x 4.3 (D) in.

Weight: 0.3 lbs. (136g)

Operating Temp: 41° to 104° F (5~40° C)

Storage Temp: -4° to 140° F (-20~60° C)

Warranty: 2 Year

Note: Specifications are subject to change without notice.

2. Double-click on “My Computer”.

3. Double-click on the CD-ROM drive.

4. Double-click on the folder named “F1U400”.

5. Double-click on the file named “Setup.exe”.

6. Click “Next” on the InstallShield Wizard.

Software Installation

Windows

Before you begin, be sure that:

1. the Switch is not connected to your computer;

2. the Switch supports your operating system (see page 3); and

3. your USB devices are compatible with your connected computers.

To install the software:

1. Place the CD in the CD tray in your PC.

INSTALLATION

7. Setup will install the files in the folder listed under “Destination Folder”.

To install to this folder, click “Next”. To install to a different folder, click

“Browse” and select another folder.

8. When the InstallShield Wizard is complete, click “Finish”.

9. A shortcut icon to the 4x4 USB Peripheral Switch software will appear on

your desktop.

Note: If the software fails to install successfully, please run “uninstall” for the

Switch and then reinstall, repeating steps 2-7.
