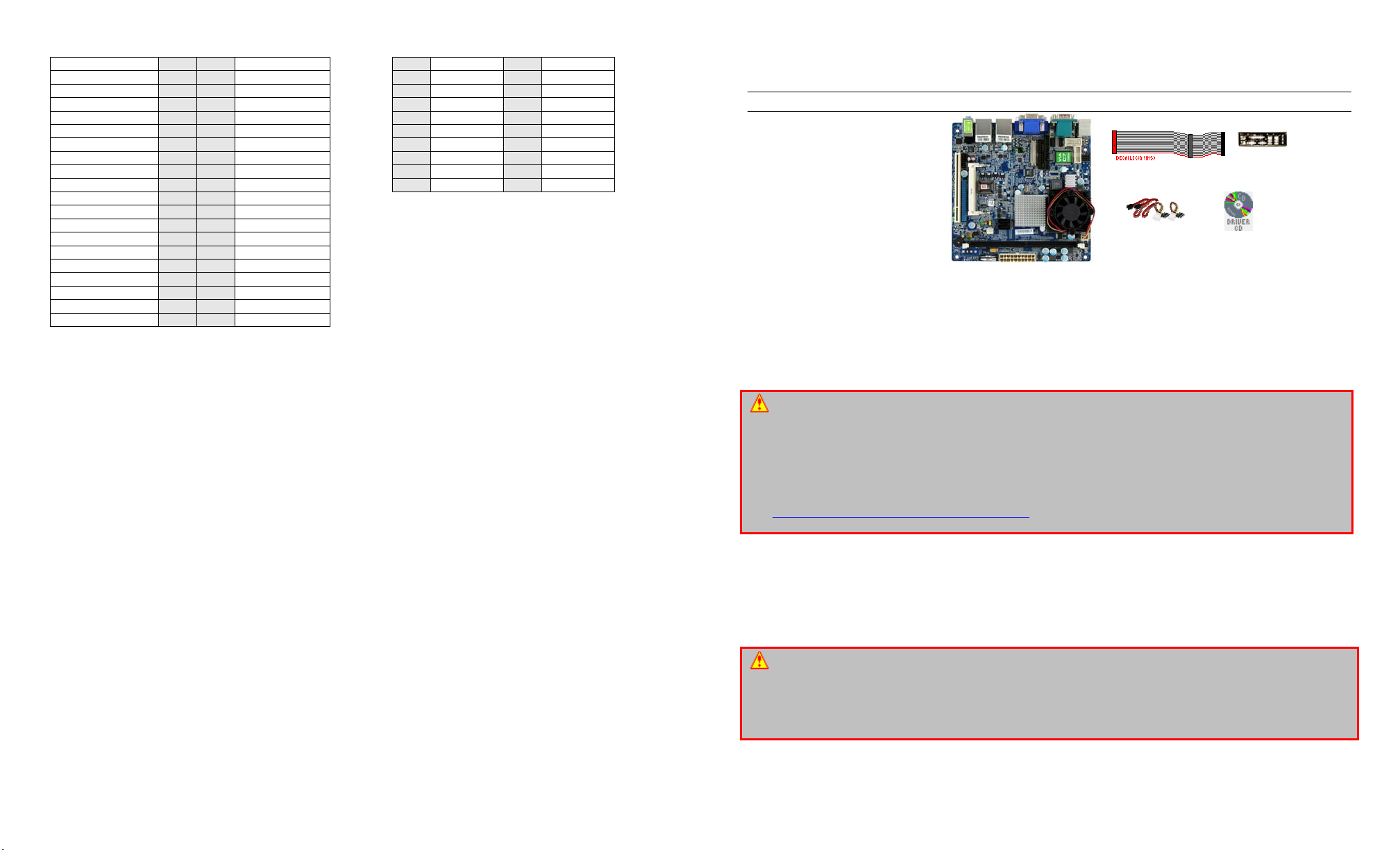

LVDS Flat Panel Connector: JLVDS1

+12V 2 1 +12V

+12V 4 3 +12V

GND 6 5 +12V

GND 8 7 VCC3/VCC5

LCD_VDD 10 9 LCD_VDD

LDDC_DATA 12 11 LDDC_CLK

LVDS_VDDEN 14 13 L_BKLTCTL

GND 16 15 L_BKLTEN

LA_DATA0 18 17 LA_DATA0#

LA_DATA1 20 19 LA_DATA1#

LA_DATA2 22 21 LA_DATA2#

LA_CLK 24 23 LA_CLK#

LA_DATA3 26 25 LA_DATA3#

GND 28 27 GND

LB_DATA0 30 29 LB_DATA0#

LB_DATA1 32 31 LB_DATA1#

LB_DATA2 34 33 LB_DATA2#

LB_CLK 36 35 LB_CLK#

LB_DATA3 38 37 LB_DATA3#

GND 40 39 GND

ATX 20 Pin System Power Connector: ATX1

1 3.3V 11 3.3V

2 3.3V 12 -12V

3 GND 13 GND

4 5V 14 PS_ON

5 GND 15 GND

6 5V 16 GND

7 GND 17 GND

8 PW_OK 18 -5V

9 5V_SB 19 5V

10 12V 20 5V

SATA &

MX700CX-C15

VIA CX700 chipset with C7 1.5GHz Processor Support

User’s Quick Start Card Version 1.00 http://www.bcmcom.com

Inspect the Package:

One MX700CX-C15 Motherboard

One CPU Cooler onboard

One Standard I/O Shield

Two SATA Cable

One IDE Cable

One User’s Quick Start Card

One Driver/ User’s manual CD

Responsibility:

This manual is provided “As-Is” with no warranties of any kind, expressed or implied, including, but not limited to the

implied warranties or conditions of this product’s fitness for any particular purpose. In no event shall we be liable for any

loss of profits, loss of business, loss of data, interruption of business, or indirect, special, incidental, or consequential

damages of any kind, even the possibility of such damages arising from any defect or error in this manual or product. We

reserve the right to modify and update the user manual without prior notice.

WARNING: CMOS Battery Damage

Replace your system’s CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell (or equivalent) battery

type to avoid risk of personal injury or physical damage to your equipment. Improper installation might cause battery to

explode. Always dispose of used batteries according to the manufacturer’s instructions, or as required by the local

ordinance (where applicable). The damage due to not following this warning will void your motherboard’s manufacturer

warranty.

Perchlorate Material- Special Handling May Apply.

See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

Additional Information:

Additional information on setting this board up can be found in the User’s Manual in the provided CD or DVD ROM. The

Online User’s Manual and FAQ/Knowledge Base can be found on our website by visiting our website:

http://www.bcmcom.com. If your question is not answered in our FAQ/Knowledge Base, visit our forums and post your

messages or submit a new FAQ through FAQ Submittal form for us to add your question in our FAQ with our answer.

ATTENTION: Incorrect BIOS Setup

If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable that you do not modify

any of the settings than otherwise instructed in the User’s Quick Start Card. Even a seemingly small incorrect adjustment

or modification in the BIOS setup can render your system unstable or unusable. Incorrect BIOS setup is not covered by

your motherboard’s manufacturer warranty. Try Clear CMOS information when system does not boot after BIOS settings

change.

I/O Shield

MX700CX-C15

WARNING: Electrostatic Sensitive Device (ESD)

Static electricity can easily damage your motherboard and will void your motherboard warranty. Keep the motherboard

and other system components in their anti-static packaging until you are ready to install them. Touch a grounded surface

before you remove any system component from its protective anti-static packaging. Unpacking and installation should be

done on a grounded, anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same

points as the anti-static mat. During configuration and installation touch a grounded surface frequently to discharge any

static electrical charge that may have built up in your body. Avoid touching the components when handling the

motherboard or a peripheral card. Handle the motherboard and peripheral cards either by the edges or by the peripheral

card case-mounting bracket.

WARNING: Misplaced Jumper Damage

Incorrect jumpers and connectors settings may lead to damage to your motherboard and will void your motherboard

warranty. Please pay special attention to not connect these headers in the wrong direction. DO NOT change ANY jumpers

while the motherboard has power.

Jumper / Connector

Name Description Note

J1 I2C Bus Connector 1x 4 pin

J2, J3, J4, J5 COM1, COM2, COM3, COM4 Power Jumper 4x 3 pin

J6 Digital IO Connector 2x 5 pin

J7 LCD Power Source 1x 3 pin

J8 Front Panel LAN LED 2 x 5 pin

CLR_CMOS Clear CMOS Jumper 1x 3 pin

JCF_SEL1 Compact Flash Select 1x 3 pin

IDEB1 IDE 2x 20 pin (keyed)

CF1 Compact Flash Slot

SATA1 Serial ATA 1

SATA2 Serial ATA 2

JAUD1 Audio Amplifier 1x 4 pin

JAUD2 Front Audio 2x7 pin (keyed)

CPUFAN1 CPU fan 1x 3 pin

SYSFAN1 System fan 1x 3 pin

TV/CRT TV Out / CRT Out Select 1x 3pin

JTV1 TV Out 2x3 pin (keyed)

JFP1 Front Panel 2x5 pin (keyed)

JLPT1 Parallel Port 2x13 pin (keyed)

F_USB1 Front USB1 2x5 pin (keyed)

PCI1 PCI Slot

MINIPCI1 MINI PCI Slot

JLVDS1 LVDS Connector 2x20 pin

IRDA1 IRDA Header 2x 3 (keyed)

JCD1 CD_IN Header 1x 4 pin

CON1 Mini PCI-Express Slot

ATX1 ATX Power Connector 2x 10 Block

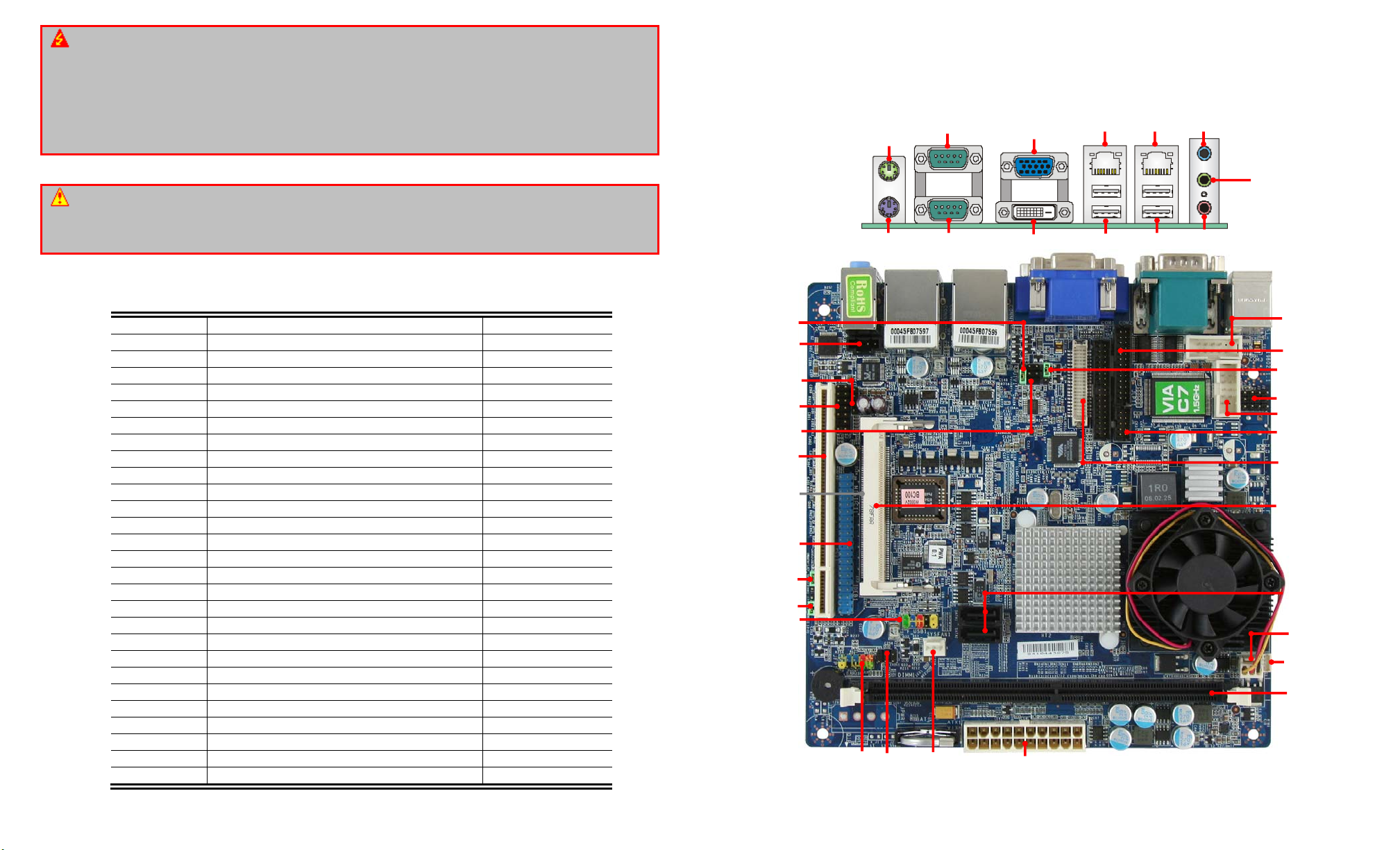

Motherboard Layout:

PS2 MS COM1 RGB VGA LAN2LAN1

PS2 KB COM2 DVI USB2USB1

LINE-IN

MIC

LINE-OUT

PCI 1

F_USB1

JCD1

IRDA1

IDE1

JCF_SEL1

ATX POWER

CF1

(BOTTOM)

SYS FAN

CPU FAN

DIMM1

JFP1

MiniPCI1

CLR_CMOS

JLPT1

COM3

COM4

JLVDS1

TV/CRT1

J5, J4, J3, J2

JAUD2

JAUD1

JTV1

SATA1, 2

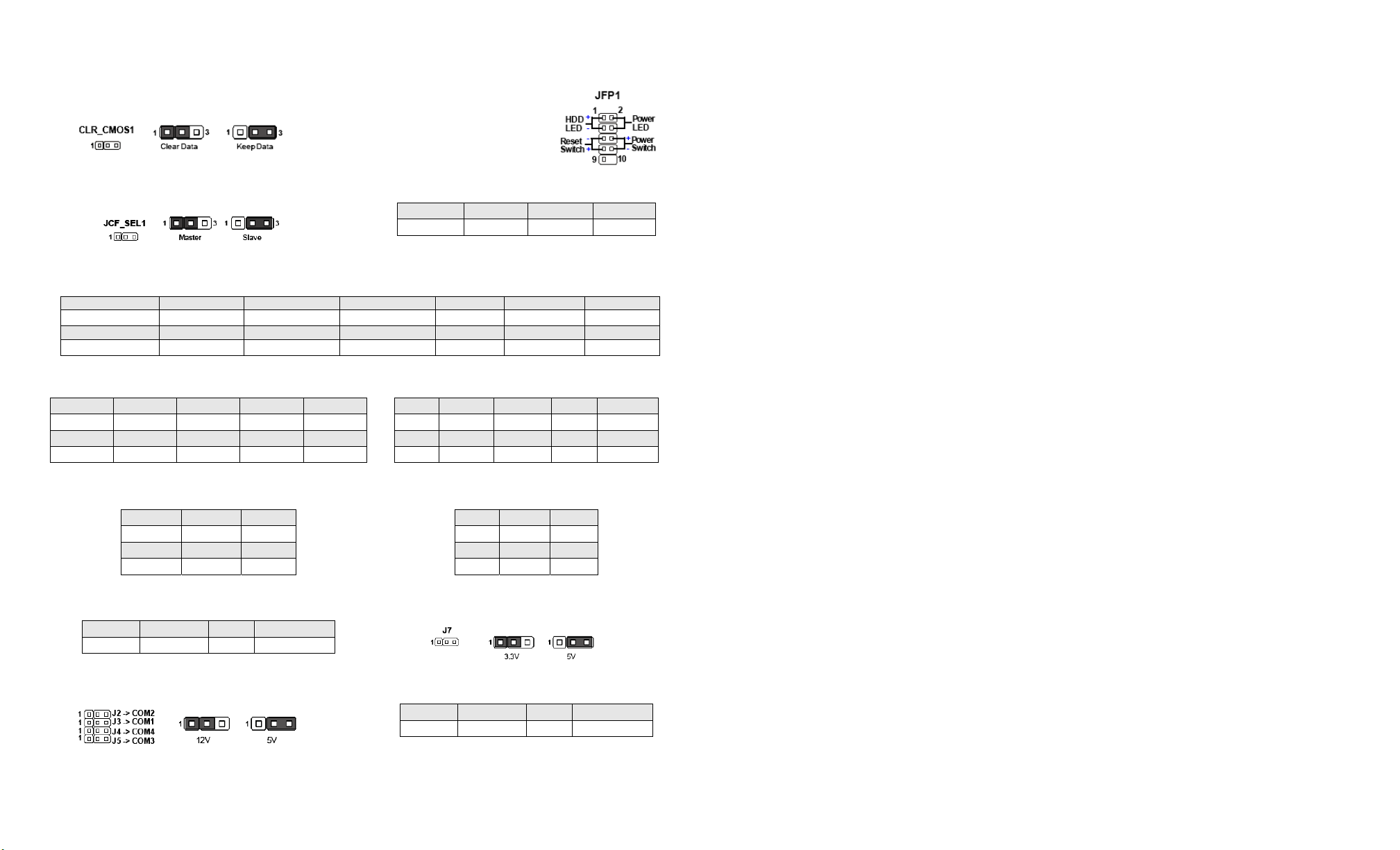

Clear CMOS Jumper: CLR_CMOS1

Front Panel Connector:

JFP1

CF Mode Selecting Jumper: JCF_SEL1

Audio Amplifier Connector: JAUD1

Pin1 Pin2 Pin3 Pin4

AMP_R+ AMP_R- AMP_L+ AMP_L-

Front Audio Connector: JAUD2

Pin13 Pin11 Pin9 Pin7 Pin5 Pin3 Pin1

SIDE_SURR_L JAUD_DET CEN_OUT L_OUT GND SPDF_OUT 5VSB

Pin14 Pin12 Pin10 Pin8 Pin6 Pin4 Pin2

SIDE_SURR_R AUDIO GND SURR_OUT_L SURR_OUT_R SPDF_IN NA VCC3

Digital IO Connector: J6

Pin1 Pin3 Pin5 Pin7 Pin9

GND N_GPO3 N_GPO2 N_GPI3 N_GPI2

Pin2 Pin4 Pin6 Pin8 Pin10

VCC5F N_GPO1 N_GPO0 N_GPI1 N_GPI0

Front USB Connector: F_USB1

Pin1 Pin3 Pin5 Pin7 Pin9

VCC USB0- USB0+ GND Key

Pin2 Pin4 Pin6 Pin8 Pin10

VCC USB1- USB1+ GND USBOC

TV-OUT Connector: JTV1

Pin1 Pin3 Pin5

TVGND LY LC

Pin2 Pin4 Pin6

LCVBS TVGND KEY

IRDA Infrared Module Header: IRDA1

Pin1 Pin3 Pin5

NC VCC5 IRTX

Pin2 Pin4 Pin6

KEY GND IRRX

I2C Bus Connector: J1

Pin1 Pin2 Pin3 Pin4

VCC5F SMBCLK GND SMBDATA-

LCD Power Source Jumper: J7

COM Port Power Jumpers: J2, J3, J4, J5

CD-In Connector: JCD1

Pin1 Pin2 Pin3 Pin4

L GND GND R
