BCM FR550 Manuel utilisateur

FR550 Pentium PCI

ATX Mainboard

User’s Manual

FR550

User‘s Notice

Static Electricity Precaution

Static electricity can easily damage your FR550 mainboard. Observing a few basic

precautions can help you safeguard against damage that could result in expensive repairs.

Follow the simple measures below to protect your equipment from static electricity damage:

Keep the mainboard and other system components in their anti-static packaging until you are

ready to install them.

Touch a grounded surface before you remove any system component from its protective anti-

static packaging. Unpacking and installation should be done on a grounded, anti-static mat.

The operator should be wearing an anti-static wristband, grounded at the same points as the

anti-static mat.

After removing the mainboard from its original packing, only place it on a grounded, anti-

static surface component side up. Immediately inspect the board for damage. Due to shifting

during shipping, it is suggested that the installer press down on all of the socket IC‘s to ensure

they are properly seated. Do this only with the board placed on a firm flat surface.

During configuration and installation, touch a grounded surface frequently to discharge any

static electrical charge that may have built up in your body. The best precaution is to wear a

grounded wrist strap. When handling the mainboard or an adapter card avoid touching its

components. Handle the mainboard and adapter cards either by the edges or by the adapter

card’s case mounting bracket.

The information presented in this publication has been carefully screened for reliability. The

manufacturer provides this manual “As is” with no warranties of any kind, either expressed or

implied, including but not limited to the implied warranties or conditions of this product’s

fitness for any particular purpose. In no event shall the manufacturer be liable for any loss of

profits, loss of business, loss of data, interruption of business, or indirect, special, incidental,

or consequential damages of any kind, even if the manufacturer has been advised of the

possibility of such damages arising from any defect or error in this manual or product.

The manufacturer has the right to change this specification without pre-notice.

Trademarks and product names appearing in this manual are may or may not be registered

with their respective holders.

FR550

Table of Contents

1INTRODUCTION......................................................................................1-1

1.1 OVERVIEW..........................................................................................1-1

1.2 HOW TO USE THIS MANUAL ................................................................1-1

1.3 ITEM CHECKLIST.................................................................................1-2

2KEY FEATURES .......................................................................................2-1

2.1 PRODUCT SPECIFICATION....................................................................2-1

2.2 MAINBOARD LAYOUT.........................................................................2-2

3INSTALLATION PREVIEW......................................................................3-1

3.1 JUMPER SETTINGS...............................................................................3-1

3.2 INSTALLATION OF DRAM MODULES (SIMM OR DIMM)...................3-6

3.3 INSTALLATION OF THE CPU................................................................3-9

3.4 INSTALLATION OF EXPANSION SLOTS:..............................................3-10

3.5 INSTALLATION OF IDE, I/O CABLES CONNECTION ............................3-11

4BIOS SETUP...............................................................................................4-1

4.1 STARTING SETUP ................................................................................4-1

4.2 MAIN SETUP MENU ............................................................................4-3

4.3 STANDARD CMOS SETUP MENU........................................................4-4

4.4 BIOS FEATURES SETUP MENU...........................................................4-8

4.5 CHIPSET FEATURES SETUP MENU.....................................................4-11

4.6 POWER MANAGEMENT SETUP MENU................................................4-12

4.7 PCI CONFIGURATION SETUP MENU..................................................4-15

4.8 INTEGRATED PERIPHERALS MENU ....................................................4-17

4.9 IDE HDD AUTO DETECTION............................................................4-19

4.10 PASSWORD SETTING .........................................................................4-19

FR550

1Introduction

1.1 Overview

The FR550 mainboard integrates the Pentium microprocessor, memory, and I/O technologies

and is designed to fit into a standard ATX form factor chassis. The design supports Pentium

processors, Pentium processors with MMX technology, Cyrix 6X86/6X86L/M2 Processors,

and AMD K5/K6 Processors. Page 2-2 illustrates the mechanical form factor for the FR550

mainboard.

The ATX was developed as an evolution of the Baby-AT form-factor and was defined to

address four major areas of improvement: enhanced ease-of-use, better support for current and

future I/O, better support for current and future processor technology, and reduced total

system cost. The processor is relocated away from the expansion slots, allowing them all to

hold full length add-in cards. The longer side of the board is used to host more on-board I/O.

Finally, by using a power supply that is specially optimized for ATX, it is possible to reduce

cooling costs and lower acoustical noise. An ATX power supply, which has a side venting,

allows direct cooling of the processor and add-in cards, making a secondary fan or active

heatsink unnecessary in most system applications.

1.2 How to use this Manual

This manual provides information necessary to install and operate the FR550 mainboard and

is organized into four chapters. The purpose of this manual is to explain the installation

procedures and operations of the mainboard as specified below.

1. Introduction Manual information and checklist

2. Key Features An overview specification of this mainboard

3. Installation Instructions on how to setup the mainboard

4. BIOS setup BIOS software setup information

FR550

1.3 Item Checklist

The FR550 mainboard should contain following items (ü). Immediately, contact your retailer

if you discover any missing items, or any damage.

„The FR550 mainboard

„This FR550 user‘s manual

„1 IDE ribbon cable

„1 floppy ribbon cable

„USB (2 port) cable with bracket (optional)

„Infrared (IrDA) module with ribbon cable (optional)

FR550

2Key Features

2.1 Product Specification

„Processor: Supports 90-233MHz Intel Pentium Processors (P54C), Pentium

Processors with MMX Technology (P55C), AMD-K5, AMD-K6 and Cyrix 6X86,

6X86L, M2 Processors. The ZIF Socket 7 will support future Pentium Overdrives.

„L2 Cache: Onboard 256KB or 512KB Pipeline Burst SRAM

„SIMM (System Memory): Supports 70ns or faster Extended Data Output (EDO) or

Fast Page (FP) SIMM in four 72-pin SIMM sockets using 4MB, 8MB, 16MB, 32MB or

64MB for a maximum of 256MB system memory.

„DIMM (System Memory): Supports 66MHz or faster 3.3V DIMM in two 168-pin

DIMM sockets using 1Mx64, 2Mx64, or 4Mx64 for a maximum of 256MB system

memory.

„Chipset: Intel Triton 430TX set is the core chipset with an Winbond 977 super I/O

controller chip.

„Expansion Slots: Four 32-bit PCI and Three 16-bit ISA expansions slots (one shared).

„Super Multi-I/O: Two high-speed UART compatible serial ports and One parallel port

with ECP and EPP compatibility. One FDD header supporting either 5.25“ or 3.5” (1.2

or 1.44/2.88MB) floppy drives. One IrDA TX/RX infrared port.

„PS/2 Keyboard and PS/2 Mouse: Onboard PS/2 Keyboard and PS/2 Mouse Port

„PCI bus Master IDE Controller: Onboard dual-channel PCI Bus Master IDE support

4 IDE devices. This controller supports PIO Mode 3 and Mode 4 with a data transfer

rate up to 17MB per second. An Ultra DMA 33 (UDMA) supports data transfer rates up

to 33 MB per second. Also supports 120MB Floppy Drive.

„Universal Serial Bus (USB): Two standard USB interface supports up to 48MHz and

127 peripheral devices.

„PCI BIOS: Win 95 Plug and Play with Green power saving support, and DMI

Support.

„Mechanical: ATX form factor 190 mm x 305 mm

FR550

2.2 Mainboard Layout

16-bit ISA Slot

SIMM Slot 1

SIMM Slot 2

SIMM Slot 3

SIMM Slot 4

32-bit PCI Slot

Secondary IDE Conn.

Primary IDE Conn.

DIMM Slot 2

DIMM Slot 1

FDD Drive Conn.

Power Conn.

BIOS

Power (JP9)

CLR COMS(JP8)

HDD-LED

(J12)

EXT-BAT (J18)

J10

IRDA (J11)

Speaker (J17)

Reset (J16)

Keylock (J13)

JP4

SEL1 (JP7)

SEL0 (JP6)

82439

82371

SRAM

Onbioard 256KB/512KB

Pipline Burst Cache RAM

COM 1

COM 2

Printer/Parallel Port

PS/2

KBD

PS/2

Mouse

JP5

Fan (J7)

USB2,USB1

BF2 (JP1)BF0 (JP3)

BF1 (JP2)

FR550

3-1

3Installation Preview

Before you install the FR550 mainboard into the system chassis you may find it convenient to

first configure the mainboard hardware. This section describes how to configure the jumper

settings, install memory modules, and how to attach the various system components. Before

using your computer you must review the following 7 steps:

1. Jumper settings

2. Installation of DRAM modules (SIMM or DIMM)

3. Installation of the CPU

4. Installation of expansion cards

5. Installation of IDE, I/O cables connection., and Power Supply connection

6. Installation of the Power Core to the System.

7. Setup of the system BIOS software

WARNING: When handling the system upgrade or plug in additional Add-On Card, please

be sure your System is Power Off.

3.1 Jumper Settings

You can configure the hardware options by setting jumpers on the mainboard. A jumper is a

set of two or more metal pins in a plastic base attached to the mainboard. A plastic “jumper

cap” with a metal (conductive) plate inside fits over two pins to create an electrical contact or

short between them. This contact establishes a hardware setting and is referred to as a

“closed” jumper setting.

Some jumper have two pins while others may have three or more. Jumpers are sometimes

combined into sets called jumper blocks where all the jumpers in the block must be set

together to establish a hardware setting. In this manual, the jumper settings will be described

graphically using a triangle (s) always marking pin 1. Those jumpers with two pins will be

shown as closed or open. A jumper is closed by placing the plastic jumper cap over the two

jumper pins and is opened by removing the jumper cap. Some jumpers are oriented vertically

and others horizontally with pin 1 marked as (s=P1).

3.1.1 Jumpers, Jumper caps, and Jumper blocks

Jumper cap 2-pin jumper 3-pin jumper 4-pin jumper Jumper block

FR550

3-2

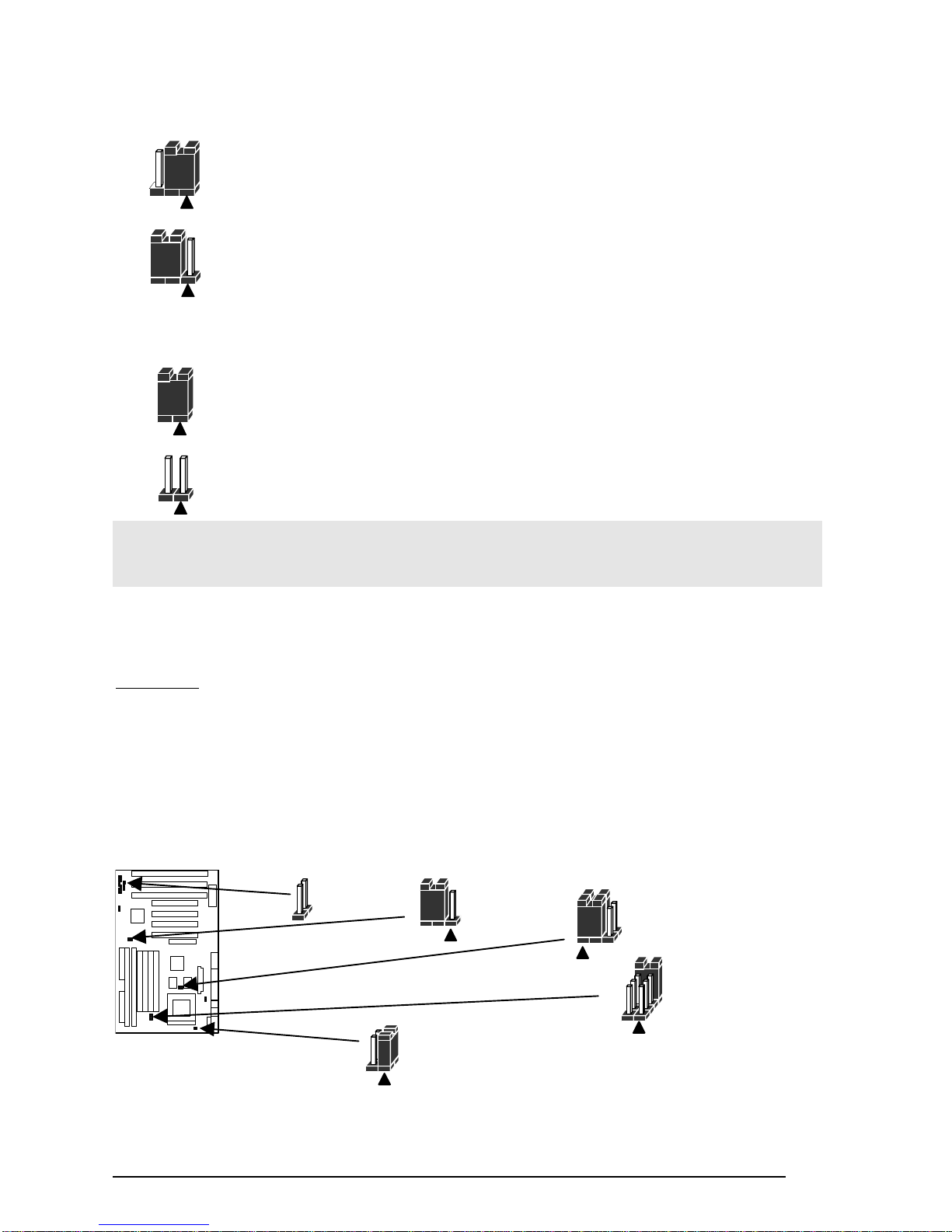

3.1.2 Setting 3-pin jumpers

Jumper Pins 1 & 2 are closed with a jumper cap

Jumper Pins 2 & 3 are closed with a jumper cap

3.1.3 Setting 2-pin jumpers

This jumper is closed with the jumper cap placed over 2 pins

This jumper is open with the jumper cap removed from the 2 pins

WARNING: Some pins are used for connectors or power sources. These are clearly marked

separately from the jumpers listed in “Mainboard Layout”. Any improper placing of jumper

caps over these connectors will result in damage to your mainboard

3.1.4 Configuration Jumpers

Jumpers

1) JP4, JP5 Processor voltage selection

2) JP2, JP3, & JP6 Processor/System speed setting

3) JP8 CMOS Clear

4) JP1, JP7 Reserved

The Jumper located As below:

JP6

JP5

JP4

JP3

JP2

JP8
