Baumatic P619SS-ANZ Manuel utilisateur

P619SS-ANZ 60 cm Built in fan

oven

P629BS-ANZ/P629SS-ANZ

P639BS-ANZ/P639SS-ANZ 60

cm Built in multifunction oven

User Manual for our Baumatic

P619SS-ANZ

60 cm 4 Function fan oven

P629BS-ANZ/P629SS-ANZ

60 cm 7 Function multifunction oven

P639BS-ANZ/P639SS-ANZ

60 cm 9 Function multifunction oven

NOTE

This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance

GS 10/05/12

Contents

Environmental note 4

Important safet information 5 – 7

Specifications 8 - 14

P619SS-ANZ 8 - 9

P629BS-ANZ/P629SS-ANZ 9 – 10

P639BS-ANZ/P639SS-ANZ 11 - 12

Cooling fan 12

Control panel 13 - 14

Oven programmer/timer di play 14

Setting and using the oven programmer/timer – P619SS-ANZ 15

Selecting manual operation mode 15

Setting the minute minder function 15

Setting and using the oven programmer/timer – P629BS-ANZ/

P629SS-ANZ/P639BS-ANZ/P639SS-ANZ 16 – 20

Selecting manual operation mode 16

Setting the time of day 16

The oven timer 16

Setting the minute minder function 16 - 17

Setting the duration function 17

Setting the end cook function 18

Setting the tart and end time function 19

Adju ting the audible ignal 20

Selecting a cooking function and temperature 20 – 26

Before fir t u e 20

Selecting manual operation mode 21

Selecting an oven function 21

P619SS-ANZ oven function 21 - 22

P629BS-ANZ/P629SS-ANZ oven function 22

P639BS-ANZ/P639SS-ANZ oven function 23

Thermo tat control knob 24

Oven operating light 24

Cooking guideline 24 - 25

Warning 25 - 26

Shelf level 26

Cleaning and maintenance 26 - 29

Removable oven roof liner (P629BS-ANZ/P629SS-ANZ/P639BS-ANZ/

P639SS-ANZ only) 27

Replacing the oven bulb 27 - 28

Removing the oven door for cleaning 28 - 29

Installation 29 - 31

Electrical connection 29

In talling the oven into the kitchen cabinet 30

Po itioning the appliance 30

Ventilation requirement 30 - 31

M appliance isn’t working correctl 32 - 34

Contact details 35

Environmental note

oThe packaging material that Baumatic u e are environmentally

friendly and can be recycled.

oPlea e di card all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your afety i of the utmo t importance to Baumatic.

Plea e make ure that you read thi in truction booklet

before attempting to in tall or u e the appliance. If you

are un ure of any of the information contained in thi

booklet, plea e contact the Retailer where you

purcha ed your unit from.

General Information

oThi appliance i de igned for dome tic hou ehold u e and can

be built into a tandard kitchen cabinet or hou ing unit.

oIMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a

minimum temperature of 85°C above the ambient temperature

of the room it is located in, whilst in use.

oCertain type of vinyl or laminate kitchen furniture are

particularly prone to heat damage or di colouration at

temperature below the guideline given above.

oAny damage cau ed by the appliance being in talled in

contravention of thi temperature limit, or by placing adjacent

cabinet material clo er than 4mm to the appliance, will be the

liability of the owner

oThe u e of thi appliance for any other purpo e or in any other

environment without the expre agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance i guaranteed again t electrical or

mechanical defect , ubject to certain exclu ion that are noted

in the Condition Of Guarantee. The foregoing doe not affect

your tatutory right .

oRepairs may only be carried out by authorised service

agents

Warning and safet instructions

oThi appliance complie with all current European afety

legi lation. Baumatic do wi h to empha i e that thi compliance

doe not remove the fact that the appliance urface will

become hot during use and retain heat after operation

Child Safet

oBaumatic trongly recommend that babie and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time.

oIf it i nece ary for younger family member to be in the

kitchen, plea e en ure that they are kept under clo e upervi ion

at all time .

General Safet

oDo not place heavy object on the oven door or lean on the

oven door when it i open, a thi can cau e damage to the oven

door hinge .

oDo not leave heated oil or fat unattended, a thi i a fire ri k.

oDo not place pan or baking tray directly on the ba e of the

oven cavity, or line it with aluminium foil.

oDo not allow electrical fitting or cable to come into contact

with area on the appliance that get hot.

oDo not u e the appliance to heat the room it i located in or to

dry clothing.

oDo not in tall the appliance next to curtain or oft furni hing .

oDo not attempt to lift or move cooking appliance by u ing the

oven door or handle, a thi may cau e damage to the appliance

or re ult in injury to the per on lifting the appliance.

Cleaning

oCleaning of the oven hould be carried out on a regular ba i .

oGreat care hould be taken whil t u ing thi appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions

oBaumatic Ltd declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance

oHeat, team and moi ture will be created during u e of the

appliance, take care to avoid injury and en ure that the room i

adequately ventilated. If the appliance i going to be u ed for

prolonged period of time, then additional ventilation may be

required.

oPlea e con ult with your qualified in taller if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformit

Thi appliance complie with the following European Directive :

-2006/95/EC regarding “low voltage”

-2004/108/EC regarding “electromagnetic di turbance ”

-Regulation (EC) N° 1935/2004 regarding “material in contact

with food”

oThe above directive comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declare that the oven i built u ing certified

material and require the appliance to be in talled in

accordance with the tandard currently in force. Thi appliance

mu t be u ed by a trained per on for dome tic purpo e only.

Specifications

P619SS-ANZ

Product dimensions

Height: 590 mm

Width: 595 mm

Depth: 550 mm

Aperture dimensions

Height: 580 – 583 mm

Width: 560 mm

Depth: 550 mm

Product specifications

o4 oven function

oEnergy efficiency cla : A

oGro oven capacity: 59 litre

oNet oven capacity: 50 litre

oOven light

oMinute minder

oCooling fan

oThermo tatically controlled grill

oDouble-glazed removable door

oMark re i tant coating

Standard accessories

oEnamelled baking tray with handle

o2 x Safety helve

oTrivet

oRemovable ide rack

Optional extras

oTEL2KIT Tele copic runner kit

oSCL7KIT Stay-clean liner kit

oBPS2 Pizza tone

Electrical details

Rated Voltage: 220 - 240 Vac 50 Hz

Supply Connection: 13 A (double pole witched fu ed

outlet with 3mm contact gap)

Max Rated Inputs: 2.35 kW

Mains Supply Lead: 3 x 1.5mm²

Oven Light Bulb: 25 W/300°C crew type pygmy

P629BS-ANZ/P629SS-ANZ

Product dimensions

Height: 590 mm

Width: 595 mm

Depth: 550 mm

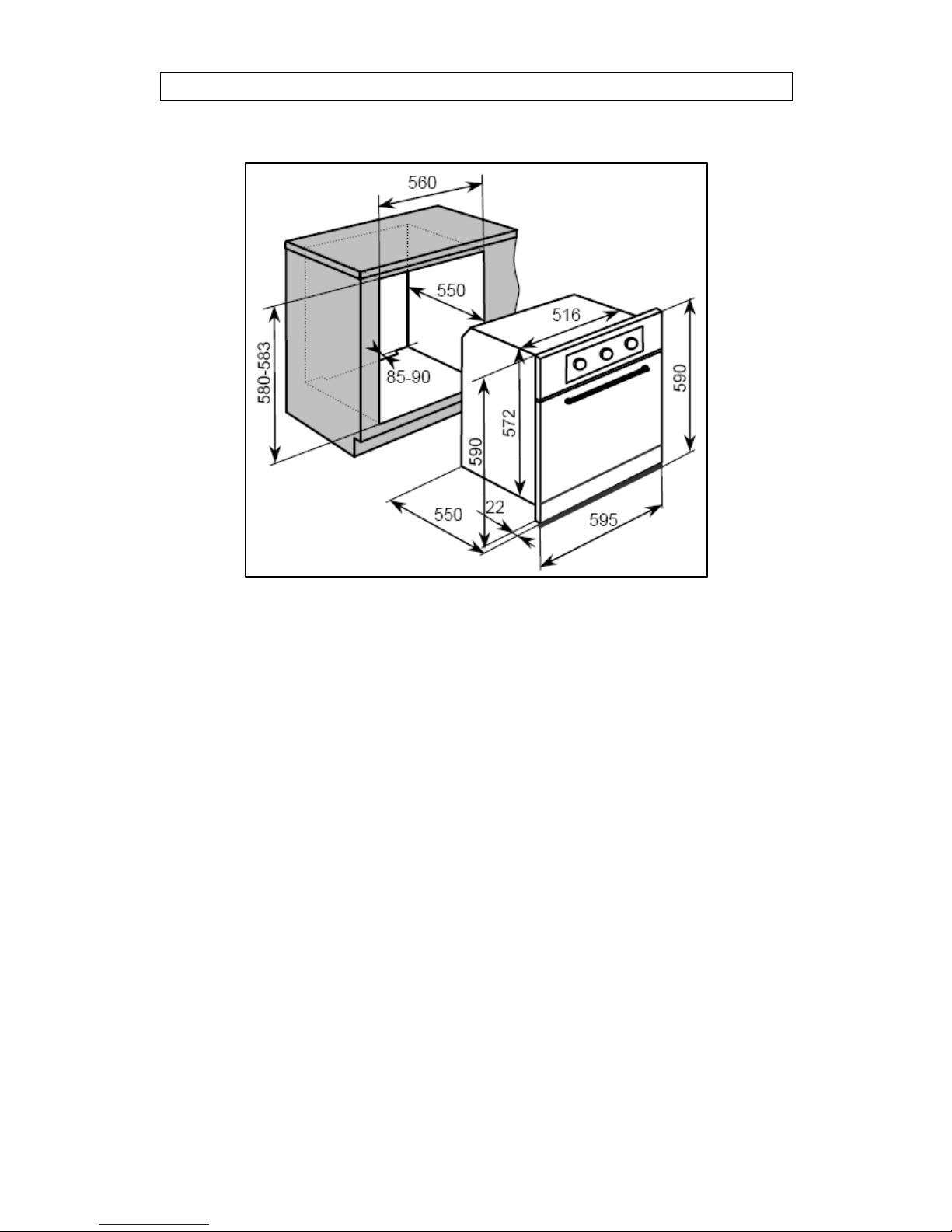

Aperture dimensions

Height: 580 – 583 mm

Width: 560 mm

Depth: 550 mm

Product specifications

o7 oven function

oEnergy efficiency cla : A

oGro oven capacity: 59 litre

oNet oven capacity: 50 litre

oOven light

oLED full programmer

oCooling fan

oThermo tatically controlled grill

oTriple-glazed removable door

oMark re i tant coating (P629SS-ANZ onl )

Standard accessories

oEnamelled baking tray with handle

o2 x Safety helve

oTrivet

oRemovable ide rack

oRemovable roof liner

oTele copic runner - 1 level

Optional extras

oTEL2KIT Tele copic runner kit

oSCL7KIT Stay-clean liner kit

oBPS2 Pizza tone

Electrical details

Rated Voltage: 220 - 240 Vac 50 Hz

Supply Connection: 13 A (double pole witched fu ed

outlet with 3mm contact gap)

Max Rated Inputs: 2.40 kW

Mains Supply Lead: 3 x 1.5mm²

Oven Light Bulb: 25 W/300°C crew type pygmy
