Baumatic BCS461SS Manuel utilisateur

BCS461SS

46 cm

Combi steam oven with

grill

User Manual for your Baumatic

BCS461SS

46 cm High compact combi

steam oven with grill

NOTE

This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance

GS 23/03/12

Contents

Environmental note 4

mportant safety information 5 – 7

Specifications 8 – 11

Product and aperture dimensions 8

Cooling fan 8

Product specifications 8 9

Standard accessories 9

Electrical details 9

Control panel 10 11

Using your oven 11 21

Before first use 11

Initial start up and setting the operating language 12

Demonstration mode 12

Setting the time of day 12

Turning on the appliance 13

The oven light 13

The safety lock 13 14

Setting the minute minder 14

Setting the cooking time function 15

Setting the end of cooking time function 15 16

Setting the start and end of cooking time function 16 17

Cancelling a timer function 17

Oven functions 17 18

Selecting a cooking function and temperature 18 19

Residual heat 19

Cooking guidelines 19 20

Warnings 20 21

Steam cooking 21 26

Steam cooking guidelines 21

Steam cooking at 100°C 21

Steam cooking at 130°C (reheating) 22

230°C professional cooking 22 23

Steam puff 23

Steam cooking 24

Pause function 25

Accessories 25 26

Auto-recipes 26 29

Selecting a preset or saved personal recipe 26 28

Saving a personal recipe 28

Deleting personal recipes 28 29

Cleaning and maintenance 29 35

Oven cavity cleaning cycle 30 31

Steam circuit cleaning cycle 31 32

Replacing the oven bulb 33

Removing the oven door for cleaning 34 35

nstallation 35 38

Electrical connection 35 36

Installing the oven into the kitchen cabinet 36

Positioning the appliance 36

Ventilation requirements 37

Installing the drip catcher 38

My appliance isn’t working correctly 39 40

Baumatic consumables 41

Contact details 42

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

MPORTANT SAFETY NFORMAT ON

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Customer Care

Department.

General nformation

oThis appliance is designed for domestic household use and can

be built into a standard kitchen cabinet or housing unit.

oIMPORTANT: You must not install the appliance in a location

where the ambient temperature will fall below 5°C.

oIMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a

minimum temperature of 85°C above the ambient temperature

of the room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouration at

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent

cabinet materials closer than 4mm to the appliance, will be the

liability of the owner

oFor use in leisure accommodation vehicles, please refer to

the appropriate information given in the installation instructions

for this appliance.

oThe use of this appliance for any other purpose or in any other

environment without the express agreement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The foregoing does not

affect your statutory rights.

oRepairs may only be carried out by Baumatic Service

Engineers or their authorised service agent

Warning and safety instructions

oThis appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation

Child Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at any time.

oIf it is necessary for younger family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause damage to the oven

door hinges.

oDo not leave heated oil or fat unattended, as this is a fire risk.

oDo not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

oDo not use the appliance to heat the room it is located in or to

dry clothing.

oDo not install the appliance next to curtains or soft furnishings.

oDo not attempt to lift or move cooking appliances by using the

oven door or handle, as this may cause damage to the appliance

or result in injury to the person lifting the appliance.

Cleaning

oCleaning of the oven should be carried out on a regular basis.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

nstallation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions

oBaumatic Ltd declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance

oHeat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is going to be used for

prolonged periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

This appliance complies with the following European Regulations:

2006/95/EC regarding “low voltage”

2004/108/EC regarding “electromagnetic disturbances”

Regulation (EC) N° 1935/2004 regarding “materials in contact

with food”

oThe above directives comply with 93/68/EEC regarding CE

marking.

oThe manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

Product dimensions

Height: 455 mm

Width: 594 mm

Depth: 557 mm

Aperture dimensions

Height: 460 mm MIN

Width: 560 mm

Depth: 560 mm

Cooling fan

oA tangential cooling fan is fitted inside of this appliance, to make

the internal temperature of the oven stable and the external

surface temperature lower.

Product specifications

oEnergy efficiency class: A

oGross oven capacity: 35 litres

oNet oven capacity: 34 litres

o11 oven functions:

Light control

Fan oven

Fan oven with grill

Grill and fan

Full grill

100°C steam cooking

130°C steam cooking

230°C professional cooking

Steam puff

Auto clean

Auto recipes

oTouch control operation

oLCD full programmer

oMulti language text display (English, German, Dutch, Italian,

French, Portuguese, Spanish, Polish, Russian and Danish)

o60 preset recipes

o100 personal recipes

oElectronically controllable thermostat

oCooling fan

oStainless steel cavity

oSafety lock

oMark resistant coating

oTriple glazed removable door

Standard accessories

o1 x Inox baking tray

o1 x Inox perforated deep tray with lid

oShelf and support

oWater tank (1 litre capacity)

Electrical details

Rated Voltage: 220 240 Vac 50 Hz

Supply Connection: 16 A (double pole switched fused

outlet with 3mm contact gap

Max Rated nputs: 3.20 kW

Mains Supply Lead: 3 x 1.5mm²

Oven Light Bulb: 25 W/ E14 300°C screw type

pygmy

For future reference please record the following information which can

be found on the Rating Plate and the date of purchase which can be

found on your sales invoice. The rating plate for your oven can be

located by opening the oven door and looking on the lower edge of the

oven chassis.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

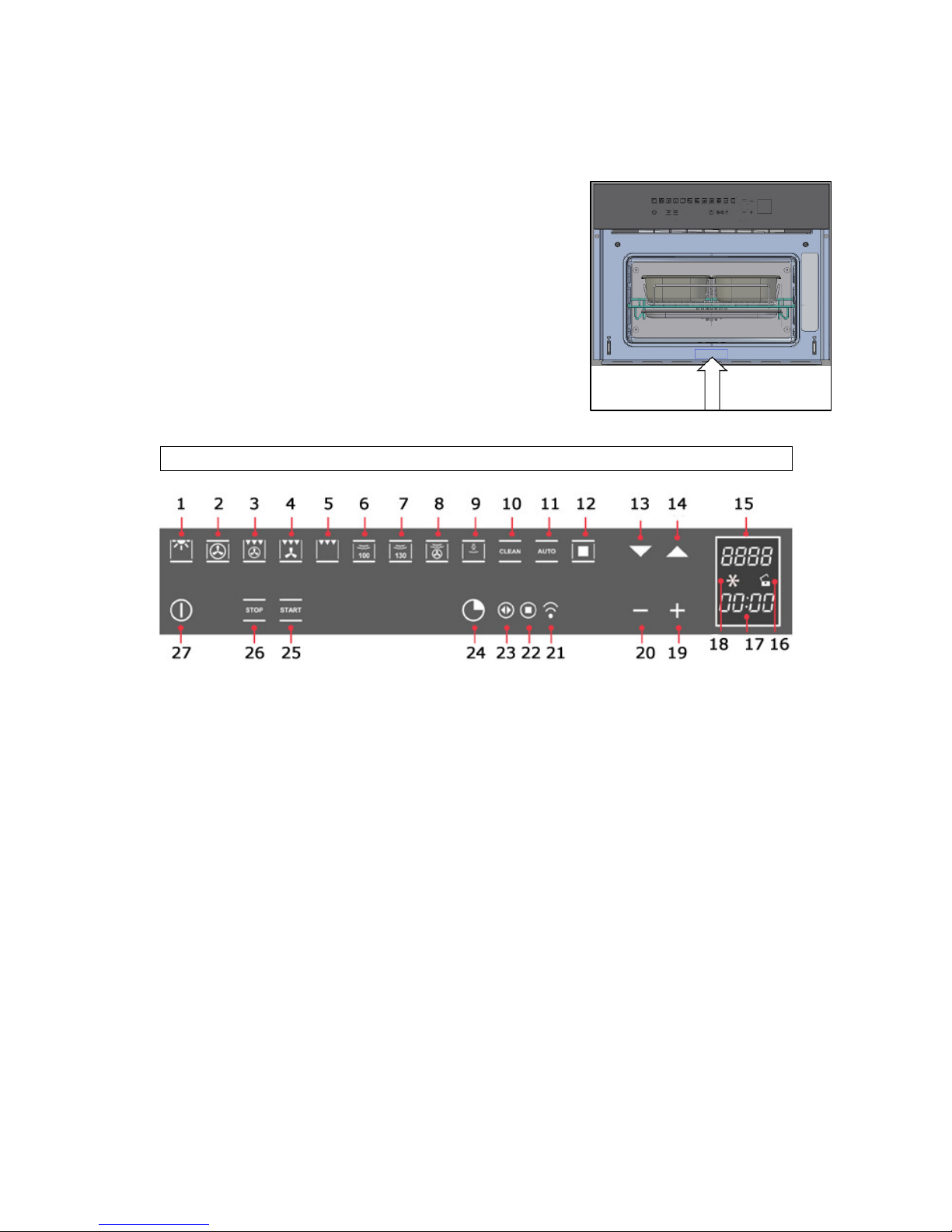

Control Panel

1) Oven light button

2) Fan oven button

3) Fan oven and grill button

4) Fan and grill button

5) Grill button

6) 100°C steam button

7) 130°C steam button

8) 230°C professional cooking button

9) Steam button

10) Self cleaning button

11) Auto recipes button

12) Confirm button

13) Decrease button

14) Increase button

15) Temperature display

16) Safety lock icon

17) Timer display

18) Countdown icon
