basIP SP-03 Manuel utilisateur
USER MANUAL
SP-03
IP AUDIO HANDS-FREE
SP-03
Equipped with buttons to quickly call the concierge, open the lock, control
the Do Not Disturb mode, and adjust the volume.
Also, the SP-03 has a three-color light indicator of the status and operating
modes of the device.
IP audio hands-free with support for SIP, P2P and internal BAS-IP protocol.
Full User Manual
Appearance
Device description
wiki.bas-ip.com
Answer call / Handup.
Open the lock.
LED status indicator.
Microphone.
Loudspeaker.
DND mode.
Concierge button.
Volume DOWN.
Volume UP.
1
2
3
4
5
6
7
8
9
-
-
-
-
-
-
-
-
-
Main features
Number of VoIP accounts supported: 1.
Supported network protocol type: IPv4.
Network connection: 1 PoE port IEEE 802.3af.
Power supply: 1 +12 Volt connection port and
PoE IEEE 802.3af port.
Supported codec type: G.711µ / G.711a.
Additional function: Doorbell.
Audio transmission method: Full Duplex.
Number of control keys: 6.
Configuration and programming method:
WEB-interface.
Colors: White, black.
Overall dimensions: 183 × 105 × 28 mm.
Installation Type: Wall mounted.
IP AUDIO HANDS-FREE
2
1
3
4
5
6
7
8
9
Completness check of the product
Before installing the monitor, be sure to check that it is complete and all
components are available.
The kit includes:
Device
Manual
Wall mounting bracket
A set of wires with connectors for connecting alarm loops
and home automation
Resistors for alarm loops
Installation screws
1 pc
1 pc
1 pc
1 pc
4 pcs
2 pcs
After verifying the device's completeness, you can switch to the connection.
To connect monitor you will need:
Electrical connection
An Ethernet UTP CAT5 or higher cable connected to a network
switch / router.
Cable length recommendations
The maximum length of the UTP CAT5 cable segment should not exceed 100 meters,
according to the IEEE 802.3 standard.
Power supply at +12 Volts DC if there isn't PoE.
Wires must be brought for the connection of alarm loops and home
automation (optional).
The connection scheme of all components
+-
+12 Volts DC
Power LAN (PoE)
1
2
3
4
5
6
+U
GND
AL1
AL2
AL3
AL4
RS 485
1
2
3
4
+12V
GND
485+
485-
Siren/Alarm Loops
EAN: 5060514913062 (BLACK) EAN: 5060514913079 (WHITE)
Power supply
for external load
Powerful external load with
a current consumption
of more than 0.35A
VD

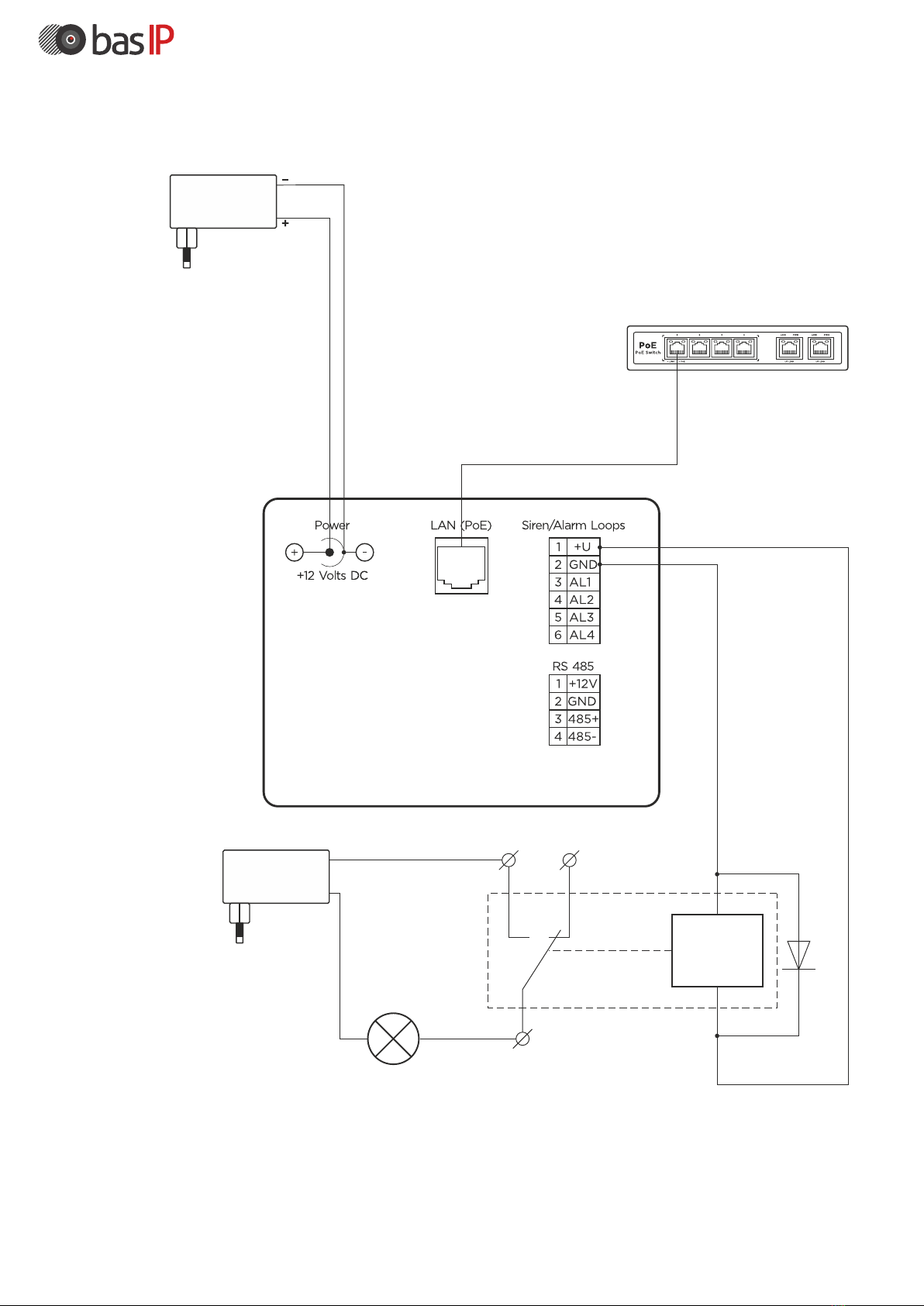

Scheme for connecting external controlled devices or connecting
a powerful external load to the siren output using
an external additional relay
K1
K1.1
External relay 12 Volt,
current consumption
less than 0.35A
Power supply
12V, 2A
Switch
+12V
485+
485-
Expansion module
SH-16 Bell button
normal
+12 V
Buttons SH-45T
SH-46T
SH-47T
Lock
+12 V
Button SH-45
Switch
Power supply
12V, 2A
EAN: 5060514913062 (BLACK) EAN: 5060514913079 (WHITE)
0,35A
Siren
12V
Sensor Sensor Sensor
1.1
1.2
2.2 kOhm
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
Sensor
2.1
3.1
4.1
2.2
3.2
4.2
2.2 kOhm
2.2 kOhm
2.2 kOhm
1.n
2.n
3.n
4.n
Power supply
12V, 2A
Switch
Wiring diagram for security alarm sensors with NC -
normally closed contact types
0,35A
Sensor
Sensor
Sensor
1.1
1.2
1.n
2.2 kOhm
2.1
3.1
4.1
2.2
3.2
4.2
2.n
3.n
4.n
Wiring diagram for security alarm sensors with NO -
normally open contact types
Siren
12V
Switch
Power supply
12V, 2A
Sensor
Sensor
Sensor
2.2 kOhm
Sensor
Sensor
Sensor
2.2 kOhm
Sensor
Sensor
Sensor
2.2 kOhm
EAN: 5060514913062 (BLACK) EAN: 5060514913079 (WHITE)
Mechanical mounting
The device is mounted on the bracket from top to bottom.
The bracket is fixed in the socket by using the supplied screws and
Before installing the monitor, you must provide a hole or recess in the wall
with a diameter of 68 mm for a standard mounting box for a 65x45 mm outlet.
This is necessary for switching wires and mounting the monitor.
a cross-head screwdriver.
Device Bracket
Mounting box Screws Device
65 mm
45 mm
150-160 cm
105 mm
183 mm
28 mm 86 mm
117 mm
106 mm
60 mm
EAN: 5060514913062 (BLACK) EAN: 5060514913079 (WHITE)
Warranty
The warranty card number
Model name
Serial number
Seller name
With following stated terms of warranty is familiar, functional test was
performed in my presence:
Customer signature
Warranty conditions
The warranty period of the product — 36 (thirty-six) months from
the date of sale.
Transportation of product must be in its original packaging or supplied one
by the seller.
The product is accepted in warranty repair only with a properly filled warranty
card and the presence of intact stickers or labels.
The product is accepted for examination in accordance with the cases
provided by law, only in the original packaging, in a full complete set,
appearance corresponding to the new equipment and presence of all relevant
properly filled documents.
This warranty is in addition to the constitutional and other consumer rights
and in no way restrict them.
Terms of warranty
The warranty card must indicate the name of the model, serial number,
purchase date, name of the seller, seller company stamp and
the customer’s signature.
Delivery to the warranty repair is carried out by the buyer himself.
Warranty repairs carried out only during the warranty period specified
in the warranty card.
The service center is committed to do everything possible to carry out
the repair warranty products, up to 24 working days. The period spent
on the restoration of product functionality is added to the warranty period.
Notes
