AXIOMTEK GOT3187W-832-PCT Manuel utilisateur

GOT3187W-832-PCT

All-in-One

18.5”WXGA TFT Fanless

Compact-Size PANEL PC

User’s Manual

Disclaimers

This manual has been carefully checked and believed to contain accurate information.

Axiomtek Co., Ltd. assumes no responsibility for any infringements of patents or any third

party’s rights, and any liability arising from such use.

Axiomtek does not warrant or assume any legal liability or responsibility for the accuracy,

completeness or usefulness of any information in this document. Axiomtek does not make

any commitment to update the information in this manual.

Axiomtek reserves the right to change or revise this document and/or product at any time

without notice.

No part of this document may be reproduced, stored in a retrieval system, or transmitted,

in any form or by any means, electronic, mechanical, photocopying, recording, or

otherwise, without the prior written permission of Axiomtek Co., Ltd.

CAUTION

If you replace wrong batteries, it causes the danger of explosion. It is recommended by

the manufacturer that you follow the manufacturer’s instructions to only replace the same

or equivalent type of battery, and dispose of used ones.

August 2013, Version A3

Printed in Taiwan

iii

Safety Precautions

Before getting started, read the following important cautions.

1. Be sure to ground yourself to prevent static charge when installing the internal

components. Use a grounding wrist strap and place all electronic components in any

static-shielded devices. Most electronic components are sensitive to static electrical

charge.

2. Disconnect the power cords from the GOT3187W-832-PCT Series before making any

installation. Be sure both the system and the external devices are turned OFF. Sudden

surge of power could ruin sensitive components. Make sure the GOT3187W-832-PCT

Series is properly grounded.

3. Do not open the system’s top cover. If opening the cover for maintenance is a must, only

a trained technician is allowed to do so. Integrated circuits on computer boards are

sensitive to static electricity. To avoid damaging chips from electrostatic discharge,

observe the following precautions:

Before handling a board or integrated circuit, touch an unpainted portion of the

system unit chassis for a few seconds. This will help to discharge any static

electricity on your body.

When handling boards and components, wear a wrist-grounding strap, available

from most electronic component stores.

Trademarks Acknowledgments

Axiomtek is a trademark of Axiomtek Co., Ltd.

Windows®is a trademark of Microsoft Corporation.

IBM, PC/AT, PS/2 are trademarks of International Business Machines Corporation.

Intel®and Atom®are trademarks of Intel Corporation.

AMI is trademark of American Megatrend Inc.

Other brand names and trademarks are the properties and registered brands of their

respective owners.

Table of Contents

CHAPTER 1 INTRODUCTION .............................................................................. 1

CHAPTER 2 HARDWARE AND INSTALLATION...................................................... 7

2.1 OPEN BACK COVER...............................................................................................8

2.2 CF CARD INSTALLATION.........................................................................................9

2.3 JUMPER AND SWITCH SETTINGS ...........................................................................11

2.4 COM PORT CONNECTOR ...................................................................................13

2.5 ETHERNET.......................................................................................................14

2.6 MOUNTINGS:PANEL /WALL /VESA...................................................................14

2.7 HDD INSTALLATION ...........................................................................................16

2.8 DRAM INSTALLATION ........................................................................................18

2.9 WIRELESS LAN CARD INSTALLATION .....................................................................20

2.10 POWER INPUT ..................................................................................................22

CHAPTER 3 AMI BIOS SETUP UTILITY................................................................24

3.1 STARTING.........................................................................................................24

3.2 NAVIGATION KEYS .............................................................................................24

3.3 MAIN MENU....................................................................................................25

3.4 ADVANCED MENU.............................................................................................26

3.5 CHIPSET MENU.................................................................................................33

3.6 BOOT MENU ....................................................................................................35

3.7 SECURITY MENU ...............................................................................................36

3.8 SAVE &EXIT MENU...........................................................................................37

CHAPTER 4 DRIVERS INSTALLATION................................................................40

4.1 SYSTEM ...........................................................................................................40

4.2 TOUCH SCREEN.................................................................................................40

4.3 EMBEDDED O.S................................................................................................41

This page is intentionally left blank.

GOT3187W-832-PCT User’s Manual

Introduction 1

Back

Chapter 1

Introduction

This chapter contains general information and detailed specifications of the

GOT3187W-832-PCT. Chapter 1 includes the following sections:

General Description

Specification

Dimensions

I/O Outlets

Package List

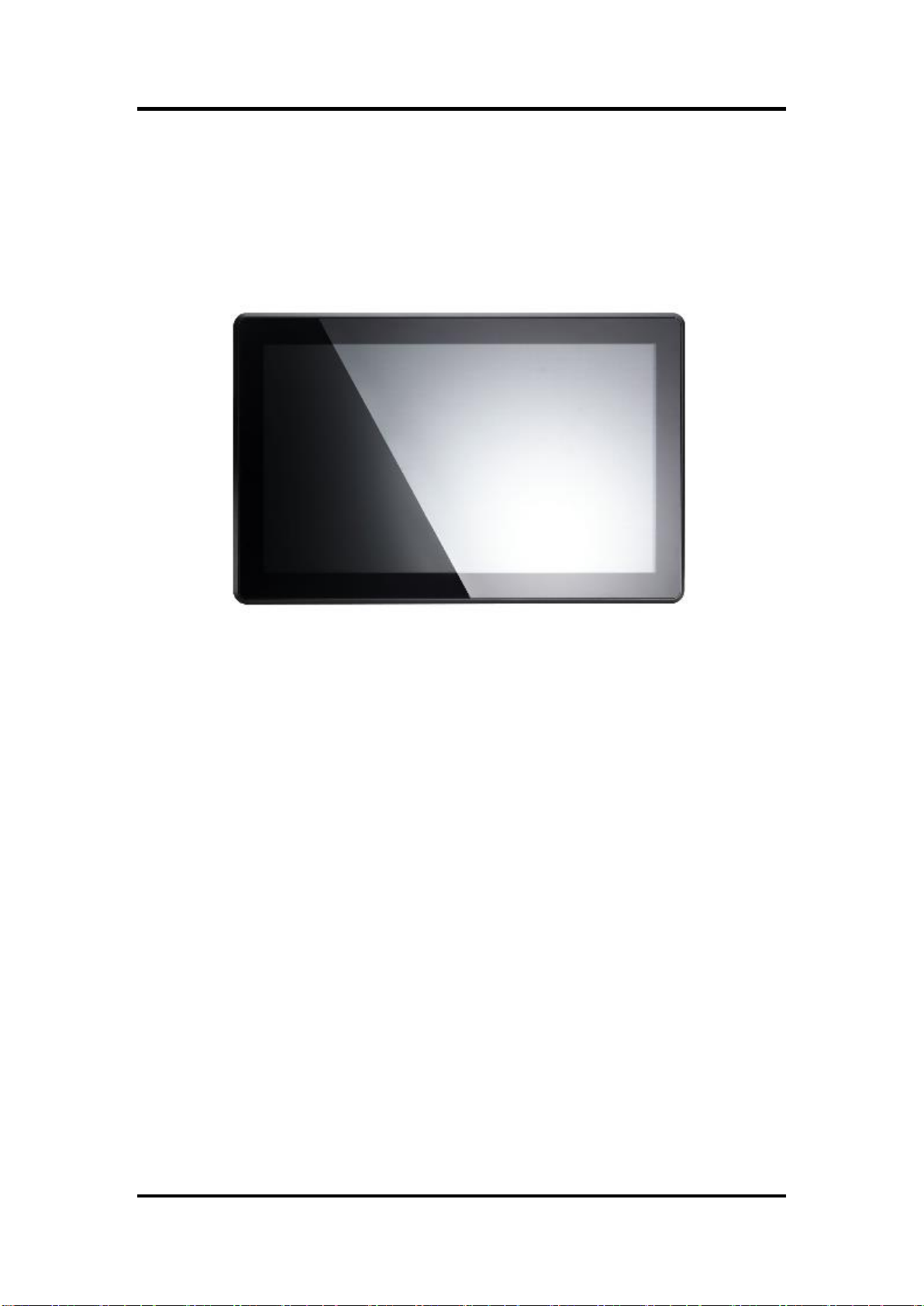

1.1 General Description

The GOT3187W-832-PCT adopts a 18.5-inch WXGATFT LCD with 300-nit

brightness and an Intel®Atom™processor D2550 1.86 GHz to provide excellent

computing performance and thermal resistance. This fanless platform is

especially designed for operating under heavy-duty environment including steel

refinery, oil pipe, ship, machine maker operating systems and many more.

Having below abilities makes GOT3187W-832-PCT surely a most robust and

cost-effective solution.

Wide Operating Temperature Range

GOT3187W-832-PCT features a technology of wide operating temperature range

which allows it to work between -10°C to +50°C. It incorporates no fixture frame

touch screen and fanless cooling system with a low power Intel®Atom™processor

D2550 1.86 GHz, making the platform a power-efficient solution.

GOT3187W-832-PCT User’s Manual

2 Introduction

Back

Reliable and Stable Design

The GOT3187W-832-PCT adopts a fan-less cooling system and a CompactFlash™

card, which makes it especially suitable for vibration-heavy environments, best for

the transportation, ship, and industrial machinery markets. For high capacity

storage requirement, GOT3187W-832-PCT can work under 2G (5 ~ 500Hz,

random for CompactFlash™) in operation mode with a patent of anti-vibration

design. The patent improves the system reliability and sustainability.

WLANAntenna Supported (optional)

GOT3187W-832-PCT has a PCI Express Mini Card slot for optional add-ons such

as wireless LAN card for 802.11 b/g connections & 3G/GPRS application,

graphics-enhanced video card, universal analog TV/FM tuner/AV capture card, and

more. It also provides an optional fixed rotational WLAN antenna for wireless

network connection.

More Features

GOT3187W-832-PCT utilizes one 204-pin DDR3 SODIMM system memory max.

up to 4GB, one SATA HDD and one CompactFlash™slot. It provides

over-current protection-fuse and a full set of I/O including 1 RS-232, 1

RS-232/422/485, 4 USB 2.0, 1 audio (line-out), 2 Gigabit Ethernet.

Additionally, this slim unit supports panel mount, wall mount (optional), VESA

mount (optional) and desktop stand (optional).

1.2 Specifications

Main CPU Board

CPU

Intel®AtomTM D2550 1.86GHz processor onboard

System Chipset

Intel®NM10 Express

System Memory

One 204-pin DDR3 SO-DIMM socket

Maximum memory up to 4GB

BIOS

America Megatrends BIOS

I/O System

Standard I/O

One RS-232 and one RS-232/422/485

Four USB 2.0

GOT3187W-832-PCT User’s Manual

Introduction 3

Back

Ethernet

Two Gigabit Ethernet

Audio

One Line-out

Expansion

One Mini card

Storage

One slot for CF card

One SATA

Power connector

Phoenix power connector

System Specification

18.5”WXGA(1366x768) LCD with LED backlight

Projected Capacitive Touch

Fanless Heat Dispensing Design

IP65 aluminum front bezel

Disk drive housing:

One 2.5”SATA drive

Net Weight

5.8 Kgs (12.79 lb)

Dimension (Main Body Size)

460.8mm x 58.5mm x 285mm

Operation Temperature

-10℃to 50℃

Relative Humidity

20% to 95% @ 40℃, Non-Condensing

Power input

DC power 10~30V (phoenix type)

Note: All specifications and images are subject to change without notice.

Note: If the operation temperature is higher than 40

℃

, the wide temperature

HDD/CF are recommended to be used on the device.

Note: If the operation temperature is higher than 45

℃

, the wide temperature

memory module is recommended to be used on the device.

GOT3187W-832-PCT User’s Manual

4 Introduction

Back

1.3 Dimensions and Outlines

The following diagrams show the dimensions and outlines of GOT3187W-832-PCT.
