AXIOMTEK GOT5840T-834 Manuel utilisateur

GOT5840T-834

All-in-One

8.4” SVGA TFT Fanless Touch Panel

Computer with Intel® Celeron® Processor

J1900 onboard

User’s Manual

Disclaimers

This manual has been carefully checked and believed to contain accurate information.

Axiomtek Co., Ltd. assumes no responsibility for any infringements of patents or any third

party’s rights, and any liability arising from such use.

Axiomtek does not warrant or assume any legal liability or responsibility for the accuracy,

completeness or usefulness of any information in this document. Axiomtek does not make any

commitment to update the information in this manual.

Axiomtek reserves the right to change or revise this document and/or product at any time

without notice.

No part of this document may be reproduced, stored in a retrieval system, or transmitted, in

any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written permission of Axiomtek Co., Ltd.

March 2015, Version A1

Printed in Taiwan

iii

Safety Precautions

Before getting started, please read the following important safety precautions.

1. The GOT5840T-834 does not come equipped with an operating system. An

operating system must be loaded first before installing any software into the

computer.

2. Be sure to ground yourself to prevent static charge when installing the internal

components. Use a grounding wrist strap and place all electronic components in any

static-shielded devices. Most electronic components are sensitive to static electrical

charge.

3. Disconnect the power cord from the GOT5840T-834 before any installation. Be sure

both the system and external devices are turned OFF. A sudden surge of power

could ruin sensitive components that the GOT5840T-834 must be properly grounded.

4. The brightness of the flat panel display will be getting weaker as a result of frequent

usage. However, the operating period varies depending on the application

environment.

5. Turn OFF the system power before cleaning. Clean the system using a cloth only. Do

not spray any liquid cleaner directly onto the screen. The GOT5840T-834 comes with

a touchscreen. Although the touchscreen is chemical resistant, it is recommended

that you spray the liquid cleaner on a cloth first before wiping the screen. In case your

system comes without the touchscreen, you must follow the same procedure and not

spray any cleaner on the flat panel directly.

6. Avoid using sharp objects to operate the touchscreen. Scratches on the touchscreen

may cause malfunction or internal failure to the touchscreen.

7. The flat panel display is not susceptible to shock or vibration. When assembling the

GOT5840T-834, make sure it is securely installed.

8. Do not open the system’s back cover. If opening the cover for maintenance is a must,

only a trained technician is allowed to do so. Integrated circuits on computer boards

are sensitive to static electricity. To avoid damaging chips from electrostatic

discharge, observe the following precautions:

Before handling a board or integrated circuit, touch an unpainted portion of the

system unit chassis for a few seconds. This will help to discharge any static

electricity on your body.

When handling boards and components, wear a wrist-grounding strap,

available from most electronic component stores.

CAUTION: RISK OF EXPLOSION IF BATTERY IS EPLACED BY AN INCORRECT TYPE

DISPOSES OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Trademarks Acknowledgments

Axiomtek is a trademark of Axiomtek Co., Ltd.

IBM, PC/AT, PS/2, VGA are trademarks of International

Business Machines Corporation.

Intel®and Atom™are registered trademarks of Intel Corporation.

MS-DOS, Microsoft C and Quick BASIC are trademarks of Microsoft Corporation.

VIA is a trademark of VIA Technologies, Inc.

SST is a trademark of Silicon Storage Technology, Inc.

UMC is a trademark of United Microelectronics Corporation.

Other brand names and trademarks are the properties and registered brands of their

respective owners.

Table of Contents

Disclaimers.............................................................................................................. ii

Safety Precautions ................................................................................................ iii

CHAPTER 1 INTRODUCTION ........................................................................1

1.1 General Description............................................................................ 1

1.2 Specifications ..................................................................................... 2

1.2.1 Main CPU Board................................................................................................ 2

1.2.2 I/O System ......................................................................................................... 2

1.2.3 System Specification........................................................................................ 3

1.3 Dimensions ......................................................................................... 4

1.4 I/O Outlets ........................................................................................... 6

1.5 Packing List......................................................................................... 6

CHAPTER 2 HARDWARE INSTALLATION....................................................7

2.1 CFast™ card Installation.................................................................... 7

2.2 SBC87834 Jumpers and Connectors................................................. 8

2.2.1 Jumper Settings.............................................................................................. 10

2.2.2 Connectors...................................................................................................... 12

2.3 Ethernet............................................................................................ 22

2.4 Mountings –Panel/Wall/Desktop/VESA ..................................... 23

2.4.1 Panel Mounting............................................................................................... 23

2.4.2 Wall-Mounting................................................................................................. 24

2.4.3 Desktop-Mounting .......................................................................................... 24

2.4.4 VESA-ARM Mounting...................................................................................... 25

2.5 DRAM Installation ............................................................................. 27

2.6 Mini cards Card Installation............................................................. 29

2.6.1 Wireless LAN Card Installation...................................................................... 29

2.6.2 mSATA Card Installation................................................................................ 31

2.7 Power Input (Phoenix type).............................................................. 32

CHAPTER 3 AMI BIOS SETUP UTILITY......................................................33

3.1 Navigation Keys................................................................................ 33

3.2 Main Menu......................................................................................... 34

3.3 Advanced Menu................................................................................. 35

3.4 Chipset Menu .................................................................................... 45

3.5 Security.............................................................................................. 47

3.6 Boot Menu ......................................................................................... 48

3.7 Save & Exit ........................................................................................ 49

CHAPTER 4 DRIVERS INSTALLATION.......................................................50

4.1 System............................................................................................... 50

4.1.1 Win 7 ................................................................................................................ 50

4.1.2 Win 8.1 ............................................................................................................. 51

4.2 Touch Screen.................................................................................... 51

4.2.1 Specification.................................................................................................... 51

4.2.2 Driver Installation- Windows 7/8.1 ................................................................ 52

4.3 Embedded O.S. ................................................................................. 54

4.3.1 WES 7 & WE8S................................................................................................ 54

APPENDIX A WATCHDOG TIMER..............................................................56

About Watchdog Timer .................................................................................... 56

How to Use Watchdog Timer........................................................................... 56

WDT Sample Program...................................................................................... 57

APPENDIX B BACKLIGHT CONTROL ........................................................60

About Backlight Control................................................................................... 60

How to Use Backlight Control ......................................................................... 60

Removed Brightness Control Tool.................................................................. 70

This page is intentionally left blank.

GOT5840T-832 User’s Manual

Introduction

CHAPTER 1

INTRODUCTION

This chapter contains general information and detailed specifications of the GOT5840T-834.

Chapter 1 includes the following sections:

General Description

Specification

Dimensions

I/O Outlets

Package List

1.1 General Description

The GOT5840T-834 is a fan-less and compact-size touch panel computer, equipped with a

8.4”TFT LCD display and low power consumption Intel○RAtomTM J1900 2.0GHz processor.

The GOT5840T-834 supports Windows®7, Windows®8.1 , WES 7 and WE8S. The panel

computer provides a Mini card slot for wireless module. Its excellent ID and friendly user

interface make it a professional yet easy-to-use panel computer. The GOT5840T-834 is an

ideal for space-limited applications in factory automation, machine maker operating systems,

building automation, and more.

GOT5840T-834: 8.4”TFT SVGA Fanless Touch Panel Computer

Reliable and Stable Design

The GOT5840T-834 adopts a fanless cooling system, which makes it suitable for

vibration environments.

Embedded O.S. Supported

The GOT5840T-834 not only supports Windows® 7/8.1, but also supports

embedded OS, such as WES 7/WE8S. For storage device, the GOT5840T-834

supports CFast™card.

Industrial-grade Product Design

The GOT5840T-834 has an incredible design to be used in different industrial

environments.

The front bezel meets the IP65/NEMA4 standard.

For connecting other devices, the GOT5840T-834 also features several interfaces: USB,

Ethernet, and RS-232/422/485.

GOT5840T-832 User’s Manual

Introduction

1.2 Specifications

1.2.1 Main CPU Board

CPU

Intel○RAtomTM J1900 4 cores 2.0 GHz processor onboard

BIOS

America Megatrends BIOS

System Memory

One One 204-pin DDR3L SO-DIMM socket

Maximum memory up to 8GB

1.2.2 I/O System

Standard I/O

2x RS-232/422/485

2x USB 3.0

Ethernet

2x RJ45 Giga Ethernet (Intel i210IT)

Audio

One Line-out

Expansion

1 x Mini-card slot (w/SIM slot)

1 x Mini-card slot (supports mSATA, optional)

Storage

One CFast™ or mSATA

Power connector

GOT5840T-834 : DC power 9~36VDC (phoenix type)

GOT5840T-834-J : AC 100~240V to DC 12V adapter(Screw type)

GOT5840T-832 User’s Manual

Introduction

1.2.3 System Specification

8.4”SVGA(800x600) LCD with LED backlight

5 wired resistive Touch

Fanless Heat Dispensing Design

Heat Dispensing Design

Net Weight

1.3 Kgs (2.87 lb)

Dimension (Main Body Size)

250.7x 45.8 x 204.7mm

Operation Temperature

0℃to 50℃(with W.T. DRAM/ CFast™ or mSATA in airflow condition)

Relative Humidity

10% to 95% @ 40℃, Non-Condensing

Vibration

5 to 500 Hz, 2.0 G random for CFast™ or mSATA

Power input

9~36VDC with phoenix power connector

External 60W AC Adapter

—Power Input: 100VAC to 240VAC

—Power Output: 12VDC, Max. 5A

NOTE All specifications and images are subject to change without notice.

NOTE If the operation temperature is higher than 40

℃

, the wide temperature CFast™

or mSATA is recommended to be used on the device.

GOT5840T-832 User’s Manual

Introduction

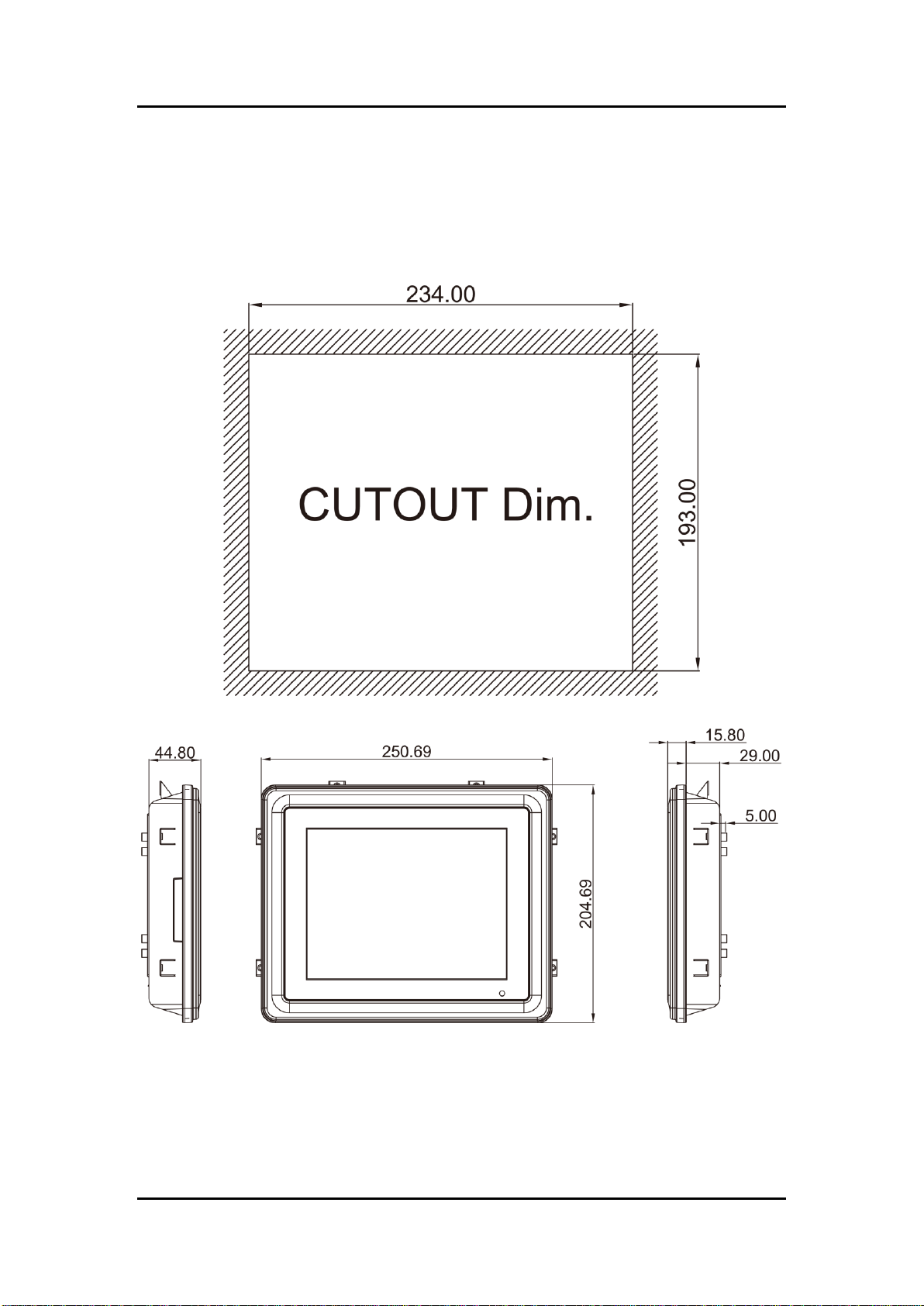

1.3 Dimensions

This diagram shows you dimensions and outlines of the GOT5840T-834.

Table des matières

Autres manuels AXIOMTEK Écran tactile

AXIOMTEK

AXIOMTEK GOT3157W-834-PCT Manuel utilisateur

AXIOMTEK

AXIOMTEK IFO2225-873 Series Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT315A-ELK-WCD Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT-3106TL-830 Manuel utilisateur

AXIOMTEK

AXIOMTEK PANEL1127-671 Manuel utilisateur

AXIOMTEK

AXIOMTEK MPC153W-834 Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT317-502-FR Manuel utilisateur

AXIOMTEK

AXIOMTEK MPC175-873 Series Manuel utilisateur

AXIOMTEK

AXIOMTEK MPC170-831-DC Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT3187WL-834 Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT-812 Series Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT3846T-832 Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT3126T-832 Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT3187W-834-PCT Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT3156T-834 Manuel utilisateur

AXIOMTEK

AXIOMTEK MPC153-834 Manuel utilisateur

AXIOMTEK

AXIOMTEK GO712-837-R-E3845-24- 110VDC Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT815W-511 Manuel utilisateur

AXIOMTEK

AXIOMTEK IFO2225-851 Series Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT812W-511 Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT815-834 Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT3187W-832-PCT Manuel utilisateur

AXIOMTEK

AXIOMTEK FDK series Manuel utilisateur

AXIOMTEK

AXIOMTEK P1127E-500 Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur

B&R Industries

B&R Industries MAPPC900-ENG Manuel utilisateur
