AVYCON AVC-NPTZ51X42L Manuel utilisateur

AVC

NPTZ51X42L

5MP MINI PTZ DOME NETWORK CAMERA

QUICK START GUIDE

Package Contents.....................................................................................................................

Caution......................................................................................................................................

System Requirements...............................................................................................................

Hardware Overview...................................................................................................................

Camera Installation...................................................................................................................

- Mount Accessories.................................................................................................................

Outdoor Installation..................................................................................................................

Accessing the Network Camera...............................................................................................

TABLE OF CONTENTS

Thank you for purchasing this AVYCON IP Network Camera. This guide provides basic instructions

on installing and accessing this IP Network Camera. For more details, please refer to the User

Manual.

Package Contents

Before installation, please verify that all the necessary items are supplied in the box as the

package contents listed below. If any item is missing or damaged, please contact the shipper

and your Avycon Sales Representative.

ITEMS

DEFAULT

OPTIONAL

QUANTITY DESCRIPTION

Avycon Network Camera 1 Pc The purchased model

Power Adapter

Quick Start Guide

Warranty Card

Lens

Bracket & Screw Pack

1 Pc

DC 12V (Optional for part of devices)

Printed material

If purchased

Caution

* Do not expose the product to rain moisture

* Make sure the device is ﬁrmly ﬁxed when mounting it on the wall or ceiling

* Make sure that the power supply voltage is correct before using ther camera

* Do not use a 3rd party Power Adapter

* Never attempt to disassemble or modify the camera

System Requirements

OPERATING SYSTEM: Windows XP / Vista / 7 / 8 /10 / Server 2000 / Server 2008

CPU: 1.66 Ghz or Higher

RAM: 1G or Higher

Graphic Memory: 128MB or more

Internet Protocol: TCP / IP (IPv4 / IPv6)

5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X42L

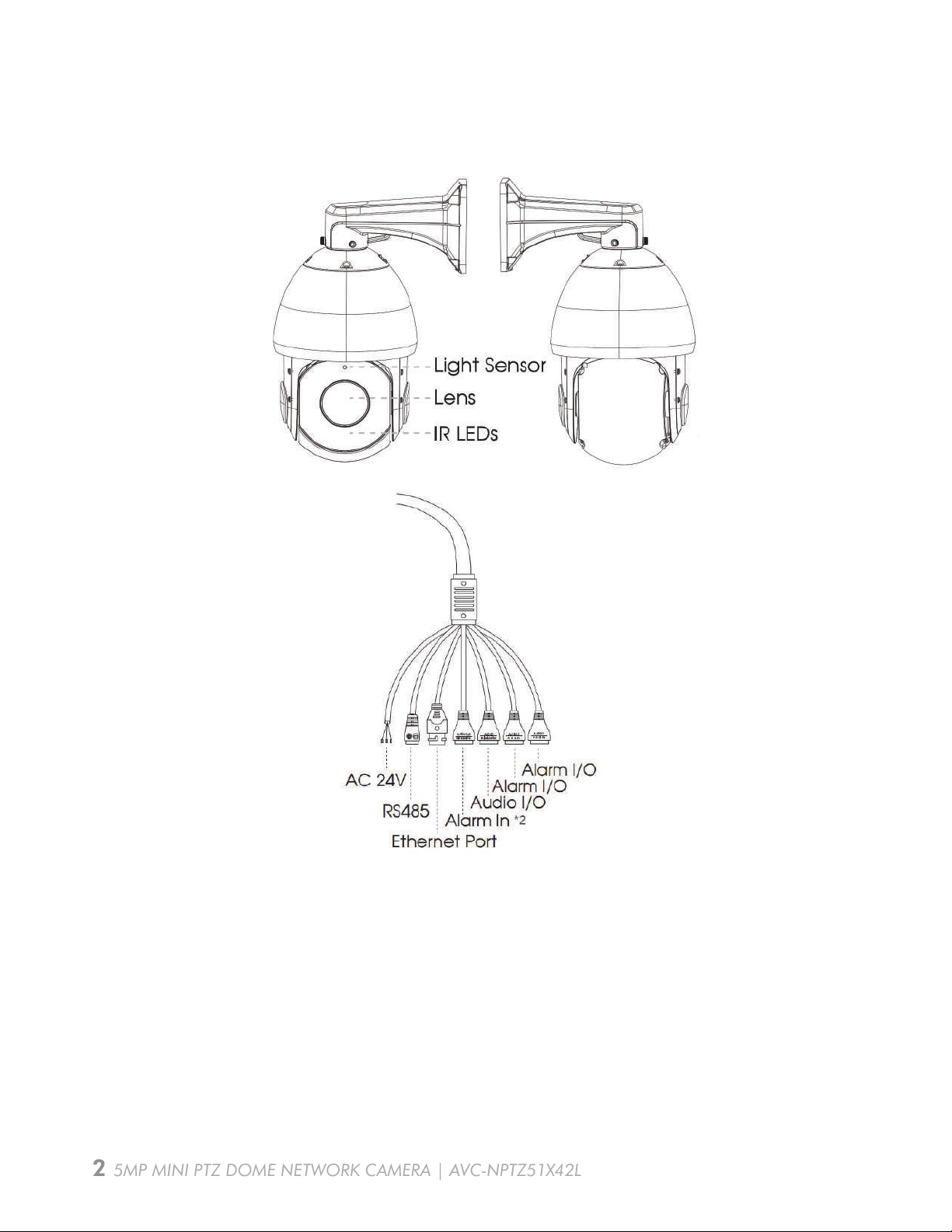

Hardware Overview - Speed Dome Network Camera

AVC-NPTZ51X42L

NOTE:

5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X42L

1) Only AC 24V is available for Speed Dome Network Camera power supply. AC 24V and PoE+ (802.3at)

are available for PoE Speed Dome Network Camera power supply;

2) Built-in SD card slot can be seen after removing the 4 screws and open the front panel;

3) Speed Dome on AI Camera Series only support 30X/36X Optical Zoom Lens.

5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X42L

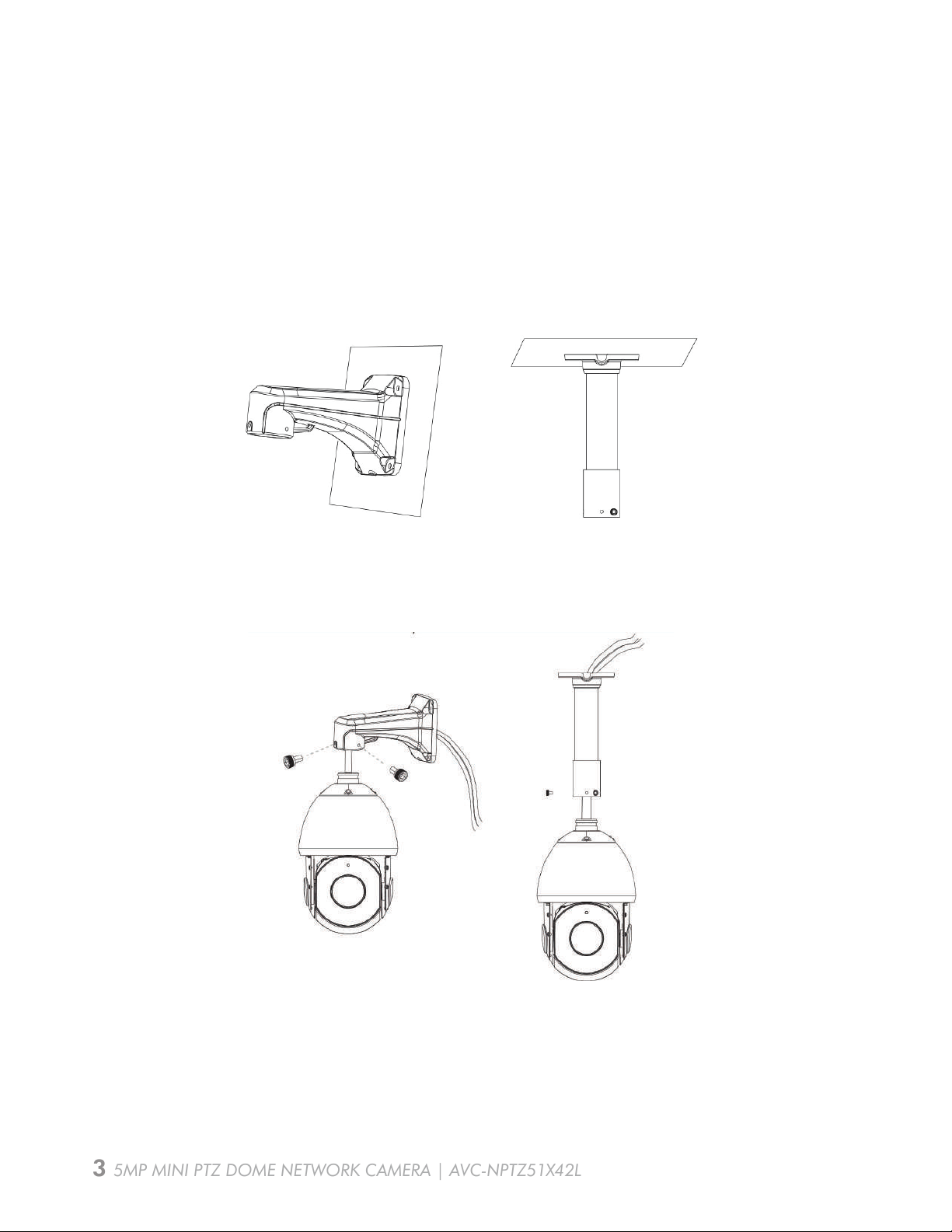

Step1: Check the wall or ceiling condition. Ensure that there is sufﬁcient strength to avoid

ﬂaking. It should be able to bear the weight eight times larger than the camera’s;

Step2: Use the wall or ceiling hanging holder to mark the holes. Drill 4 holes on the wall or

ceiling;

Step3: Put the cables through the holder. Match the holder with the screw holes of the camera

body and secure them;

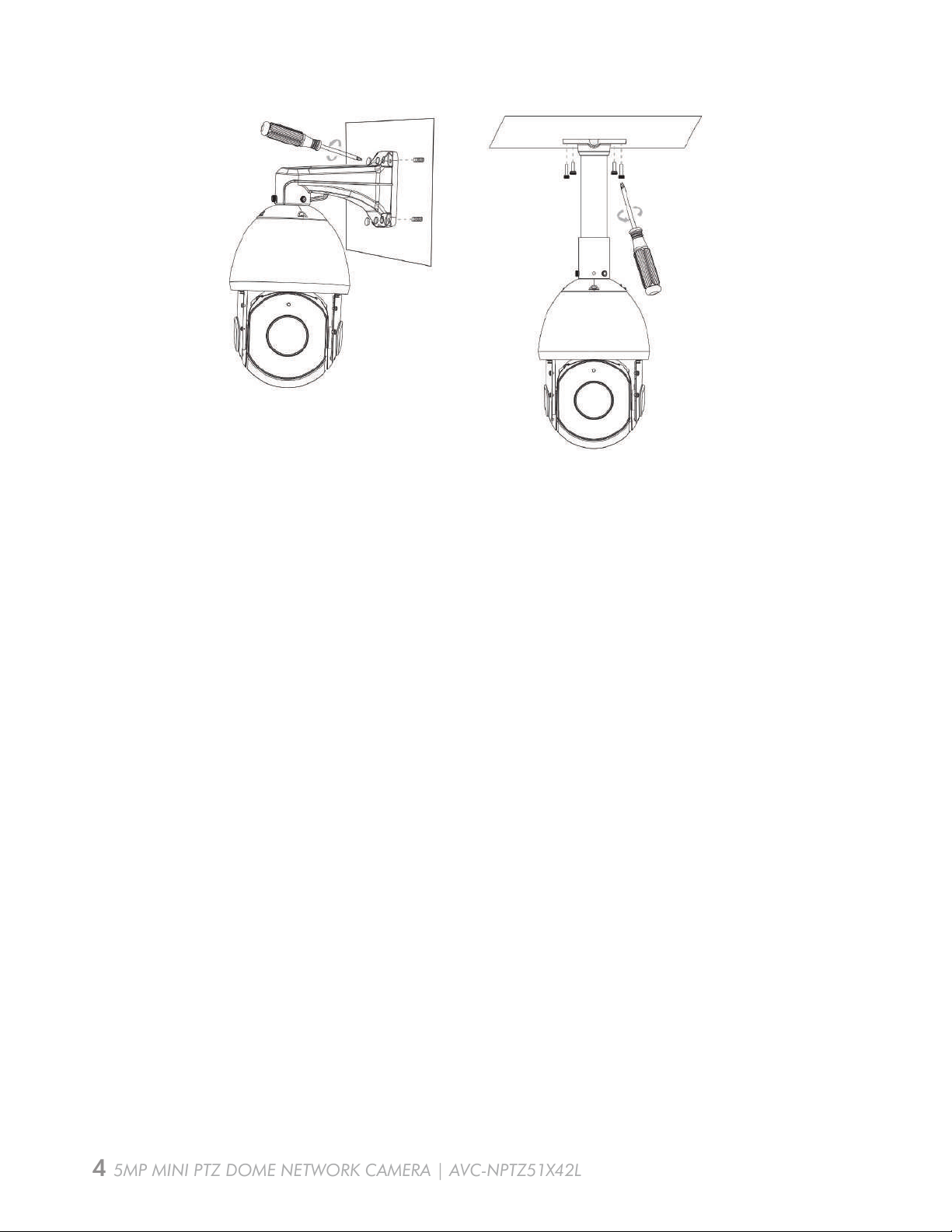

Step4: Make sure that the camera body has been correctly installed to the holder, and match

the holder to the holes on the wall or ceiling, then tighten up the screws;

Camera Installation

AVC-NPTZ51X42L

5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X42L

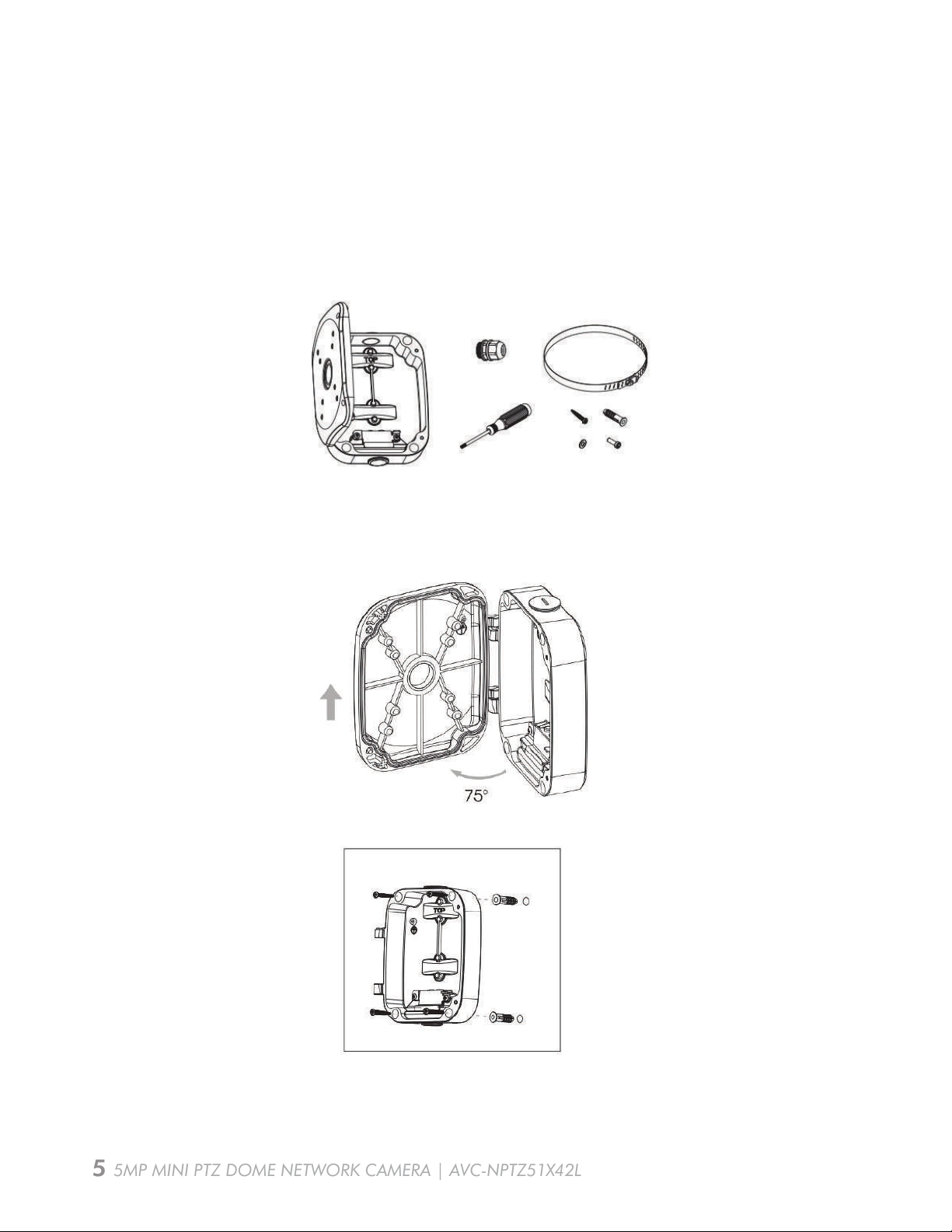

The Junction Box is equipped for Wall Mount and Ceiling Mount in order to bring a rather

ﬂexible and easy installation of Speed Dome and Mini PTZ Dome Network Camera.

Loosen the screws to open the front cover and rear cover, take out other parts from the box.

Install on the Wall Mount / Ceiling Mount

Step 1: Rotate to open the front cover over about 75°to conveniently take off it from the box;

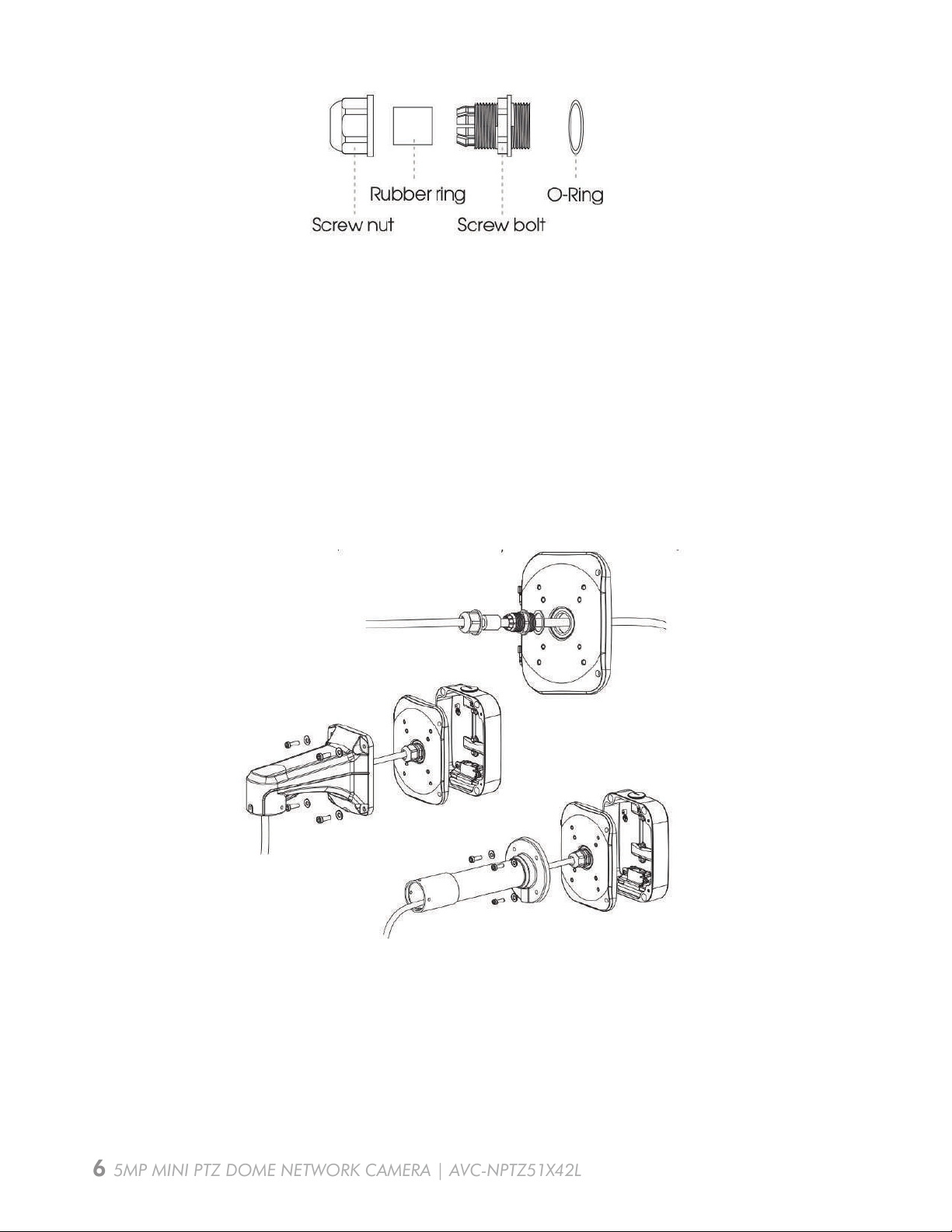

Step 3: Take out the weather-proof connector, separate it to four parts as screw nut, rubber ring,

screw bolt and O-ring;

Camera Installation - Mount Accessories

AVC-NPTZ51X42L

Step 2: Install the rear cover ﬁrst;

5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X42L

Step 8: The box supports top or bottom cable-out ways as below picture, through the top hole,

or tension disc which put cables through bottom or bottom back. For tension disc, please

remove it then cut an opening on the rubber plug, get cables through the opening. Please

remember to plug the rubber plug whenever the holes on it are not in use;

Step 4: Install camera on wall/ceiling mount accessory, put the camera cables through them.

The process would be easier if put the larger interface ﬁrst;

Step 5: Put the camera cables through screw nut, screw bolt and O-ring;

Step 6: Take rubber ring circle over the cables and put it into screw bolt;

Step 7: Rotate screw nut on screw bolt to tighten, then pass all the cables through the entry hole

and rotate the whole weather-proof connector back on the front cover, and lock the accessory

back on the front cover;

5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X42L

Step 9: Carefully hold the front cover with wall/ceiling mount accessory and camera, put the

front cover stick into the rear cover. The set screw will lock the body securely;

Step 10: Connect camera cables with previous cables. Manage the cables well then close the

front cover and lock the screws.

5MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ51X42L

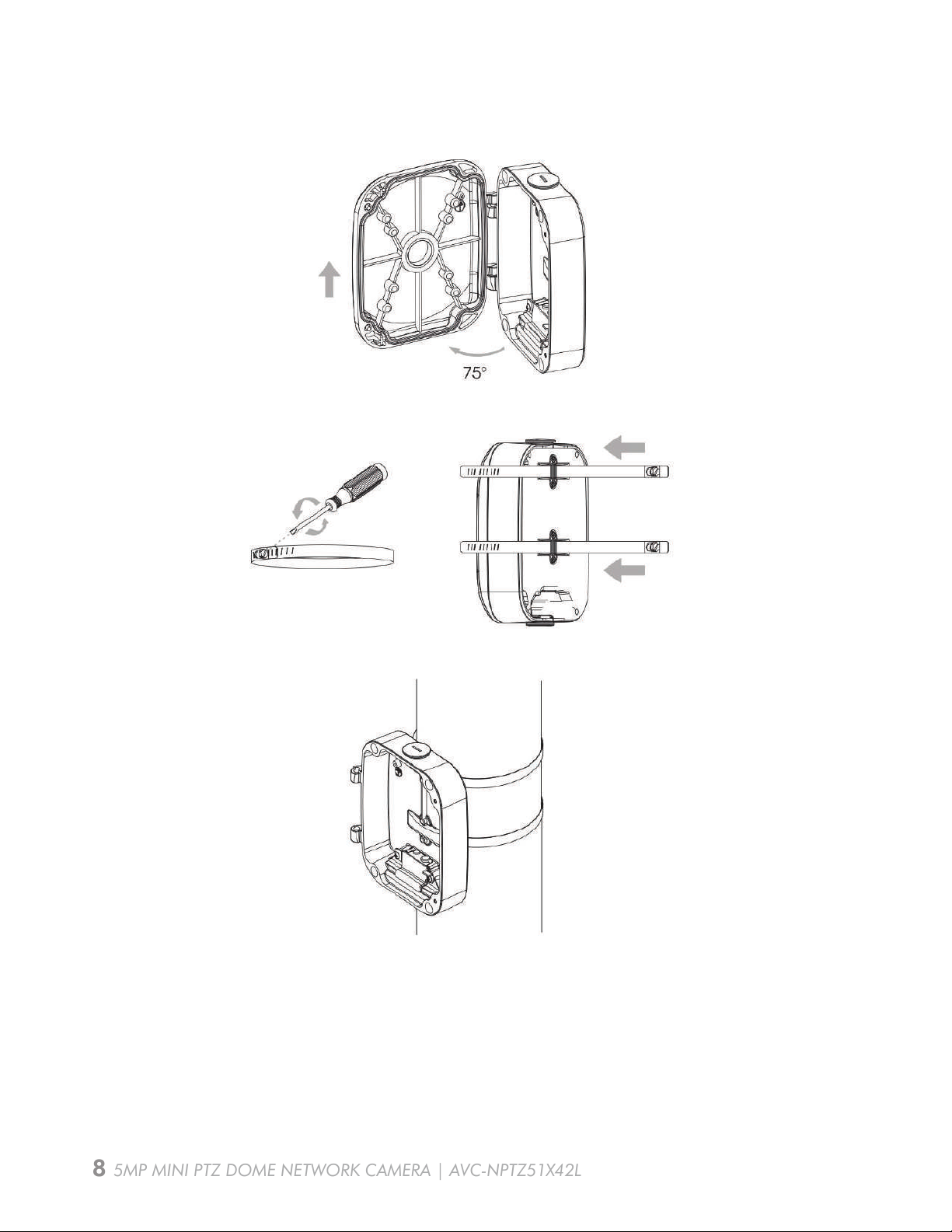

Install on the Pole Mount

Step 1: Rotate to open the front cover over about 75°to conveniently take off it from the box;

Step 3: Fix the rings with rear cover on the pole, fasten the screws;

Step 4: The following steps are the same as it installed on the wall mount.

Step 2: Loosen the screws of the ﬁx rings, put rings through the back of the box body;
