AVYCON AVC ELN41AVT Manuel utilisateur

AVC

ELN41AVT

4MP WATER-PROOF TURRET NETWORK CAMERA

QUICK START GUIDE

Warning and Caution...............................................................................................................

Package Content..................................................................................................................................

Overview...................................................................................................................................

Overview: Connecting Network Cable ..................................................................................

Network Connection.................................................................................................................

TABLE OF CONTENTS

Camera Installation .................................................................................................................. 5

Lorem ipsum

4MP WATER-PROOF TURRENT NETWORK CAMERA| AVC-ELN41AVT

Warning and Caution

If the product does not work properly, please contact your dealer or the nearest

service center. Never attempt to disassemble the camera yourself. (We shall not be responsi-

ble for any problems caused by unauthorized repair or maintenance.)

Do not allow water or liquid intrusion into the camera.

In the use of the product, you must be strict compliance with the electrical safety

regulations of the nation and region. When the product is mounted on wall or ceiling, the

device shall be ﬁrmly ﬁxed.

Do not use camera beyond speciﬁed voltage range.

Do not drop the camera or subject it to physical shock.

Avoid touching the camera lens.

If cleaning is necessary, please use clean cloth to wipe it gently.

Do not aim the camera at the sun or extra bright place.

Do not place the camera in extremely hot, cold (the operating temperature shall be

-30˚C~60˚C), dusty or damp locations, and do not expose it to high electromagnetic radia-

tion.

To avoid heat accumulation, good ventilation is required for operating environment.

Please read this instruction carefully before operating the unit and keep it for

further reference.

All the examples and pictures used here are for reference only.

The contents of this manual are subject to change without notice.

Package Contents

AVC-ELN41AVT

ITEMS

DEFAULT

QUANTITY DESCRIPTION

Avycon Network Camera 1 Pc The purchased model

Quick Start Guide

Drill Template

1 Pc

Printed material

Tapping Screws 3 Pc Materials

1 Pc Material

Rubber Plug 1 Pc Material

Screwdriver 1 Pc Material

Plastic Plug 3Pc Material

Caution

* Do not expose the product to rain moisture

* Make sure the device is ﬁrmly ﬁxed when mounting it on the wall or ceiling

* Make sure that the power supply voltage is correct before using ther camera

* Do not use a 3rd party Power Adapter

* Never attempt to disassemble or modify the camera

System Requirements

OPERATING SYSTEM: Windows XP / Vista / 7 / 8 / 10 / 11/ Server 2000 / Server 2008

CPU: 1.66 Ghz or Higher

RAM: 1G or Higher

Graphic Memory: 128MB or more

Internet Protocol: TCP / IP (IPv4 / IPv6)

Plastic plug x 3

DrilltemplateRubber plug ScrewdriverQuick Start Guide

CD Tapping screws x3

Camera

4MP WATER-PROOF TURRENT NETWORK CAMERA | AVC-ELN41AVT

Thank you for purchasing this AVYCON IP Network Camera. This guide provides basic

instructions on installing and accessing this IP Network Camera. For more details, please

refer to the User Manual.

Overview

AVC-ELN41AVT

4MP WATER-PROOF TURRENT NETWORK CAMERA| AVC-ELN41AVT

1 Ethernet connector

2 Audio input connector

3 Power connector

4 Mounting base

5 Fixed screw

6 Microphone

7 Micro SD card slot

8 Reset

Overview - Connecting Network Cable

AVC-ELN41AVT

4MP WATER-PROOF TURRENT NETWORK CAMERA | AVC-ELN41AVT

Security Cap

DC12V

* 1,It is recommended to install the security cap for outdoor installation.

* 2, If the PoE switch is used to power the camera, DC12V power supply is not required.

Step 1: Loosen the nut from the main element.

Step 2: Run the network cable (without RJ 45 connector) through the both elements. Then

crimp the cable with RJ 45 connector.

Step 3: Connect the cable to the hermetic connector. Then tighten the nut and the main

cover.

Please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of

the camera. Please install the camera under dry environment.

Step 1: Loosen the ﬁxed screw to disassemble the camera. Then open the cover of the dome

and then insert a micro SD card. After that, install the cover back. Finally, install the dome and

enclosure to the mounting base with the ﬁxed screw, but do not fully tighten.

Step 2: Drill the screw holes and the cable hole on the wall according to the drill template.

Camera Installation

AVC-ELN41AVT

4MP WATER-PROOF TURRENT NETWORK CAMERA | AVC-BLN41AVT

Cover

Insert a micro SD card

Fixed Screw

Mounting Base

Enclosure

Dome

∅130.7

∅119.5

∅4.5

120°

103.5 mm

59.7mm

29.9mm

* Note: *Check whether the waterproof ring on the card slot cover is installed proper-

ly before installing the cover back.

* Please install the cover in the same way you disassemble it, so that the sealing

performance will not be affected.

4MP WATER-PROOF TURRENT NETWORK CAMERA | AVC-ELN41AVT

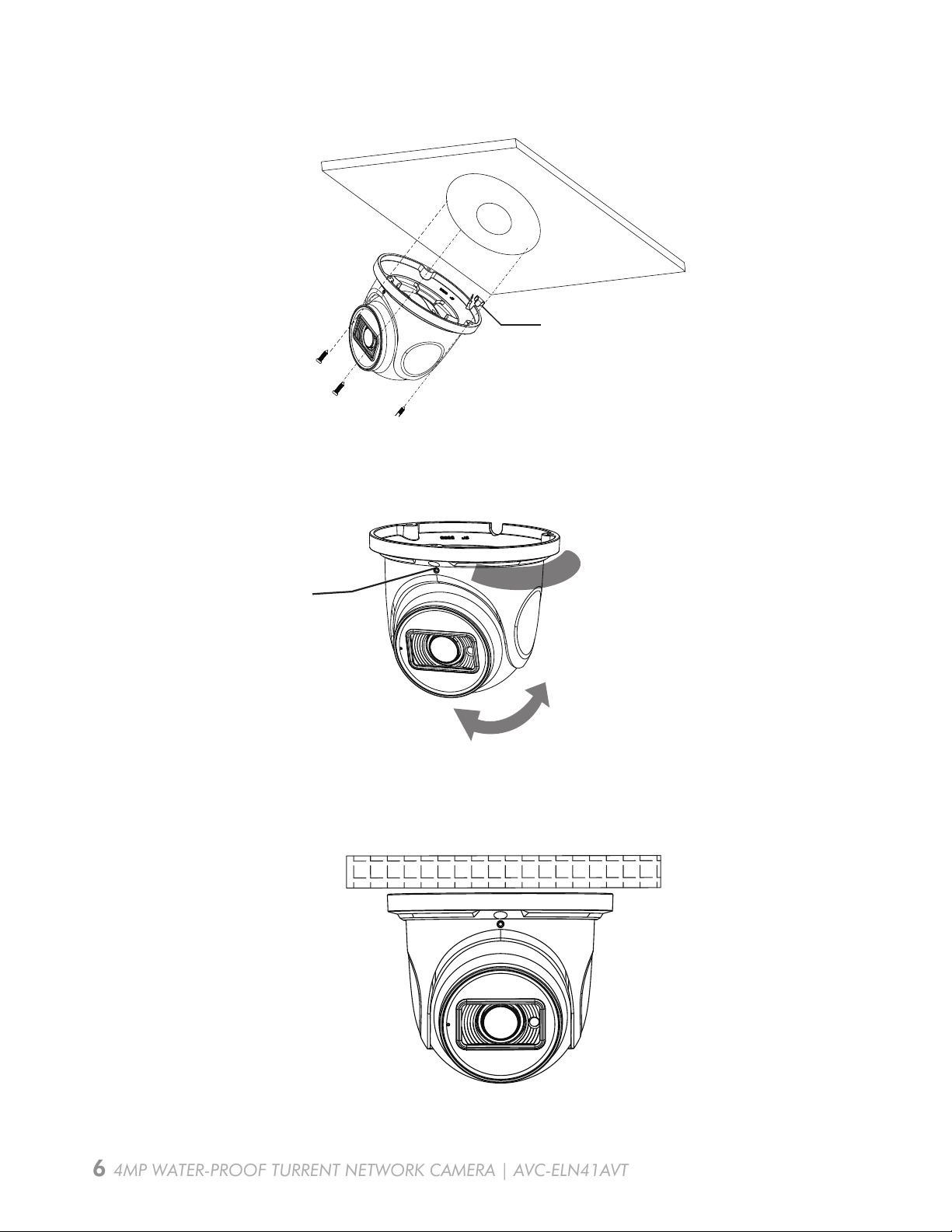

Step 3: Route and connect the cables and then secure the camera to the ceiling or wall with

the screws.

Step 4: Adjust the camera to obtain an optimum angle. Before adjustment, preview the

image of the camera on a monitor.

Step 5: After that, tighten the ﬁxed screw.

Rubber Plug

Fixed ScrewPan: 360°

Tilt: 80°

Access through IP-Tool

Network Connection

AVC-ELN41AVT

4MP WATER-PROOF TURRENT NETWORK CAMERA |AVC-ELN41AVT

IPC

Network Cable Network Cable

Router

Switch

Computer

DeviceNetworkSearch

name

ImmediateRefresh

name

IPC

unknown

192.168.226.201

192.168.1.2

192.168.1.3

9008

255.255.

Modify Network Parameter

Mac Address

IP Address

Modify

CE :98 :23 :75 :35 :22

192.168. 226. 201

255. 255. 255. 0

192.168. 226. 1

Tip: Enter the administrator password, and

Total Device: 3

then modify the network parameters.

Device NameDevice Type IP AddressHttp PortData PortSubnet

About

Product Model

Local IP Address:192.168.1.4Subnet Mask:255.255.255.0Gateway: 192.168.1.1DNS：210.21.196.6

Subnet Mask

Gateway

Restore IPC Default Configuration

Step 1:Make sure that the camera and the PC are well connected to the local network.

Step 2: Install IP-Tool from the CD and run it after installation.

Step 3: Modify the IP address. The default IP address of this camera is 192.168.226.201. Click

the information of the camera listed in the above table to show the network information on

the right hand. Modify the IP address and gateway of the camera and make sure its network

address is in the same local network segment as the computer’s. Please modify the IP

address of your device according to the practical situation.

4MP WATER-PROOF TURRENT NETWORK CAMERA | AVC-ELN41AVT

For Example, if the IP address of your computer is 192.168.1.4 then the IP address of the

camera shall be changed to 192.168.1.X.

The default password of the administrator is “123456”.

The default username is admin; the default password is 123456.

Step 4: Double-click the camera listed in the IP-Tool or manually enter the IP address in the

address bar of the web browser to connect IP camera. Then follow directions to download

and install the plugin.

Step 5: Enter the username and password in the login interface.

Mac Address

IP Address

Modify

Modify Network Parameter

CE :98 :23 :75 :35 :22

192.168. 1 . 201

255. 255. 255. 0

192.168. 1 . 1

Subnet Mask

Gateway

Name:

Password:

Stream Type:

Language:

Remember me

admin

1920x1080 25fps

English
