Thank you for purchasing this AVYCON IP Network Camera. This guide provides basic instructions
on installing and accessing this IP Network Camera. For more details, please refer to the User
Manual.
Package Contents
Before installation, please verify that all the necessary items are supplied in the box as the
package contents listed below. If any item is missing or damaged, please contact the shipper
and your Avycon Sales Representative.
ITEMS
DEFAULT
OPTIONAL
QUANTITY DESCRIPTION
Avycon Network Camera 1 Pc The purchased model
Power Adapter
Quick Start Guide
Warranty Card
Lens
Bracket & Screw Pack
1 Pc
1 Pc
1 Pc
DC 12V (Optional for part of devices)
Printed material
Printed material
If purchased
If purchased
Caution
* Do not expose the product to rain moisture
* Make sure the device is firmly fixed when mounting it on the wall or ceiling
* Make sure that the power supply voltage is correct before using the camera
* Do not use a 3rd party Power Adapter
* Never attempt to disassemble or modify the camera
System Requirements
OPERATING SYSTEM: Windows XP / Vista / 7 / 8 /10 / Server 2000 / Server 2008
CPU: 1.66 Ghz or Higher
RAM: 1G or Higher
Graphic Memory: 128MB or more
Internet Protocol: TCP / IP (IPv4 / IPv6)
1 2MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ21X23L
Hardware Overview
AVC-NPTZ21X23L
NOTE:
2 2MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ21X23L
1) Reset Button: Hold “Reset” button for 5 seconds, and the device will be restored to factory default
2) DC 12V & PoE (802.3at) are available for Mini PoE PTZ Dome Power Supply.

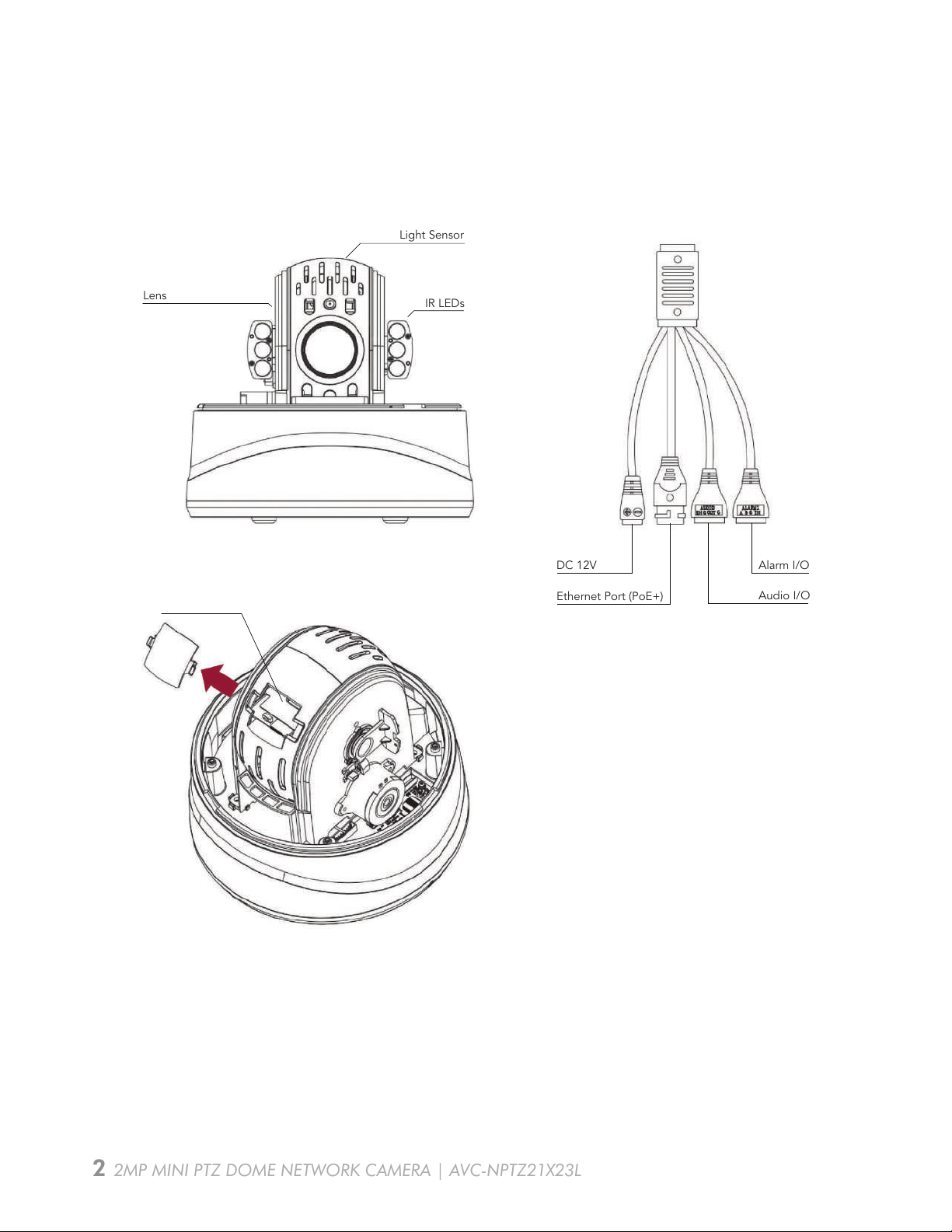

Lens
Light Sensor
DC 12V Alarm I/O
Audio I/O
Ethernet Port (PoE+)
SD Card Slot
IR LEDs
Camera Installation - Install with Mounting Bracket
1.
DIAGRAM 1
3 2MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ21X23L
AVC-NPTZ21X23L

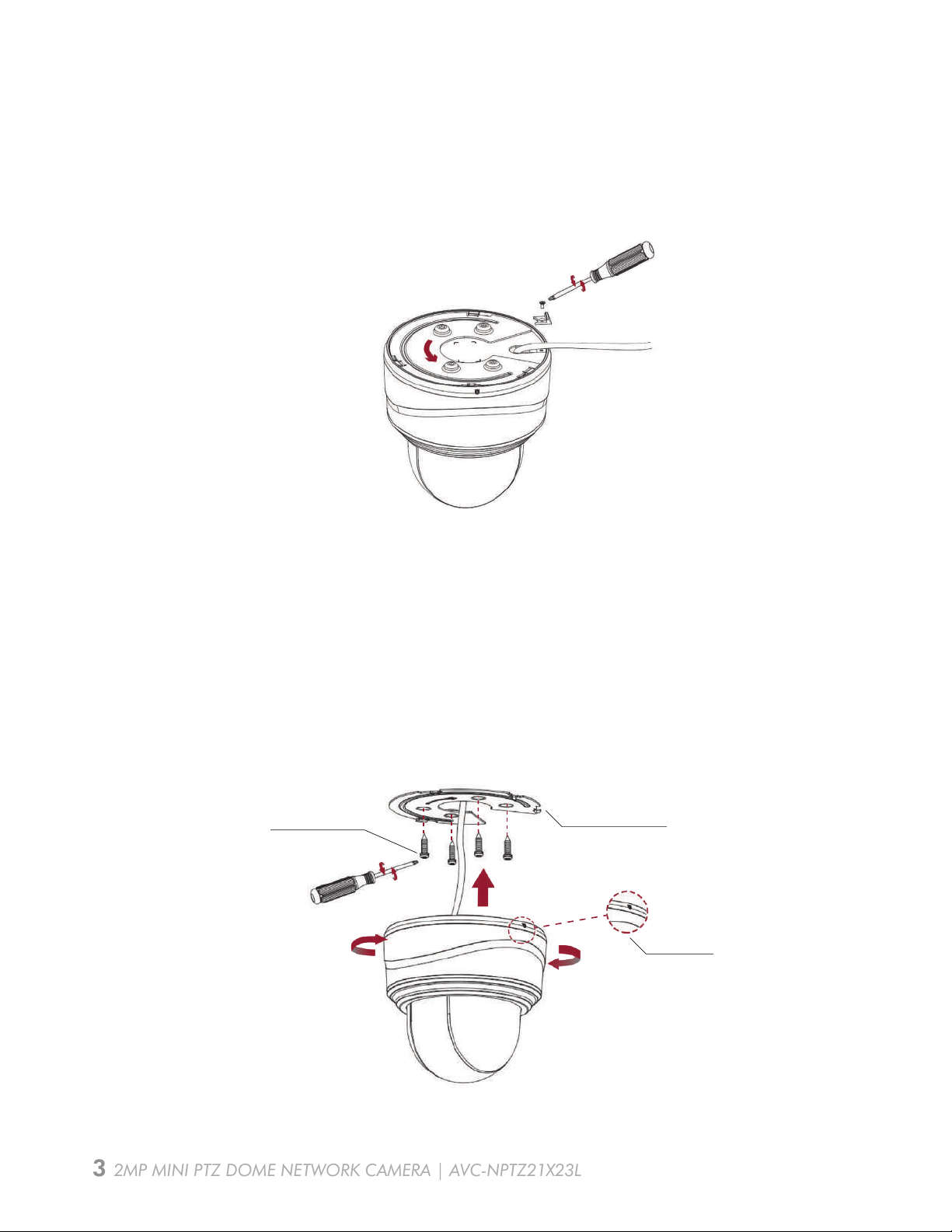

Take the cables out from the side of the PTZ Dome Camera; if needed, loosen the screws
on the bottom of the camera.
2. Fix the mounting bracket onto the surface where camera is to be mounted. Using the
included screws or appropriate mounting screws, fix the bracket in. Next, connect all
necessary cables. Finally, rotate and secure camera onto the mounting bracket and
tighten the set screw when the camera is in position.
DIAGRAM 1: Before starting the mounting process, make sure that the surface you want to mount the camera onto is able to bear
weight 8x heavier than the camera’s and won’t flake in process.
Mounting Screws Mounting Bracket
Set Screw
4 2MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ21X23L
Camera Installation - Install with Recessed Mount
1.
AVC-NPTZ21X23L

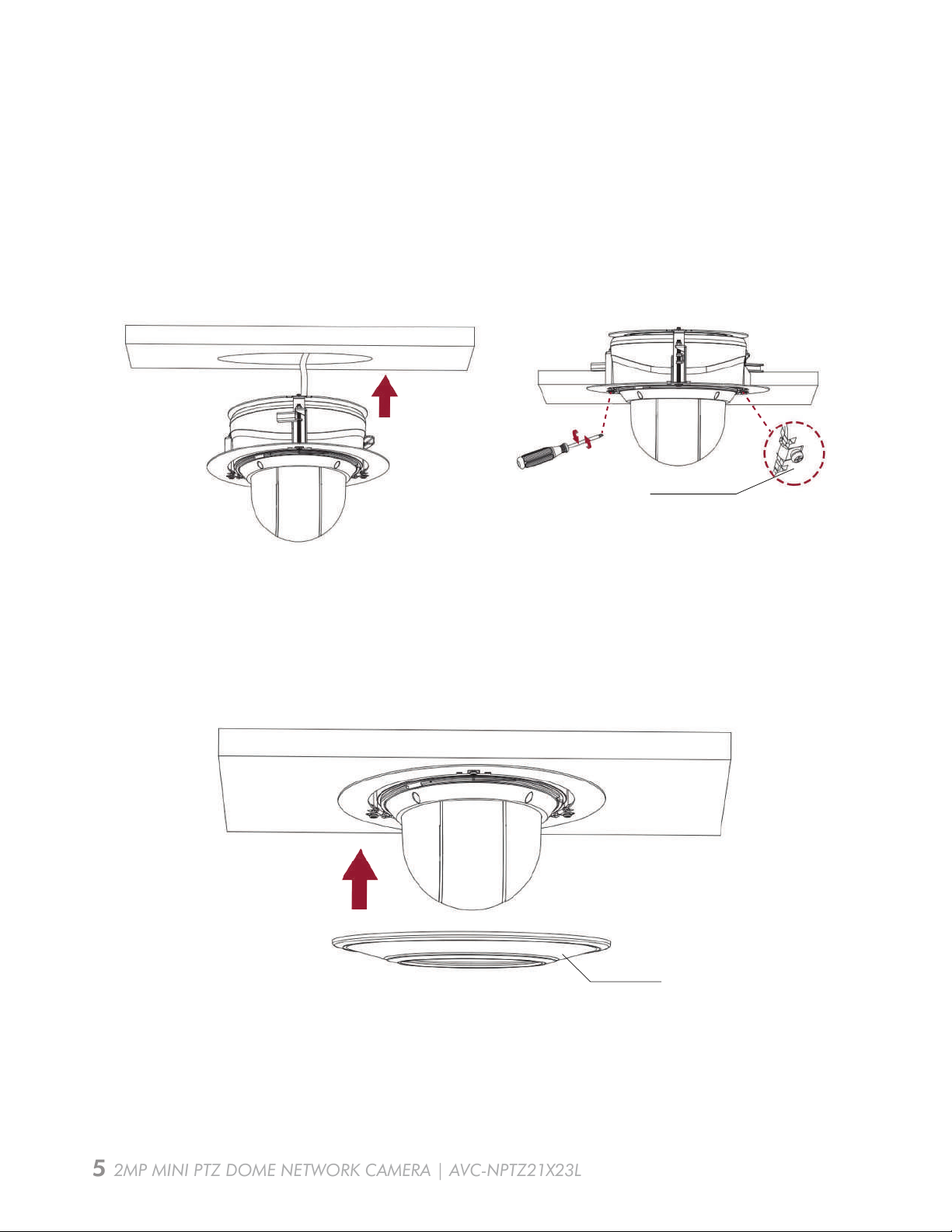

Ensure that the thickness of the ceiling is less than 30mm then drill a round hole with a
diameter of 220mm. Hold the camera and turn the dome cover clockwise to take it off.
2. Assemble the recessed mount by taking the support plate up and screwing the fixation
plate onto the support. Then position the camera onto the recessed mount and set the
screws in.
Dome Cover
Lock Screws
Recessed Mount
Fixation Plate
5 2MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ21X23L
3. Place the camera with the recessed mount attached through the drilled hole until fitted
properly. Using mounting screws, attach the camera securely to the ceiling.
4. Attach the cover of the recessed mount and installation is completed.
Lock Screws
Mount Cover
Camera Installation - Install with Wall or Pendant Mount
6 2MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ21X23L
AVC-NPTZ21X23L

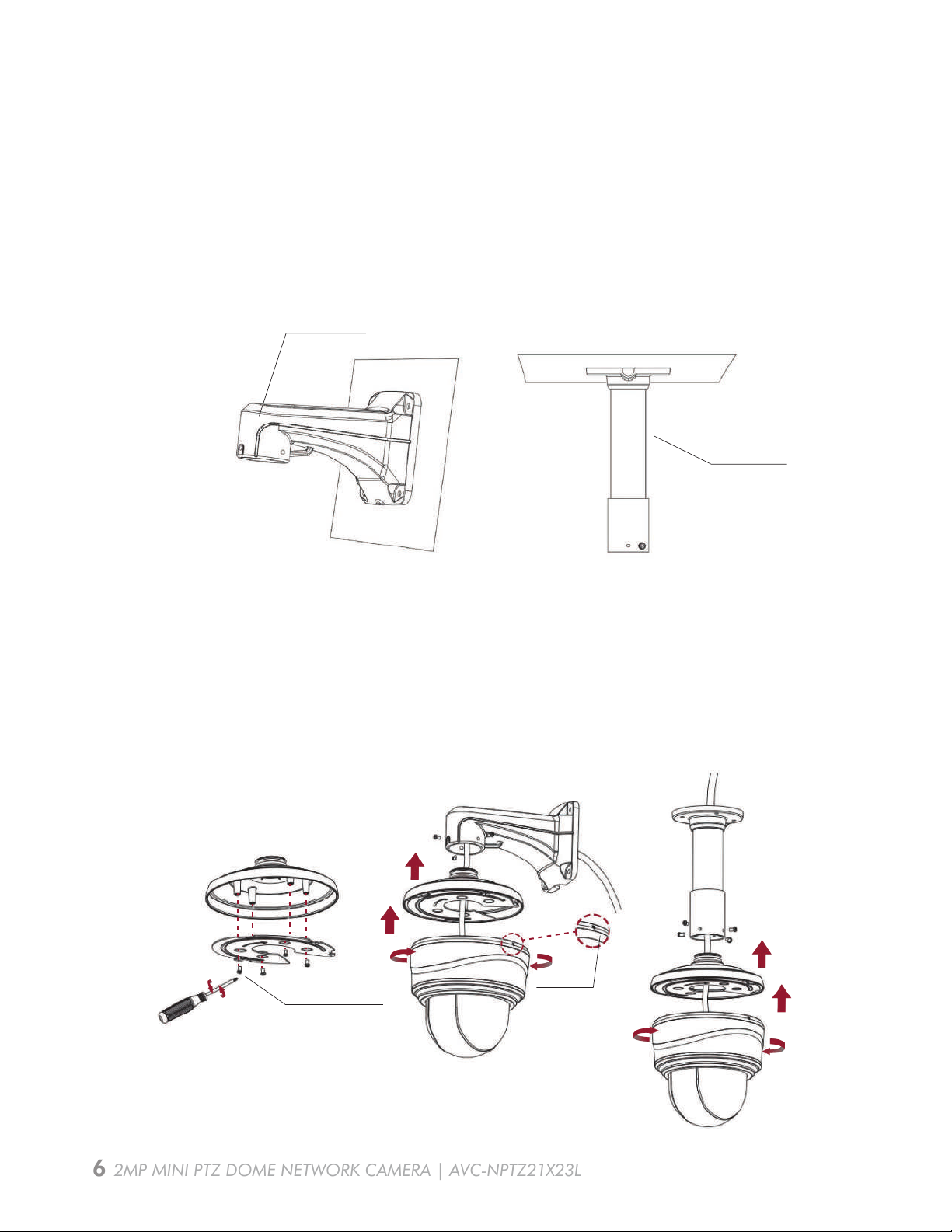

1. Use the mount holder to position a spot on the surface to mark hole locations. Drill 4 holes
into the surface that matches the positioning of the holder.
2. Set up the mounting brackets by screwing the fixation plate on top of the mount. Screw
the bracket onto the holder. Next, run the cables through the bracket and holder and
connect all necessary cables. Finally, rotate and secure camera onto the mounting bracket
and tighten the set screw when the camera is in position.
Mount Holder
Mount Holder
Lock Screws
Wall MountMounting Bracket Ceiling Mount
Wall Mount Ceiling Mount
Set Screw
7 2MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ21X23L
3. Position the holders to the location that you’ve drilled into the surface and tighten the
mounting screws in once you have secured the camera.
4. Loosen the screws of the dome cover to take it off. IF necessary, loosen the screws on the
dome camera body to access the SD Card slot.
Mounting Screws
Wall Mount Ceiling Mount
Dome Cover
SD Card Slot
1. While power is off, press and hold reset button, then power on the camera and the IR LEDs
will begin to flash.
2. There are 2 hardware models of our camera. Please follow instructions for the proper
models below:
Model - A: Keep holding button until the LEDs stop flashing;
Model - B: Keep holding button until the IR LEDs stay on;
3. Release the reset button and the camera will begin the reset process, which should take 1-3
minutes to complete. After the reset process is complete, the camera will have an IP address
of 192.168.10.201. If you find that the IP address has not changed, please repeat process
from Step 1.
4. If needed, modify the IP address of the camera using the Tools utility.
How to perform a Hardware Reset
PIN1: Alarm Output NC / NO 24V DC 1A
PIN2: Alarm Output NC / NO 24V DC 1A
PIN3: Alarm Input NC / NO ≤12V
PIN4: Alarm Input NC / NO ≤12V
How to Connect to a Alarm Interface
Digital InputDigital Output
General I/O
Terminal Block
PIN2 PIN3 PIN4PIN1
8 2MP MINI PTZ DOME NETWORK CAMERA | AVC-NPTZ21X23L
