AVYCON AVC-BLN41AVT Manuel utilisateur
1
AVC
BLN41AVT
4MP WATER-PROOF BULLET NETWORK CAMERA
QUICK START GUIDE
Warning and Caution...............................................................................................................
Package Content..................................................................................................................................
Overview...................................................................................................................................
Overview: Connecting Network Cable ..................................................................................
Network Connection.................................................................................................................
TABLE OF CONTENTS
1
2
3
4
7
Camera Installation .................................................................................................................. 5
1
4MP WATER-PROOF BULLET NETWORK CAMERA | AVC-BLN41AVT
1
Warning and Caution
If the product does not work properly, please contact your dealer or the nearest
service center. Never attempt to disassemble the camera yourself. (We shall not be responsi-
ble for any problems caused by unauthorized repair or maintenance.)
In the use of the product, you must be strict compliance with the electrical safety
regulations of the nation and region. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
Do not allow water or liquid intrusion into the camera.
Do not use camera beyond specified voltage range.
Do not drop the camera or subject it to physical shock.
Avoid touching the camera lens.
If cleaning is necessary, please use clean cloth to wipe it gently.
Do not aim the camera at the sun or extra bright place.
Do not place the camera in extremely hot, cold (the operating temperature shall be
-30˚C~60˚C), dusty or damp locations, and do not expose it to high electromagnetic radia-
tion.
To avoid heat accumulation, good ventilation is required for operating environment.
Please read this instruction carefully before operating the unit and keep it for
further reference.
All the examples and pictures used here are for reference only.
The contents of this manual are subject to change without notice.
Package Contents
AVC-BLN41AVT
ITEMS
DEFAULT
QUANTITY DESCRIPTION
Avycon Network Camera 1 Pc The purchased model
Quick Start Guide
CD
Drill Template
1 Pc
1 Pc
Printed material
Printed material
Tapping Screws 4 Pc Materials
Machine Screw 1 Pc
1 Pc
Materials
Material
Rubber Plug 1 Pc Material
Plastic Plug 4 Pc Material
Caution
* Do not expose the product to rain moisture
* Make sure the device is firmly fixed when mounting it on the wall or ceiling
* Make sure that the power supply voltage is correct before using ther camera
* Do not use a 3rd party Power Adapter
* Never attempt to disassemble or modify the camera
System Requirements
OPERATING SYSTEM: Windows XP / Vista / 7 / 8 / 10 / 11/ Server 2000 / Server 2008
CPU: 1.66 Ghz or Higher
RAM: 1G or Higher
Graphic Memory: 128MB or more
Internet Protocol: TCP / IP (IPv4 / IPv6)
Plastic plug x4
DrilltemplateRubber plugQuick Start Guide
CD 4 tapping screws
1 machine screw
Camera
2
4MP WATER-PROOF BULLET NETWORK CAMERA | AVC-BLN41AVT
Thank you for purchasing this AVYCON IP Network Camera. This guide provides basic
instructions on installing and accessing this IP Network Camera. For more details, please
refer to the User Manual.
Overview
AVC-BLN41AVT
3
4MP WATER-PROOF BULLET NETWORK CAMERA | AVC-BLN41AVT
3
1 2
4
5
6
7
8
1 Fixed Ring
2 Mounting Base
3 Network Connector*
4 Audio Input
5 Power Connector*
6 Micro SD card slot
7 Reset
8 Sunshield
DC12V
Overview - Connecting Network Cable
AVC-BLN41AVT
2
13
4
4MP WATER-PROOF BULLET NETWORK CAMERA | AVC-BLN41AVT
* It is recommended to install the security cap for outdoor installation.
* If the PoE switch is used to power the camera, DC12V power supply is not required.
Step 1: Loosen the nut from the main element.
Step 2: Run the network cable (without RJ 45 connector) through the both elements. Then
crimp the cable with RJ 45 connector.
Step 3: Connect the cable to the hermetic connector. Then tighten the nut and the main
cover.
Please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of
the camera. Please install the camera under dry environment.
Step 1: Drill the screw holes and the cable hole on the wall according to the drill template.
Camera Installation
AVC-BLN41AVT
∅4.6
* L
48.08mm
48.08mm
5
4MP WATER-PROOF BULLET NETWORK CAMERA | AVC-BLN41AVT
Step 2: Route and connect the cables .
Step 3: Secure the mounting base with camera to the wall with the screws provided.
Rubber plug
6
4MP WATER-PROOF BULLET NETWORK CAMERA | AVC-BLN41AVT

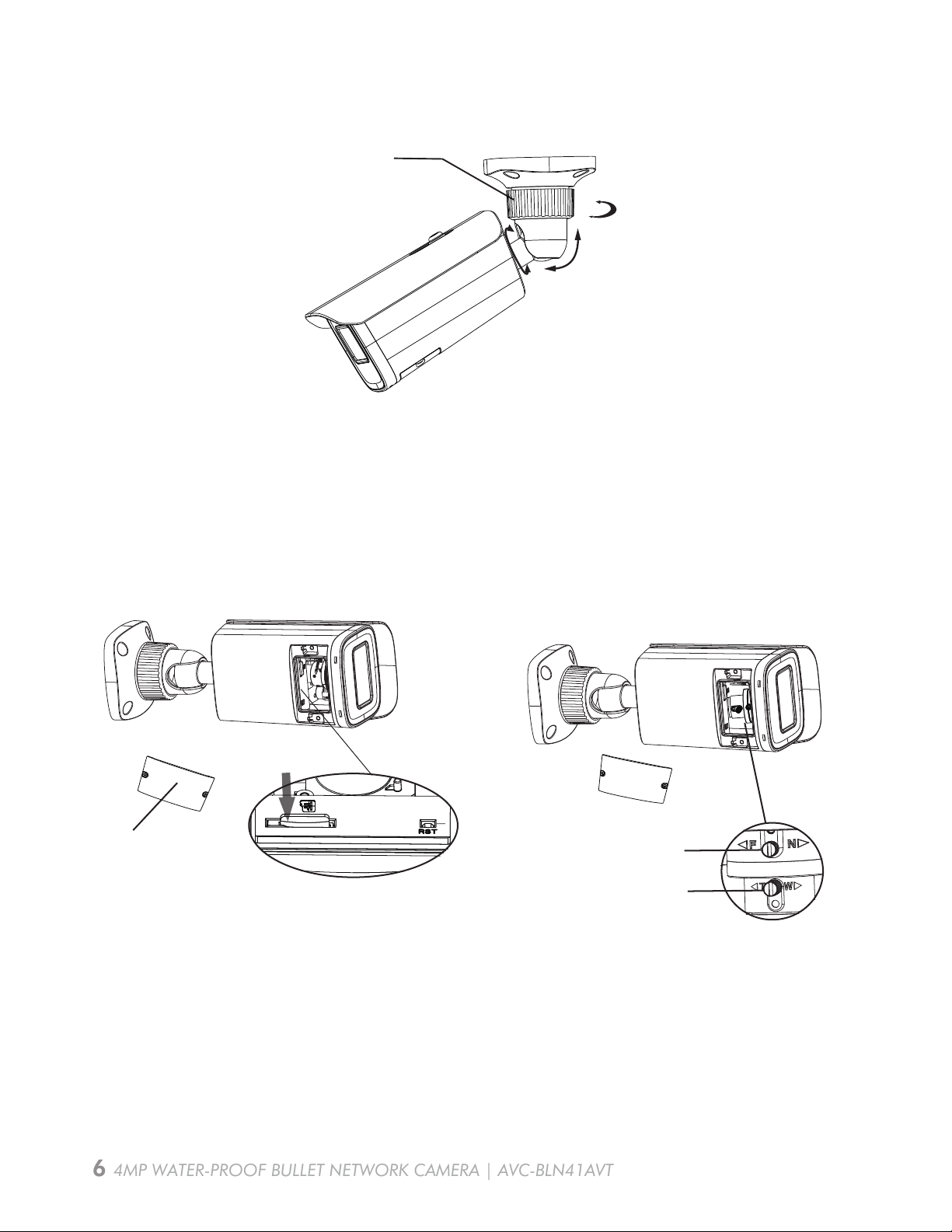

Step 4: Bracket adjustment. Before adjustment, preview the image of the camera on a moni-
tor and then loosen the fixed ring to adjust the view angle of the camera.
90° Tilt
360° Pan
360° Rotation
Fixed Ring
Focus
Zoom
Insert a micro
SD card
Cover
Step 5: Open the cover of the camera and then insert a micro SD card.
After that, adjust Zoom or Focus lever to obtain an optimum image ( If the camera is fixed
or motorized lens, please skip this step). Before adjustment, preview the image of the
camera on a monitor.
Step 6: Install the cover back to the camera and fix it firmly with the screws. (Note that the
cover should not be installed unevenly.)
Network Connection
AVC-BLN41AVT
DeviceNetworkSearch
name
name
ImmediateRefresh
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
80
80
80
192.168.1.3
9008
9008
9008
255.255.
255.255.
255.255.
Mac Address
Modify Network Parameter
IP Address
Modify
CE :98 :23 :75 :35 :22
192.168. 226. 201
255. 255. 255. 0
192.168. 226. 1
i
Tip: Enter the administrator password, and
Total Device: 3
then modify the network parameters.
Device NameDevice Type IP AddressHttp PortData PortSubnet
About
Product Model
Local IP Address:192.168.1.4Subnet Mask:255.255.255.0Gateway: 192.168.1.1DNS：210.21.196.6
Subnet Mask
Gateway
Restore IPC Default Configuration
7
4MP WATER-PROOF BULLET NETWORK CAMERA | AVC-BLN41AVT
Step 1:Make sure that the camera and the PC are well connected via LAN.
Step 2: Find the IP-Tool from the CD and then install it in the computer. After that, run the
IP-Tool as shown below.
Step 3: Double click the camera information listed in the IP-Tool to open the web browser.
Or manually enter the default IP address in the address bar of your browser.
The default IP address of this camera is 192.168.226.201. Then follow directions to download
and install the plugin if prompted.
Step 4:Activate and log in the camera. The default username is admin; the default password
is 123456 or you need to self-define the password. Please operate according to the actual
situation.
* Access the camera through IP-Tool
MENU
IPC Network Cable
Switch
Router
Network Cable Computer
1
phone: 949-752-7606
email: [email protected]
social: @avycon_aivo
website: avycon.com
Copyright © AVYCON. All rights reserved. Specifications and pricing are subject to change without notice.
