Avenview C-COMP-HDSDI Manuel utilisateur

www.avenview.com

Component / Composite / RGBHV

to HD/SD-SDI Converter

User’s Guide

Models

C-COMP-HDSDI

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations

or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to

specifications and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual

property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes

no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied

warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly

prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 4

1.6 Before Installation.................................................................................................................. 4

1.7 Panel Description................................................................................................................... 5

1.8 DIP Switch Configuration ....................................................................................................... 6

1.9 General Troubleshooting ....................................................................................................... 6

Section 2: Specifications......................................................................................................................... 7

2.1 Format Specifications ............................................................................................................ 7

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The C-COMP-HDSDI, Component/Composite/RGBHV to HD/SD-SDI converter has been tested for conformance

to safety regulations and requirements, and has been certified for international use. However, like all

electronic equipments, the C-COMP-HDSDI should be used with care. Read the following safety instructions to

protect yourself from possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

Avenview C-COMP-HDSDI provides high quality 12-bit conversion between analog component (YPbPr) and

composite inputs and SDI video digital output. The C-COMP-HDSDI supports both SD-SDI and HD-SDI formats

(SMPTE 259M and SMPTE 292M) and also features 3 SMPTE compliant HD/SD-SDI outputs

-Supported HD Formats: 1080i @50/59.94/60Hz, 1035i @50/59.94/60Hz, 720p @50/59.94/60Hz

-Supports SD Formats: NTSC @ 59.94Hz, PAL @ 50 Hz

-Excellent quality 12-bit A/D conversion

-3 HD/SD-SDI outputs

-Auto HD/SD-SDI detection

-Component / Composite / DVI SD and HD inputs

-Equipped with 2 extra equalized loop outs

-External DIP switch configuration

-Easy installation

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-C-COMP-HDSDI x 1

-Power Adapter (+5VDC, 2A) x1

-User’s Manual x1

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

www.avenview.com

1.7 Panel Description

FRONT PANEL

1. HD/SD-SDI Output 1

2. HD/SD LED

3. HD/SD-SDI Output 2

4. Power indicator

5. HD/SD-SDI Output 3

6. IR Receiver

7. Power Connector

REAR PANEL

8. External SYNC

9. Y

10. Pb

11. Pr

www.avenview.com

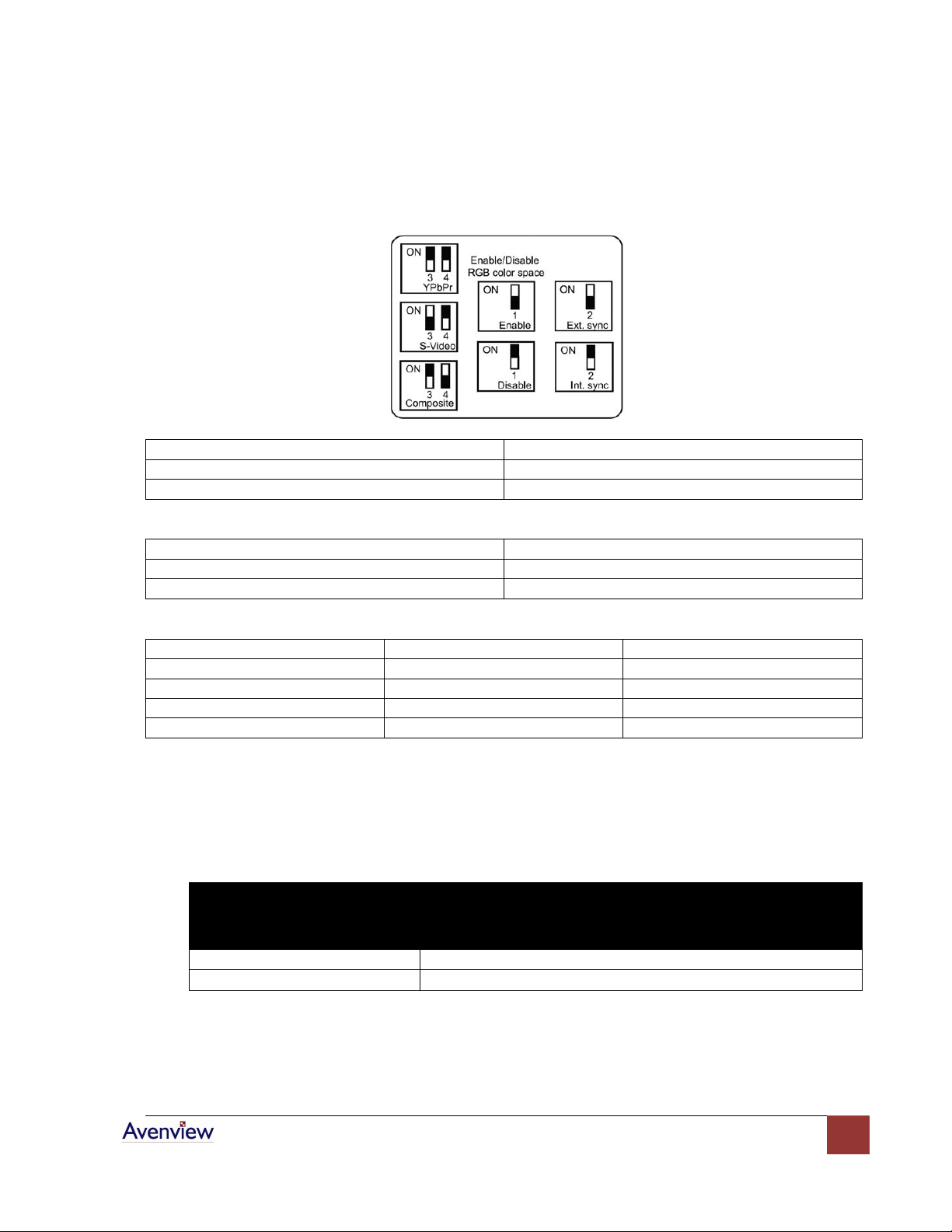

1.8 DIP Switch Configuration

SW1

Color Space Mode

Component (YPbPr) Color Space (default)

OFF

RGB Color Space

SW2

SYNC Mode

Internal SYNC

OFF

External SYNC

SW3

SW4

Input Format

Component (default)

OFF

Composite

OFF

Reserved

OFF

Reserved

1.9 General Troubleshooting

Problem

Possible Solution

No Image

Check if connection to the source and the display are correct.

Screen Defects Appear

Check the cable connections

www.avenview.com

Section 2: Specifications

Item

Description

Video Bandwidth

1.485 / 1.001 Gbps

Output Signal

HD/SD-SDI (SMPTE 259M, SMPTE 292M, SMPTE 296M)

Output Impedance

75Ω

Input Signal

HD/SD-SDI, Component, Composite

SYNC Mode

Internal or External

Output Transmission

Range

Up to 150m (500 feet) for HD-SDI or 300m (1000 feet) for SD-SDI

Power Supply

5V DC

Dimension (L x W x H)

4.7” x 4.3” x 1”

Weight

420g (15oz)

Environmental

Operation

0˚to 50˚C Degree

2.1 Format Specifications

HD Input

Component

Composite

720p @ 60/59.94/50Hz

SMPTE 296M -1, -2, RP-133

1035i @ 60/59.94/50Hz

SMPTE RP-133

1080i @60/59.94/50Hz

SMPTE RP-27.1, RP-133

SD INPUT

www.avenview.com

Disclaimer

While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the

operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of

Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of

anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the

Avenview hardware, software, or other products and documentation provided herein.

Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability,

function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties

regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and

non-infringement.
