Avenview HDM-C6MWIP-SET-V3 Manuel utilisateur

Control Your Video

VIDEO WALLS VIDEO PROCESSORS

VIDEO MATRIX SWITCHES

EXTENDERS SPLITTERS WIRELESS

CABLES & ACCESSORIES

HDMI H.264 IP VIDEOWALL DECODER/ENCODER

OVER CAT/X WITH

MATRIX MODE & ROTATION SUPPORT

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or

warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications

and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted

by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and claims any

express or implied warranty, relating to its products are is strictly prohibited.

Model #: HDM-C6MWIP-SET-V3

Product Application & Market Sectors

Corporate

House of Worship

Military

Residential

Education

Industrial

Medical

Aviation

www.avenview.com

TABLE OF CONTENTS

GETTING STARTED

..........................................................................................................................

1.1

IMPORTANTSAFEGUARDS.............................................................................................................1

1.2

SAFETYINSTRUCTIONS

................................................................................................................1

1.3

REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISIION (FCC) ................................. 2

INTRODUCTION.........................................................................................................................3

2.1

PACKAGE CONTENTS .................................................................................................................... 4

2.2

BEFORE INSTALLATION ................................................................................................................... 4

2.3

APPLICATION DIAGRAM ........................................................................................................................ 5

2.4

PANEl DESCRIPTION........................................................................................................................ 6

2.4.1

FRONT PANEL (SENDER/ENCODER, HDM-C6MWIP-S-V3......................................................6

2.4.2

REAR PANEL (SENDER/ENCODER, HDM-C6MWIP-S-V3)............................................................6

2.4.3

FROT PANEL (RECEIVER/DECODER, HDM-C6MWIP-R-V3).......................................................7

2.4.4

FRONT PANEL (RECEIVER/DECODER, HDM-C6MWIP-R-V3)....................................................7

INSTALLATION (HDM-C6MWIP- SET-V3) ....................................................................................... 8

3.1

APPLICATION....................................................................................................................................... 8

3.1.1

SOURCE SELECTION........................................................................................................ 8

3.1.2

IP MATRIX ........................................................................................................................................... 8

3.2

SINGLE SWITCH NETWORKING.................................................................................................................. 9

3.3

NETWORKING GUIDE...................................................................................................................................... 10

PC CONFIGURATOR.................................................................................................................11

SPECIFICATIONS...............................................................................................................................15

TROUBLESHOOTING...................................................................................................................... 17

SECTION 1

GETTING STARTED

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

•

Any product, on which the serial number has been defaced, modified or removed.

•

Damage, deterioration or malfunction resulting from:

•

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to

follow instructions supplied with the product.

•

Repair or attempted repair by anyone not authorized by us.

•

Any damage of the product due to shipment.

•

Removal or installation of the product.

•

External causes to the product, such as electric power fluctuation or failure.

•

u se of supplies or parts not meeting our specifications.

•

Normal wear and tear.

•

Any other causes which does not relate to a product defect.

•

Removal, installation, and set-up service charges.

The Avenview HDM-C6MWIP-SET-V3,HDMI H.264 IP Matrix Decoder/Encoder has been tested for conformanceto safety

regulations and requirements, and has been certified for international use. However, like all electronic equipments, the HDM-

C6MWIP-SET-V3 should be used with care. Read the following safety instructions to protect yourself from possible injury andto

minimize the risk of damage to the unit.

!Do not dismantle the housing or modify the module.

!Dismantling the housing or modifying the module may result in electrical shock or burn.

!Refer all servicing to qualified service personnel.

!Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage

or other hazards

!keep the module away from liquids.

!Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on

to thehousing, unplug the module immediately.

!Have the module checked by a qualified service engineer before using it again.

!Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.

www.avenview.com

IMPORTANT SAFE GUARDS

SAFETY INSTRUCTIONS

This equipment has been tested and found to comply with part 15 of the FCC rules. These limits are designed to

providereasonable protection againstharmfulinterference in aresidential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

ONLY USE THE PROVIDED POWER CABLE OR POWER

ADAPTER SUPPLIED. DO NOT TAMPER WITH THE

ELECTRICAL PARTS. THIS MAY RESULT IN El ECTRICAL

SHOCK OR BURN.

DO NOT TAMPER WITH THE UNIT. DOING SO Will

VOID THE WARRANTY AND CONTINUED USE OF

THE PRODUCT

THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.

PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON

A SURFACE, IT SHOULD BE IN A GROUNDED

ENVIROMENT.

www.avenview.com

REGULATORY NOTICES

The Avenview HDM-C6MWIP-SET-V3, HDMI H.264 IP Videowall/Matrix Decoder/Encoder delivers end-to-end streaming

media

over IP networks. The HDM-C6MWIP-SET-V3 is composed of two units a Decoder and an Encoder. The Decoder H.264/

MPEG-4 AVC video compression format, it receives the encoded IP signal through LAN port and decodes video/audio signal

out through HDMI interface, it also supports stereo de-embedding and streaming resolutions up to 1920 x 1080@60Hz.

FEATURES:

Flexible PC, WEB GUI iPad control;

CEC Function on the RX;

Supports live IP video stream decoding 480p@60Hz to 1920 x 1080@60;

Supports POE;

Allows video previewing via iPad App and Windows 7, 10 software 352x288@5Hz;

Supports multiple interfaces HDMI, DVI signals over IP networks;

Supports audio embedding and de-embedding;

Built in-auto scaler and rotation;

Supports H.264 features baseline profile, main profile and high profile;

Supports H.264, TCP/IP, Telnet, UDP and IGMP;

Support Telnet, WEB GUI control and 3rd Party control systems API commands;

Supports Auto IP, Zero-configuration networking (zeroconf)

Seamless switching, no black screen, no frame lock.

Configurable encoding bit rate up to 30 Mbps

Auto input format detection

HDCP compliant

Videowall up to 16X 16

Reset button on unit

Other features include:

Point to Point -

(Direct Connection with CAT5e/6) - 330ft

Point to Multi - point with CAT5e/6 requires a POE Network Switch which supports port based, IGMP v2.0 or above

protocol. For large application, we would recommend Cisco SG family and the Cisco Catalyst.

Videowall and Matrix Function – with CAT 5e/6 cable without any signal loss add multiple Sources to multiple encoders

which links via LAN by cascading any POE Gigabit Ethernet switches up to 3 levels, to the decoder connected to the HD

Monitors at different locations on the Network. Transporting full HD 1080p video and internally H.264 video compression

adapts to available network bandwidth if needed while retaining vivid picture with PCM audio.

- NOTE: The QUALITY and TRANSMISSION of the video signals depends on the characteristics and quality of the UTP cables

www.avenview.com

INTRODUCTION

Before you start the installation of the HDMI Extender, please check the package contents.

•

Put the product in a level and stable location. If the product falls, it may cause damage or malfunction to components

within thecasing.

•

Do not place the product in temperatures under 0˚C or over 50˚C. High humidity may also cause the unit to malfunction.

•

Use the DC power adapter with correct specifications supplied with the unit. If the improper power supply is used, this

may result in malfunction of the unit and may cause fire.

•

Do not twist or pull by force the ends of the UTP cable. It will cause malfunction.

3 1 x Right and Left Ear Rack Sets X2

x2 Sender

x2 Receiver

www.avenview.com

PACKAGE CONTENTS

BEFORE INSTALLATION

www.avenview.com

APPLICATION DIAGRAM

2.4.1

FRONTPANEL (Sender/Encoder, HDM-C6MWIP-S-V3)

2.4.2

REARPANEL(Sender/Encoder,HDM-C6MWIP-S-V3)

1. Power Jack: DC 12V 1A 2.

Stereo Audio OUT: Connects to an audio output

device such as an amplifier for audio de-embedding.

3. HDMI IN: Connect to HDMI/DVI Source.

4. RS 232: RS-232 Data pass-through port for

receiving /sending commands to RS 232 devices.

5. CAT5/6: Used for transporting video/audio streams to

Decoder RX units connected.

Reset LED,

Reset Key:

Reset LED is on for about 1 second and then off,

release this key, encoder reboots and restores to

its factory default.

1. Power LED: Indicates if the unit is powered OFF or ON by a RED LED

2. Status LED: Steady Blue Light ON indicates unit is Encoder detects valid signal input. LED blinking waiting on source

www.avenview.com

PANEL DESCRIPTION

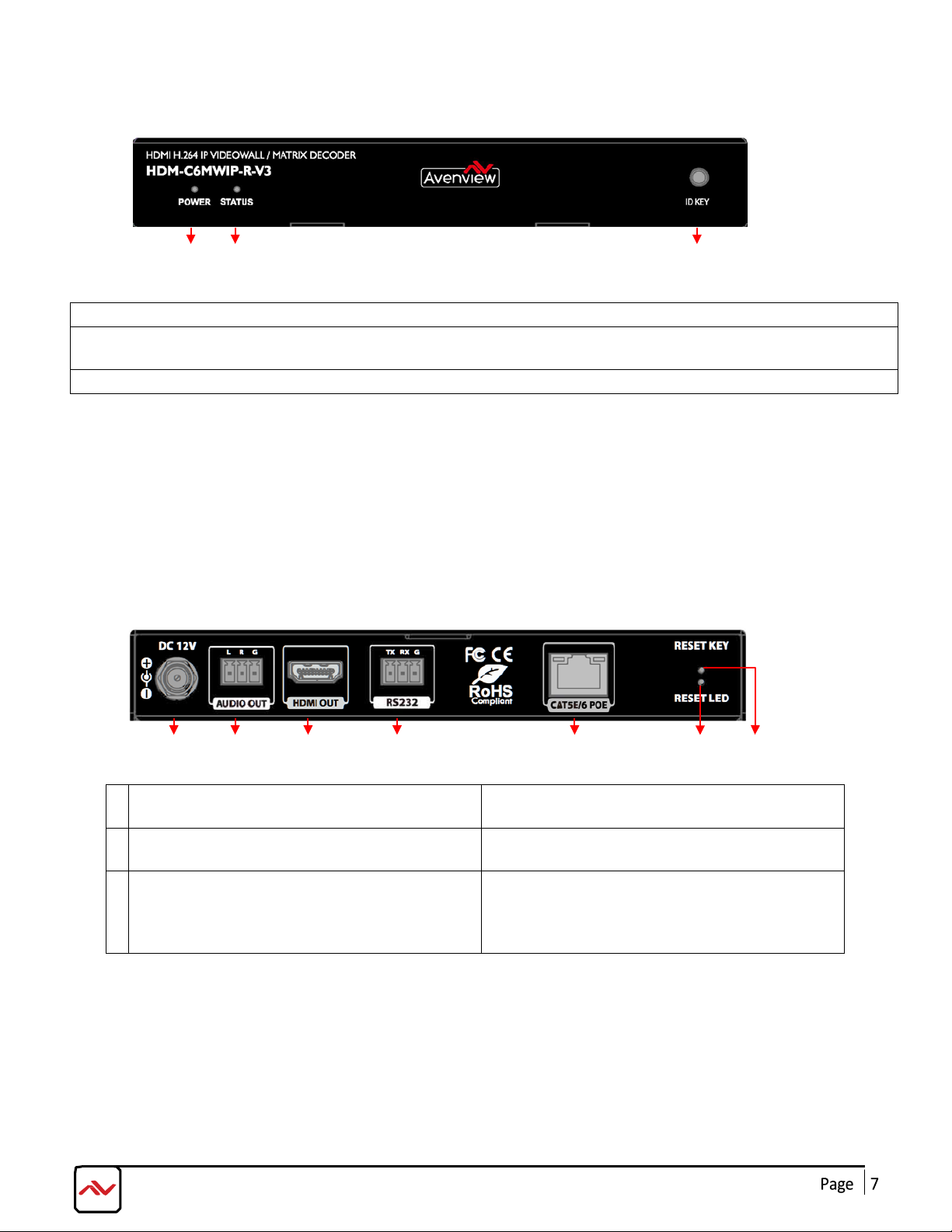

2.4.3

FRONTPANEL(Receiver/Decoder,HDM-C6MWIP-R-V3)

1. Power LED: Indicates if the unit is powered OFF or ON by a RED LED.

2. Status LED: Steady Blue Light ON indicates Decoder is connected to an encoder and detects valid input signal. LED blinking

waiting on Encoder.

3. ID Key: Press to display information of encoder and decoder on the screen, including IP mode, MAC and IP address.

2.4.4

REARPANEL(Receiver/Decoder,HDM-C6MWIP-R-V3)

Power: 12V 1A DC Power Jack.

2. Stereo Audio OUT: Connects to an audio output

device such as an amplifier for audio de-embedding.

HDMI OUT: Connect to HDMI Display.

4. RS 232 : RS-232 Data pass-through port for receiving

/sending commands to RS 232 devices.

5. CAT5/6: Used for transporting video/audio

streams from Decoder TX units connected.

6. Reset LED, 7. Reset Key:

Reset LED is on for about 1 second and then off,

release this key, encoder reboots and restores to

its factory default.

www.avenview.com
