Avenview C-COMPVGA-HDM Manuel utilisateur

www.avenview.com

Component / VGA with Audio to HDMI Converter

Model #: C-COMPVGA-HDM

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any

time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 5

1.6 Before Installation.................................................................................................................. 6

1.7 Panel Description................................................................................................................... 7

1.7.1 Front Panel ............................................................................................................................ 7

1.7.2 Rear Panel ............................................................................................................................. 7

1.7.3 DIP Switch.............................................................................................................................. 7

1.8 Installation ............................................................................................................................. 8

Section 2: Specifications......................................................................................................................... 9

2.1 Supported Resolutions......................................................................................................... 10

2.1.1 VGA............................................................................................................................... 10

2.1.2 Component Video (YPbPr)............................................................................................ 10

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The Avenview C-COMPVGA-HDM, Component with Audio to HDMI Converter has been tested for

conformance to safety regulations and requirements, and has been certified for international use. However,

like all electronic equipment’s, the C-COMPVGA-HDM should be used with care. Read the following safety

instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

Avenview C-COMPVGA-HDM, Component / VGA with Audio to HDMI Converter provides an easy and instant

approach for converting Component (YPbPr) and/or VGA with either digital S/PDIF or analog stereo audio to

HDMI. With C-COMPVGA-HDM converter, Component and/or VGA based devices such as PC, set-top-boxes

can connect to HDMI TV or projector at low cost.

-HDMI 1.2a compliant

-Support VGA resolution of up to UXGA (1600x1200 or WUXGA (1920x1200)

-Supports HD (1080i / 720p) component video

-Coaxial S/PDIF audio input

-Stereo analog audio input

-Front panel LED indicators

-Easy installation

www.avenview.com

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-C-COMPVGA-HDM x 1

-Power Adapter (+5VDC, 2A) x 1

-User’s Manual x 1

www.avenview.com

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

www.avenview.com

1.7 Panel Description

1.7.1 Front Panel

1 2 3 4

1. S/PDIF IN

2. STEREO IN

3. Component or VGA IN

4. Component or VGA Select Button

1.7.2 Rear Panel

1 2 3 4

1. Mode Switch

2. HDMI OUT

3. Power Indicator

4. 5V DC Power Jack

1.7.3 DIP Switch

PIN #

Mode

OFF 

Reset to Factory default EDID

ON 

Learn & store connected monitor’s EDID

OFF 

Analog Audio Input

ON 

S/PDIF Audio Input

www.avenview.com

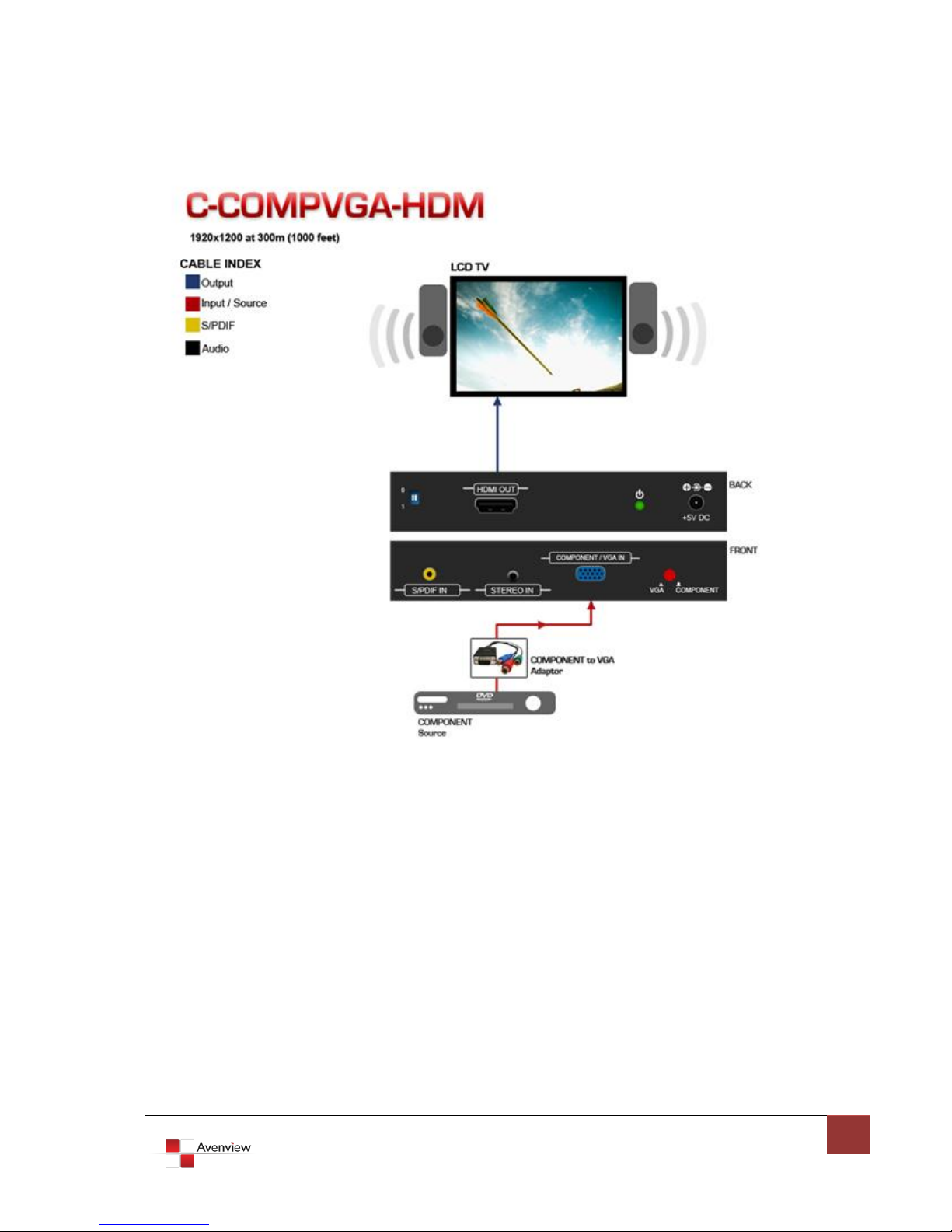

1.8 Installation

To setup Avenview C-COMPVGA-HDM follow these steps for connecting to a device:

1. Power off display source such as DVD Player, Set-top box, PC etc.

2. Connect VGA or Component source to the video input

3. Connect S/PDIF or Stereo Audio source to RCA Jack or 3.5mm Jack

4. Connect VGA/Component Adapter to VGA or Component input of the device

5. Connect HDMI cable to device and TV or projector

6. Plug in 5V DC power cord to power jack of C-HDM-COMPVGA

7. Power on C-COMPVGA-HDM converter

8. Power on VGA / Component source and display with HDMI input.

S/PDIF format is dependent on the embedded digital audio part in the HDMI stream. The S/PDIF

receiver must be able to recognize the input S/PDIF format. C-HDM-DVIA only separates the

digital audio in HDMI stream and bypasses this decoded audio to the output.

This version does NOT support 8 Channel analog audio applications

S/PDIF audio input can support 2 out of 8 channel audio inputs. S/PDIF audio only supports 48

KHz audio sample rate.

www.avenview.com

Section 2: Specifications

Item

Description

Units

C-COMPVGA-HDM

Unit Description

Component/VGA with Audio to HDMI Converter

HDMI Compliance

HDMI 1.2a

Video Bandwidth

165MHz (4.95Gbps)

Video Support

Single Link: 1080p 60, WUXGA (1920x1200@60Hz)

Component Video: 720p / 1080i

Audio Support

Stereo Audio

Output Video Signal

1.2 Volts (peak-to-peak)

Output DDC Signal

5 Volts (peak-to-peak, TTL)

Input

1 x VGA

1 x RCA

1 x 3.5mm

Output

HDMI x 1

HDMI Connector

Type A (19 pin female)

VGA Connector

HD-15 (15-pin D-sub female)

RCA Connector

Coaxial S/PDIF Digital Audio (PCM 48kHz)

3.5mm Audio Connector

Analog Stereo Audio

Dimensions (L x W x H)

5” X 4” x 1”

Power Supply

5V 2A DC

Power Consumption

4 Watts (max)

Environmental

Operating Temperature

32˚~ 104˚F (0˚to 40˚C)

Storage Temperature

-4˚~ 140˚F (-20˚~ 60˚C)

Relative Humidity

20~90% RH (no condensation)

www.avenview.com

2.1 Supported Resolutions

2.1.1 VGA

2.1.2 Component Video (YPbPr)

Supported Mode

Resolution

VESA

640x400 @85Hz

VESA

720x400 @85Hz

VESA

640x480 @60Hz

VESA

640x480 @72Hz

VESA

640x480 @75Hz

VESA

640x480 @85Hz

VESA

800x600 @60Hz

VESA

800x600 @72Hz

VESA

800x600 @75Hz

VESA

800x600 @85Hz

VESA

1024x768 @60Hz

VESA

1024x768 @75Hz

VESA

1024x768 @85Hz

Supported Mode

Resolution

VESA

1152x864 @60Hz

VESA

1152x864 @75Hz

VESA

1152x864 @55Hz

VESA

1280x768 @60Hz

VESA

1280x768 @75Hz

VESA

1280x768 @85Hz

VESA

1280x960 @60Hz

VESA

1280x960 @85Hz

VESA

1280x1024 @60Hz

VESA

1280x1024 @85Hz

VESA

1600x1200 @60Hz

VESA

1920x1200 @60Hz

Supported Mode

Resolution

EIA

720x480p @59.94 (60)Hz

EIA

720x576p @ 50Hz

EIA

1280x720p @59.94 (60)Hz

EIA

1920x1080i @59.94 (60)Hz

NTSC

712x484

PAL

702x574
