Avenview VGA-C5-SP-12 Manuel utilisateur

www.avenview.com

1x4, 1x8, 1x12, 1x16 VGA

Extender / Splitter over Single

CAT5

User’s Guide

Models

VGA-C5-SP-4

VGA-C5-SP-8

VGA-C5-SP-12

VGA-C5-SP-16

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations

or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to

specifications and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual

property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes

no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied

warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly

prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 4

1.6 Before Installation.................................................................................................................. 5

1.7 Panel Description................................................................................................................... 6

1.8 Installation ............................................................................................................................. 6

1.9 General Troubleshooting ....................................................................................................... 7

Section 2: Specifications......................................................................................................................... 8

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The Avenview VGA-C5-SP-4, VGA-C5-SP-8, VGA-C5-SP-12, VGA-C5-SP-16, VGA & Audio Extender/Splitter over

Single CAT5 has been tested for conformance to safety regulations and requirements, and has been certified

for international use. However, like all electronic equipments, the VGA-C5-SP-XX should be used with care.

Read the following safety instructions to protect yourself from possible injury and to minimize the risk of

damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

The Avenview VGA-C5-SP-4, VGA-C5-SP-8, VGA-C5-SP-12, VGA-C5-SP-16, VGA and Audio over CAT5

Transmitter / Splitter provides the most flexible solution by which the high resolution PC video and high

quality stereo audio can be transmitted to different locations over super long distances. Built with 2 VGA and

digital/analog audio loop outs, local A/V receivers can provide extra video and audio fan-outs through typical

VGA, SPDIF, and analog audio cables. The high bandwidth VGA can be transmitted up to 65 meters (210 feet)

on the local ports. The VGA-C5-SP-4, VGA-C5-SP-8, VGA-C5-SP-12, VGA-C5-SP-16 also extends VGA and stereo

audio source up to 330 meters (1000 feet) through cost effective CAT-5 LAN cables. Accompanying the

receivers of VGA-C5A-R VGA CAT5 extender series equipped with the equalization, gain control and de-skew

functions, the video and audio quality can be further assured and make the quality of overall transmission

superior than the other VGA splitters on the market.

-Supports up to WUXGA (1920x1200@60) to 300m (1,000ft)

-Supports Analog Stereo Audio and S/PDIF Digital Audio

-Adjustable equalization and gain control on Receiver unit

-De-skew compensation available for RGB delay control

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-VGA-C5-SP-x x 1

-Power Adapter (+5VDC, 2A) x 1

-Rack Mounting Kit x 2

-User’s Manual x 1

www.avenview.com

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

www.avenview.com

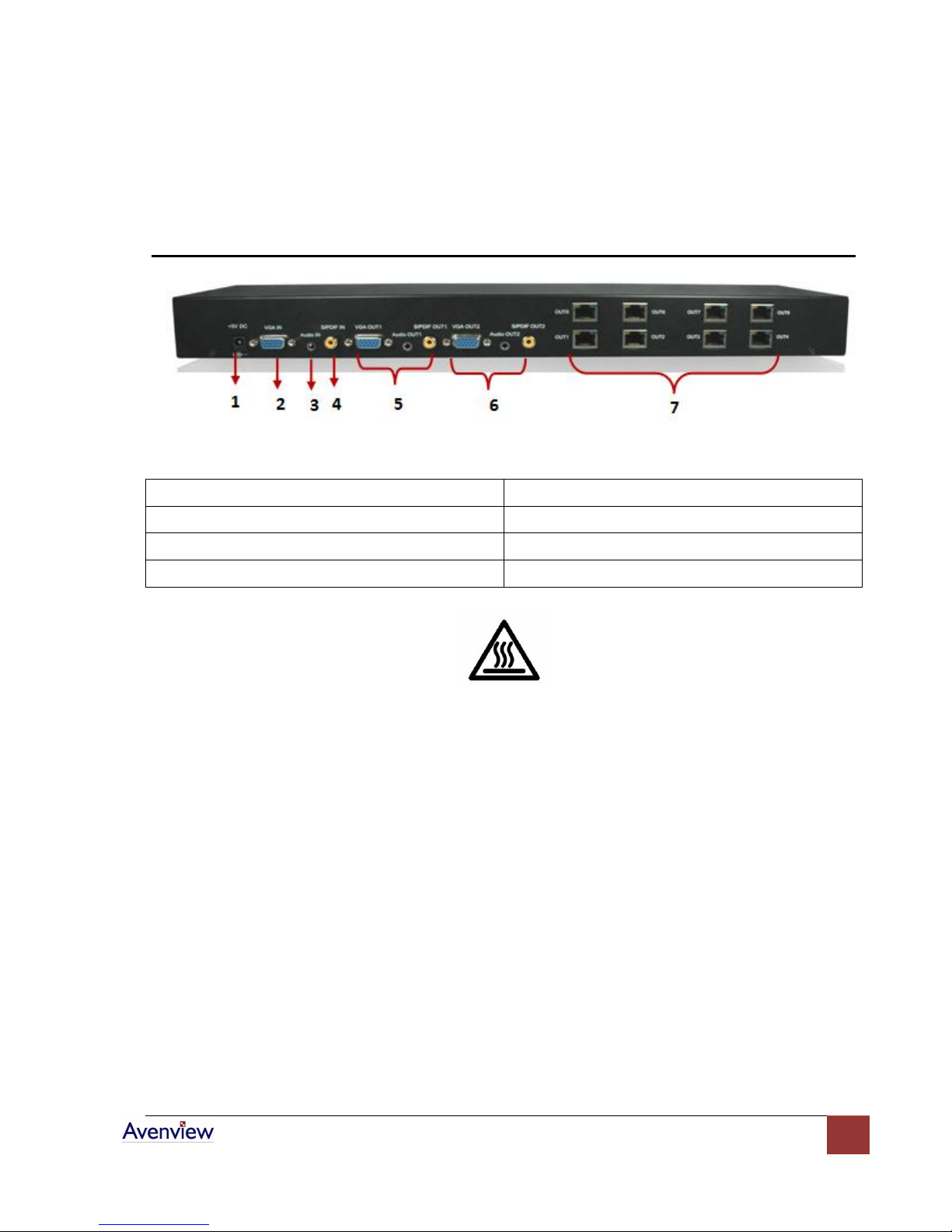

1.7 Panel Description

FRONT PANEL (Transmitter, VGA-C5ARS-S)

1. Power Connector

2. VGA Input

3. Stereo Audio Input

4. S/PDIF Input

5. Local Video and Audio Output

6. Local Video and Audio Output

7. RJ45 Outputs

1.8 Installation

1. Switch off all devices, including monitors

2. Connect a VGA and Audio source to VGA and Audio In on VGA-C5-SP-4

3. Connect to the Receiver Unit VGA-C5A-R through CAT5 / CAT6 cable to VGA-C5-SP-4

4. Plug in 5V 4A DC power adapter

5. Power on the Displays and Speakers connected to VGA-C5A-R

6. Power on the VGA and Audio sources

www.avenview.com

1.9 General Troubleshooting

Problem

Possible Solution

No Image

Check if connection to the source and the display are correct.

Ensure that display device supports the resolution that is being

output.

Screen Defects Appear

This product supports up to WUXGA (1920x1200) resolution.

Check the VGA and CAT5 connection

If outputting from a PC. Check the maximum resolution range

of the graphics card.

www.avenview.com

Section 2: Specifications

Item

Description

Units

VGA-C5-SP-4

VGA-C5-SP-8

VGA-C5-SP-12

VGA-C5-SP-16

Unit Description

4 Port VGA

Extender Splitter

8 Port VGA

Extender Splitter

12 Port VGA

Extender Splitter

16 Port VGA

Extender Splitter

Video Bandwidth

350MHz

Video Support

VESA

Supported Resolutions

Up to WUXGA (1920 x1200)

Up to 1280x1024

Resolution and Distance

WUXGA 1920x 1200 at 300 meters

(1000 feet)

1280x1024 at 300 meters (1000 feet)

Audio Support

Stereo

Equalization

Continuous Analog Control

Input Video Signal

1.2 Volts (peak-to-peak)

ESD Protection

-Human body model —±15kV (air-gap discharge) & ±8kV (contact discharge)

- Core chipset —±8kV

Input

1 x VGA

1 x RCA

1 x 3.5mm Audio

Output

2 x VGA

2 x RCA

2 x 3.5mm

4 x RJ45

2 x VGA

2 x RCA

2 x 3.5mm

8 x RJ45

2 x VGA

2 x RCA

2 x 3.5mm

12 x RJ45

2 x VGA

2 x RCA

2 x 3.5mm

16 x RJ45

VGA Connector

HD-15 (15 pin D-sub Female)

RJ45 Connector

WE/SS 8P8C with 2 LED indicators

3.5mm Audio Connector

Earphone jack for Analog Stereo Audio

RCA Connector

S/PDIF Digital Audio

Dimensions (L x W x H)

16” x 3.8” x 1.7”

16”x 3.8”x 3.5”

Power Supply

5V 4A DC

Power Consumption

10 Watt (max)

15 Watt (max)

20 Watt (max)

25 Watt (max)

Environmental

Operating Temperature

32˚~ 104˚F (0˚to 40˚C)

Storage Tempearture

-4˚~ 140˚F (-20˚~ 60˚C)

Relative Humidity

20~90% RH (no condensation)

www.avenview.com

Notice

1. All transmission distances are measured using Belden 1583A CAT-5e 125MHz LAN cable

and ASTRODESIGN Video Signal Generator VG-859C. The transmission distance is defined as the

distance between the video source and the VGA display.

2. The transmission length is largely affected by the type of LAN cables, the type of video

sources, and the type of display. The testing result shows solid LAN cables (usually in bulk cable

300m or 1000ft form) can transmit a lot longer signals than stranded LAN cables (usually in patch

cord form). Shielded STP cables are better suit than unshielded UTP cables. A solid UTP CAT5e cable

shows longer transmission length than stranded STP CAT6 cable. For long extension users, solid

cables are your only choice.

3. To reduce the interference among the unshielded twisted pairs of wires in LAN cable, you

can use shielded LAN cables to improve EMI problems, which is worsen in long transmission.

4. Because the quality of the LAN cables has the major effects in how long transmission

distance will be made and how good is the received display, the actual transmission length is subject

to your LAN cables. For resolution greater than 1080i or 1280x1024, a CAT-6 cable is recommended.

www.avenview.com

Disclaimer

While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the

operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of

Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of

anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the

Avenview hardware, software, or other products and documentation provided herein.

Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability,

function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties

regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and

non-infringement.
