Automatic Technology GDO-9 Dynamo Gen 2 Manuel utilisateur

Home Owner’s Manual

Doc #: 160016_00

Part #: 13305

06/05/2013

GDO-9 Dynamo™Gen 2

Overhead Garage Door Opener

Featuring TrioCode™Technology

GDO-9 DynamoTM GEN2 Home Owner’s Manual

Table of Contents

1. Safety Rules 3

2. Features 4

3. Specifications 5

4. Operating your door 6

5. User Operating Controls 7

6. Opener Safety & Security 8

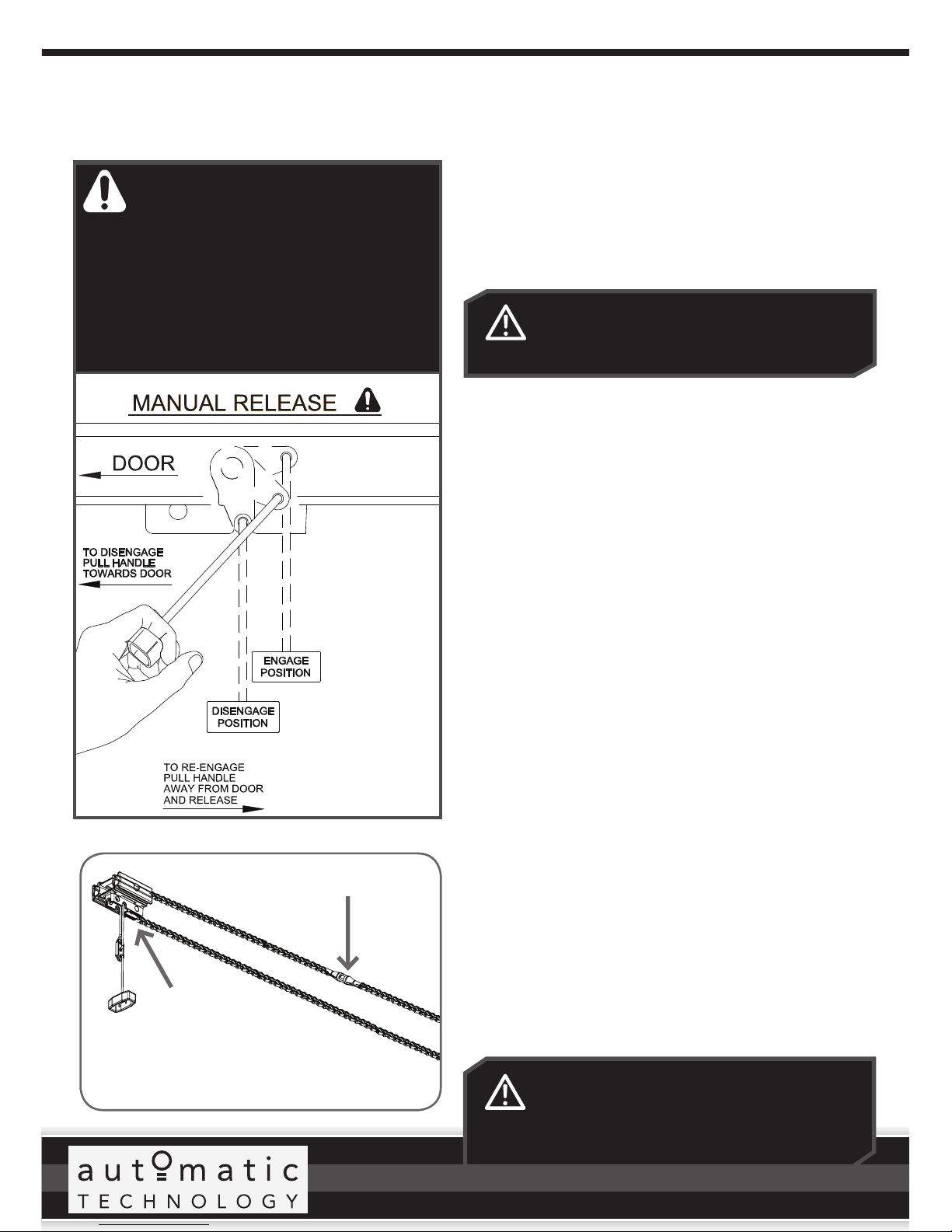

6.1 Manual Door Operation 8

6.2 Emergency Evacuations 8

6.3 Power Failure 8

6.4 Re-Engaging the Opener 8

6.5 Security - Inbuilt Locking Facility 8

7. Safety Testing 9

7.1 Test the Close Cycle 9

7.2 Testing the Open Cycle 9

7.3 Test the Manual Door Operation 9

7.4 Test the Battery Back Up (Optional Accessory) 9

8. Coding Transmitters 10

8.1 Storing the Transmitter Code 10

8.2 Setting the Transmitter to Operate the Courtesy Light 10

8.3 Setting the Transmitter to Operate Vacation Mode 11

8.4 To Erase Programmed Codes 11

8.5 Installation of the Wall Mounted Transmitter 11

9. Troubleshooting Guide 12

10. Maintenance 14

10.1 Door Maintenance 14

10.2 Lubrication (every 3 - 6 months) 14

10.3 Door Service and Repair 14

10.4 Opener Maintenance 15

10.5 Service Indicator 15

10.6 Removing the Battery From the Transmitter 15

11. Warranty 16

12. Optional Accessories 18

13. Service Schedule 19

WARNING! • When operating the manual release while the door is open, the

door may fall rapidly due to weak or broken springs, or due to being

improperly balanced.

• Do not disengage the opener to manual operation with children/persons

or any objects including motor vehicles within the doorway.

• If the door is closing and does not re-open when obstructed,

discontinue use. Do not use a door with faulty obstruction sensing.

ELECTROCUTION! • Place opener in protected area so that it does not get wet.

• Do not spray with water .

• Do not open the protective covers.

• Do not operate opener if cable is damaged.

CAUTION:

Emergency access • If your garage has no pedestrian entrance door, an emergency access

device should be installed. This accessory allows manual operation of

the garage door from outside in case of power failure.

Entrapment under

operating door

• Watch the moving door and keep people away until the door is

completely opened or closed. Do not operate door when persons are

near the door.

• Do not allow children to play with door controls or transmitters.

• Regularly conduct Open and Close cycle testing.

• Ensure the garage door is in good working order by undertaking regular

servicing.

• Wall transmitters should be installed in a location where the garage door

is visible, but out of the reach of children at a height of at

least 1.5m.

• Install Photo Electric Beams (recommended).

Fall from Ladder • Ensure ladder is the correct type for the job.

• Ensure ladder is on flat ground.

• Ensure user has 3 points of contact while on ladder.

Entanglement in or

laceration from

moving door

• Keep hands and loose clothing clear of door and guides at all times.

• Keep hands clear of moving door as sharp edges can cause cuts or

lacerations.

DO NOT DO IT

YOURSELF

• Keep the garage door balanced. Sticking or binding doors must be

repaired. Garage doors, door springs, brackets and their hardware are

under extreme tension and can cause serious personal injury. Do not

attempt any garage door adjustment. Do not use if repair or adjustment

is needed. Call for a professional garage door service.

GDO-9 DynamoTM GEN2 Home Owner’s Manual

Table of Contents

1. Safety Rules

Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or warranties, statutory or otherwise which may be

implied by laws as conditions or warranties of purchase of a Automatic Technology (Australia) Pty Ltd Garage Door Opener. Automatic Technolofy (Australia) Pty Ltd hereby further

expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person as a result whether directly or indirectly from failure to install the

Automatic Technology ( Australia) Pty Ltd Garage Door Opener in accordance with the installation instructions.

Please read these important safety rules

This automatic garage door opener is designed and tested to offer safe service provided it is

installed and operated in strict accordance with the following safety rules. Failure to comply with

the following instructions may result in death, serious personal injury or property damage.

WARNING! • When operating the manual release while the door is open, the

door may fall rapidly due to weak or broken springs, or due to being

improperly balanced.

• Do not disengage the opener to manual operation with children/persons

or any objects including motor vehicles within the doorway.

• If the door is closing and does not re-open when obstructed,

discontinue use. Do not use a door with faulty obstruction sensing.

ELECTROCUTION! • Place opener in protected area so that it does not get wet.

• Do not spray with water .

• Do not open the protective covers.

• Do not operate opener if cable is damaged.

CAUTION:

Emergency access • If your garage has no pedestrian entrance door, an emergency access

device should be installed. This accessory allows manual operation of

the garage door from outside in case of power failure.

Entrapment under

operating door

• Watch the moving door and keep people away until the door is

completely opened or closed. Do not operate door when persons are

near the door.

• Do not allow children to play with door controls or transmitters.

• Regularly conduct Open and Close cycle testing.

• Ensure the garage door is in good working order by undertaking regular

servicing.

• Wall transmitters should be installed in a location where the garage door

is visible, but out of the reach of children at a height of at

least 1.5m.

• Install Photo Electric Beams (recommended).

Fall from Ladder • Ensure ladder is the correct type for the job.

• Ensure ladder is on flat ground.

• Ensure user has 3 points of contact while on ladder.

Entanglement in or

laceration from

moving door

• Keep hands and loose clothing clear of door and guides at all times.

• Keep hands clear of moving door as sharp edges can cause cuts or

lacerations.

DO NOT DO IT

YOURSELF

• Keep the garage door balanced. Sticking or binding doors must be

repaired. Garage doors, door springs, brackets and their hardware are

under extreme tension and can cause serious personal injury. Do not

attempt any garage door adjustment. Do not use if repair or adjustment

is needed. Call for a professional garage door service.

DIY

GDO-9 DynamoTM GEN2 Home Owner’s Manual

Warranty

Two (2) year/5,000 cycles full parts and labour

warranty on motor, electronics and mechanical

components of the opener when installed by an

Automatic Technology Dealer.

TrioCode Frequency Hopping Technology

Every time a transmitter is used, it simultaneously

sends a signal over three different frequencies,

reducing the chance of interference from other

radio frequency sources.

Code Hopping Technology

Every time a transmitter is used a new security

code is generated from over 4.29 billion possible

code combinations. This greatly enhances the

security of the system and makes “code grabbing”

a thing of the past!

Multi-Channel Transmitter

Multi-channel transmitters allow you to operate

other devices such as an adjoining garage door

or automated gate from the same handy unit.

Safety Reversing System

The automatic safety reverse system significantly

reduces the risk of death or serious injury if

trapped by a closing door. The safety reverse force

can be adjusted for environmental conditions

such as windy areas.

Memory Retention

In case of a power failure the opener does not

lose the transmitter codes or limit settings.

Soft Start/Soft Stop

The opener eases into and out of each cycle

making for smoother and quieter operation, as

well as reducing wear and tear on the door and

opener.

Manual Release

The manual release handle allows the door to be

operated by hand in the event of a power failure.

Self Locking

There is no need to manually lock your garage

door, as the opener ‘positively’ locks the door

when closed.

Service Indicator

The opener has a built in service counter. From

factory this is loaded with 3000 cycles. When

this counter expires, the service yellow LED will

light up and at the start of each door movement

the beeper will sound three times. Contact your

dealer/installer for service. (Refer to 10.5 for

information).

Service Fault Indicator

Flashing LEDs on the control panel easily identify

operational problems or service requirements.

Dynamic Door Profiling

Changing door characteristics are automatically

compensated for and “learnt” with each

operation of the door.

Safety Beam (Optional)

The opener has an input to connect a Safety

Beam for extra safety and use of the Auto-Close

mode. Safety Beam PE 3 kit or Wireless Safety

Beam kit can be used with this opener.

SmartSolar™ and Battery Backup

Compatibility (Optional)

The opener can be fitted with a SmartSolar™ or

Battery Backup kit for operation in the event of

a power outage, or where mains power access is

not available.

Auto Courtesy Light

The courtesy light comes on automatically for

three minutes whenever the door is activated.

The light can also be operated independently

of the door by coding in a dedicated button on

a transmitter. (Refer to 8.2 for information)

Vacation Mode

A transmitter can be programmed to disable

the garage door opener radio receiver. This is

ideal if the door is to be left idle for prolonged

periods. (Refer to 8.3 for information)

Pet (Pedestrian) Mode

A transmitter can be programmed to open

the door partially to allow pets access to the

garage. The door opening height is adjustable

via a handheld programmer (contact your

dealer for further information).

2. Features

GDO-9 DynamoTM GEN2 Home Owner’s Manual

3. Specifications

Technical Specifications

Power supply 230V - 240Va.c. 50Hz

Maximum door opening:

Width:

Height:

Weight:

5500mm (16.5m2)

3000mm

100kg

Minimum headroom 25mm

Short Term Peak Force 800N (80kg)

Rated force 500N (50kg) with Chain

450N (45kg) with Timing Belt

Nominal force 150N (15kg)

Receiver type UHF Multi-frequency FM Receiver

Receiver code storage capacity 64 X 4 button Transmitter Codes

Transmitter frequency TrioCodeTM Type

Coding type Mulit-frequency Code Hopping

Number of code combinations Over 4.29 billion random codes

Code generation Non-linear encryption algorithm

Transmitter battery CR2032 (3 Volts)

Courtesy light Bright LED

Note: Intermittent operations may occur in areas which experience very strong winds. The strong wind

puts extra pressure on the door and tracks which may in turn intermittently trigger the safety obstruction

detection system.

GDO-9 DynamoTM GEN2 Home Owner’s Manual

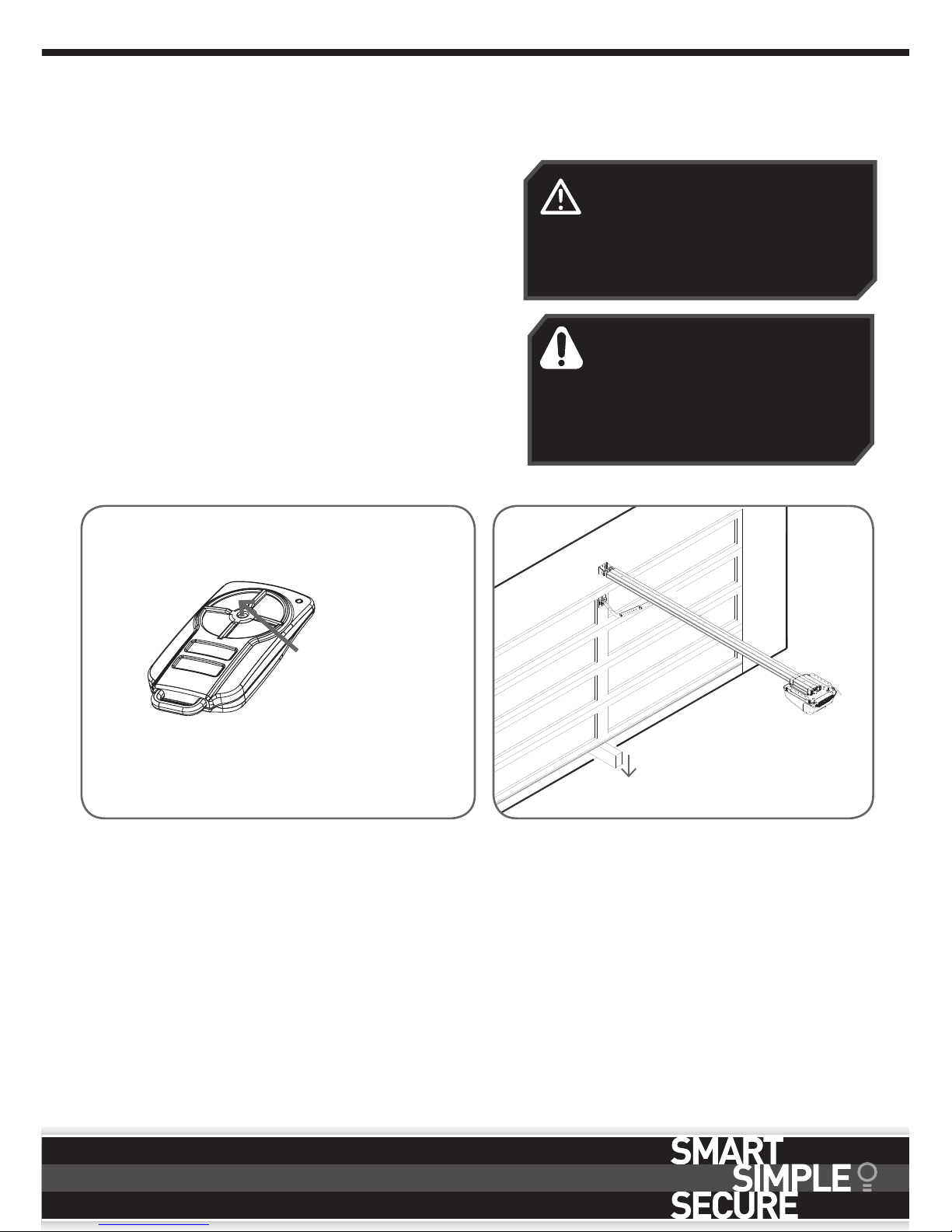

Fig. 4.1

Transmitter

•To operate the opener, press the programmed

transmitter button until your door begins to move

(usually 2 seconds). Make sure you can see the

door when you use the transmitter.

•If you are in a vehicle you should aim the

transmitter through your windscreen (Fig. 4.1).

•Check that the door is fully closed before you

drive away.

•If you press the transmitter whilst the door is

moving the door will stop. The next press of the

transmitter will move the door in the opposite

direction.

The transmitter may also be programmed to operate

the following features (Refer to Section 8 for full

details):

•Turn the courtesy light on and off without

operating the door,

•Put the garage door opener into “Vacation Mode”

where it will not respond to any transmitters.

NOTE: Additional transmitters may be purchased at

any time.

CAUTION: Activate the opener only

when the door is in full view, free of

obstructions and with the opener

properly adjusted. No one should enter

or leave the garage while the door is in

motion. Do not allow children to play

with or near the door.

ELECTROCUTION! This opener is a

mains voltage plug-in domestic appliance

and there are no user serviceable parts

inside this opener.

For maximum efficiency of your opener, your garage

door must be in good operating condition.

An annual service of your garage door by an

Approved Dealer is recommended.

4. Operating your door

GDO-9 DynamoTM GEN2 Home Owner’s Manual

Door Status Indicators OPEN LED (green) CLOSE LED (red) Beeper

Open On

Close On

Opening Flashing

Closing Flashing

Door travel stopped Flashing Flashing

Door obstructed when opening Flashing Beeps while door is

moving

Door obstructed when closing Flashing Beeps while door is

moving

Opener overloaded Alternating flashes Alternating flashes

Door in open position with

Auto-Close mode selected

One second flashes

Mains power interrupted Rapid flashes

5. User Operating Controls

Button (Fig 5.1) Function

1. OPERATE Opens/stops/closes the door

2. CODING LED (Red) Flashes when a code is being stored or when the transmitter button is

pressed

3. LIGHT CODE (White) Is used for storing or erasing the transmitter button (code) you wish to use

to switch the courtesy light on the opener on or off.

4. DOOR CODE (Blue) Is used for storing or erasing transmitter buttons for door operation

5. OPEN LED (Green) Illuminates and flashes as the door opens and remains on when the open

limit position has been reached.

6. DOOR STATUS LED (Yellow) Illuminates when Service is due.

7. CLOSE LED (Red) Illuminates and flashes as the door opens closes, and remains on when the

close limit position has been reached.

Fig. 5.1

GDO-9 DynamoTM GEN2 Home Owner’s Manual

Fig. 6.2

6. Opener Safety & Security

Shuttle Assembly

Chain Index

Fig. 6.1

WARNING! When operating the

manual release (while the door is

open) the door may fall rapidly due

to weak or broken springs, or due to

being improperly balanced.

Do not disengage the opener to

manual operation with children/

persons or any objects including

motor vehicles within the doorway.

6.2 Emergency Evacuations

In emergencies the garage door can be disengaged

from the opener, via the manual release cord and

the door opened manually. The manual release cord

should be a maximum of 1.8m from the ground. The

cord can be adjusted for special considerations.

6.3 Power Failure

When there is a power failure, the opener will be

unable to automatically open or close your garage

door. To use your door whilst there is no power you

will need to disengage the opener and use the door

manually – see 6.1 Manual Door Operation.

6.4 Re-Engaging the Opener

When the door has been disengaged from the

opener, the shuttle assembly, attached to the manual

release cord, can move up and down the chain.

Re-engage the opener (Fig 6.1) (preferably with

the door open to waist height) and then press the

programmed transmitter button, the motor will run

until the shuttle assembly engages the chain index

(Fig 6.2), you will hear it click into place. Then the

door will operate as normal.

CAUTION: When the opener is manually

disengaged, the door is no longer locked.

To lock the door manually, re-engage the

opener after the door is closed.

6.1 Manual Door Operation

To disengage the opener from the door (preferably

with the door in the closed position), pull down

on the string handle on an angle towards the door

(Fig 6.1). This will allow you to manually open or

close the door.

To re-engage the opener pull the string handle away

from the door - see 6.4 Re-Engaging the Opener.

6.5 Security - Inbuilt Locking Facility

DO NOT lock your door when your opener is

engaged as it has inbuilt locking facility. With the

opener engaged your door will be locked whether

the power is on or off.

CAUTION: Do not use the string handle

as a mechanism to open the door. Failure

to comply may cause serious injury.

GDO-9 DynamoTM GEN2 Home Owner’s Manual

7.4 Test the Battery Back Up (Optional

Accessory)

a. Press the transmitter to activate.

b. Whilst the door is in motion disconnect mains

power - the opener should continue to operate.

c. Press the transmitter to activate the door.

d. Whilst the door is in motion re-connect

power. The door should complete the cycle

as normal.

6. Opener Safety & Security

7. Safety Testing

7.1 Test the Close Cycle

a. Press the transmitter to open the door. (Fig 7.1)

b. Place a piece of timber approximately 40mm high on

the floor directly under the door (Fig 7.2).

c. Press the programmed transmitter to close door.

d. The door should strike the object and re-open.

7.2 Testing the Open Cycle

a. Press the transmitter to close the door (Fig. 7.1).

b. Press again to open the door.

c. When the door reaches approximately half way,

firmly grab the door’s bottom rail - the door should

stop.

If the door does not reverse readily when closing, or

stop when opening, put the door into manual and

contact your installer immediately for a door service.

CAUTION: Take care when

completing a safety test. Failure

to follow this warning can result

in serious personal injury and/or

property damage.

40mm

WARNING! If the door is closing

and is unable to re-open when

obstructed, discontinue use.

Do not use a door with faulty

obstruction sensing. Contact

your dealer for support.

Fig. 7.2

7.3 Test the Manual Door Operation

Periodically disengage the opener (Section 6.1)

and manually operate the door. The door must be

smooth to operate by hand. The force required on

the bottom rail should not exceed 15 kg.

Select the button on

the transmitter that has

been programmed to

operate the door.

If transmitter is not programmed,

Refer to Section 8 to program

transmitter.

Fig. 7.1

NOTE: Wait for the door to complete its travel

before proceeding to the next step.

GDO-9 DynamoTM GEN2 Home Owner’s Manual

8. Coding Transmitters

Press and hold

DOOR CODE

button

Select one of the

four buttons you

wish to use to

control the door

Press and hold

LIGHT CODE

button

Select one of the

four buttons (not

programmed yet ) you

wish to use to control

the courtesy light

Fig. 8.1

8.1 Storing the Transmitter Code

The opener can only operate from transmitters that

have been programmed into its receiver. The receiver

needs to learn the codes of any transmitter that will be

used with the operator. Up to sixty four (64) codes can

be stored in the receiver’s memory.

a. Ensure that the battery is inserted into the

transmitter, the button cover has been removed

(see Electrocution caution) and the opener is

turned on.

b. Press and hold the DOOR CODE button. The DOOR

CODE LED will illuminate and beep to indicate the

opener is in Code Learn mode. If a valid code is

not stored within 15 seconds the opener will exit

Code Learn (Fig. 8.1).

c. Press and hold the transmitter button that you want

to control the door for two (2) seconds, pause for

two (2) seconds, then press the same button again

for two (2) seconds and release.

d. Release the DOOR CODE button.

e. The transmitter is now coded to operate the

door - press the button to test.

8.2 Setting the Transmitter to Operate the

Courtesy Light

Although the courtesy light comes on with each

operation of the opener, it may also be controlled by a

transmitter without operating the door.

a. Press and hold the LIGHT CODE button. The LIGHT

CODE LED will illuminate and the courtesy light will

turnontoindicatethatthelightcodelearningisactive

(Fig. 8.2).

b. Choose a transmitter button not already coded

into the receiver. Press and hold this button for

two (2) seconds, pause for two (2) seconds, then

press the same button again for two (2) seconds

and release.

c. Release the LIGHT CODE button.

d. Press the transmitter button to test.

Fig. 8.2

ELECTROCUTION! The button

cover is the only cover that should

be removed. All other covers must

remain in place.

CAUTION: Be careful not to press

the operate button while removing

the button cover as the door will

start to move.

Autres manuels pour GDO-9 Dynamo Gen 2

Table des matières

Autres manuels Automatic Technology ouvre-porte de garage

Automatic Technology

Automatic Technology SECURALIFT Guide de démarrage rapide

Automatic Technology

Automatic Technology Dominator AM800 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-11 Ero Manuel utilisateur

Automatic Technology

Automatic Technology NeoSlider TrioCode 128 NES-500 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-4 EasyRoller Manuel utilisateur

Automatic Technology

Automatic Technology GDO-6v3 EasyRoller Manuel utilisateur

Automatic Technology

Automatic Technology GDO-8 Shed Master Manuel utilisateur

Automatic Technology

Automatic Technology GDO-9 ENDURO GEN2 Guide de planification

Automatic Technology

Automatic Technology GDO-2 SecuraLift Manuel utilisateur

Automatic Technology

Automatic Technology GDO-6 v2 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-9V1 SecuraLift Manuel utilisateur

Automatic Technology

Automatic Technology iOpener RD40 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-8V2 EasyRoller II Manuel utilisateur

Automatic Technology

Automatic Technology 62717 Manuel utilisateur

Automatic Technology

Automatic Technology HiRO GDO-12 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-10v1 Toro Manuel utilisateur

Automatic Technology

Automatic Technology GDO-9v2 Enduro Gen 2 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-10v1Toro Manuel utilisateur

Automatic Technology

Automatic Technology GDO-6 EasyRoller Manuel utilisateur

Automatic Technology

Automatic Technology GDO-9 Dynamo Gen 2 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-9v2 SecuraLift Manuel utilisateur

Automatic Technology

Automatic Technology GDO-8 ShedMaster Guide de l'utilisateur

Automatic Technology

Automatic Technology Axess Pro Series 1101 Manuel utilisateur

Automatic Technology

Automatic Technology PA1000V1 Manuel utilisateur

Manuels ouvre-porte de garage populaires d'autres marques

Dorma

Dorma ES 90 Manuel utilisateur

Garaga

Garaga SECURITY+ 3265GCM 1HP Manuel utilisateur

Chamberlain

Chamberlain Whisper Drive SECURITY+ WD822K Series Manuel utilisateur

Chase Doors

Chase Doors DuraShield Manuel utilisateur

CSI

CSI Classic Manuel utilisateur

HATO

HATO 120 Manuel utilisateur

Chamberlain

Chamberlain Elite 3575S Manuel utilisateur

Richmond

Richmond GTR156 Manuel utilisateur

Raynor

Raynor 1280RGD Manuel utilisateur

CAME

CAME F4000 Series Manuel utilisateur

B&D

B&D Controll-A-Door 5 Manuel utilisateur

BFT

BFT PRV AA SL Manuel utilisateur

Craftsman

Craftsman 139.53924 Manuel utilisateur

Chamberlain

Chamberlain MyQ 940ESTD Manuel utilisateur

Westfalia

Westfalia 19 36 07 Manuel utilisateur

Chamberlain

Chamberlain HD520EVP Manuel utilisateur

Cardin

Cardin BL Series Manuel utilisateur

Chamberlain

Chamberlain 8355 - 1/2 hp Manuel utilisateur
