Automatic Technology GDO-6v4 EasyRoller Manuel utilisateur

GDO-6v4 EasyRoller®

Roll Up Garage Door Opener

INSTALLATION INSTRUCTIONS | OWNERS COPY

Featuring TrioCode™Technology

Technical Document

Installation Manual

v1.00

19 July 2012

English

Part # 13238 (Manual)

2GDO-6v4 EasyRoller®Owner Installation Instructions

WARNING: It is vital for the safety of people to follow all

instructions.Failuretocomplywiththeinstallationinstructions

and the safety warnings may result in serious personal injury

and/or property and opener damage. Please save these

instructions for future reference.

Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all

conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of an

Automatic Technology (Australia) Pty Ltd Roll Up Door Opener. Automatic Technology (Australia) Pty Ltd hereby further

expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person

as a result whether directly or indirectly from failure to install the Automatic Technology (Australia) Pty Ltd Roll Up Door

Opener in accordance with these installation instructions.

Owner Installation Instructions GDO-6v4 EasyRoller®3

Important Safety Instructions 4

Features 6

Operating Controls 8

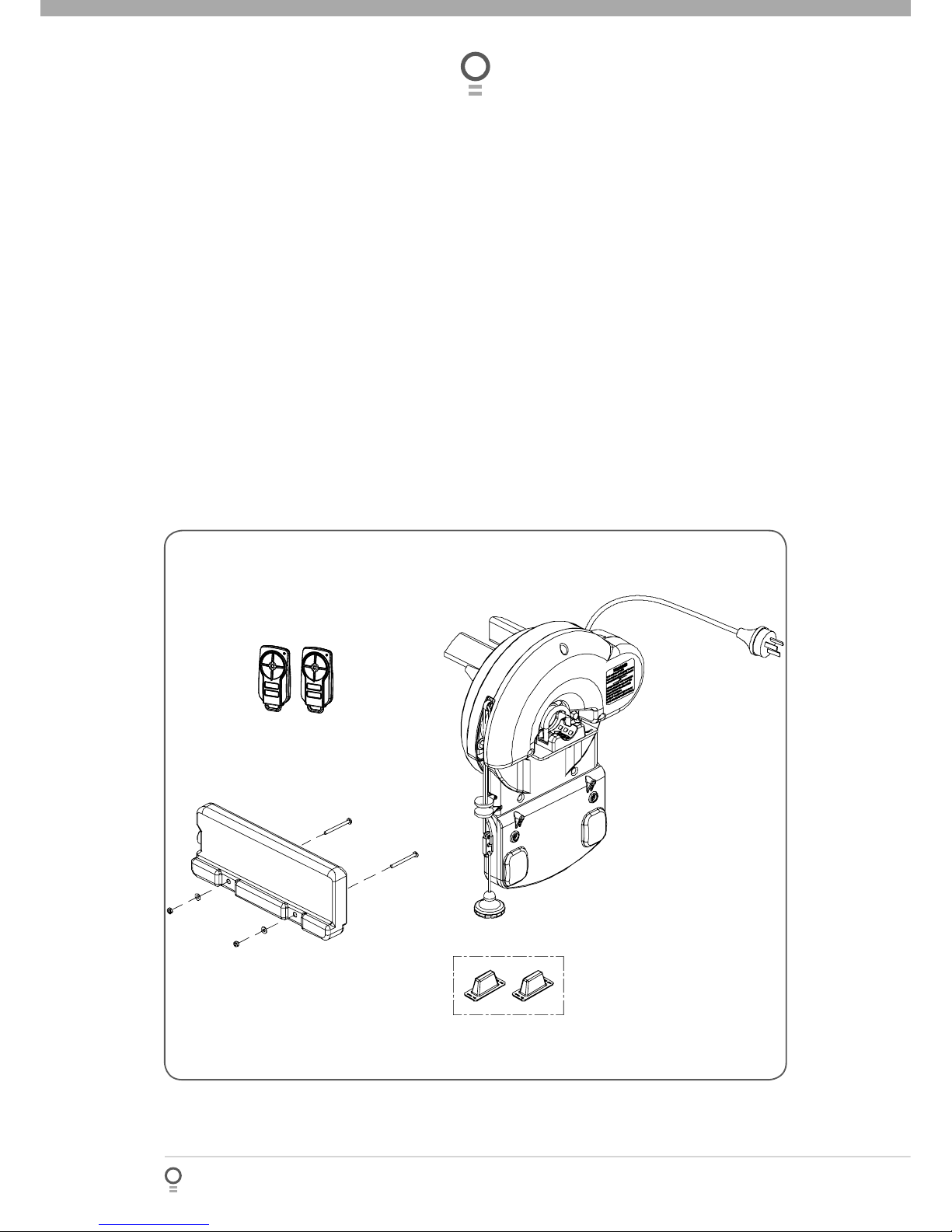

Package Contents 10

Installation 11

Programming the Opener 15

Safety Obstruction Force 17

Coding Transmitters 19

Deleting Transmitter Codes 21

Accessories 22

Wired Safety Beams Installation 22

Auto-Close 23

Final Setup 24

Setting of Courtesy Light Time 24

Setting the Pet Mode Position 24

Wall Transmitter Installation 24

Keyswitch Connection 24

Auxiliary Output 25

Reset all Factory Defaults 25

SmartSolar™ Installation 26

Battery Backup Kit Installation 27

Parameters 28

Door Status Indicators 28

Button Functions 29

Default Settings & Speciﬁcations 30

Troubleshooting 31

Maintenance 32

Spare Parts 33

Important Safety Checks 34

Warranty 35

GDO-6v4 EasyRoller®

Roll Up Garage Door Opener

4GDO-6v4 EasyRoller®Owner Installation Instructions

CAUTION: If your garage has no pedestrian entrance door, an emergency access device should be installed.

This accessory allows manual operation of the garage door from outside in case of power failure.

For ADDITIONAL SAFETY protection we STRONGLY recommend the ﬁtting of a Safety Beam. In

most countries, Safety Beams are mandatory on all garage doors ﬁtted with automatic openers. For a

small additional outlay, Automatic Technology recommends that Safety Beams be installed with the

automatic opener ensuring additional safety and peace of mind.

DO NOT operate the opener unless the garage door is in full view and free from objects such

as cars and children/people. Make sure that the door has ﬁnished moving before entering or

leaving the garage.

DO NOT operate the opener when children/people are near the door. Children must be

supervised at all times when the EasyRoller® is in use. Serious personal injury and/or

property damage can result from failure to follow this warning.

DO NOT allow children to operate the EasyRoller®. Serious personal injury and/or

property damage can result from failure to follow this warning.

Photo Electric Beams must be installed where the closing force as measured

on the bottom of the door is more than 400N (40kgf).

Regularly check to make sure that the Safety Obstruction Force is working

correctly, and is tested and set as per page 17 of this manual. Failure to

follow these instructions could result in serious personal injury and/or

property damage. This test must be repeated at regular intervals and

the necessary adjustments made as required.

DO NOT disengage the door opener to manual operation with

children/people or any other objects including motor vehicles

within the doorway.

The door opener is not intended for use by young children

or inﬁrm persons without adequate supervision. Children

should be supervised to ensure that they do not play

with the remote transmitters or the opener.

Keep hands and loose clothing clear of the door

and door opener at all times.

WARNING: It is vital for the safety of persons to follow all

instructions. Failure to comply with the following Safety

Instructions may result in serious personal injury and/or

property damage.

Important Safety Instructions

Owner Installation Instructions GDO-6v4 EasyRoller®5

The unit should be installed so that it is protected from the elements. It should not be exposed to water or rain.

It is not to be immersed in water or sprayed directly by a hose or other device.

The garage door must be well balanced. Sticking or binding doors must be repaired by a qualiﬁed garage

door installer prior to installation of the opener.

Frequently examine the installation, in particular cables, springs and mountings for signs of wear, damage

or imbalance. DO NOT use if repair or adjustment is needed since a fault in the installation or an

incorrectly balanced door may cause injury. DO NOT attempt to repair the door yourself as hardware

is under extreme tension.

Remove or disengage all garage door locks and mechanisms prior to installation of the opener.

Connect the opener to a properly earthed general purpose 220V mains power outlet installed

by a qualiﬁed electrical contractor.

Disconnect the power cord from mains power before making any repairs or removing

covers. Only experienced service personnel should remove covers from the opener.

When using Auto-Close mode, a safety beam must be ﬁtted correctly and tested

for operation at regular intervals. Extreme caution is recommended when using

Auto-Close mode. All safety rules must be followed.

In order for the EasyRoller® to sense an object obstructing the door way,

some force must be exerted on the object. As a result the object, door and/

or person may suffer damage or injury.

If the power supply cord is damaged, it must be replaced by an

Automatic Technology service agent or suitably qualiﬁed person.

Make sure that the door is fully open before driving in or out of the

garage and fully closed before leaving the driveway.

Make sure that remote transmitters are kept out of reach of

children.

Install the (optional) wall switch or (optional) wall

mounted transmitter in a location where the garage

door is visible, but out of the reach of children at a

height of at least 1.5 metres from the ﬂoor.

Important Safety Instructions

6GDO-6v4 EasyRoller®Owner Installation Instructions

Operation

To open or close the door simply press a button on a TrioCode™ handheld

transmitter, a wall mounted transmitter, or optional wall switch for two seconds.

During open and close cycles the door can be stopped by pressing the button

again. The next actuation will move the door in the opposite direction.

TrioCode™ Code Hopping Technology

Every time a TrioCode™ transmitter is used, a new security code is randomly

generated from over 4.29 billion possibilities. This greatly enhances the security of

the system and makes “code grabbing” a thing of the past.

These transmitters also overcome interference issues by simultaneously sending a

signal over three slightly different frequencies. Even if two of the three signals are

jammed, the system will still work.

ALPS (Automatic Limits Positioning System)

ALPS does away with manual adjustment of the door’s limits position using mechanical

parts, such as cams and microswitches. During installation the handheld transmitter can be

programmed to set the door limits positions.

ISS (intelligent safety obstruction system)

While the door is performing a close cycle, should it hit an obstacle or be restricted in some

manner, it will automatically reverse. The amount of force the door should encounter before reversing

is automatically adjusted by the doors control system during the initial installation of the automatic door

opener. The door will also stop if restricted whilst opening. The Safety Obstruction Force should be checked

monthly.

SmartSolar™ and Battery Backup Compatibility (optional)

The opener can be ﬁtted with a SmartSolar™ or Battery Backup kit for operation in the event of a power outage,

or where mains power access is not available.

NOTE: If the door is the only entrance to the garage, and a battery backup kit is not ﬁtted, a keyed cable

release should be ﬁtted externally to the garage.

Features

Thank you for purchasing the Automatic Technology

EasyRoller® Automatic Garage Door Opener.

Operating Continuous Curtain Roll up doors, the

EasyRoller® will provide years of smart, simple

& secure convenience to your home.

Owner Installation Instructions GDO-6v4 EasyRoller®7

Vacation mode

A handheld transmitter can be programmed to lock and unlock all other transmitters that have been

programmed into the openers’ memory. The vacation mode can be used when the door is left

idle for long periods of time.

Auto courtesy light

The courtesy light comes on automatically for three minutes whenever the door is

activated. The light can also be operated independently of the door by coding a

dedicated button on a transmitter.

Pet/Pedestrian mode

The transmitter can be programmed to open the door to an adjustable partial

height so that the family pet can enter and exit the garage at any time. You may

also wish to open the door to a height suitable for pedestrian access.

Auto-Close mode

The opener can be programmed to automatically close after an open cycle. The

Auto-Close time is adjustable. It is compulsory to install a Safety Beam if this

mode is selected, otherwise the door may cause personal injury or damage to

property.

Safety Beam (optional)

The opener has an input to connect a Safety Beam for extra safety and use of the

Auto-Close mode. Easy Beam PE 3 kit or Wireless Safety Beam kit can be used with

this opener.

Safety Beam Failure Emergency Close

When a safety beam prevents movement due to any reason other than a ‘real’

obstruction, the user can secure their property by pressing and holding a button on the

remote control or OSC on the console.

Manual operation

The opener is equipped with a unique manual disengaging device. If the power to the opener is

disrupted, the door can be put into manual mode by pulling down on the string handle on an angle towards

the door. This allows for manual operation of the door. To re-engage the opener, pull the string handle away

from the door.

Easy Access Transmitter

Inside the manual release handle is a transmitter designed to be in easy reach so that the garage door can

be operated without having to stretch to reach the operate button on the control panel.

Service Indicator

The opener has a built in counter with a default setting of 3000 cycles. When the counter expires the opener

will beep and ﬂash to indicate a service is required.

8GDO-6v4 EasyRoller®Owner Installation Instructions

Operating Controls

TERMINAL BLOCK.

V+ is used to power devices such as Wireless PE Beam, external receiver etc.

EB1 ﬁrst Safety Beam input.

0V (Input) is a 0 volt connection for PE Beam, external receiver, osc, aux etc.

EB2 second Safety Beam input.

0V (Input) is a 0 volt connection for PE Beam, external receiver, osc, aux etc.

O/S/C INPUT is used for the connection of a wired switch (momentary contact). This switch can then be

used to open, stop or close the door. Install the wall switch in a location where the switch is out of reach of

children and the garage door is visible.

AUX output can be used to control another device (such as alarm system etc) via the opener’s remote

control.

LIGHT CODE button (White) is used for storing or erasing the transmitter button (code) you wish to use

to switch the courtesy light on the opener on or off.

CODING LED (Red) light ﬂashes when a code is being stored or when a transmitter button is pressed.

DOOR CODE BUTTON (Blue) is used for storing or erasing transmitter buttons for door operation.

DOOR STATUS LED (Yellow)

CLOSE button (Red) is used during installation to help set the close limit position. Pressing and holding

this button will move the door in the close direction. Movement stops when the button is released.

NOTE: The safety obstruction detection is inoperable when the CLOSE button is used to move door.

CLOSE LIMIT LED (Red) the LED is very helpful during installation. It illuminates and ﬂashes when the

door is closing and remains steady on when the close limit position has been reached.

AUTO CLOSE TIME button (White) is used to adjust the Auto-Close time. Pressing the open button

whilst pressing the Auto Close button increases length of operation. Each press will increase the time by 5

seconds. Pressing the close button will decrease the time.

FORCE MARGIN SET button. The obstruction force margin is set automatically during installation. The

margin can be adjusted manually using the Force Margin Set button (White). Holding the Force Margin

Set button and pressing OPEN or CLOSE buttons will increase or decrease the amount of force. The Force

Margin Set should only be used if environmental factors (wind, etc.) affect the door’s operation.

OPEN LIMIT LED (Green) the LED is very helpful during installation. It illuminates and ﬂashes when the

door is opening and remains steady on when the open limit position has been reached.

OPEN button (Green) is used during installation to help set the open limit position. Pressing and holding

this button will move the door in the open direction, releasing stops the door.

NOTE: The safety obstruction detection is inoperable when the OPEN button is used to move door.

OPERATE button (Yellow) is used during installation to test the open, stop and close cycles for the

opener. The opener has to be initialised by the Reset button to make the O/S/C button operable.

SET button (Yellow) is used during the installation phase together with the Open and Close buttons to set

the door limit positions. The Set button is also used to re-initialize the Opener.

ENGAGE/DISENGAGEMENT CORD enables manual door operation, especially useful during

power failures. At the cord’s end is the EASY ACCESS TRANSMITTER; a wireless door controller.

JP1 SOLAR CONNECTOR the shunt must be ﬁtted for solar operation.

Owner Installation Instructions GDO-6v4 EasyRoller®9

06 07 08

PROG INPUT is used to connect the Automatic Technology Handheld Programmer for editing control

and receiver functions, accessing diagnostic tools, and activating special features and operating modes.

SBCO-2 CONNECTOR is used to connect both Battery Backup Kits and SmartSolar™ kits.

V+

EB1

EB2

OSC

AUX

10 GDO-6v4 EasyRoller®Owner Installation Instructions

Package Contents

GDO-6v4 Easyroller® drive unit w/ Easy Access Transmitter 1

TrioCode™ keyring transmitters with batteries 2

Pan head screw M4x50mm (not included in some models) 2

Nilock Hex nut M4 (not included in some models) 2

Flat washer I.D. 3/16 x 1/2 (not included in some models) 2

Spring washer I.D. 5 (not included in some models) 2

Locking bar covers 2

Weight bar (not included in some models) 1

Installation Instructions 1

TrioCode™ Keyring Transmitter Pack

Weight Bar

Drive Unit

Locking Bar Covers

Table des matières

Autres manuels Automatic Technology ouvre-porte de garage

Automatic Technology

Automatic Technology 62717 Manuel utilisateur

Automatic Technology

Automatic Technology iOpener RD40 Manuel utilisateur

Automatic Technology

Automatic Technology Axess Pro Series Manuel utilisateur

Automatic Technology

Automatic Technology Axess Pro Series 1101 Manuel utilisateur

Automatic Technology

Automatic Technology Syncro ATS-3 Manuel utilisateur

Automatic Technology

Automatic Technology NeoSlider TrioCode 128 NES-500 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-6v3 EasyRoller Manuel utilisateur

Automatic Technology

Automatic Technology GDO-6 EasyRoller Manuel utilisateur

Automatic Technology

Automatic Technology GDO-9v2 Enduro Gen 2 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-6 v2 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-9 Dynamo Gen 2 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-6v3 EasyRoller Manuel utilisateur

Automatic Technology

Automatic Technology GDO-9v2 Enduro Gen 2 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-9 ENDURO GEN2 Guide de planification

Automatic Technology

Automatic Technology GDO-8 Shed Master Manuel utilisateur

Automatic Technology

Automatic Technology GDO-4 EasyRoller Manuel utilisateur

Automatic Technology

Automatic Technology GDO-9v2 SecuraLift Manuel utilisateur

Automatic Technology

Automatic Technology GDO-11V3 Ero Manuel utilisateur

Automatic Technology

Automatic Technology GDO-7v2 SecuraLift Manuel utilisateur

Automatic Technology

Automatic Technology Toro GDO-10V2L2 Manuel utilisateur

Automatic Technology

Automatic Technology SecuraLift GDO-9v3 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-11v1 Ero Guide de démarrage rapide

Automatic Technology

Automatic Technology Ero GDO-11v2 Manuel utilisateur

Automatic Technology

Automatic Technology SecuraLift GDO-7V1 Guide de démarrage rapide

Manuels ouvre-porte de garage populaires d'autres marques

Dorma

Dorma ES 90 Manuel utilisateur

Garaga

Garaga SECURITY+ 3265GCM 1HP Manuel utilisateur

Chamberlain

Chamberlain Whisper Drive SECURITY+ WD822K Series Manuel utilisateur

Chase Doors

Chase Doors DuraShield Manuel utilisateur

CSI

CSI Classic Manuel utilisateur

HATO

HATO 120 Manuel utilisateur

Chamberlain

Chamberlain Elite 3575S Manuel utilisateur

Richmond

Richmond GTR156 Manuel utilisateur

Raynor

Raynor 1280RGD Manuel utilisateur

CAME

CAME F4000 Series Manuel utilisateur

B&D

B&D Controll-A-Door 5 Manuel utilisateur

BFT

BFT PRV AA SL Manuel utilisateur

Craftsman

Craftsman 139.53924 Manuel utilisateur

Chamberlain

Chamberlain MyQ 940ESTD Manuel utilisateur

Westfalia

Westfalia 19 36 07 Manuel utilisateur

Chamberlain

Chamberlain HD520EVP Manuel utilisateur

Cardin

Cardin BL Series Manuel utilisateur

Chamberlain

Chamberlain 8355 - 1/2 hp Manuel utilisateur
