Audiovox GMRS121-2 Manuel utilisateur

128-7005

1 of 20

General Mobile Radio Service (GMRS)

Model :GMRS121-2

Released: 1-16-04

Owner’s Manual

MODE

128-7005

2 of 20

THIS PAGE LEFT BLANK INTENTIONALLY

128-7005

3 of 20

CAUTION

SAFETY INFORMATION

Your wireless hand-held portable transceiver contains a low power

transmitter. When the PTT button is pushed (or the VOX mode is enabled)

it sends out radio frequency (RF) signals. The device is authorized to operate

at a duty factor not to exceed 50%. In August 1996, the Federal

Communications Commissions (FCC) adopted RF exposure guidelines

with safety levels for hand-held wireless devices.

Important: To maintain compliance with the FCC’ s RF exposure guidelines

hold the transmitter at least 1 inch (2.5 centimeters) from your

face and speak in a normal voice, with the antenna pointed up

and away. If you wear the handset on your body while using the

headset accessory, use only the Audiovox supplied carry clip

for this product and ensure that the antenna is at least 1 inch

(2.5 centimeters) from your body when transmitting. Use only

the supplied antenna. Do not use your transceiver with a

damaged antenna. Unauthorized antennas, modifications, or

attachments could damage the transmitter and may violate

FCC regulations.

Performance:

Your transceiver will only achieve its maximum operating range when

communicating with other transceivers across open and flat areas or

between elevated points. Normally occurring environmental factors such

as buildings, trees, terrain and weather, or interference from other radio or

electrical equipment, may have adverse effects on the transceiver’s effective

range. These are not indicative of a fault condition.

Avoid placing the GMRS121-2 radio transceiver for prolonged periods of

time in direct sunlight or temperatures below -4°F(-20°C) or above

140°F (60°C).

128-7005

4 of 20

WARNINGS:

Battery Care

Never attempt to charge alkaline or dry cell batteries, as batteries may

burst causing personal injury and damage to the product.

Battery Disposal

In general, if handled improperly, batteries pose a risk of fire or burns. Do

not disassemble, crush, puncture, short external contacts, or dispose of

the batteries in fire or water. Dispose of the batteries in a environmentally

safe manner and recycle whenever possible.

FCC WARNING

Replacement or substitution of transistors, diodes or other parts of a unique

nature, with parts other than those recommended by the manufacturer,

may cause a violation of the technical regulations of Part 15 of FCC Rules.

GMRS LICENSE:

USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN FCC

GMRS LICENSE. AN INDIVIDUAL 18 YEARS OF AGE OR OLDER, WHO IS

NOT A REPRESENTATAIVE OF A FOREIGN GOVERNMENT, IS ELIGIBLE

TOAPPLY FOR A GMRS SYSTEM LICENSE. YOU WILL NEED TWO FORMS

FROM THE FCC: FCC FORM 159, AND FCC FORM 605 (MAIN FORM AND

SCHEDULE F). YOU CAN FIND THE FORMS ONLINE AT:

HTTP://WWW.FCC.GOV/FORMPAGE.HTML, OR CALL 1-800-418-3676.

128-7005

5 of 20

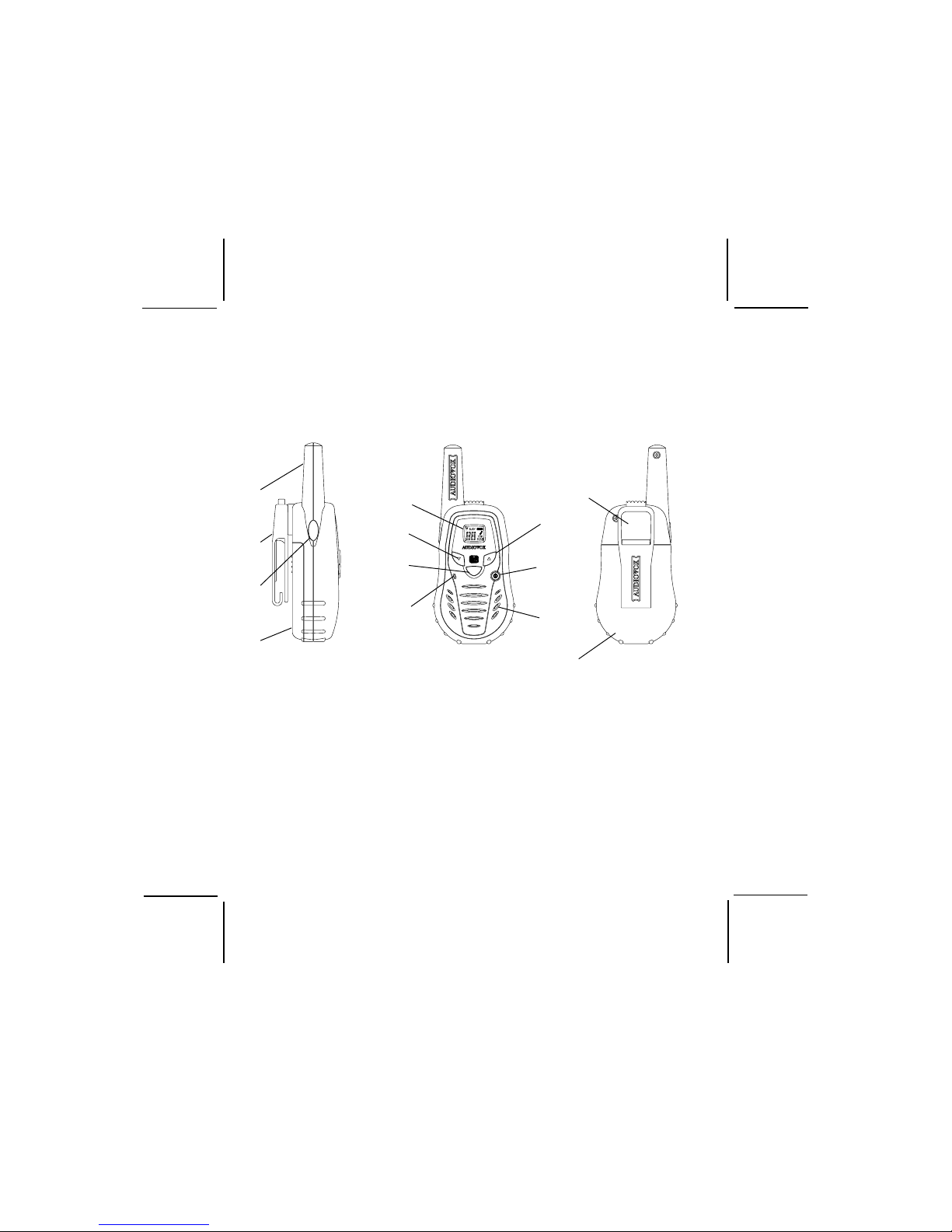

1. Battery Cover

2. Push-To-Talk (PTT) and Func-

tion Confirmation Button

3. Detachable Carry Clip

4. Antenna

5. Liquid Crystal Display (LCD)

6. Up Channel/Volume Button

Model GMRS121-2 (FCC License Required)

7. Down Channel/Volume

Button

8. MODE Button

9. Built-in Microphone

10. Power On/Off and SCAN

Button

11. Built-in Speaker

(REF)

MODE

PTT

128-7005

6 of 20

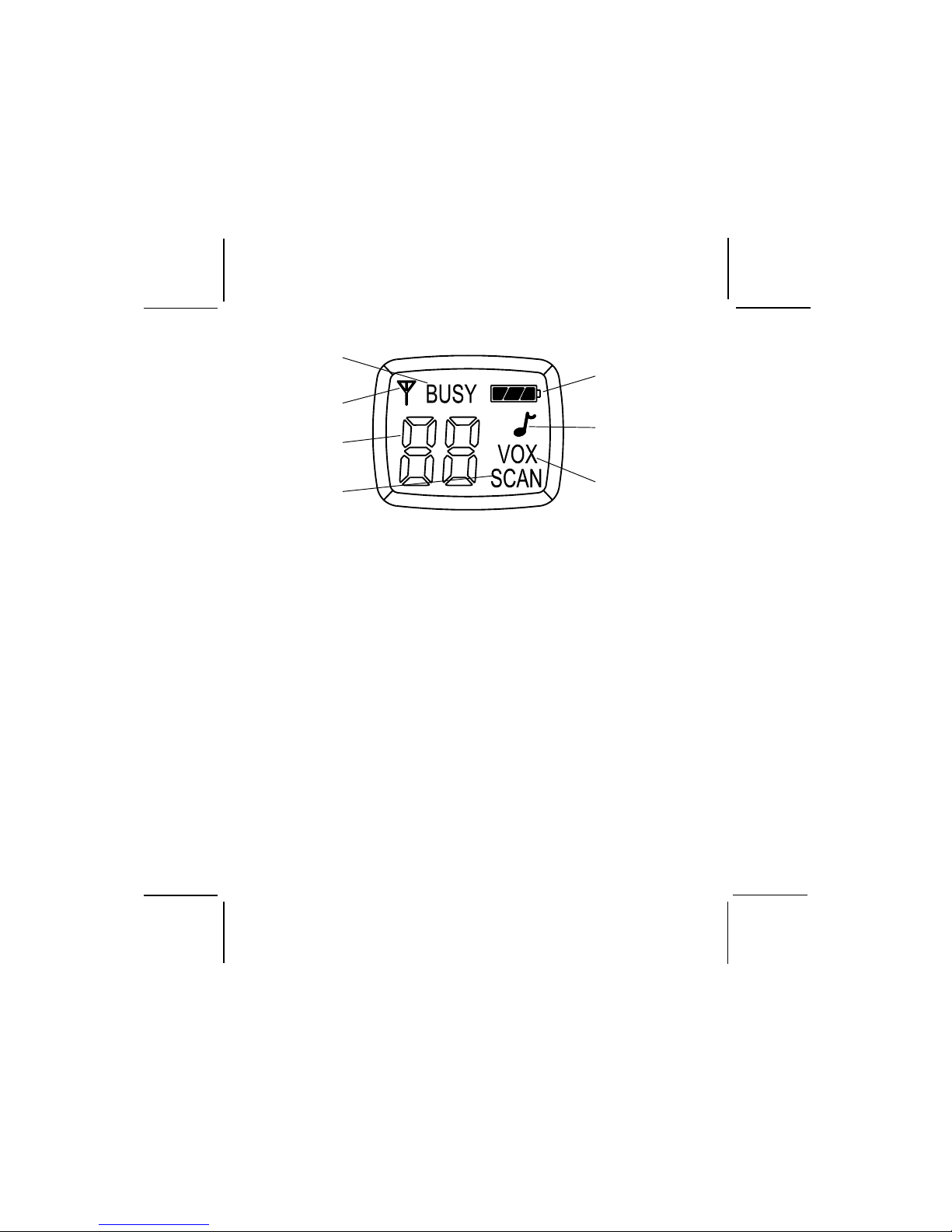

Model GMRS120 DISPLAY

1. Busy Indicator: This icon appears when the unit is receiving a

transmission.

2. Transmit Indicator: Icon appears when the unit is in the transmit

mode (PTT button activated or VOX mode active).

3. Large Segment Display: Indicates the channel number in use between

1 and 22.

4. Scan Indicator: This function allows the user to scan a channel every

0.5 second to search for a valid signal.

5. Battery Level Indicator: Icon indicates the battery charge level.

6. Roger Beep Tone Indicator: This icon appears when the Roger Beep

tone is on, and disapppears when the tone is not in use.

7. Voice Activated Transmission (VOX) Indicator: This function allows

hands-free conversation. The icon appears when the VOX mode is

activated.

Equipment and Accessories Supplied

1. Radio (2) GMRS121-2

2. Owner’s Manual (1) 128-7005

Powering the transceiver:

Your GMRS121-2 radio transceiver operates on three AAA Alkaline batteries.

128-7005

7 of 20

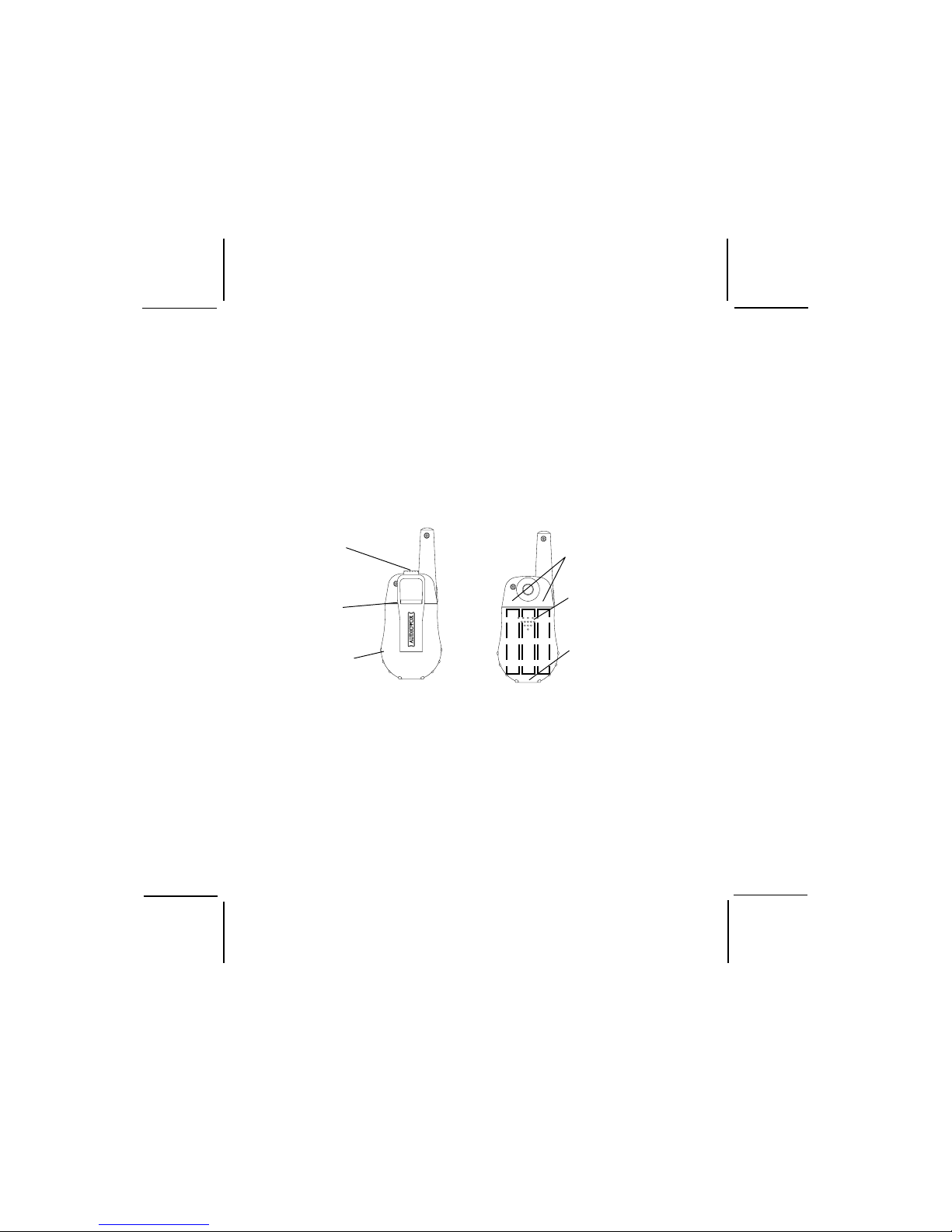

Installing the batteries:

Battery installation is made more convenient when the carry clip is rotated

either left or right to the upside-down position, or is removed completely.

Simply rotate the clip in either direction to the vertical position. Be careful

not to use excessive force. To remove the clip, press down on the the

release tab and pull the clip straight out from the radio body. Next, press

down with the thumb at the embossed arrow, slide the battery cover down

and lift it away from the compartment. Insert three AAA batteries (alternate

positive ends (+) toward the top of the transceiver, starting left-to-right).

2. Then lift cover at

bottom to open.

Remove cover.

3. Insert three AAA batteries

(positive (+) end toward

the top begining at left

side and alternating

positive terminals as

shown).

1. Using thumb,

press down on

battery cover at

arrow and slide

cover down.

+ +

CLIP RELEASE

TAB

BATTERY

COVER

CARRY

CLIP

COVER

ARROW

POSITIVE

TERMINAL

POSITIVE

TERMINALS

128-7005

8 of 20

The following guidelines will improve performance and provide longer

operating times for the GMRS121-2:

1. Do not mix old and new batteries.

2. The use of alkaline-type batteries is recommended to provide the

longest operating time.

3. Do not mix alkaline, standard (carbon-zinc) or rechargeable

batteries.

4. If the unit is not to be used for an extended period of time, remove the

batteries. Old or leaking batteries can cause damage to the unit and

will void the warranty.

GMRS121-2 OPERATIONAL MODES

GMRS/FRS

(MODE)

CHANNEL

SELECT

ROGER

BEEP

(1-22)

(on or oF)

NOTE: Refer to the appropriate section of this manual for detailed op-

erating instructions for each mode. Channels 1 through 7 are

shared GMRS/FRS. Channels 8 through 14 are FRS only,

and channels 15 through 22 are GMRS only.

128-7005

9 of 20

Controls:

Power On-Off/SCAN Button (10)

Press and hold the PWR on/off button for at least 2 seconds. You will hear

a confirming melody to indicate the unit is on. To turn the unit off, press and

hold the button for at least 2 seconds.

Adjusting the Volume (6, 7)

With the unit powered on, press the Up Channel/Volume button ( ) to

increase volume and the Down Channel/Volume button ( ) to decrease

volume. The display will indicate the current volume level ( V )followed by

the number (1-7). As volume is increased upward, the unit will beep at

each step, and vice-versa. When the minimum and maximum volume

settings are reached, a unique tone will sound.

Monitoring a Call

Whenever an incoming call occurs, the icon will apppear on the display

and you will hear static if frequency is clear.

Do not transmit if you hear

conversation.

The monitor function will temporarily bypass the squelch

setting and play all signals on a given channel. This feature is useful

when communicating with other parties at extreme range.

Push To Talk (PTT) Button (2)

Pressing and holding this button will allow you to speak to any transceiver

that is set to the same channel as yours. Hold the transceiver approximately

1 to 2 inches from your face as you speak into the built in microphone (9).

After you have finished speaking, release the PTT Button to allow reception

of incoming signals. It is not possible to transmit and receive at the same

time. Whenever the button is pressed, the transmit signal icon ( ) will

appear in the upper left corner of the display. Releasing the button allows

the unit to revert to standby mode. When receiving an incoming signal, the

icon will appear.

The PTT Button can also be used as a two-way call ringer. Pressing the

button twice quickly will call another party on the same channel. The transmit

icon ( ) will be displayed for 3 seconds and then disappear.

128-7005

10 of 20

Up Channel/Volume Button (6)

In the standby mode, pressing this button will increment the listening

volume. When in function edit mode this button will be used to adjust the

unit’s settings.

Down Channel/Volume Button (7)

In the standby mode, pressing this button will decrement the listening

volume. When in function edit mode this button will be used to adjust the

unit’s settings.

MODE Button (8)

This button is used to select various feature settings in the GMRS and FRS

modes.

Scan Button (10)

With the unit in standby mode, press the Power On/Off Button momentarily

to enable or disable the scan function; SCAN will appear on the display.

Operating Modes and Features

GRMS/FRS Operation:

- Press and hold the Power On/Off button for 2 seconds to turn on

power.

- Press the MODE button so the Channel number flashes.

- Select the desired channel with the Up (6) and Down (7) Buttons.

When receiving a call, the icon appears to indicate an incoming

call.

- Press and hold the PTT button (2) to transmit, then speak into the

microphone clearly and slowly. The Transmit icon ( ) appears

on the display while the button is pressed.

- Release PTT Button (2) to receive.

- Communication can only be accomplished when the channel of at

least two parties are the same.
