Audiovox CommanderMT 128-7902A Manuel utilisateur
installation guide
XMRVRFM002
CommanderMT System
2
TT
TT
Table of Contentsable of Contents
able of Contentsable of Contents
able of Contents
Table of Contents ...............................................................................................2
Congratulations ..................................................................................................3
FCC Information ..................................................................................................4
Cautions and Warnings ................................................................................... 5
CommanderMT Receiver Kit Components ..............................................6
Installation/Wiring Precautions ....................................................................7
Setting Up and Installing Your Kit ............................................................... 8
Cabling Interconnections ......................................................................8
Interconnect Diagram .............................................................................9
Antenna Installation ............................................................................. 10
CommanderMT Display Controller Installation ....................... 13
Using the DIN Opening Trim Bezel ............................................ 13
Preferred Location ....................................................................... 13
Locating the Display Controller ............................................ 14
Installing the Mini-Tuner ........................................................... 15
Installing the Cradle and Interconnecting Cables ......... 15
Using the Snap-On Mounting Plate ......................................... 17
Connection Options ........................................................................ 18
FM Direct Wiring ........................................................................... 18
Low-Level Audio Output .......................................................... 19
Warranty ......................................................................................................... 20
Table of Contents
3
Thank you for purchasing the Audiovox CommanderMT XM®Satellite Radio
System. You are one step closer to experiencing the latest innovation in XM®
Satellite Radio. XM®Satellite Radio will revolutionize your vehicle or in-home
entertainment.
XM®features over 170 digital channels — The most commercial-free music,
over 30 channels of news, sports, talk and entertainment, over 20 dedicated
channels of XM®Instant Traffic & Weather, and the deepest play-list in the
industry with access to over 2 million titles!
XM®Satellite Radio service gives you the power to choose what you want to
hear - wherever and whenever you want it. XM®is America’s #1 Satellite Radio
provider with over 4 million customers.
Your Audiovox CommanderMT XM®Satellite Radio System consists of acces-
sory Vehicle Kit components required for your specific installation needs.
Required subscription for service sold separately.
Installation costs and other fees and taxes may apply, including a one-time
activation fee. All fees and programming subject to change. College sports
games subject to availability. Subscriptions subject to Customer Agreement
included with the XM Welcome Kit and available at www.xmradio.com. Only
available in the 48 contiguous United States.
© 2007 XM®Satellite Radio Inc. XM®is a trademark of XM®Satellite Radio. All
rights reserved. All other trademarks are the property of their respective
owners.
CongratulationsCongratulations
CongratulationsCongratulations
Congratulations
Congratulations
4
FCC InformationFCC Information
FCC InformationFCC Information
FCC Information
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful in
terference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. How
ever, there is no guarantee that interference will not occur in a particular instal
lation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
The user is cautioned that changes or modifications not expressly approved by XM®
Satellite Radio, Inc. can void the user’s authority to operate this device.
Please note that the cables and antenna wire that has been supplied with your
car installation kit are supplied with permanently attached ferrite beads. It is the
responsibility of the user to use the cable and antenna wire with the ferrite
beads.
By adhering to these warnings and safety considerations, stated in the manual and
by XM®, accidents.
FCC Information
5
Cautions and WarningsCautions and Warnings
Cautions and WarningsCautions and Warnings
Cautions and Warnings
1. Do not install the CommanderMT Display Controller in a position
that hinders your view through the windshield, or obstructs viewing
of the dashboard indicators and displays.
2. Do not install the Display Controller where it may obstruct the
operation or deployment of safety devices, such as airbags, etc.
3. Do not allow operation of the unit to detract from safe driving prac-
tices; remember that you are responsible as the vehicle operator
to adhere to all safe driving and traffic regulations.
4. By adhering to these warnings and safety considerations, serious
accidents and/or personal injury can be avoided.
Cautions and Warnings
6
CommanderMT Receiver Components
CommanderCommander
CommanderCommander
Commander
MTReceiverKitComponentsMTReceiverKitComponents
MTReceiverKitComponentsMTReceiverKitComponents
MTReceiverKitComponents
12 Vdc
PowerCable
CommanderMT
Display Controller
Remote Control
XM
Mini-Tuner
FM Direct Adapter
XM Car
Antenna
DINOpening
Trim Bezel Snap-On
Mounting
Plate
Interconnect
Cradle
0
p/d
menu
987654321
^
^
7
Installation/Wiring PrecautionsInstallation/Wiring Precautions
Installation/Wiring PrecautionsInstallation/Wiring Precautions
Installation/Wiring Precautions
1. To prevent a short-circuit, be sure to turn off the ignition and remove
the negative (-) battery cable prior to installation. Connect power
wires last.
2. Do not install the CommanderMT Display Controller in loca-
tions exposed to direct sunlight, or in areas subject to extreme
temperatures, or damage could occur.
3. Incorrect installation may cause damage to the system. Mount
the system components using the suggested methods recom-
mended in this manual.
4. Be careful not to crimp or twist the vehicle wiring.
5. Use only the 12 Volt DC Power Cable supplied. Use of an alternative
power source could damage the CommanderMT System compo-
nents or vehicle wiring.
6. Locate the CommanderMT Display Controller in an area of the
vehicle where it will not obstruct the driver’s operation of the vehicle
and where it will not pose a risk to driver or passengers in the event
of an emergency stop.
Installation/Wiring Precautjions
8
Setting Up and Installing YSetting Up and Installing Y
Setting Up and Installing YSetting Up and Installing Y
Setting Up and Installing Your Kitour Kit
our Kitour Kit
our Kit
NOTE: The XM®signal can be received and processed virtually
anywhere as long as there are no obvious satellite signal
obstructions such as nearby buildings, high terrain, parking
garages or tunnels.
1. Cabling Interconnections
You can begin to enjoy XM®Satellite Radio as soon as the
CommanderMT System Vehicle Kit installation is complete. Set
up yourAudiovox CommanderMT System using the following
installation instructions, or enlist the help of a professional
installer:
WARNING:Professional installation is recommended. Failure to
properly follow all installation instructions may result
in personal injury or damage to your CommanderMT
System components, your vehicle, or your vehicle
Audio/Video (A/V) system.
Cabling Interconnections
9
Cabling Interconnections
Interconnect DiagramInterconnect Diagram
Interconnect DiagramInterconnect Diagram
Interconnect Diagram
CommanderMT
Display Controller
DIN Opening
Trim Bezel
Interconnect
Cradle with XM
Mini-Tuner
Power Cable
with 2A
In-line Fuse
FMDirectAdapter
XMAntenna
ToFMAntenna
To FM Radio
10
2
.
Important!
It is very important to make your power connection to a source that
only supplies 12V when the vehicle key is in the accessory or ignition
ON position. A connection to a 12V source that is always on,
regardless of the key position, can lead to a battery drain if the
CommanderMT System is left on when you leave your vehicle.

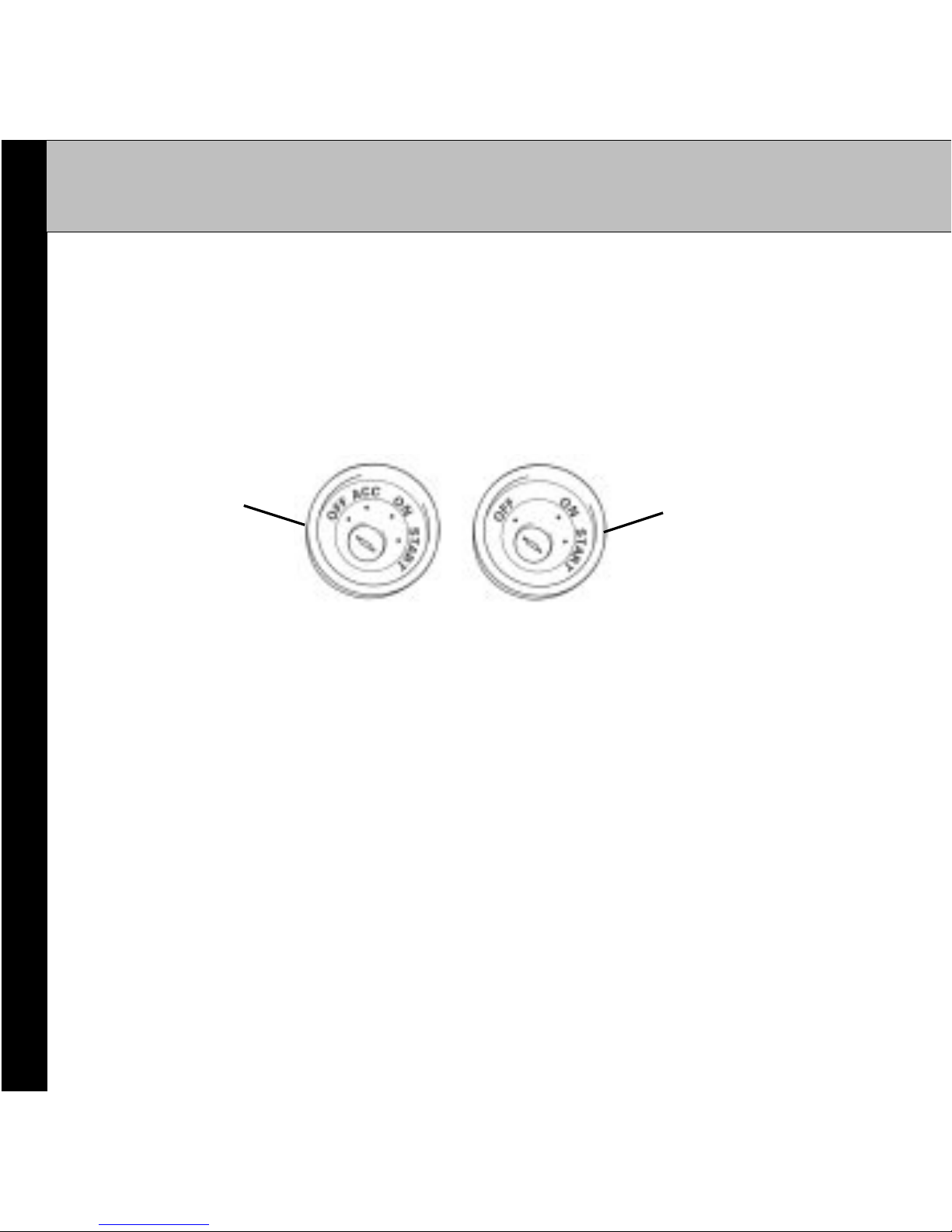

Ignition Switch Accessory/On-Off Positions
3. Antenna Installation
Where to locate
•Best reception is achieved with the antenna mounted on a flat
portion of a metal vehicle roof with at least 12” x 12” of surface area
and a minimum of 6” from a window or sunroof.
•If the vehicle has roof racks or skid ribs, it may be necessary to
mount the antenna off-center.
•If the venicle roof does not provide sufficient metal surface area,
then the antenna can be mounted on the metal trunk lid. It is
recommended that it be mounted at least several inches from the
rear window to ensure adequate clearance.
ACCESSORY
POSITION NOACCESSORY
POSITION
Important/Antenna Installation
