General Mobile Radio Service (GMRS)

Model :GMRS1202CH

Customer Service

1-800-290-6650

Released: 2-25-05

MODE

S/VOX

MIC

LOHI BUSY

Owner’s Manual

128-7341

2 of 28

THIS PAGE LEFT BLANK INTENTIONALLY

128-7341

3 of 28

CAUTION

SAFETY INFORMATION

Your wireless hand-held portable transceiver contains a low power

transmitter. When the PTT button is pushed (or the VOX mode is enabled)

it sends out radio frequency (RF) signals. The device is authorized to operate

at a duty factor not to exceed 50%. In August 1996, the Federal

Communications Commissions (FCC) adopted RF exposure guidelines

with safety levels for hand-held wireless devices.

Important: To maintain compliance with the FCC’ s RF exposure guidelines

hold the transmitter at least 1 inch (2.5 centimeters) from your

face and speak in a normal voice, with the antenna pointed up

and away. If you wear the handset on your body while using the

headset accessory, use only the Audiovox supplied carry clip

for this product and ensure that the antenna is at least 1 inch

(2.5 centimeters) from your body when transmitting. Use only

the supplied antenna. Do not use your transceiver with a

damaged antenna. Unauthorized antennas, modifications, or

attachments could damage the transmitter and may violate

FCC regulations.

Performance:

Your transceiver will only achieve its maximum operating range when

communicating with other transceivers across open and flat areas or

between elevated points. Normally occurring environmental factors such

as buildings, trees, terrain and weather, or interference from other radio or

electrical equipment, may have adverse effects on the transceiver’s effective

range. These are not indicative of a fault condition.

Avoid placing the GMRS1202CH radio transceiver for prolonged periods of

time in direct sunlight or temperatures below -4°F(-20°C) or above

140°F (60°C).

Place the rubber cover on jacks when not in use.

128-7341

4 of 28

WARNINGS:

Battery Care

Never attempt to charge alkaline or dry cell batteries, as batteries may

burst causing personal injury and damage to the product. If rechargeable

batteries are used, such as Nickel Metal Hydride (NiMH), use only the

supplied Audiovox-approved rechargeable batteries. Use of the Audiovox

charger (also supplied) with other brands of batteries is not recommended,

as battery charging times will vary with different brands. Refer to the

Manufacturer’s instructions for charging other brands of batteries.

Battery Disposal

In general, if handled improperly, batteries pose a risk of fire or burns. Do

not disassemble, crush, puncture, short external contacts, or dispose of

the batteries in fire or water. Dispose of the batteries in a environmentally

safe manner and recycle whenever possible.

FCC WARNING

Replacement or substitution of transistors, diodes or other parts of a unique

nature, with parts other than those recommended by the manufacturer,

may cause a violation of the technical regulations of Part 15 of FCC Rules.

GMRS LICENSE:

USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN FCC

GMRS LICENSE. AN INDIVIDUAL 18 YEARS OF AGE OR OLDER, WHO IS

NOT A REPRESENTATAIVE OF A FOREIGN GOVERNMENT, IS ELIGIBLE

TO APPLY FOR A GMRS SYSTEM LICENSE. YOU WILL NEED TWO FORMS

FROM THE FCC: FCC FORM 159, AND FCC FORM 605 (MAIN FORM AND

SCHEDULE F). YOU CAN FIND THE FORMS ONLINE AT:

HTTP://WWW.FCC.GOV/FORMPAGE.HTML, OR CALL 1-800-418-3676.

128-7341

5 of 28

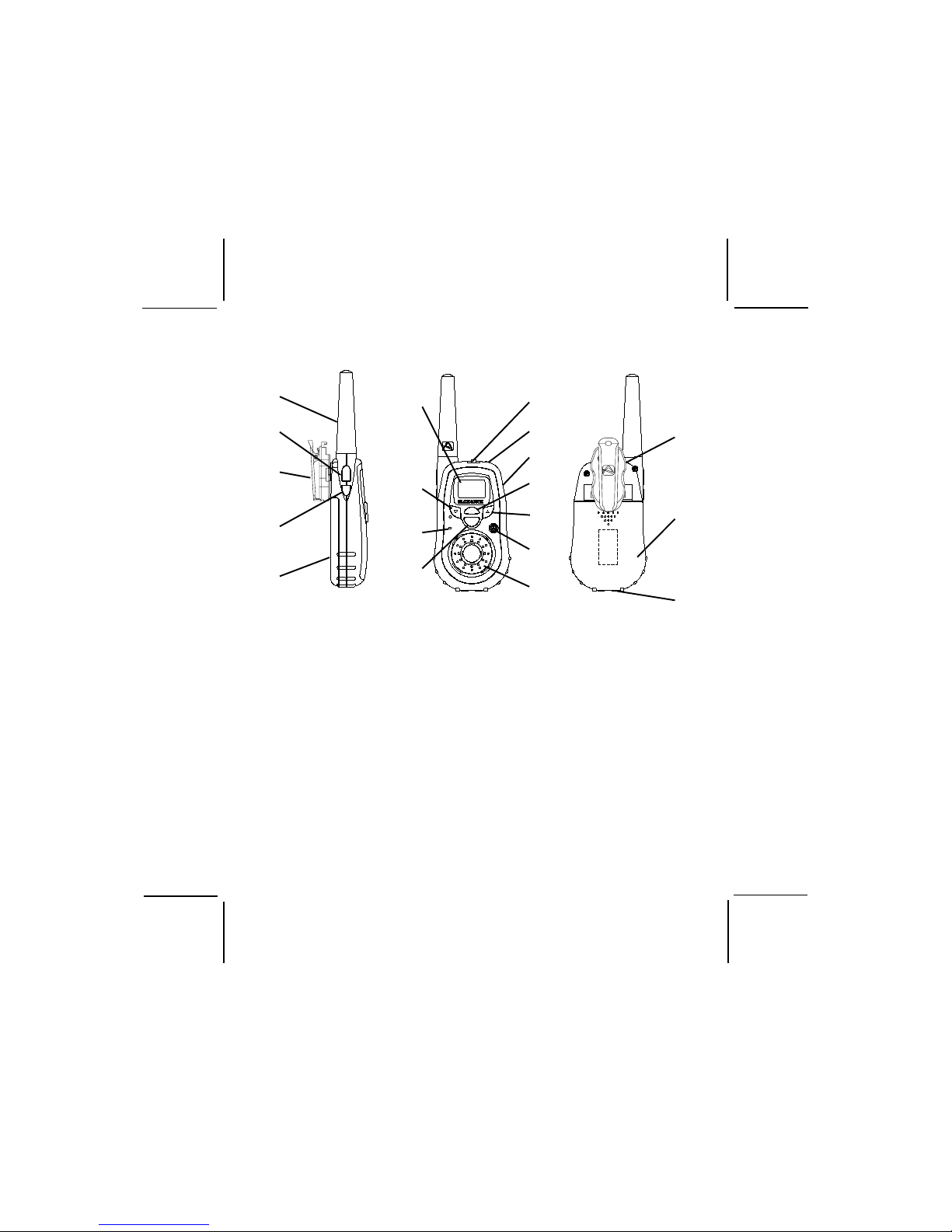

1. Battery Door

2. Monitor/Backlight Button

3. Detachable Carry Clip

4. Push-To-Talk (PTT) Button

5. Antenna

6. External Speaker(SPK)/Micro-

phone (MIC)/Charge (CHG)

Jack

7. Built-in Speaker

8. Liquid Crystal Display (LCD)

Model GMRS1202CH (FCC License Required)

9. Built-in Microphone

10. Up Channel/Volume Button

11. Down Channel/Volume

Button

12. MODE/Weather Button

13. Power On/Off Keylock

Button

14. SCAN/VOX Button

15. White Flashlight LED

16. Flashlight Enable Button

17. Battery Charging Contacts

PTT

MODE

S/VOX

MIC

(REF)

128-7341

6 of 28

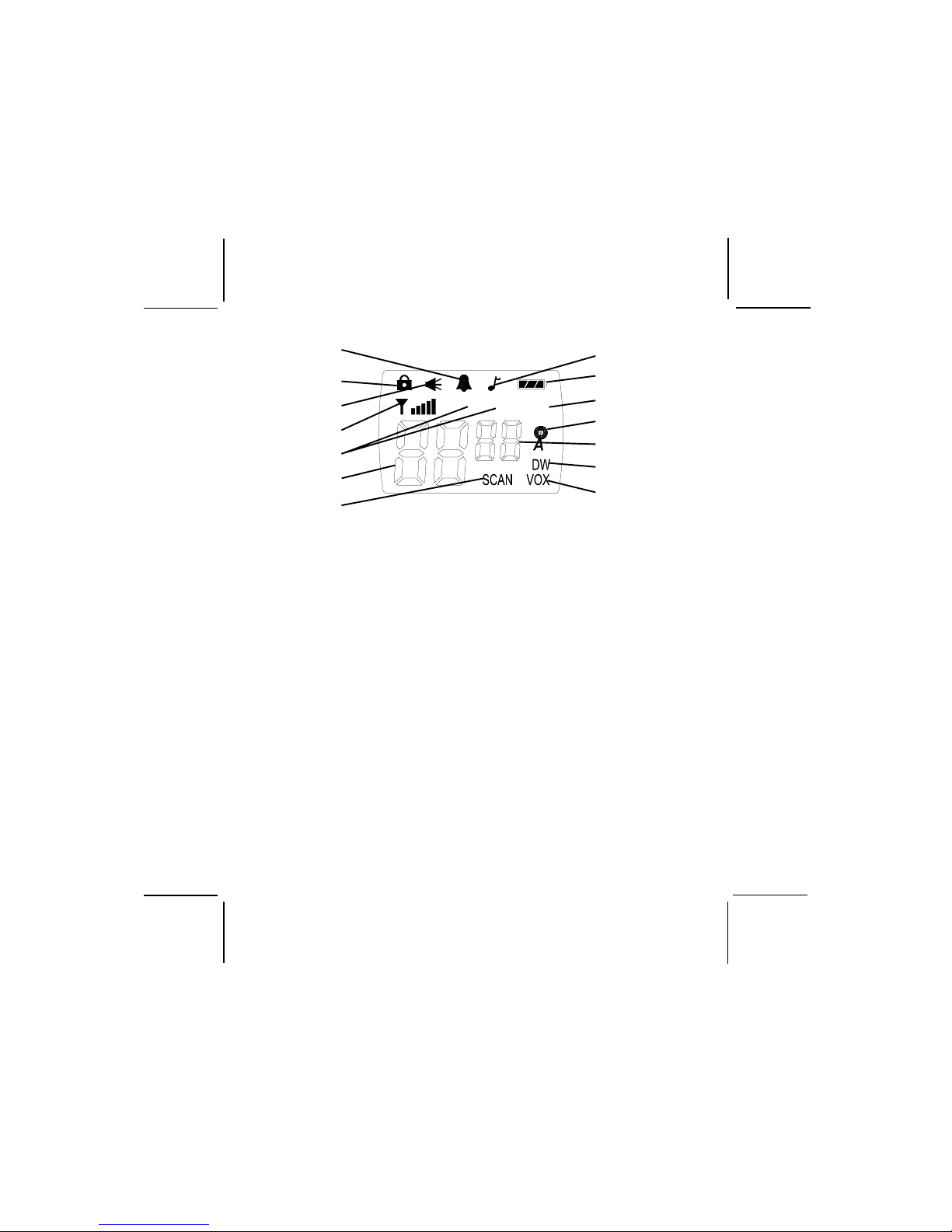

Model GMRS1202CH DISPLAY

1. Beep Tone Indicator: Icon appears when beep button confirmation

tone is selected; icon disappears when tone is off.

2. Key Lock Indicator: Icon appears when the keypad is locked. This

function disables keys such as channel up/down, SCAN and MODE.

3. Monitor Indicator: Icon appears when the Monitor (M) button is

pressed and the channel monitor function is activated.

4. Signal Strength Indicator: Icon appears when a signal is being

transmitted. The icon consists of five bars to indicate transmit signal

power level.

5. HI/LO Indicators: Power level indicator appears when the transmit

power is set to desired output power on the GMRS channels.

6. Large Segment Display: Indicates the channel number in use.

7. Scan Indicator: This function allows the user to scan a channel (and

tone code, if present) every .5 second to search for a valid signal.

8. RogerBeep Tone On/Off Indicator: This icon appears when the

Roger Beep tone is on, and disappears when tone is not in use.

9. Battery Level Indicator: Icon indicates the battery charge level.

10.Signal Receive Indicator: BUSY icon appears when a signal is being

received.

11. Weather Mode Indicator: Icon will be on steady when in the weather

band mode. When in the GMRS/FRS mode, the icon will blink when

the alert is active

LOHI BUSY

128-7341

7 of 28

12.Small Segment Display: Displays the CTCSS tone option for each

main channel from 01-38.

13.Dual Watch Mode Indicator: Indicator appears when dual watch

mode is active.

14.Voice Activated Transmission (VOX) Indicator: This function

allows hands free conversation. The indicator appears when the

VOX mode is activated.

Equipment and Accessories Supplied

1. Radio (2) GMRS1202CH

2. Owner’s Manual 128-7341

3. Desktop Charger GMRS9DS

4. AC Wall Adapter GMRS9AC

5. Rechargeable (NiMH) Batteries (10) GMRS9BAT

6. Earbud with Remote PTT Button (2) GMRSBHST8

Powering the transceiver:

Your GMRS1202CH radio transceiver operates on five AAA Alkaline or

rechargeable batteries. Alkaline batteries will provide slightly better

performance than rechargeable batteries (supplied). Only Audiovox

approved rechargeable batteries should be recharged in the radio

transceiver using the charging accessories. This will ensure optimum

performance for the GMRS1202CH. Battery charging time is typically 6-7

hours for full charge, and 0.5-3 hours for fast charge (depending on existing

battery charge). (Refer to battery charging considerations later in this

manual.) Batteries may get warm during fast charge. Slow charging will

automatically occur after a quick charge of 75%, and may take up to 3-4

hours to achieve an additional 20% charge. Batteries should not get warm

during the slow charge cycle. Use of the Audiovox charging equipment with

other brands of rechargeable batteries is not recommended as battery

charging times will vary. Refer to the manufacturer’s instructions for charging

other brands of batteries.

Batteries

There are three methods of powering the GMRS1202CH:

1. Alkaline Batteries.

128-7341

8 of 28

2. Slide the cover

down and then lift

cover at bottom to

open.Remove

cover.

3. Insert five AAA batteries

(positive (+) end toward

right side begining at top

and alternating positive

terminals as shown).

1. Using thumb,

press down on

battery cover at

arrow and slide

cover down to

open.

WARNING: Do not attempt to recharge Alkaline batteries.

2. Audiovox Rechargeable Ni-MH Batteries - (Rechargeable NiMH

batteries and Charging Adapter included). Use only Audiovox

approved rechargeable batteries and charging equipment when

charging batteries internal to the unit.

NOTE: To extend battery life, avoid overcharging the batteries

3. Various Brands of Rechargeable Batteries - Use of the Audiovox

charger with other brands of rechargeable batteries is not

recommended, as battery charging times will vary with different

brands of batteries. Refer to the manufacturer’s instructions for

charging other brands of batteries.

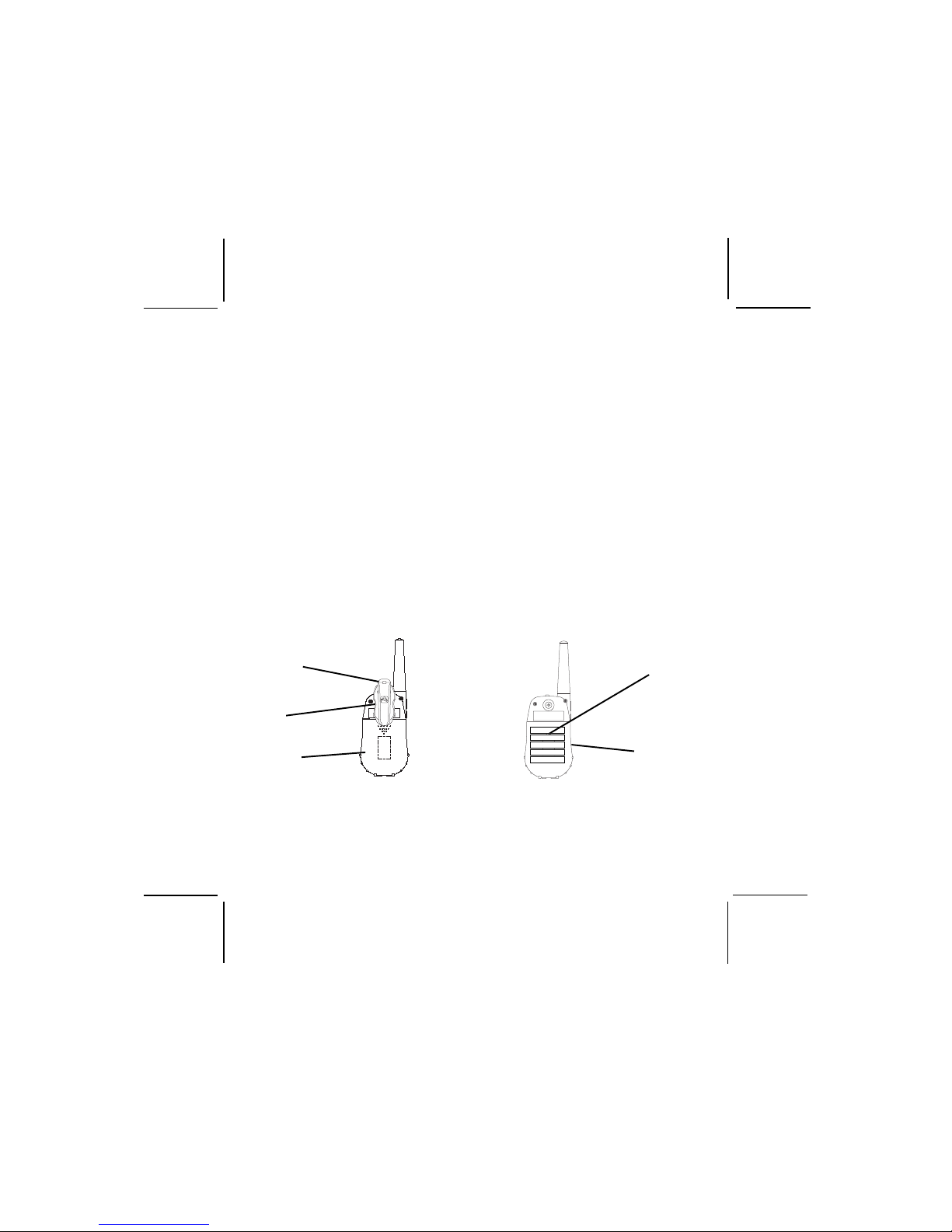

Installing the batteries:

Battery installation is made more convenient when the carry clip is

removed. To do this, release the spring latch securing the clip to radio

and slide the clip downward and away from the radio body. Next, press

down with the thumb at the embossed arrow, slide the battery cover down

and lift off the battery cover. Insert five AAA batteries (alternate

positive ends (+) toward the right side of the transceiver (starting top-to-

bottom).

RELEASE

BUTTON

BATTERY

COVER

CARRY

CLIP

COVER

ARROW

POSITIVE

TERMINALS

128-7341

9 of 28

The following guidelines will improve performance and provide longer

operating times for the GMRS1202CH:

1. Do not mix old and new batteries.

2. The use of alkaline-type batteries is recommended to provide the

longest operating time.

3. Do not mix alkaline, standard (carbon-zinc) or rechargeable

batteries.

4. If the unit is not to be used for an extended period of time, remove the

batteries. Old or leaking batteries can cause damage to the unit and

will void the warranty.

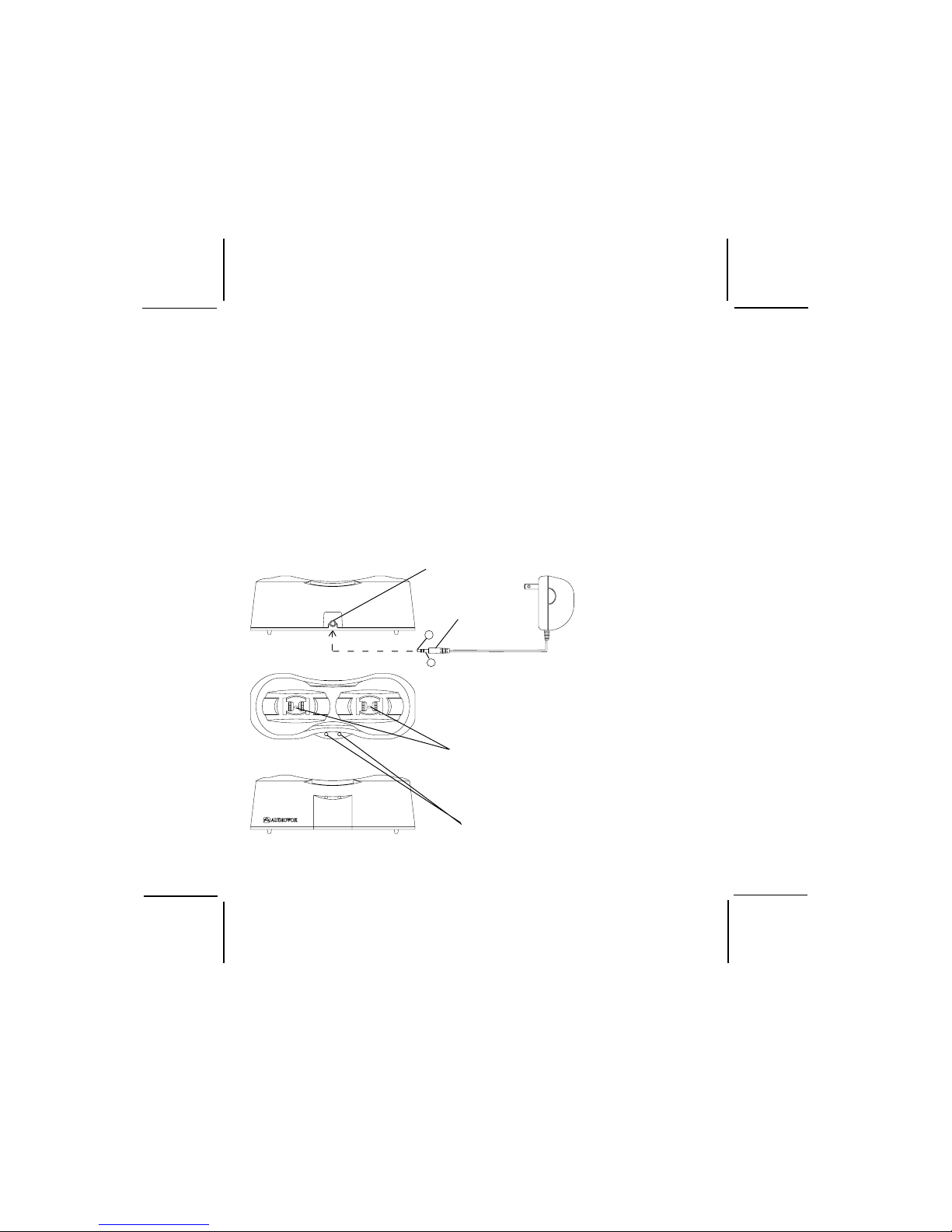

INPUT: 120VAC

OUTPUT: 11VDC

DESKTOP CHARGING STAND

PART NUMBER GMRS9DS

CHARGING STAND

PWR JACK

ADAPTER

POWER

PLUG

GMRS RADIO

CHARGING

COMPARTMENTS (2)

CHARGING COMPARTMENT

LEDs:

RED----FAST CHARGING

OFF----SLOW CHARGING

NOTE: Only Audiovox

approved rechargeable

batteries (P/N GMRS9BAT)

can be recharged in the

radio transceiver.

AC WALL ADAPTER/

CHARGING TRANSFORMER

MODEL: GMRS9AC

PWR

128-7341

10 of 28

Controls:

LED Flashlight Button (16)

Press this button on the right side of the Transceiver to light the white LED

(15) on top of the unit, thereby activating the built-in flashlight function.

Power On/Off/Keylock (13) Button

Momentarily press (about 1second) the power on/off button ( ). You will

hear a dual beep to indicate the unit is on. Press the on/off button again

for 2 seconds to turn the unit off. When the unit is on and the button is

pressed for 3 seconds, the keylock icon ( ) will appear to confirm

the MODE, SCAN and channel up/down buttons have been disabled.

Adjusting the Volume (10, 11)

With the unit powered on, press the Up Channel/Volume button ( ) to

increase volume and the Down Channel/Volume button ( ) to decrease

GMRS1202CH OPERATIONAL MODES

WEATHER BAND

SELECT

CHANNEL

SELECT

ROGER

BEEP

BUTTON

BEEP

DUAL

WATCH

VOX LEVEL

SELECT

CALL

SELECT

POWER

SELECT

(GMRS Channels

Only)

GMRS/FRS BAND

CTCSS

SELECT

CHANNEL

SELECT

NOTE: 1. To switch between GMRS/FRS

and Weather Band modes,

press and hold the Mode/WB

button for 3 seconds. Refer to

the appropriate section of this

manual for detailed operating

instructions for each mode.

2. To enter the VOX mode, press

and hold the S/VOX button for 3

seconds.

Table des matières

Autres manuels Audiovox Radio

Audiovox

Audiovox GMRS121-2 Manuel utilisateur

Audiovox

Audiovox GMRS7001CH Manuel utilisateur

Audiovox

Audiovox GMRS-1535 Manuel utilisateur

Audiovox

Audiovox VR202 Manuel utilisateur

Audiovox

Audiovox XpressR XMCK-20KC Manuel utilisateur

Audiovox

Audiovox GMRS-1200CH Manuel utilisateur

Audiovox

Audiovox SIR-CK3 Manuel utilisateur

Audiovox

Audiovox CommanderMT 128-7902A Manuel utilisateur

Audiovox

Audiovox XM XpressRCi XDRC2 Manuel utilisateur

Audiovox

Audiovox SIR-PNP1 Instructions d'installation et d'utilisation

Audiovox

Audiovox GMRS-1545 Manuel utilisateur

Audiovox

Audiovox GMRS8000-2 Manuel utilisateur

Audiovox

Audiovox GMRS6000-2CH Manuel utilisateur

Audiovox

Audiovox Xpress EZ Manuel utilisateur

Audiovox

Audiovox GMRS2572CH Manuel utilisateur

Audiovox

Audiovox SIRIUS SRSIR-001 Manuel utilisateur

Audiovox

Audiovox CD1180 Manuel utilisateur

Audiovox

Audiovox GMRS7001-2 - 7 Mile GMRS Radio Manuel utilisateur

Audiovox

Audiovox GMRS862CH Manuel utilisateur

Audiovox

Audiovox XMp3i Manuel utilisateur

Audiovox

Audiovox XpressR Manuel utilisateur

Audiovox

Audiovox GMRS6000-2PK Manuel utilisateur

Audiovox

Audiovox GMRS500SLK Manuel utilisateur

Audiovox

Audiovox XMRVRFM002 - Commander MT XM Radio Tuner Manuel utilisateur

Manuels Radio populaires d'autres marques

EisSound

EisSound KBSound iSelect Manuel utilisateur

Midland

Midland 1001LWX Manuel utilisateur

Konig

Konig HAV-SR41 Manuel utilisateur

Roberts

Roberts exprssion Manuel utilisateur

VDigi

VDigi DD3.0 Manuel utilisateur

Radio Shack

Radio Shack 21-1863 Manuel utilisateur

Roberts

Roberts Stream 207 Manuel utilisateur

Sony

Sony Walkman SRF-M97 Manuel utilisateur

Stanley

Stanley FatMax FMC770 Manuel utilisateur

auna

auna DAB-Radio 10026947 Manuel utilisateur

SOUNDMASTER

SOUNDMASTER UR190 Manuel utilisateur

HYT

HYT TC-320 Manuel utilisateur

auna multimedia

auna multimedia Yellowstone 10026851 Manuel utilisateur

B-Tech

B-Tech GMRS-V2 Manuel utilisateur

Weierwei

Weierwei VEV-V8 Manuel utilisateur

SOUNDMASTER

SOUNDMASTER DAB750 Manuel utilisateur

Telefunken

Telefunken TF-1505 Manuel utilisateur

Makita

Makita LXRM03 Manuel utilisateur
