Atmel AT88CK201STK Manuel utilisateur

Dear ATMEL AT88CK201STK customer,

Thank you for selecting the AT88CK201STK evaluation kit. We hope this kit will be a useful

platform as you explore the full potential of the CryptoRF Reader chip, AT88RF1354, and the

CryptoRF memory products.

The AT88CK201STK is designed to be used with Atmel’s JTAGICE mkII debugger, AVR Studio

developer’s suite and the ATMEL Crypto Evaluation Studio (ACES). This seamless toolchain

provides a convenient and powerful environment for generating, debugging and testing your

embedded software. For more information on these and other CryptoRF development tools,

visit www.atmel.com/cryptokits.

IMPORTANT MESSAGE!

Atmel posts frequent updates to the AT88CK201STK software and documentation on our web-

site. You may download the latest version for free from www.atmel.com/cryptokits.

Should you experience problems with this kit, please ensure that you have downloaded and

installed the latest software version before contacting an Atmel sales representative.

Thank you for your interest in ATMEL CryptoRF product.

AT88CK201STK Getting Started Guide

Features

CryptoRF™

AT88RF1354

Reader Board

T88CK201STK Getting

Started Guide

Installing ACES (ATMEL CRYPTO EVALUATION STUDIO)

Configuring the board for SPI mode

Powering the board

Reading a tag

1 Introduction

AT88CK201STK is a CryptoRF reader Starter Kit, which can be used as a

reference design and development system for the AT88RF1354 RF reader

IC.

Contents:

AT88CK201BK modular CryptoRF reader board

AT88Microbase for demos and development

Common 10-PIN header for any Atmel STK and EVK

CryptoRF development library

JTAG, LED, and buzzer for debug and feedback

CryptoRF tag assortment and USB cable

Figure 1-1 AT88CK201 Starter Kit

2Quick Start Guide

1. Installing ACES

Go to www.atmel.com/cryptokits to download and install the latest ACES.

2. Configuring the board for SPI mode

Ensure K1 is in SPI mode.

3. Powering up the board

The AT88CK201STK is a USB powered device. The AT88Microbase can be directly inserted into

the USB port or be used with the 6” USB cable provided.

SPI

TWI

SPI

TWI

TWI Position K1

SPI Position

Power LED

CryptoRF Design

8667A–Crypto–5/09

Upon receiving power, the blue power LED “LEDP” will light.

4. Reading a tag

Insert the AT88CK201STK into a USB port (Section 2)

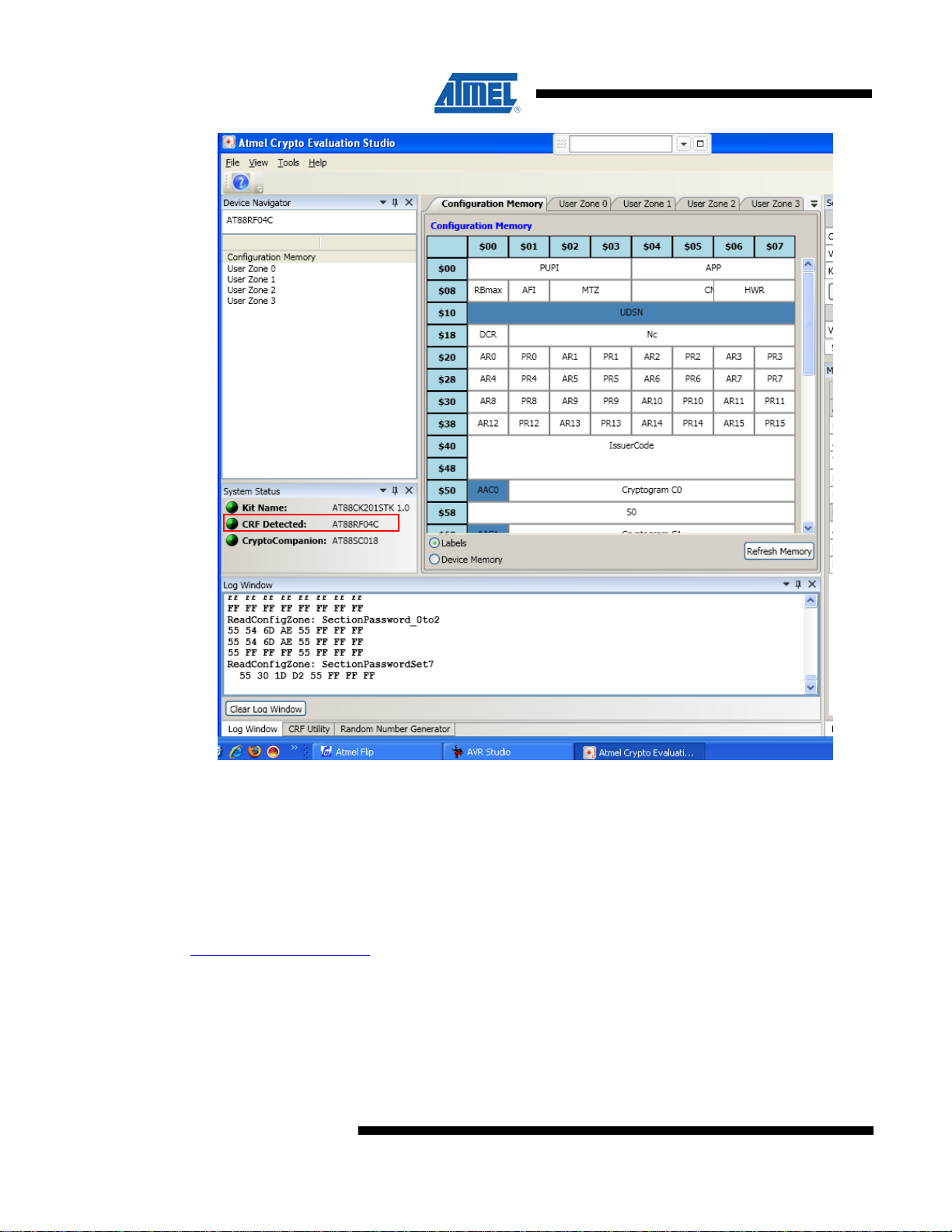

Launch ACES

ACES will acknowledge the kit by displaying the kit name.

Place a tag on the antenna portion of the AT88CK201STK.

The “CRF detected” row will now indicate the device number.

Kit Name

4Quick Start Guide

Congratulation, your AT88CK201STK is up and running

See ACES online Help for additional information

5. References and further information

A complete reference design including schematics, Gerber files, BOM, Hardware User Guide,

development and demonstration software is conveniently downloadable from the internet at

www.atmel.com/cryptokits.

6. EVALUATION BOARD/KIT IMPORTANT NOTICE

CryptoRF Design

8667A–Crypto–5/09

This evaluation board/kit is intended for use for FURTHER ENGINEERING,

DEVELOPMENT, DEMONSTRATION, OR EVAL PURPOSE ONLY. It is not a finished

product and may not (yet) comply with some or any technical or legal requirements that

are applicable to finished products, including, without limitations, directives regarding

electromagnetic regarding electromagnetic compatibility, recycling (WEEE), FCC, CE or

UL (except as may be otherwise noted on the board/kit). Atmel supplied this board/kit “AS

IS,” without any warranties, with all faults, at the buyer’s and further users’ sole risk. The

user assumes all responsibly and liability for proper and safe handling of goods. Further,

the user indemnifies Atmel from claims arising from the handling or use of goods. Due to

open construction of the product, it is the user’s responsibility to take any and all

appropriate precautions with regard to electrostatic discharge and any other technical or

legal concerns.

EXCEPT TO THE EXTENT OF INDEMNITY SET FORTH ABOVE, NEITHER USER NOR

ATMEL SAHLL BE LIABLE TO EACH OTHER FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

No license is granted under any patent right or other intellectual property right of Atmel covering or

relating to any machine, process, or combination in which such Atmel product or services might be

or are used.

Mailing Address: Atmel Corporation, 2325 Orchard Parkway, San Jose, Ca 95131
