Atdec AWMS-2-BT75-G Manuel utilisateur

AWMS-2-BT75-G Page 1 of 4

Scan to access

more information

Installation Guide

AWMS-2-BT75-G

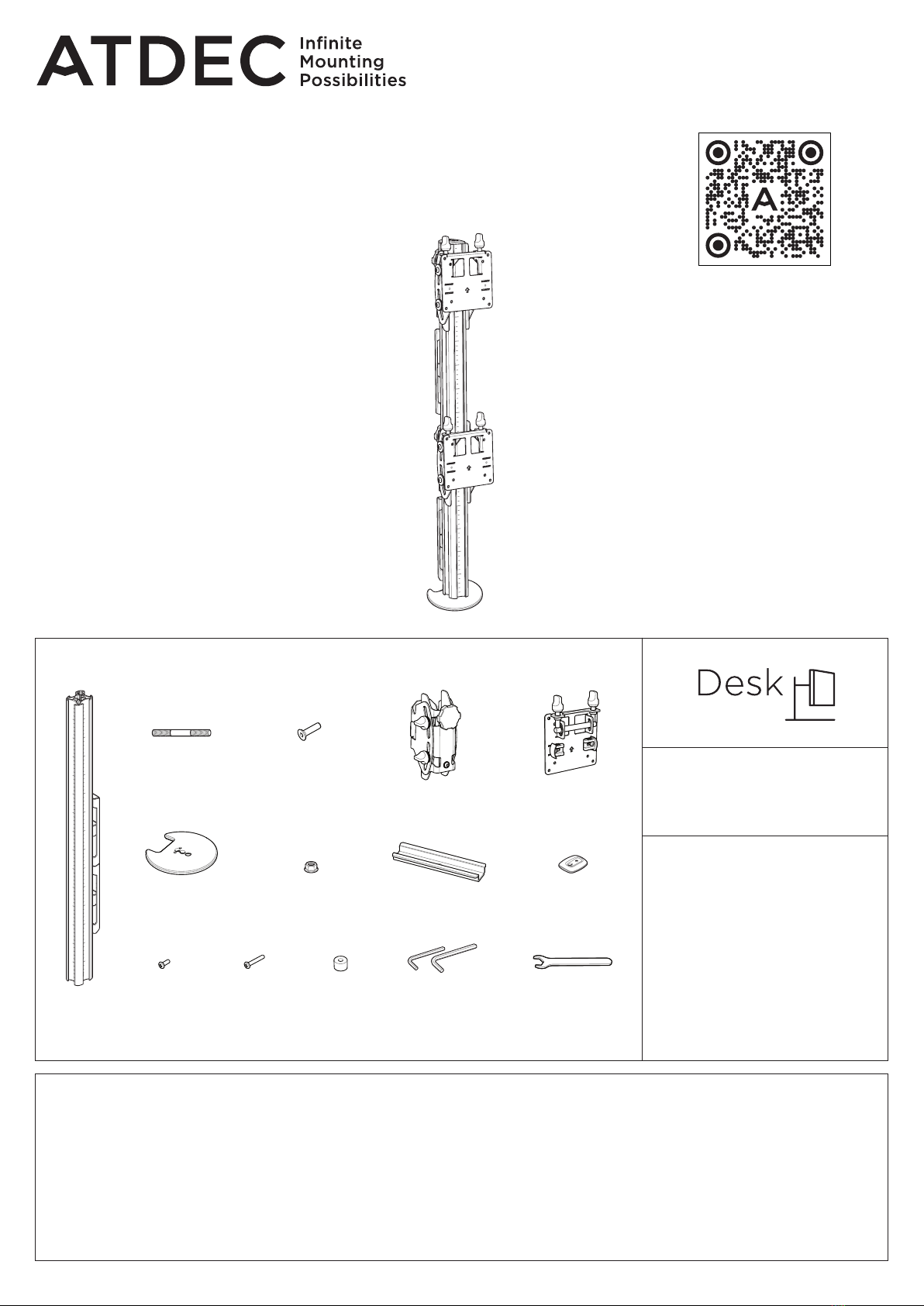

COMPONENT CHECKLIST

Bridge

(x1)

Leg

(x2)

Post

(x1)

Bracket

(x2)

4mm/5mm

Hex Key

(x1 each)

13mm

Spanner

(x1)

VESA Plate

(x2)

M8 Stud

(x1)

M4x10

Screw

(x8)

M8 Nut

(x1)

Post Cap

(x1)

M4x20

Screw

(x8)

10mm

Spacer

(8x)

M8x30mm

Screw (x1)

M8 Stud

(x1)

M8x30mm

Screw

(x1)

Clamp Bar

(x1)

Clamp Plate

(x1)

Clamp Bar

(x1)

Clamp Plate

(x1)

IMPORTANT INFORMATION

! Product should only be assembled and used as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! EachBracketsupportsamaximumweightasperabovecapacityspecication.

! The product is compatible with desk thicknesses from 18 - 36mm (0.71 - 1.42”)

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that can

exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you

would like further information.

Post Mounted Heavy Duty

Dual Vertical Monitor Mount

Grommet Clamp

REQUIRED TOOLS

• Phillips Head Screwdriver

CAPACITY

Flat Monitor

4.5 - 25kg (10 - 55lb)

Curved Monitor

4.5 - 18kg (10 - 40lb)

Display Size

24” - 55”

300mm (12”) max overall

display depth

AWMS-2-BT75-G Page 2 of 4

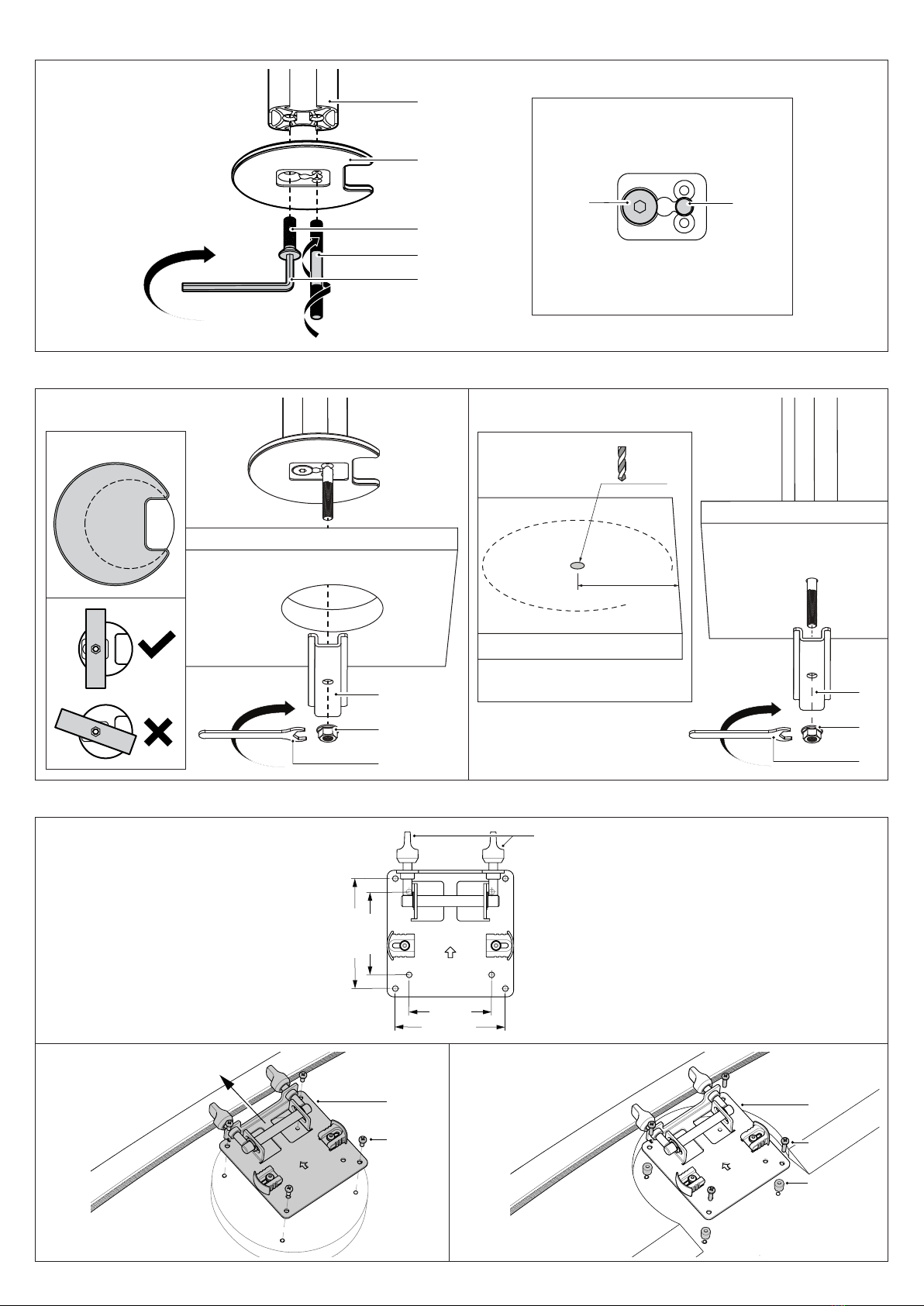

2. Attach grommet clamp on desk

Option A - Through grommet hole

80mm (31

8”) max hole diameter

1. Assemble post to clamp plate

1.1

Option B - As heavy duty bolt through

75mm

100mm

75mm

100mm

NOTE:

For 75mm VESA unscrew

5mm to access top holes

Option A - Attach VESA

plate with M4x10 screws.

Option B - For recessed

VESA use 10mm spacers

and M4x20 screws.

3.1 VESA compatibility.

NOTE:

Some displays require the use of

a VESA adapter before attaching

the VESA plate. This VESA adapter

may ship in the box with the display.

Consult your display’s installation

guide for further information.

3. Attach VESA plates to displays

TOP

9mm

(3/₈’’)

60mm (2⅓”)

minimum

Installed position

AWMS-2-BT75-G Page 3 of 4

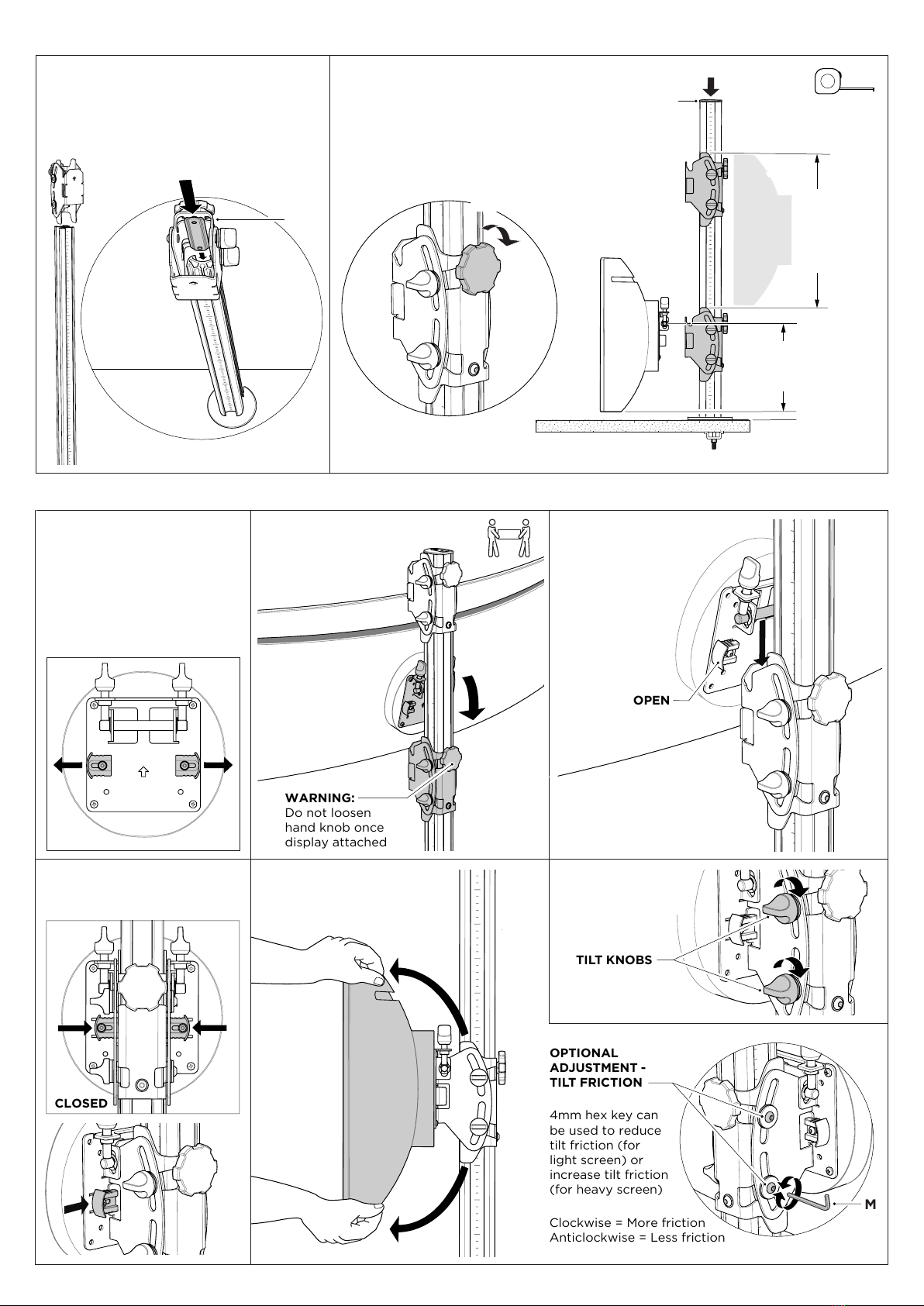

5. Attach bottom display

5.1 Set VESA plate to

open position.

Bottom display must be

attachedtobracketrst.

WARNING:

Use two people to install

display

OPEN

WARNING:

Do not loosen

hand knob once

display attached

5.4 Set VESA plate to closed

position by sliding clips on

both sides inwards.

5.5 Adjust display tilt

angle by gripping edges

of screen and rolling up or

down to desired position.

OPEN

TILT KNOBS

5.6 Set display

angle by tightening

tilt knobs.

OPTIONAL

ADJUSTMENT -

TILT FRICTION

Clockwise = More friction

Anticlockwise = Less friction

4mm hex key can

be used to reduce

tilt friction (for

light screen) or

increase tilt friction

(for heavy screen)

5.3 Centre VESA plate

close to post and slowly

lower until bar on VESA

plate sits in saddle in

bracket.

5.2 Lift display until

VESA plate is above

the bracket.

CLOSED

4. Slide brackets onto post and set height

4.1 Line up the inner guide

on rear of bracket with rear

channel on post.

Slide inner guide into channel,

then lower bracket.

TIGHTEN

WARNING:

Never loosen knob while

display is on bracket

MEASURE

≥Display

height

between

brackets

MEASURE to

ensure clearance

to desk

4.2 Firmly tighten hand knob at

chosen height.

Ensureheightissufcientfor

display to clear desk once in place.

Repeatwithsecondbracketandt

post cap.

MEASURE

≥Display

height

between

brackets

MEASURE to

ensure clearance

to desk

AWMS-2-BT75-G Page 4 of 4

Please Recycle

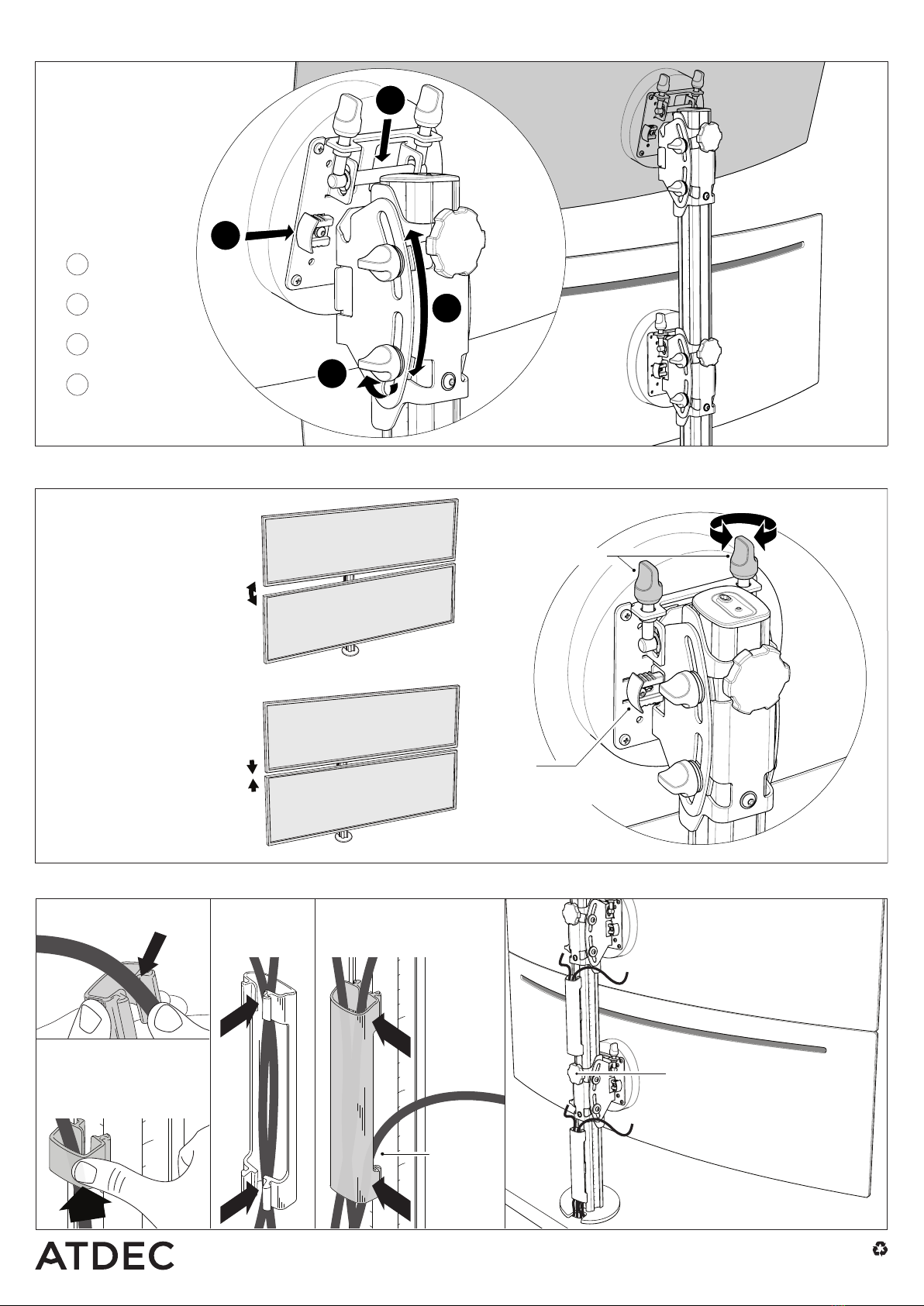

7. Fine Adjustment

6. Attach top display

iii

LHS &

RHS

TOP &

BOTTOM

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

6.1 Check that distance

between brackets is

equal to or greater than

the height of the display.

Repeat Step 5 to attach

top display and set tilt

angle.

Lower

Adjust angle

Set angle

iii

WARNING:

Always remove display

before adjusting height

Unstacked Stacked

Cables can

exit from

the side of

the cable

cover

PUSH

8. Cable Management

8.1 Load cables into

cable clip.

8.2 Insert one side of the

cable clip into a channel

on the post, then push in

the other side.

Load cables into

cable cover

8.3 Load

cables into

cable cover.

8.4 Clip the cable cover

back onto rear post

channels.

7.1 To correct horizontal angle

of display +/- 3 °:

Turnasinglenetune

adjustment knob to adjust

angle of screen.

Clockwise = Higher

Anti-clockwise = Lower

7.2 To close small gap between

displays +/-6mm (1/4”):

Turnbothnetuneadjustment

knobs - alternating sides a few

rotations at a time.

Clockwise = Higher

Anti-clockwise = Lower

iii

LHS &

RHS

TOP &

BOTTOM

FINE HEIGHT ADJUST

FINE ADJUSTMENT

KNOBS

NOTE:

Ensure clips are in

CLOSED position
