Atdec AWM-BT Manuel utilisateur

AWM-BT Page 1 of 3

Installation Guide

AWM-BT

AWM Tilt Bracket

COMPONENT CHECKLIST

REQUIRED TOOLS

CAPACITY

Flat Monitor

4.5 - 25kg (10 - 55lb)

Curved Monitor

4.5 - 18kg (10 - 40lb)

Display Size

24” - 55”

• Phillips Head Screwdriver

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! EachTiltBracketsupportsamaximumweightasperabovecapacityspecication.

! Avoidapplyingdownwardloadtocornersofdisplay.

! Thisproductisnotsuitableforoutdooruse.

! Donotusethisproductformobileapplications.

! The manufacturer accepts no responsibility for incorrect installation.

! This product is compatible with Atdec AWM Series products.

! VESAmountedaccessories(suchasminiPCbracketsandmounts),andoffsetVESAlocationsexertadditionalleverage

thatcanexceedthecapacityofthemounteventhoughthemonitorweightmaybewithinthestatedrange.Pleasecontact

Atdecifyouwouldlikefurtherinformation.

! WARNING!Deathorseriousinjurymayoccurifachildclimbsonortipsproduct.

Bracket

(x1)

VESA Plate

(x1)

M4x10mm

Screw

(x4)

M4x20mm

Screw

(x4)

10mm

Spacer

(4x)

4mm

Hex Key

(x1)

300mm (12”) max

overall display depth

AWM-BT Page 2 of 3

2. Slide bracket onto post and set height

2.2Lineuptheinnerguide

onrearofbracketwithrear

channelonpost.

VIEW FROM ABOVE

2.3 Slideinnerguide

intochannelandlower

bracket.

2.1 Tiltbracketmustonlybe

attachedwithdisplayfacingthe

frontofthemountingsurfaceunless

xingisGrommetClamp(AC-GC).

2.4Firmlytighten

handknobat

chosenheight.

1.1 VESA compatibility Option A Attach VESA

plate with M4x10mm

screws.

Option B For recessed

VESA use 10mm spacers

andM4x20mmScrews.

1. Attach VESA plate to display

75mm

100mm

75mm

100mm

For 75mm VESA

unscrew 5mm to

access top holes.

NOTE:

SomedisplaysrequiretheuseofaVESAadapter

beforeattachingtheVESAplate.ThisVESA

adaptermayshipintheboxwiththedisplay.

Consultyourdisplay’sinstallationguidefor

furtherinformation.

TOP

TIGHTEN

Back of

work

surface

Inner guide

positioned

in rear post

channel

AWM POST

(not supplied)

Arrow side

towards user

AWM POST

(not supplied)

Arrow side

towards user

WORK

SURFACE

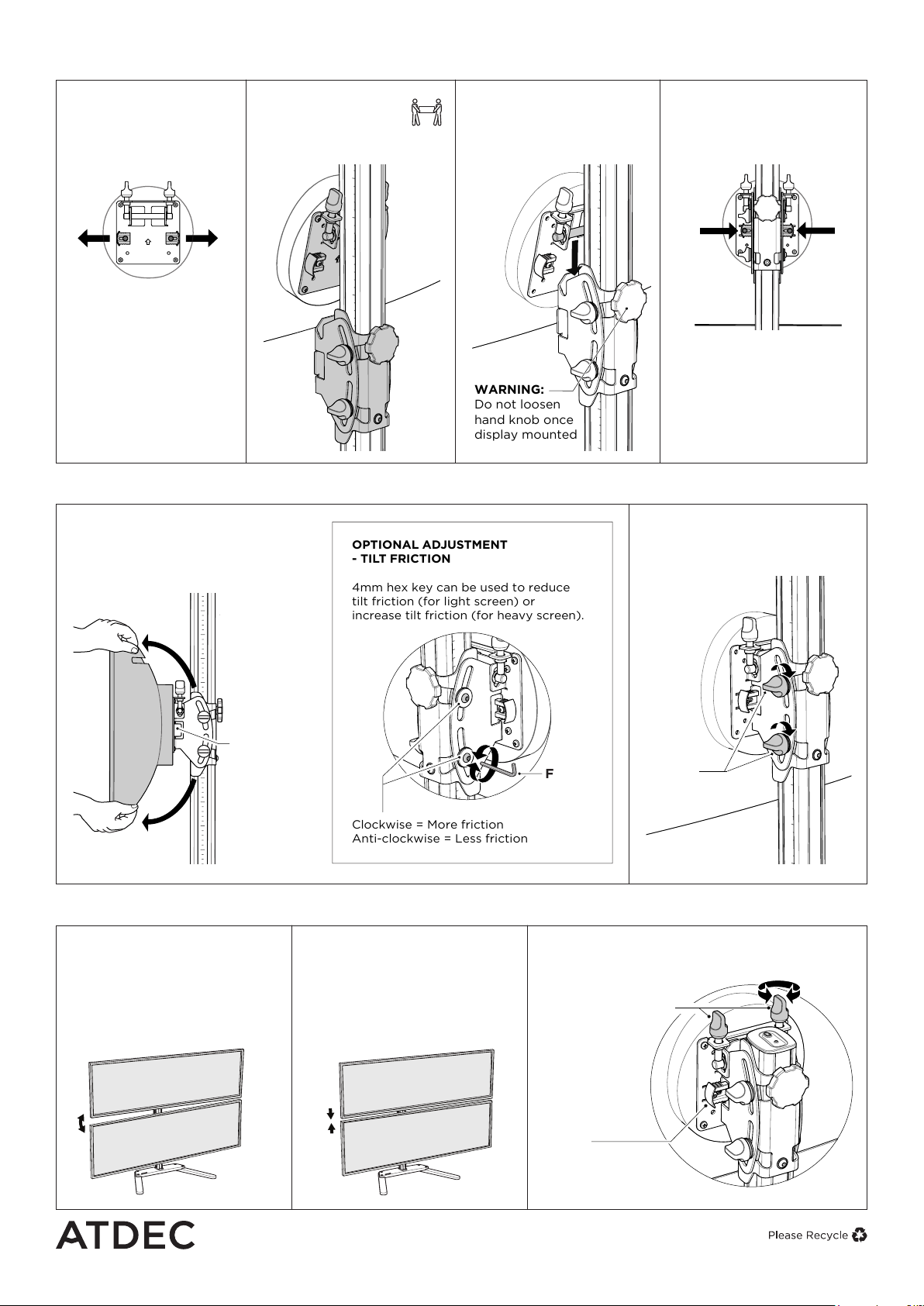

AWM-BT Page 3 of 3

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

5. Fine adjustment

3. Attach display

4. Set tilt

3.1 Set VESA plate

clips to open position.

WARNING:

Use two people to

install display

NOTE:

Display hangs from the

bracket like a painting.

After clips are closed, if

corners of the screen are

pushed downwards, rocking

movement is expected.

3.2 Liftdisplay

untilVESAplateis

above the height

ofthebracket.

3.3 Withpostcentered

slowlylowerdisplayuntil

baronVESAplatesitsin

saddleinbracket.

3.4 Set VESA plate

clips to closed position.

4.1 Adjust display tilt

angle by gripping edges

of screen and rolling up or

down to desired position.

4.2 Tighten tilt knobs

to set.

5.1 Tocorrecthorizontalangle

ofdisplay+/-3°:

Turnasingleneadjustment

knobtoadjustangleofdisplay.

5.2 Toclosesmallgapbetween

displays+/-6mm(1/4”):

Turnbothneadjustment

knobs-alternatingsidesafew

rotationsatatime.

OPEN

WARNING:

Do not loosen

hand knob once

display mounted�

CLOSED

WARNING:

Ensure clips

closed before

tilting

Clockwise = More friction

Anti-clockwise = Less friction

OPTIONAL ADJUSTMENT

- TILT FRICTION

4mm hex key can be used to reduce

tilt friction (for light screen) or

increase tilt friction (for heavy screen).

TILT

KNOBS

Clockwise=Higher

Anti-clockwise=Lower

FINE HEIGHT ADJUST

FINE ADJUSTMENT

KNOBS

NOTE:

Ensure slide clips in

CLOSED position
