ATCOM Rainbow1 Manuel utilisateur

Rainbow1 Quick Start Guide

Version 1.0

2014-03-21

Rainbow1 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

Content

1. Installation and access ........................................................3

1.1 Connection ......................................................................3

1.2 Installation instruction.......................................................3

1.3 Check IP .........................................................................9

1.4 Login to web ....................................................................9

2. Configure phone to register SIP account.................................9

2.1 Network Configuration.......................................................9

2.2 Account Configuration .....................................................10

Rainbow1 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

1. Installation and access

1.1 Connection

Set up Rainbow1 as below:

1.2 Installation instruction

1. Desktop installation

A. Put the bottom side of the IP phone upside and press the plate

into the slot, please refer the picture as below:

Rainbow1 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

B. Press the other plate into the slot according to the direction of

the arrow

C. It is the right picture after fixing the feet below:

Rainbow1 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

D. Disassemble the feet:

Push the plate and pull the feet according to the direction of the

arrow. When the plate is pulled out of the slot, you can take off the

feet

2. Wall-hung Installation

A. Put the bottom side of the IP phone upside and press one-side

joints of wall-hung stand bracket into the slot, please refer the

picture as below:

Rainbow1 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

B. Press the other side joints into the slot according to the direction

of the arrow

Rainbow1 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

C. After install the wall-hung stand bracket, press one-side joints of

stand bracket into the slot, please refer the picture as below:

Rainbow1 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

D. Press the other side joints into the slot according to the direction

of the arrow

E. Knock in nails or screws on the wall according to the proportion

of the distance between the hanging holes as below:

F. It is the right picture after fixing the stand bracket below:

Rainbow1 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

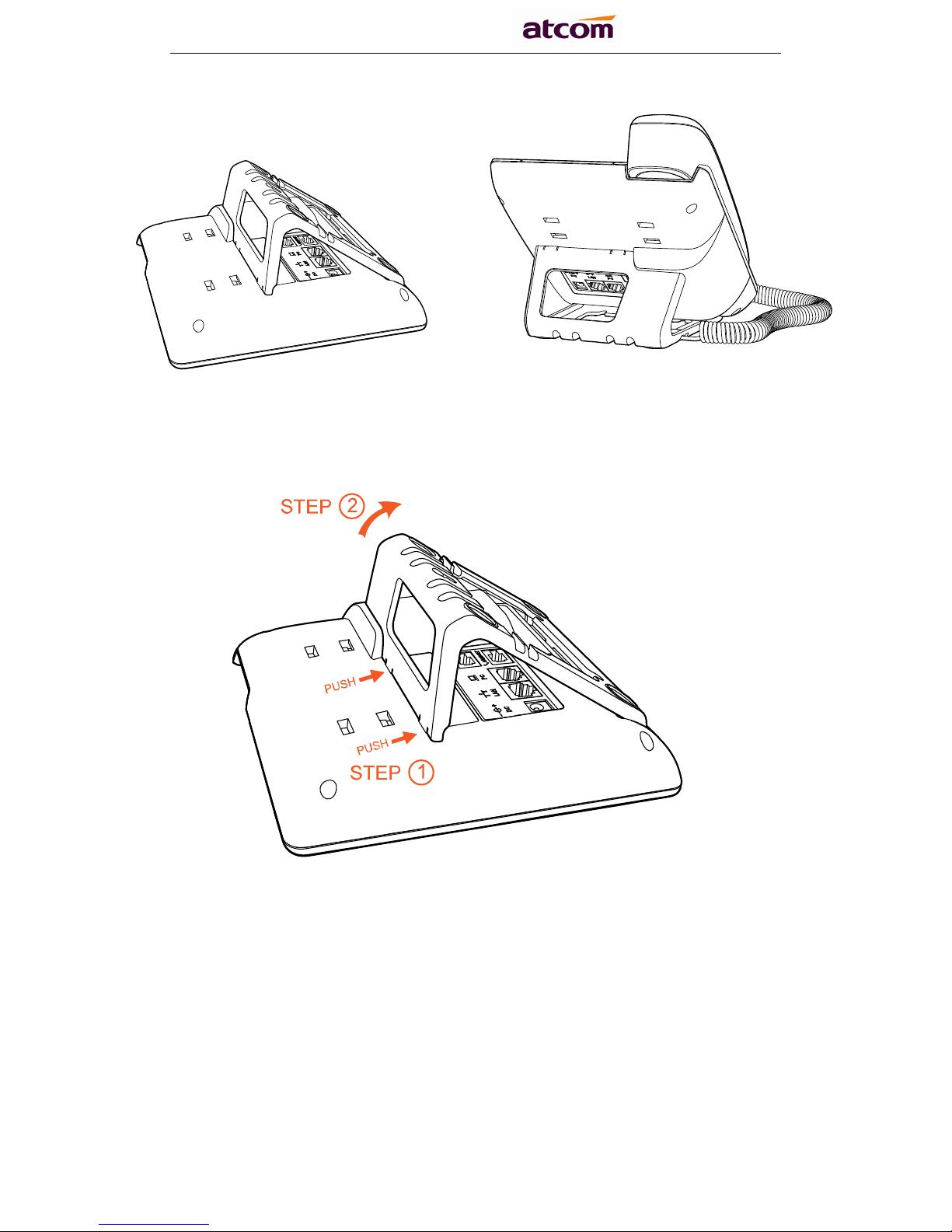

G. Disassemble the stand bracket:

Push the spring joint of stand and pull the stand according to the

direction of the arrow.

Rainbow1 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

1.3 Check IP

Rainbow1 use DHCP mode by default, and you can review its

current IP address by pressing key when it is powered on and

connected to the network.

1.4 Login to web

Modify your computer’s IP address to the same network as

Rainbow1. Enter Rainbow1’s IP address in the web browser and

press Enter, then you will access to Rainbow1's user webpage

without password.

Click ‘admin’ which is on the right corner to enter administrator

webpage.

2. Configure phone to register SIP account

2.1 Network Configuration

LAN Port Configuration

Enter "Network" -> "Basic" page.

There are 3 ways to connect to internet DHCP, Static and PPPoE,

please choose one according to your own situation.
