ATCOM R2 Manuel utilisateur

R2 Quick Start Guide

Version 2.0

2015-10-14

R2 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

Content

1. Installation and access ..................................................................................................... 3

1.1 Connection ............................................................................................................................ 3

1.2 Stand bracket installation instruction .................................................................................... 3

2. Configuring phone .............................................................................................................. 8

2.1 Configuring via keypad ......................................................................................................... 9

2.2 Configuring via webpage .................................................................................................... 10

2.2.1 Login to web ..................................................................................................................... 10

2.2.2 Configure phone to register SIP account ........................................................................... 10

R2 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

1.Installation and access

1.1 Connection

Set up R2 as below:

1.2 Stand bracket installation instruction

A. Put the bottom side of the IP phone upside and press one-side joints of stand

bracket into the slot, please refer the picture as below:

R2 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

B. Press the other side joints into the slot according to the direction of the

arrow:

C. It is the right picture after fixing the stand bracket below:

R2 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

D. Disassemble the stand bracket:

Push the spring joint of stand and pull the stand according to the direction of the

arrow. When the joints are pulled out of the slot, you can take off the stand

bracket

R2 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

1.3 Programmable keys’ paster using instruction

Step1. Use needle or some other tools to insert into the hole of the plastic sheet,

hog the plastic sheet.

Step2. Lift out the plastic sheet

Step3. Take off the plastic sheet

Step4. Use needle or some other tools to insert into the edge of the paster, hog

and lift out the paster

Step5. Write down the identification of each programmable key on the paster

after taking off the paster

Step6. Put back the paster

Step7. Insert the plastic sheet into the slot

Step8. Push the other side of the plastic sheet into the other slot

R2 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

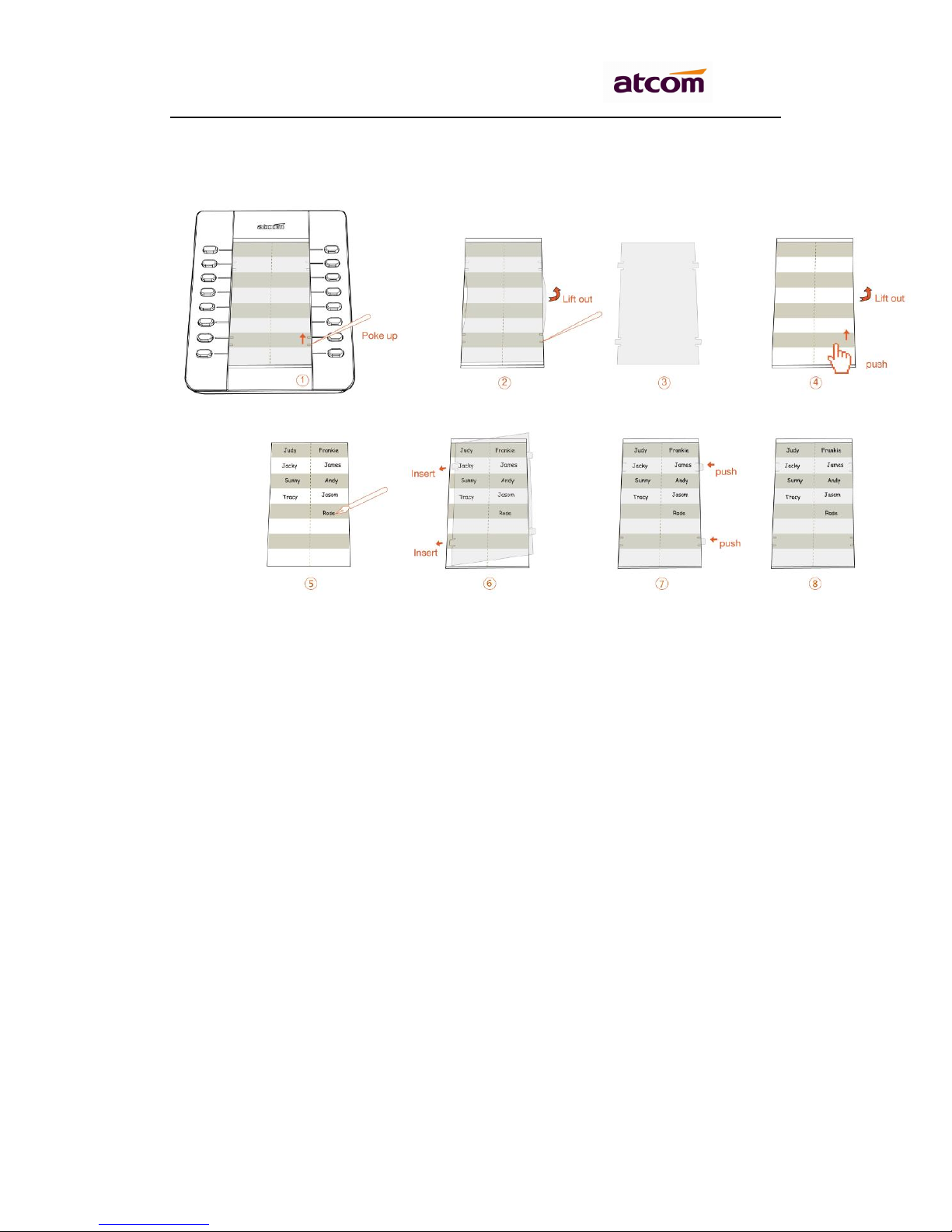

Rainbow E’s paster using instruction

Steps to use Rainbow E’s paster are the same as programmable keys’ as below:

R2 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

2. Configuring phone

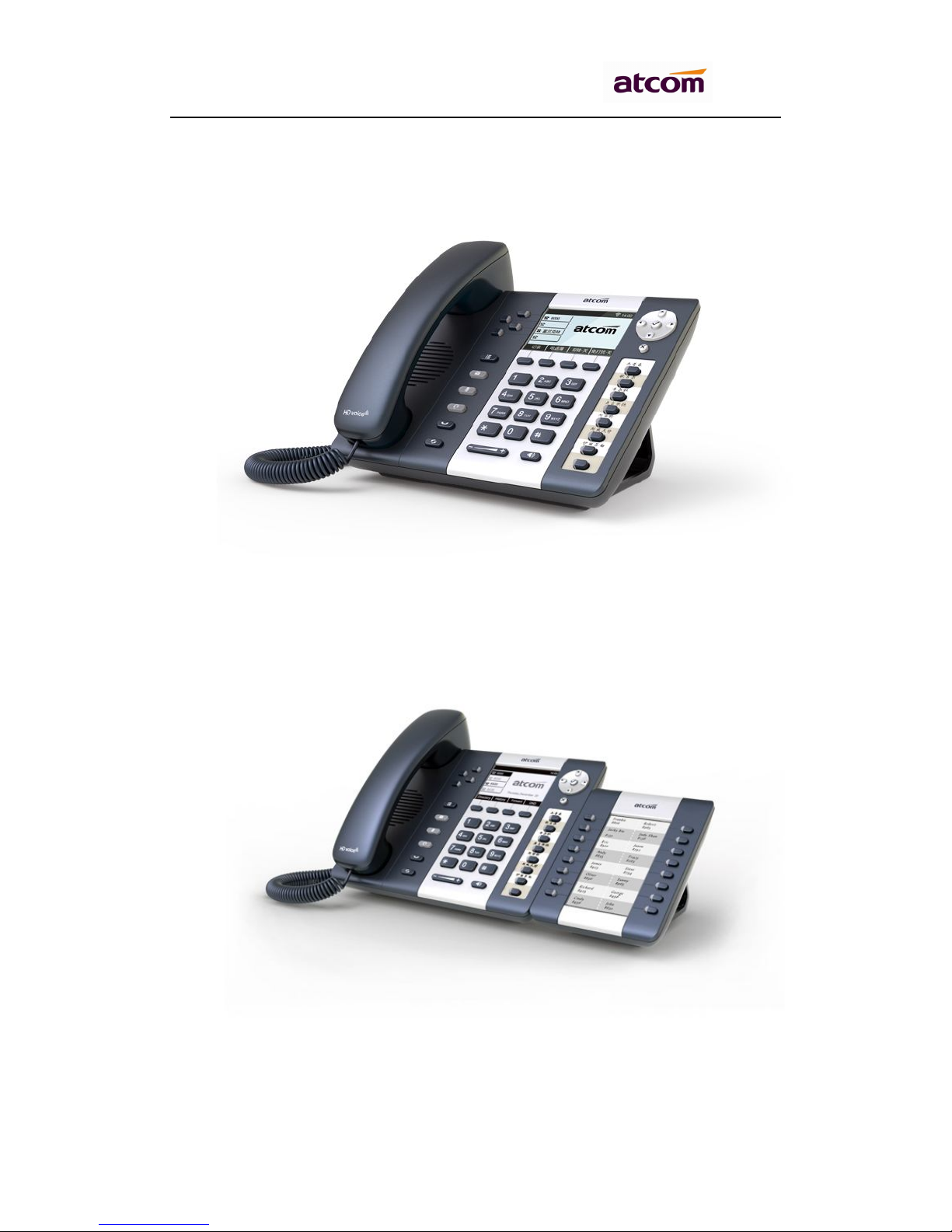

Rainbow 2

Rainbow 2 with Rainbow E

R2 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

2.1 Configuring via keypad

Language Setting: The default language of the phone is English, it supports

Chinese, Russian, Arabic, German, French, Portuguese, Turkish, Spanish,

Hebrew, Hungarian, Italian.

Press Menu- input default password 123- Preference- Language to edit the

language list, choose the one you’d like to set on the phone.

Note: The available language maybe different, it depends on the language

packs currently loaded to the IP phone.

Network Setting:

Press Menu- input default password 123- Network- modify connect type mode/

check IP address/VLAN/Web server to enter the internet related configuration

page.

Or review its current IP address by pressing key when it is powered on and

connected to the network.

Account Setting:

Press Menu- input default password 123- SIP Account- Enter to configure the

account setting. You can refer to the bellow ‘Configuring via Web page’ for the

parameter details.

2.2 Configuring via Webpage

2.2.1 Login to web

Modify your computer’s IP address to the same network as R2. Enter R2’s IP

address in the web browser and press Enter, you will access to R2's user

webpage without password.

Click "admin" which is on the right corner to enter administrator webpage.

2.2.2 Configure phone to register SIP account

a) Network Configuration

R2 Quick Start Guide

ATCOM TECHNOLOGY CO., LIMITED

LAN Port Configuration

Enter "Network" -> "Basic" page.

There are 3 ways to connect to internet DHCP, Static and PPPoE, please choose

one according to your own situation.

 Network mode: you can choose DHCP, Static and PPPoE

 DHCP: R2 default to use DHCP to obtain IP from DHCP Server.

 Static: If you want to set the IP as static, you should fill IP, Netmask,

Gateway and DNS information.

 PPPoE: If R2 is connected to the modem, you should fill ADSL account and

password which are assigned by your network service provider.

Password Configuration

Enter "Network" -> "Advance" page.

There are 2 modes to set the authority of web accessing and command line:

User mode and Admin mode. All the parameters can be visible and changed in

Admin mode while part of them can be visible in User mode.

 Enable Web Server: enable or disable web access. If choose "no", you can

not access R2’s webpage.

 Admin password: set admin webpage access password.(username:admin)

 User password: set user webpage access password.(username:user)
