AT-320 H323 Phone User Manual (V1.39)
AT-320 H323 Phone User Manual
¾
AT-320 H323 phone Appearance Introduction:.................................................................... 2
¾
Function Keys of AT-320 H323 Phone Introduction ............................................................... 2
¾
Features .................................................................................................................................. 3
¾
Standard and Protocol ............................................................................................................ 3
¾
Operating requirements ..........................................................................................................4
¾
Electric requirements.............................................................................................................. 4
¾
Size.......................................................................................................................................... 4
¾
Installation.............................................................................................................................. 5
¾
Configuration.......................................................................................................................... 5
¾
Phone Keypad set ................................................................................................................... 5
¾
Configured by WEB ................................................................................................................ 9
¾
Configured by PalmTool ....................................................................................................... 22
¾
Telnet Configuration ............................................................................................................. 22
¾
Upgrade AT-320 H323 phone............................................................................................. 38
¾
Usage of the phone ............................................................................................................... 39
AT-320 H323 Phone User Manual (V1.39)
2
¾AT-320 H323 phone Appearance Introduction:

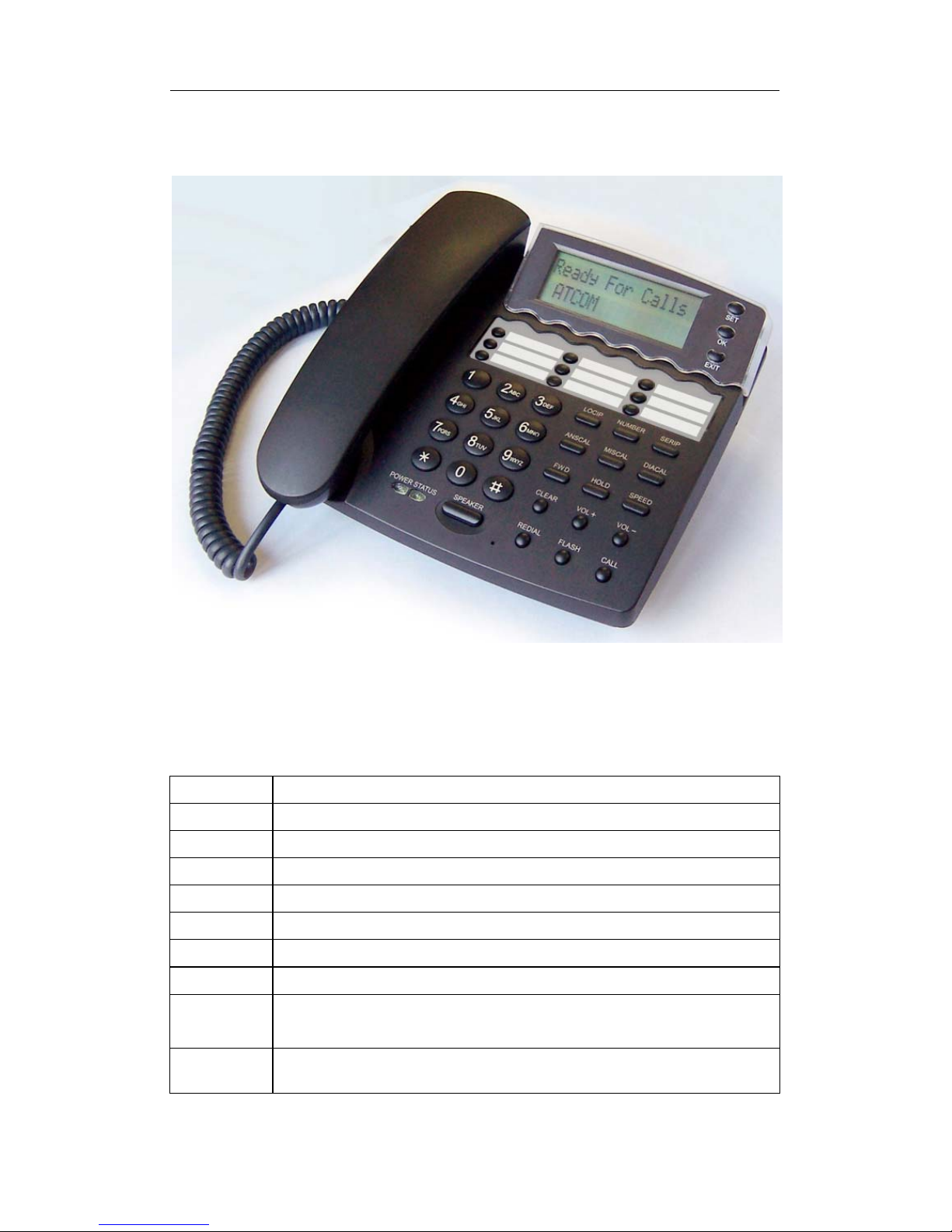

●AT-320 H323 Phone Front Illustration (Refer to Fig 1.1):
Fig 1.1 AT-320 H323 Phone Front Illustration
¾Function Keys of AT-320 H323 Phone Introduction:
Keys Function
LOCIP/SET With handset hung, press this key to get local IP address of the phone
MISCAL With handset hung, press this key to review missed number
ANSCAL With handset hung, press this key to review received number
SPEED Speed dial
NUMBER With handset hung, press this key to get phone number
DIACAL With handset hung, press this key to review dialed number
SERIP The gatekeeper ip
REDIAL/EXIT
While reviewing missed, received or dialed number, press this key to dial current
number
SPEAKER/OK Press this key to have a call without lifting the handset
AT-320 H323 Phone User Manual (V1.39)
3
VOL+ Increase the volumes of handset or speaker; turn over the record backward
VOL- Decrease the volumes of handset or speaker; turn over the record forward
¾Features
¾Hardware
●Main chip—PA1688 50MHz
●Data Memory—2MB SDRAM
●Program Memory—1or 2 MB Flash memory
●Ethernet Jack—1/2 10/100M jacks
●AC/DC adapter—Input AC100--- 230VOutput 9V DC, 1A
¾Software
●DHCP support for LAN or Cable modem
●PPPoE support for ADSL or Cable modem
●Set phone by HTTP web browser or Telnet
●Upgrade by FTP
●Support major G.7XX ;GSM610 audio codec
●VAD(Voice active detect)
●CNG (Comfort noise generation)
●Dynamic voice jitter buffer
●G.167/165 compliant 16ms echo cancellation
●Tone generation and Local DTMF re-generation according with ITU-T
●E.164 dial plan and customized dial rules
●100 entries for speed dial
●80 entries each for missed calls, answered calls and dialed calls
●Adjustable volume for both handset and speaker
●Voice prompt
●Hotline
●Support adjustable user password and super password
¾Standard and Protocol
AT-320 H323 Phone supports following standard and protocol:
AT-320 H323 Phone User Manual (V1.39)
4
●IEEE 802.3 /802.3 u 10 Base T / 100Base TX
●Major G.7XX; GSM610 audio codec
●H.323 V4
●TCP/IP: Internet transfer and control protocol
●RTP: Real-time Transport Protocol
●RTCPReal-time Control Protocol
●VAD/CNG save bandwidth
●DHCPDynamic Host Configuration Protocol
●PPPoEPPP Protocol over Ethernet
●DNSDomain Name Server
●TelnetInternet's remote login protocol
●FTPFile Transfer protocol
●TFTPFile Transfer protocol (optional)
●HTTPHyper Text Transfer protocol
●Build in H.323 proxy
¾Operating requirements:
●Operation temperature: 0 to 50° C (32° to 122° F)
●Storage temperature: -30° to 65° C (-22° to 149° F)
●Humidity: 10 to 90% no dew
¾Electric requirements:
●Voltage: 9V~24V
●Power adapter: output DC 12V/450mA
●Network interface:1/2X RJ-45 Ethernet Connectors
¾Size
200 x 195 x 87 mm (L x W x H)
AT-320 H323 Phone User Manual (V1.39)
5
¾Installation:
1 Connect handset to base: insert handset cord into handset cord jack at the left side
of the base.
2 Connect IP phone to Internet: plug the RJ-45 Ethernet cable into the Ethernet Jack.
Plug the other end of the cable into HUB. Refer to Fig 2.2 please.
Power on IP phone: plug the power cord adapter into the Power Jack. Then plug the
other end of the power cord adapter into the appropriate wall outlet.
¾Configuration
Four different ways can be used to configure AT-320 H323 phone: phone
keypad, web browser, Telnet commands and PalmTool configuration tool on
computer.
¾Phone Keypad setup
●Function Keys Introduction: When using keypad and LCD to configure the
settings of IP phone, following keys will be used:
Keys Function Keys Function
LOCIP/SET Enter setting mode SPEAKER/OK Enter submenu; confirm change
VOL Turn over menu
backward VOL - Turn over menu forward; move
cursor backward
NUMBERS Modify values REDIAL/EXIT Exit current menu; exit setting mode
●Enter into settingsPlease Inputting the phone password on the keypad (If the debug
isn’t 0,the original password is 1234; If the debug is O, please use super password
1234567878) then press # for a while until there is Password stated on the
LCD , Please input the phone password again and press to
confirm. You successfully enter into settings.
Password
#
AT-320 H323 Phone User Manual (V1.39)
6
Refer to above operation; you can reach any menu to modify any value. Please refer
to following structure illustrations to learn the values of each menu item. As for the
meaning of each item and value, please refer to Web Browser Setting chapter.
●Menu Structure:
O
K
AT-320 H323 Phone User Manual (V1.39)
7
AT-320 H323 Phone User Manual (V1.39)
8
AT-320 H323 Phone User Manual (V1.39)
9
¾Configured by WEB
Double click icon to open the IE browser. Input the IP address of the phone
into address bar ( ), and then input password of the
phone into the following page. Default password 1234 is ordinary password and
super password is 12345678. With Debug set 0[disable], please input super
password; while Debug is not set as 0[disable], please input ordinary password.
Then click button. The following configured page wills popup. Refer
to Fig 3.1 please.
Fig 3.1 Http Setting
Network Setting
AT-320 H323 Phone User Manual (V1.39)
10
Fig 3.2 Network Setting
●iptype: Set how IP phone gets relevant network parameters by selecting
corresponding item from drop down list.
static ip: Select this item to authorize users set IP address, subnet mask and
router IP address of IP phone manually.
dhcp: Select this item to enable DHCP mode. With this system, your LAN or
router automatically assigns all the required network parameters to any device
connected to it when the device log on. AT-320 IP phone is shipped from the
factory with DHCP on. So, if you’re LAN or router is configured to use DHCP
addressing, the IP phone’s LAN parameters will automatically be configured as
soon as it is connected to the LAN or router and powered up.
pppoeThose ADSL and Cable Modem users please select this item for it is a
protocol especially designed for them. With this system, ADSL ISP
automatically assigns all the required IP parameters to any device connected to
it when the device log on.
modemIf the IP phone used with modem, please select this item to get
relevant network parameters auto. Then please fill ID and pin into ppp id and
ppppin fields.
●ppp id: With pppoe or modem selected in iptype drop down list, please enter
the user name here.
