ATCOM A2SV Series Manuel utilisateur
A2SV Series Quick Start Guide
1 / 13
A2SV Series Quick Start Guide
（A2SV-LW、 A2SV、 A2SV-W、 A2SV-PW）
Version：1.1
2021-11-12
A2SV Series Quick Start Guide
2 / 13
Content
A2SV Series Quick Start Guide .......................................................................................................................................... 1
1. Packaging ........................................................................................................................................................................ 3
2. Installation ....................................................................................................................................................................... 3
3. Power up ......................................................................................................................................................................... 9
4. Network Connection ..................................................................................................................................................... 10
5. Phone Configuration ..................................................................................................................................................... 11
6. Call function .................................................................................................................................................................. 12
A2SV Series Quick Start Guide
3 / 13
1. Packaging
In the packaging box, we can see one IP phone, one handset, one bracket, two wall-hung
brackets, one network cable, one handset cable, one USB power conversion cable and one
5V,2A power adapter.
(Note: A2SV uses 5V/1A, other models use 5V/2A)
2. Installation
2.1. Connecting port introduction
From as below picture show the connecting port and insert the standard Nano-SIM card
into the back cover way:
(Note: please don’t plug in and off Nano card when the phone connected power)
2.2. Keypad introduction,
Please check the following picture:
A2SV Series Quick Start Guide
4 / 13
2.3 Installation instruction
2.3.1 Stand bracket installation instruction
A. Bottom up the IP phone and press one-side joints of stand
bracket into the slot as below:
A2SV Series Quick Start Guide
5 / 13

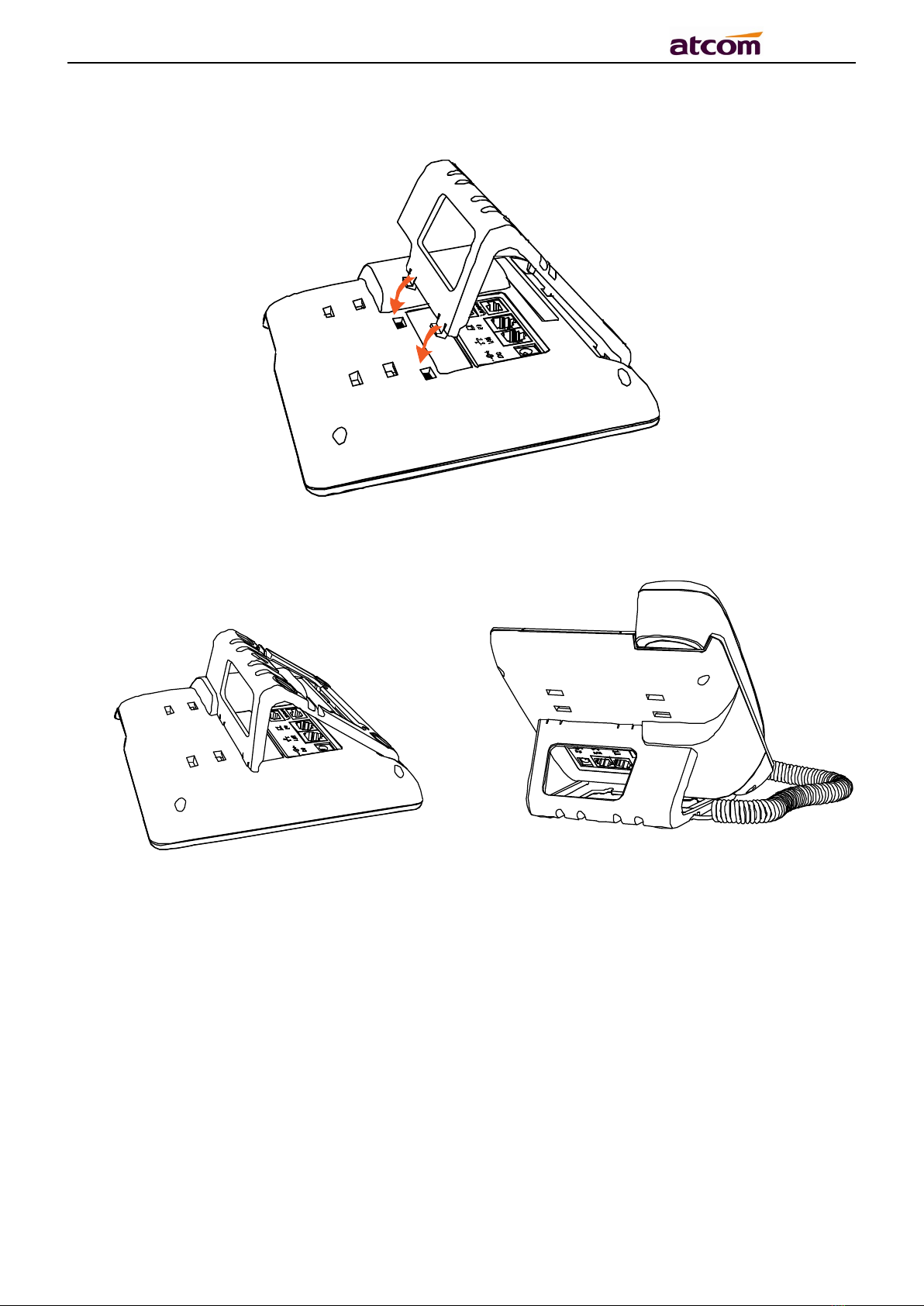

B. Press the other side joints into the slot according to the direction of the arrow:
C. After installation, the picture is as below:
D. Remove the stand bracket:
Push the spring joint of stand and pull the stand according to the direction of the
arrow. When the joints are pulled out of the slot, you can take off the stand
bracket
A2SV Series Quick Start Guide
6 / 13
2.3.2 Wall-hung Installation
A. Bottom up the IP phone and press one-side joints of wall-hung stand bracket into
the slot as the picture below:
A2SV Series Quick Start Guide
7 / 13
B. Press the other side joints into the slot according to the direction of the arrow
C. After install the wall-hung stand bracket, press one-side joints of stand bracket
into the slot, please refer to the picture as below:
A2SV Series Quick Start Guide
8 / 13
D. Press the other side joints into the slot according to the direction of the arrow
E. Knock in nails or screws on the wall according to the proportion of the distance
between the hanging holes as below:
A2SV Series Quick Start Guide
9 / 13
F. It is the right picture after fixing the stand bracket below:
G. Disassemble the stand bracket:
Push the spring joint of stand and pull the stand according to the direction of the
arrow. According to the direction of the arrow:
3. Power up
3.1. Connect to DC 5V/2A power adapter (Note: A2SV uses 5V/1A, other models use 5V/2A)
3.2. The status indicator will be on during power-on, and the Welcome dialog will appear on
the LCD.
3.3. After boot up finished, User can select the Language and time zone manually, and LTE
A2SV Series Quick Start Guide
10 / 13
setting.
3.4. If the PIN code is enabled on the SIM card, after entering the standby interface, you will
be asked to enter the PIN code.
According to the network service provide requirement: you need to enter the correct PIN
code within three times. Otherwise, the card will be automatically locked and the PUK
code will be prompted to unlock.
3.5. If the SIM card need input APN code, you can press Menu → Setting → Advanced
Setting → Network → APN setting, choose “Enable” custom APN, and press
Navigate down button to input APN account info.
4. Network Connection
4.1. Connect to LTE network
The phone insert the SIM card, and get the LTE or 3G network after the phone power on.
When the phone is successfully connected to the network, the LCD would appear the icon
.
4.2. Connect to Wi-Fi network (the phone must support Wi-Fi model)
4.2.1 Wi-Fi hotspot (Wi-Fi AP) mode
The phone turns on the Wi-Fi hotspot (Wi-Fi AP) function by default, the LCD would
appear the icon .
The initial SSID and password of the hotspot can be viewed on the sticker on the phone
