1 Getting to know your wireless

router

1.1 Welcome!

Thank you for purchasing an ASUS RT-AC88U Wireless Router!

The ultra-thin and stylish RT-AC88U features 2.4GHz and 5GHz

dual bands for an unmatched concurrent wireless HD streaming;

SMB server, UPnP AV server, and FTP server for 24/7 ﬁle sharing;

a capability to handle 300,000 sessions; and the ASUS Green

Network Technology, which provides up to 70% power-saving

solution.

1.2 Package contents

NOTES:

• Ifanyoftheitemsisdamagedormissing,contactASUSfortechnical

inquiries and support, Refer to the ASUS Support Hotline list at the

back of this user manual.

• Keeptheoriginalpackagingmaterialincaseyouwouldneedfuture

warranty services such as repair or replacement.

RT-AC88U Wireless Router AC adapter

Network cable (RJ-45) Quick Start Guide

Support CD (Manual)

E10302_RT-AC88U_manual.indd 7 2015/5/11 15:40:50

1.3 Your wireless router

USB 3.0 port

Insert USB 3.0 devices such as USB hard disks or USB flash drives into this port.

Power LED

Oﬀ: No power.

On: Device is ready.

Flashing slow: Rescue mode

5GHz LED / 2.4GHz LED

Oﬀ: No 2.4GHz or 5GHz signal.

On:Wireless system is ready.

Flashing:Transmitting or receiving data via wireless connection.

WAN (Internet) LED

Red: No IP or no physical connection.

On: Has physical connection to a wide area network (WAN).

LAN 1~8 LED

Oﬀ: No power or no physical connection.

On: Has physical connection to a local area network (LAN).

USB 3.0 LED

Oﬀ: No USB 3.0 device connected.

Flashing: USB 3.0 devices are running.

USB 2.0 LED

Oﬀ: No USB 2.0 device connected.

Flashing: USB 2.0 devices are running.

WPS LED

Oﬀ: WPS verification process is off or completed.

Flashing: WPS verification process is activated.

WiFi

WPS

E10302_RT-AC88U_manual.indd 8 2015/5/11 15:40:51

NOTES:

• Useonlytheadapterthatcamewithyourpackage.Usingother

adapters may damage the device.

• Specifications:

DC Power adapter DC Output: +19V with max 2.37A/3.42A current

Operating

Temperature 0~40oCStorage 0~70oC

Operating Humidity 50~90% Storage 20~90%

WPS LED On/Oﬀ button

Press this button to turn on/off the WPS LED on the panel.

Wi-Fi On/Oﬀ button

Press this button to turn on /off the Wi-Fi connection.

Reset button

This button resets or restores the system to its factory default settings.

WPS button

This button launches the WPS Wizard.

USB 2.0 port

Insert USB 2.0 devices such as USB hard disks or USB flash drives into this port.

LAN 1 ~ 8 ports

Connect network cables into these ports to establish LAN connection.

WAN (Internet) port

Connect a network cable into this port to establish WAN connection.

Power (DC-IN) port

Insert the bundled AC adapter into this port and connect your router to a power source.

Power button

Press this button to power on or off the system.

E10302_RT-AC88U_manual.indd 9 2015/5/11 15:40:51

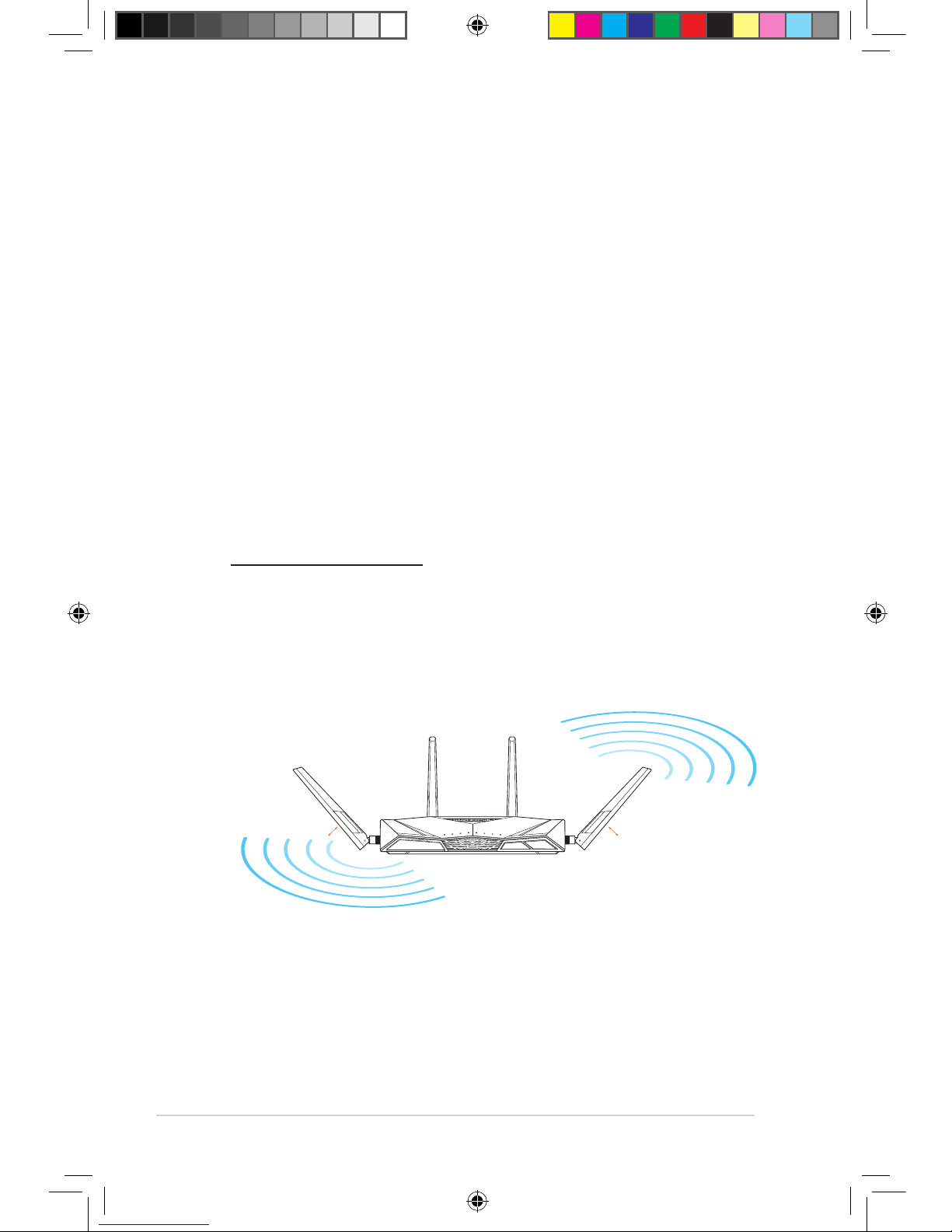

1.4 Positioning your router

For the best wireless signal transmission between the wireless

router and the network devices connected to it, ensure that you:

• Placethewirelessrouterinacentralizedareaforamaximum

wireless coverage for the network devices.

• Keepthedeviceawayfrommetalobstructionsandawayfrom

direct sunlight.

• Keepthedeviceawayfrom802.11gor20MHzonlyWi-Fi

devices, 2.4GHz computer peripherals, Bluetooth devices,

cordless phones, transformers, heavy-duty motors, fluorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

• Alwaysupdatetothelatestfirmware.VisittheASUSwebsiteat

http://www.asus.com to get the latest firmware updates.

• Toensurethebestwirelesssignal,orientthefourdetachable

antennas as shown in the drawing below.

45°45 °

WiFi

WPS

E10302_RT-AC88U_manual.indd 10 2015/5/11 15:40:51

Autres manuels pour RT-AC88U

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Asus Routeur réseau

Asus

Asus Lyra mini Manuel utilisateur

Asus

Asus RX3041H Manuel utilisateur

Asus

Asus Internet Security Router Manuel utilisateur

Asus

Asus RT-N300 B1 Manuel utilisateur

Asus

Asus RT-AC750L Manuel d'instructions

Asus

Asus WL-700GE - Wireless Router Manuel utilisateur

Asus

Asus WL-AM604 Manuel utilisateur

Asus

Asus ROG Rapture GT6 Manuel utilisateur

Asus

Asus RT-AC66U Manuel utilisateur

Asus

Asus RT-AC58U Manuel utilisateur

Asus

Asus RT-AC1200 Manuel d'instructions

Asus

Asus TUF Gaming AX4200 Manuel utilisateur

Asus

Asus RT-AC51 Manuel d'instructions

Asus

Asus AM602 Manuel utilisateur

Asus

Asus RT-AX88U Manuel utilisateur

Asus

Asus DSL-AC88U Manuel utilisateur

Asus

Asus GT-AX11000 Pro Manuel utilisateur

Asus

Asus AAM6000EV Manuel utilisateur

Asus

Asus RT-AC66U Manuel utilisateur

Asus

Asus RT-N10U Instructions d'utilisation et d'entretien

Asus

Asus RT-AC2600 Manuel utilisateur

Asus

Asus RT-AC66U B1 Manuel utilisateur

Asus

Asus RT-N66U Dark Knight Manuel utilisateur

Asus

Asus RT-AC750 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
