Asus 4G-AC53U Manuel utilisateur
Quick Start Guide
U13742-1 / First Edition / January 2018

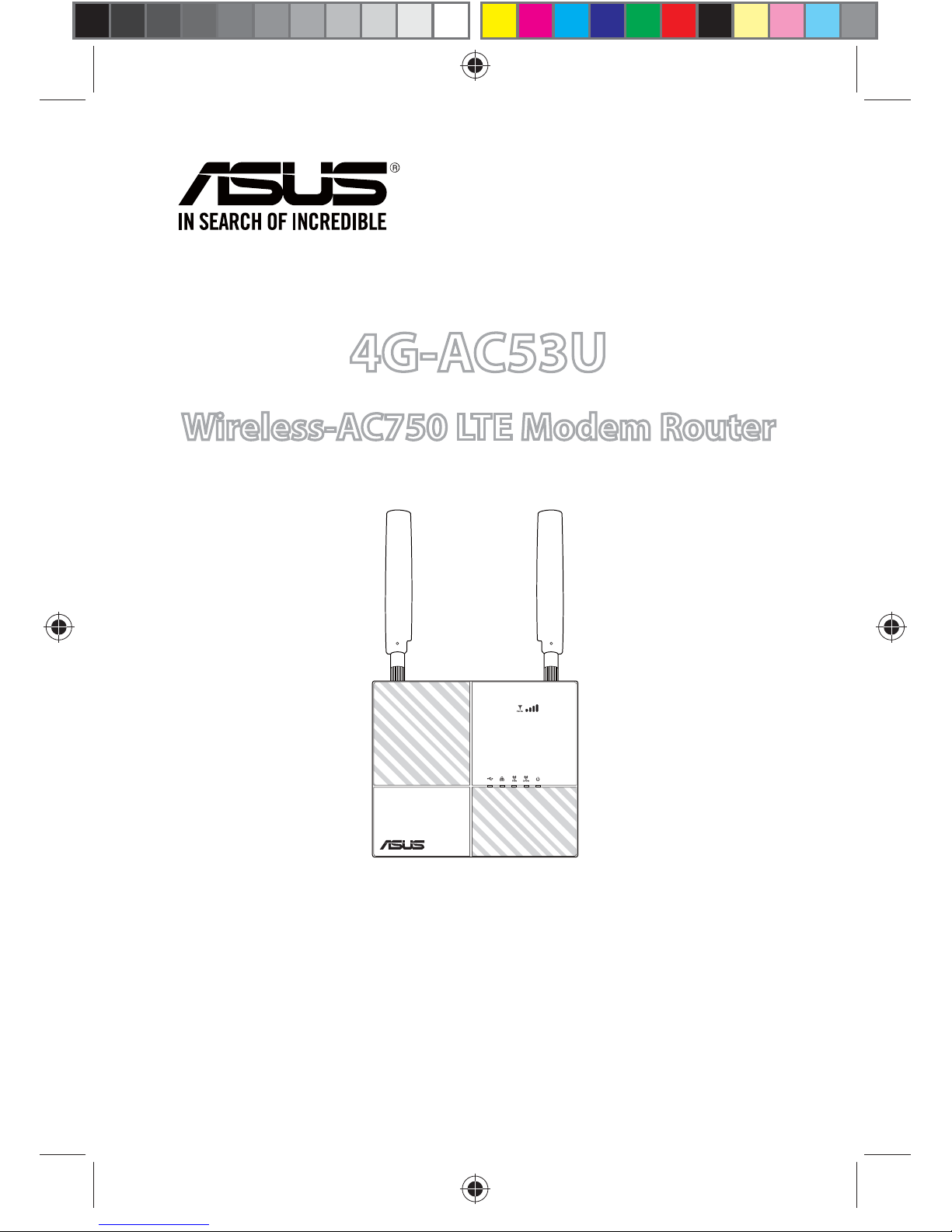

4G-AC53U
Wireless-AC750 LTE Modem Router
U13742-1_4G-AC53U_QSG_105x145mm.indb 1 2018/3/22 18:13:19
Table of contents
This QSG contains these languages:
English
Dansk
Suomi
Ελληνικά
Norsk
Svenska
Package contents.......................................................................................................3
A quick look at your 4G-AC53U.............................................................................3
Installing your router ................................................................................................5
1 Prepare the setup requirements ....................................................................5
2 Set up your LTE wireless router ......................................................................6
Remembering your wireless router settings ...................................................7
FAQ ..................................................................................................................................7
Safety Notices..............................................................................................................8
Networks Global Hotline Information.............................................................. 41
U13742-1_4G-AC53U_QSG_105x145mm.indb 2 2018/3/22 18:13:23
3
ENGLISH
NOTE: If any of the items is damaged or missing, contact your
retailer.
Package contents
4G-AC53U Wireless Router Power adapter
Network cable (RJ-45) Quick Start Guide
2 x 3G/4G antennas
A quick look at your 4G-AC53U
U13742-1_4G-AC53U_QSG_105x145mm.indb 3 2018/3/22 18:13:24
4
ENGLISH
1. USB LED 8. Power (DC-IN) port
2. LAN LED 9. LAN ports
3. 5GHz LED 10. WPS button
4. 2.4GHz LED 11. Reset button
5. Power LED 12. USB 2.0 port
6. 3G/4G signal LED 13. Mini SIM card slot
7. Detachable LTE antennas
U13742-1_4G-AC53U_QSG_105x145mm.indb 4 2018/3/22 18:13:24
5
ENGLISH
Installing your router
1. Prepare the setup requirements.
To set up your wireless network, you need to meet the
following requirements:
t "NJOJ4*.64*.DBSEXJUI8$%."BOE-5&TVCTDSJQUJPO
NOTE: A standard SIM/USIM card is a standard mini SIM
card.
IMPORTANT! Ensure that your mini SIM/USIM card is
subscribed to WCDMA and LTE services. Contact your mobile
service provider about these services.
CAUTION! Use only a standard mini SIM/USIM card on your
router. Using a dierent form of SIM card, such a micro or
nano SIM card, may damage your router.
t "DPNQVUFSXJUI&UIFSOFU3+-"/QPSU#BTF
T/100Base-TX) or a Wi-Fi-enabled device with a 2.4 GHz
802.11 b/g/n wireless interface
t 8FCCSPXTFSTVDIBT*OUFSOFU&YQMPSFS'JSFGPY4BGBSJPS
Google Chrome
Mini SIM card Micro SIM card Nano SIM card
U13742-1_4G-AC53U_QSG_105x145mm.indb 5 2018/3/22 18:13:24
6
ENGLISH
2. Set up your LTE wireless router.
1. Insert your mini SIM card and install the LTE antennas before
powering on your router. Connect the network cable from
your computer to the yellow Ethernet port on your router.
Wall Power Outlet
Power 3
Laptop
LAN
2
1
U13742-1_4G-AC53U_QSG_105x145mm.indb 6 2018/3/22 18:13:25
7
ENGLISH
2. The web GUI launches automatically when you open a web
browser. If it does not auto-launch, enter http://router.asus.
com
3. Set up a password for your router to prevent unauthorized
access.
Remember your wireless settings as you complete the
router setup.
Router Name: Password:
2.4 GHz network SSID: Password:
5G Hz network SSID: Password:
FAQ
1. Where can I nd more information about the wireless
router?
t 0OMJOF'"2TJUFhttp://support.asus.com/faq
t 5FDIOJDBMTVQQPSUTJUFhttps://www.asus.com/support
t $VTUPNFSIPUMJOFSFGFSUPUIFNetworks Global Hotline
Information section in this Quick Start Guide
U13742-1_4G-AC53U_QSG_105x145mm.indb 7 2018/3/22 18:13:25
8
ENGLISH
Safety Notices
t 6TFUIJTQSPEVDUJOFOWJSPONFOUTXJUIBNCJFOU
temperatures between 0°C(32°F) and 40°C(104°F).
t 3FGFSUPUIFSBUJOHMBCFMPOUIFCPUUPNPGZPVSQSPEVDUBOE
ensure your power adapter complies with this rating.
t %0/05QMBDFPOVOFWFOPSVOTUBCMFXPSLTVSGBDFT4FFL
servicing if the casing has been damaged.
t %0/05QMBDFPSESPQPCKFDUTPOUPQBOEEPOPUTIPWFBOZ
GPSFJHOPCKFDUTJOUPUIFQSPEVDU
t %0/05FYQPTFUPPSVTFOFBSMJRVJETSBJOPSNPJTUVSF%0
/05VTFUIFNPEFNEVSJOHFMFDUSJDBMTUPSNT
t %0/05DPWFSUIFWFOUTPOUIFQSPEVDUUPQSFWFOUUIF
system from getting overheated.
t %0/05VTFEBNBHFEQPXFSDPSETBDDFTTPSJFTPSPUIFS
peripherals.
t *GUIFBEBQUFSJTCSPLFOEPOPUUSZUPöYJUCZZPVSTFMG
Contact a qualied service technician or your retailer.
t 5PQSFWFOUFMFDUSJDBMTIPDLIB[BSEEJTDPOOFDUUIFQPXFS
cable from the electrical outlet before relocating the system.
DC Power adapter %$0VUQVU7XJUINBY"DVSSFOU
Operating Temperature 0~40oCStorage 0~70oC
Operating Humidity 50~90% Storage 20~90%
U13742-1_4G-AC53U_QSG_105x145mm.indb 8 2018/3/22 18:13:25
9
DANSK
BEMÆRK: Du bedes venligst kontakte din forhandler, hvis
nogen af delene mangler eller er beskadiget.
Pakkens indhold
4G-AC53U Strømadapter
Netværkskabel (RJ-45) Kvikstartguide
2 * 3G/4G-antenner
Et hurtigt kik på din 4G-AC53U
U13742-1_4G-AC53U_QSG_105x145mm.indb 9 2018/3/22 18:13:25
10
DANSK
1. USB LED 8. Strøm (DC-IN) port
2. LAN LED 9. LAN porte
3. 5GHz LED 10. WPS knap
4. 2.4GHz LED 11. Nulstillingsknap
5. Strøm LED 12. USB 2.0 port
6. 3G/4G-signalindikator 13. Stik til mini SIM-kort
7. Aftagelige LTE-antenner
U13742-1_4G-AC53U_QSG_105x145mm.indb 10 2018/3/22 18:13:26
