Asus TPM-M R2.0 Manuel utilisateur

TPM-M R2.0 (14-1)

TPM-L R2.0 (20-1)

Quick Start Guide

E14029

Using the TPM-M R2.0 / TPM-L R2.0 card

The TPM-M R2.0 / TPM-L R2.0 card securely store keys, digital certicates, passwords, and

data. It helps enhance the network security, protects digital identities, and ensures platform

integrity.

The TPM-M R2.0 / TPM-L R2.0 card only supports the following OS:

• 64-bit Windows® 7, UEFI OS, with KB2920188 Windows hotx installed

NOTE: You have to set the Launch CSM item in the BIOS to Enabled, the OS Type item

to Other OS.Refer to the user guide of your motherboard on how to change the BIOS

settings.

• 64-bit Windows® 8.1, UEFI OS

• 64-bit Windows® 10, UEFI OS

To use the TPM-M R2.0 / TPM-L R2.0 card:

1. Insert the TPM-M R2.0 card to the TPM connector on your motherboard.

PIN 1

+3VSB

S_PCIRST#_TBD

GND

C_PCICLK_TPM

+3V

LPCPD#

F_SERIRQ

F_FRAME#

F_LAD3

F_LAD2

F_LAD1

F_LAD0

Pin denition:

• TPM-L R2.0 (20-1)

• TPM-M R2.0 (14-1)

PIN 1

LPCPD#

GND

+3VSB

LAD0

+3V

LAD3

LREST#

LFRAME#

LCLK

CLKRUN#

SERIRQ

GND

LAD1

LAD2

GND

5. Set the Security Device Support and TPM State items to [Enabled].

6. Press <F10> to save the changes, exit the BIOS Setup program and boot into the OS.

Now you can start using the TPM-M R2.0 / TPM-L R2.0 card with Windows® BitLocker.

2. Press <Delete> or <F2> to enter the BIOS Setup program at the system startup.

3. From the BIOS Setup EZ Mode screen, press <F7> to enter the Advanced Mode.

4. From the Advanced Mode screen, click Advanced > Trusted Computing.

3. Press <F10> to save the changes and exit the BIOS Setup program.

Clearing the TPM security hardware

You can clear the TPM security hardware either from the BIOS or the OS.

Clearing from the BIOS

To clear from the BIOS:

NOTE: You can only use this method on Windows® 7 64-bit.

1. Launch the Trusted Computing BIOS screen.

NOTE: For details, refer to steps 2-4 of the section Using the TPM-M R2.0 / TPM-L R2.0

card.

2. Set the Pending operation item to [TPM Clear].

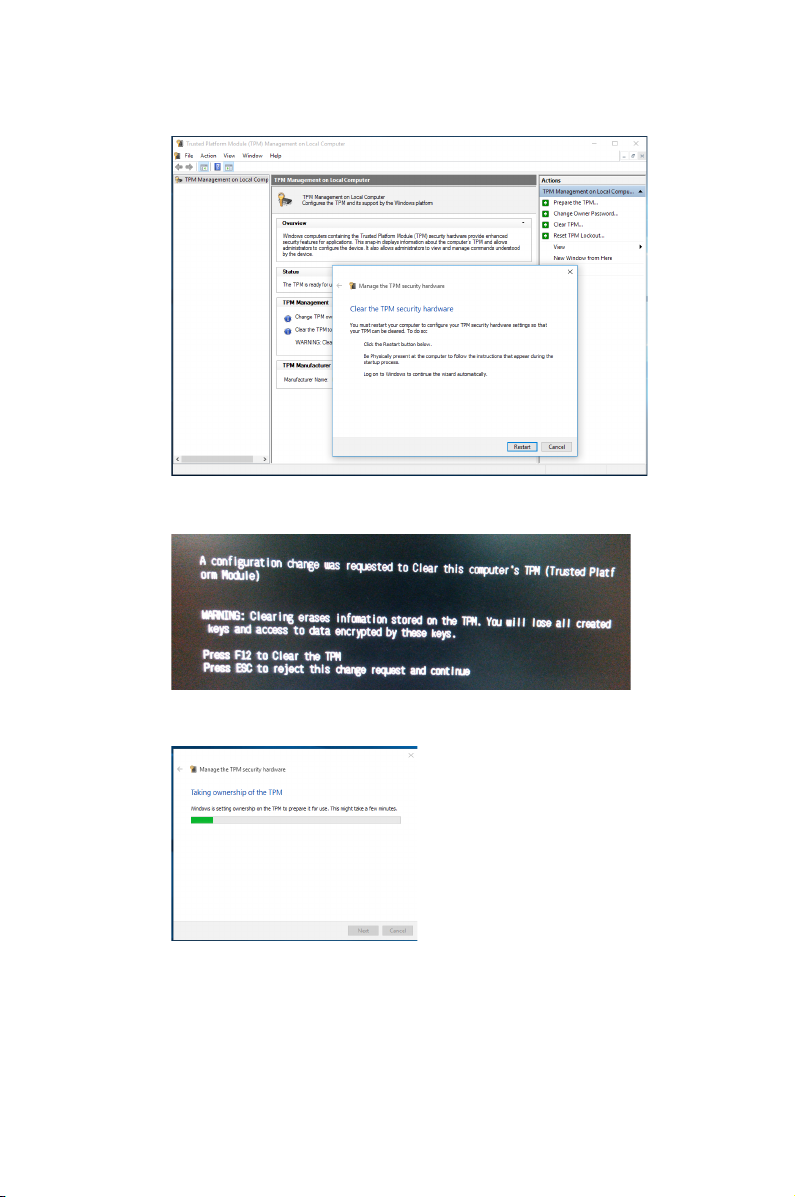

Clearing from the OS

To clear from the OS:

NOTE: This method is only supported on Windows® 8.1 64-bit and Windows® 10 64-bit.

1. Click the Windows Start button, and enter tpm.msc in the search box. The TPM

Management screen appears.

2. Under Actions, click Clear TPM...

4. When the DOS prompt appears, press <F12> to clear the TPM.

5. Wait until your computer boots up and the OS completes its TPM initialization.

3. Click Restart to restart your computer.

Updating the rmware

WARNING: Before updating your rmware, ensure that you have decrypted your

encrypted data rst. Your data cannot be decrypted after the rmware update.

To update your rmware:

NOTE: As an example, here we list down detailed steps of updating from version

FW5.61.2785 to FW5.63.3144 for your reference.

1. Download the latest rmware update package for your TPM-M R2.0 / TPM-L R2.0 card

from the ASUS support website at https://www.asus.com/support/. Extract the content

of the zip package onto a USB ash drive.

2. Restart your computer and enter the Advanced Mode of the BIOS setup program. Go

to Advanced > Trusted Computing, and set the Security Device Support item to

[Disable].

3. Go to Boot > CSM(Compatibility Support Module), and set the Launch CSM item to

[Disabled].

4. Go to Boot > Secure Boot, and set the OS Type item to [Other OS].

5. Press <F10> to save your changes, exit the BIOS Setup program, and reboot your

system. The EFI Shell prompt screen displays.

6. Key in fs0: to access the USB drive where the update les are located.

Navigate to the directory (TPM_FU_5.63\Tools\UEFI\Bin\x64) where the update les

are located, key in dir and press <Enter> to display the content.

EFI Shell version 2.60 [5.13]

Current running mode 1.1.2

Device mapping table

fs0 :Removable HardDisk - Alias hd6c0b blk0

PciRoot(0X0)/Pci(0x14,0x0)/USB(0x2,0x0)/HD(1, MBR, 0x25474627,0x3F, 0x777

FC1)

blk0 :Removable HardDisk - Alias hd6c0b fs0

PciRoot(0x0)/Pci(0x14,0x0)/USB(0x2,0x0)/HD(1, MBR, 0x25474627,0x3F. 0x777

FC1)

blkl :Removable BlockDevice - Alias (null)

PciRoot(0x0)/Pci(0x14,0X0)/USB(0X2,0x0)

Press ESC in 1 seconds to skip startup.nsh, any other key to connue.

Shell>

EFI Shell version 2.60 [5.13]

Current running mode 1.1.2

Device mapping table

fs0 :Removable HardDisk - Alias hd6c0b blk0

PciRoot(0X0)/Pci(0x14,0x0)/USB(0x2,0x0)/HD(1, MBR, 0x25474627,0x3F, 0x777

FC1)

blk0 :Removable HardDisk - Alias hd6c0b fs0

PciRoot(0x0)/Pci(0x14,0x0)/USB(0x2,0x0)/HD(1, MBR, 0x25474627,0x3F. 0x777

FC1)

blkl :Removable BlockDevice - Alias (null)

PciRoot(0x0)/Pci(0x14,0X0)/USB(0X2,0x0)

Press ESC in 1 seconds to skip startup.nsh, any other key to connue.

Shell> fs0:

fs0:\TPM_FU_5.63\Tools\UEFI\Bin\x64> DIR

7. Find and execute TPMFactoryUpd -update tpm20-emptyplatformauth -rmware

PM20_5.61.2785.0_to_TPM20_5.63.3144.0.BIN to update your rmware.

fs0:\TPM_FU_5.63\Tools\UEFI\Bin\x64> DIR

Directory of: fs0:\TPM_FU_5.63\Tools\UEFI\Bin\x64

02/13/18 05:53p <DIR> 4,096 .

02/13/18 05:53p <DIR> 4,096 ..

12/05/17 02:54a 316,544 IFXTPMUpdate.eﬁ

12/05/17 03:17a 371,259 TPM20_5.61.2785.0_to_TPM20_5.63.3144.0.BIN

12/05/17 02:54a 438,224 TPMFactoryUpd.eﬁ

3 File(s) 1,126,027 bytes

2 Dir(s)

fs0:\TPM_FU_5.63\Tools\UEFI\Bin\x64> TPMFactoryUpd -update tpm20-emptyplaormauth

-ﬁrmware TPM20_5.61.2785.0_to_TPM20_5.63.3144.0.BIN

15060-75800100
