ASROCK P4i48-M Manuel utilisateur

P4i48-M

User Manual

Version 1.0

PublishedNovember 2004

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

Contents

1 Introduction ................................................... 5

1.1 Package Contents.......................................................... 5

1.2 Specifications................................................................ 6

1.3 Motherboard Layout ...................................................... 8

1.4 ASRock I/O PlusTM .......................................................... 9

2 Installation...................................................... 10

Pre-installation Precautions ................................................... 10

2.1 CPU Installation .............................................................. 11

2.2 Installation of CPU Fan and Heatsink ............................ 11

2.3 Installation of Memory Modules (DIMM)......................... 12

2.4 Expansion Slots (PCI and AGP Slots) ........................... 13

2.5 Jumpers Setup .............................................................. 14

2.6 Onboard Headers and Connectors .............................. 15

2.7 Serial ATA (SATA) Hard Disks Installation ..................... 18

3 BIOS SETUP UTILITY........................................... 19

3.1 Introduction .................................................................... 19

3.1.1 BIOS Menu Bar .................................................... 19

3.1.2 Navigation Keys ................................................... 20

3.2 Main Screen................................................................... 20

3.3 Advanced Screen ......................................................... 21

3.3.1 CPU Configuration................................................. 21

3.3.2 Chipset Configuration .......................................... 22

3.3.3 ACPI Configuration ............................................... 24

3.3.4 IDE Configuration ................................................. 25

3.3.5 PCIPnP Configuration ........................................... 27

3.3.6 Floppy Configuration ........................................... 28

3.3.7 Super IO Configuration ........................................ 28

3.3.8 USB Configuration ............................................... 30

3.4 Hardware Health Event Monitoring Screen .................. 30

3.5 Boot Screen................................................................... 31

3.5.1 Boot Setting Configuration.................................... 31

3.5.2 Boot Device Priority............................................... 32

3.6 Security Screen ............................................................ 32

3.7 Exit Screen .................................................................... 33

4 Software Support ........................................... 34

4.1 Install Operating System ............................................... 34

4.2 Support CD Information ................................................. 34

4.2.1 Running Support CD ............................................ 34

4.2.2 Drivers Menu........................................................ 34

4.2.3 Utilities Menu ........................................................ 34

4.2.4 Contact Information .............................................. 34

Chapter 1 Introduction

Thank you for purchasing ASRock P4i48-M motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-

step guide to the hardware installation. Chapter 3 and 4 contain the configuration

guide to BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest memory and CPU support lists on ASRock website as

well. ASRock website http://www.asrock.com

1.1 Package Contents

ASRock P4i48-M Motherboard

(Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm)

ASRock P4i48-M Quick InstallationGuide

ASRock P4i48-M Support CD

One 80-conductor UltraATA 66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One Serial ATA (SATA) Data Cable

One SerialATA (SATA) HDD Power Cable (Optional)

OneASRock I/O PlusTM Shield

1.2 Specifications

Platform: Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm

CPU: Socket 478, supports Intel®Pentium® 4(Prescott, Northwood,

Willimate) / Celeron®processor

Chipsets: North Bridge:

Intel®848P chipset, FSB @ 800 / 533 / 400MHz,

supports Hyper-Threading Technology (see CAUTION 1)

South Bridge:

Intel®ICH5, supports SATA 1.5Gb/s

Memory: 2DDRDIMMslots:DDR1andDDR2

supports PC3200 (DDR400) / PC2700 (DDR333) /

PC2100 (DDR266), Max. 2GB (see CAUTION 2)

IDE: IDE1:ATA100 / UltraDMA Mode 5

IDE2:ATA100 / UltraDMA Mode 5

Supports up to 4 IDE devices

Serial ATA: Supports up to 2 SATA devices at 1.5Gb/s data transfer rate

(Not Support “RAID and “Hot Plug” functions)

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

PCI LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing,

Chassis temperature sensing,

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 3),

CPU fan tachometer,

Chassis fan tachometer,

Voltage monitoring: +12V, +5V, +3.3V, Vcore

PCI slots: 3 PCI slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 4)

USB 2.0: 8 USB 2.0 ports:

includes 6 default USB 2.0 ports on the rear panel,

plus two headers to support 2 additional USB 2.0 ports

(see CAUTION 5)

ASRock I/O PlusTM:1 PS/2 mouse port,

1 PS/2 keyboard port,

1 serial port: COM1,

1 parallel port: ECP/EPP support,

6 default USB 2.0 ports,

1 RJ 45 port,

Audio Jack: Line In / Line Out / Microphone

BIOS: AMI legal BIOS,

Supports “Plug and Play”,

ACPI 1.1 compliance wake up events,

Supports jumperfree,

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 6)

OS: Microsoft®Windows®98 SE / ME / 2000 / XP compliant

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page 22.

2. Please check the table below for the memory support frequency and its

corresponding CPU FSB frequency.

CPU FSB Frequency Memory Support Frequency

800 DDR266, DDR320*, DDR400

533 DDR266, DDR333

400 DDR266

*When you use an FSB800-CPU on this motherboard, it will run at

DDR320 if you adopt a DDR333 memory module.

3. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

4. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

5. Power Management for USB 2.0 works fine under Microsoft®Windows®XP

SP1 / 2000 SP4. It may not work properly under Microsoft®Windows®98/

ME.

6. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

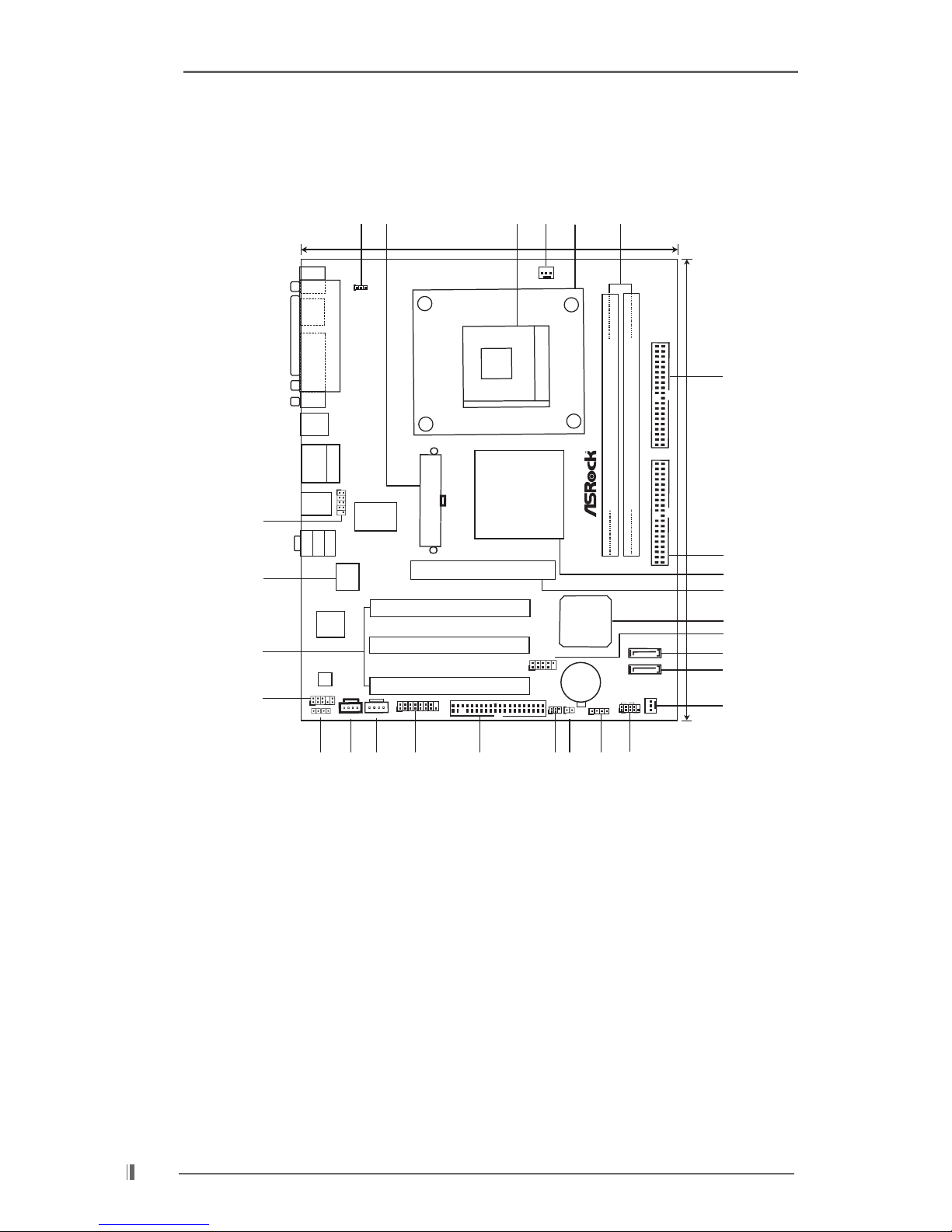

1.3 Motherboard Layout

PGA478

ATXPWR1

PS2_USB_PWR1

CPU_FAN1

Intel

848

Chipset

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

IDE1

IDE2

PARALLEL PORT

COM1

PS2

Mouse

PS2

Keyboard

USB 2.0

T: USB2

B: USB3

USB 2.0

T: USB0

B: USB1

Top:

RJ-45

USB4_5

Top:

Line In

Center:

Line Out

USB 2.0

T: US B 4

B: USB5

Bottom:

Mic In

1.5V_AGP1

Intel

ICH5

P4i48-M

PCI 3

PCI 2

PCI 1

USB2.0

FSB800

5.1CH

SATA

AGP8X

Prescott800

DDR400

SATA1

SATA2

CMOS

Battery

CLRCMOS0 CHA_FAN1

FLOPPY1

GAME1

AUDIO

CODEC

PCI

LAN

2Mb

BIOS

Super

I/O

CD1 AUX1

JR1 JL1

AUDIO1

USB67

SPEAKER1

IR1

HDLED RESET

PLED PWRBTN

PANEL 1

19.8cm (7.8 in)

123

24.4cm (9.6 in)

19 18

1 PS2_USB_PWR1 Jumper 15 Chassis Fan Connector (CHA_FAN1)

2 ATX Power Connector (ATXPWR1) 16 System Panel Header (PANEL1)

3 CPU Socket 17 Chassis Speaker Header (SPEAKER 1)

4 CPU Fan Connector (CPU_FAN1) 18 Clear CMOS Jumper (CLRCMOS0)

5 CPU Heatsink Retention Module 19 Infrared Module Header (IR1)

6 184-pin DDR DIMM Slots (DDR1- 2) 20 Floppy Connector (FLOPPY1)

7 Secondary IDE Connector (IDE2, Black) 21 Game Port Connector (GAME1)

8 Primary IDE Connector (IDE1, Blue) 22 Internal Audio Connector: AUX1 (White)

9 North Bridge Controller 23 Internal Audio Connector: CD1 (Black)

10 AGP Slot (1.5V_AGP1) 24 JR1 / JL1 Jumpers

11 South Bridge Controller 25 Front Panel Audio Header (AUDIO1)

12 USB 2.0 Header (USB67, Blue) 26 PCI Slots (PCI1- 3)

13 Secondary Serial ATA Connector (SATA2) 27 BIOS FWH Chip

14 Primary Serial ATA Connector (SATA1) 28 Shared USB 2.0 Header (USB4_5, Blue)

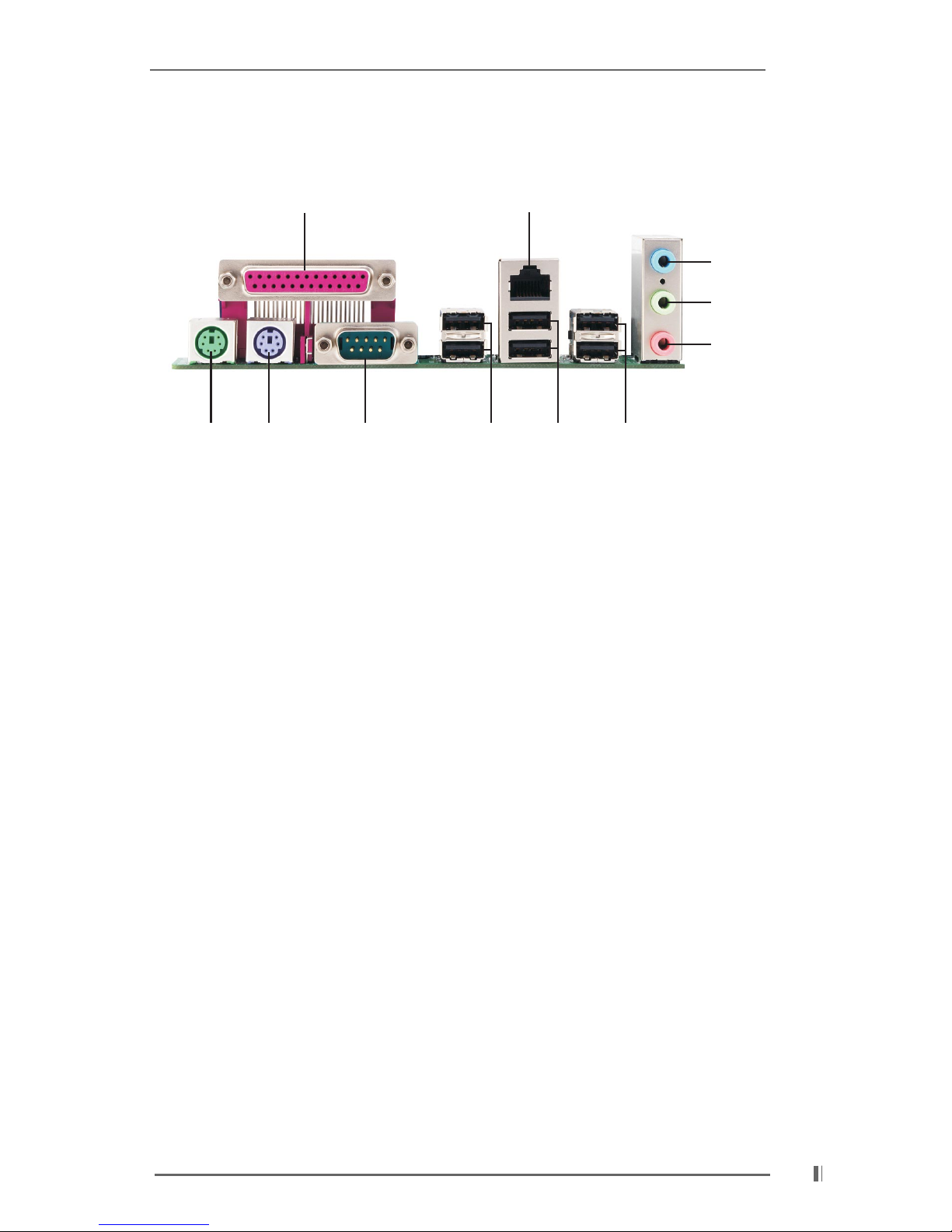

1.4 ASRock I/O PlusTM

1 Parallel Port 7 USB 2.0 Ports (USB01)

2 RJ-45 Port 8 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 9 Serial Port: COM1

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 Shared USB 2.0 Ports (USB45)

8910

Chapter 2 Installation

P4i48-M is a Micro ATX form factor (9.6-in x 7.8-in, 24.4 cm x 19.8 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to en-

sure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard com-

ponents or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static electricity,

NEVER place your motherboard directly on the carpet or the like. Also

remember to use a grounded wrist strap or touch a safety grounded

object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

Before you install or remove any component, ensure that the power is

switched off or the power cord is detached from the power supply.

Failure to do so may cause severe damage to the motherboard,

peripherals, and/or components.

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK B75 Pro3-M/MVP Manuel utilisateur

ASROCK

ASROCK B650M PRO RS Manuel utilisateur

ASROCK

ASROCK Z270 Extreme4 Manuel utilisateur

ASROCK

ASROCK IMB-130 Instructions d'utilisation

ASROCK

ASROCK H510M-HVS R2.0 Manuel utilisateur

ASROCK

ASROCK ALIVENF5-VSTA Manuel utilisateur

ASROCK

ASROCK H310M-ITX/ac Manuel utilisateur

ASROCK

ASROCK 990FX Extreme6 Manuel utilisateur

ASROCK

ASROCK K7VT4A PRO Manuel utilisateur

ASROCK

ASROCK CONROE945G-DVI Manuel utilisateur

ASROCK

ASROCK 970 Extreme3 R2.0 Manuel utilisateur

ASROCK

ASROCK H61M-DG3/USB3 Manuel utilisateur

ASROCK

ASROCK X99M Extreme4 Manuel utilisateur

ASROCK

ASROCK EP2C612D16T-4L Manuel utilisateur

ASROCK

ASROCK IMB-183 Manuel utilisateur

ASROCK

ASROCK G31M-VS - INSTALLATION 05-2009 Manuel utilisateur

ASROCK

ASROCK FM2A88M Extreme4+ Manuel utilisateur

ASROCK

ASROCK H55 PRO - V1.0 Manuel utilisateur

ASROCK

ASROCK AD410PV - V1.0 Manuel utilisateur

ASROCK

ASROCK X79 Extreme7 Manuel utilisateur

ASROCK

ASROCK athena A2 Kit Manuel utilisateur

ASROCK

ASROCK X370 GAMING Manuel utilisateur

ASROCK

ASROCK K7VM2 R3.0 Manuel utilisateur

ASROCK

ASROCK SBC-211M Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
