ASROCK SBC-211M Manuel utilisateur

SBC-211

User Manual

Version 1.0

Published July 2014

Version 1.0

Published July 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMITM and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

1 Introduction ....................................................... 5

1.1 Package Contents ......................................................... 5

1.2 Specications................................................................. 6

1.3 Motherboard Layout....................................................... 8

1.4 I/O Panel........................................................................ 10

2 Installation ......................................................... 11

2.1 Screw Holes................................................................... 11

2.2 Pre-installation Precautions ........................................... 11

2.3 Installation of Memory Modules (SO-DIMM).................. 12

2.4 Expansion Slots (mini-PCIe and mini-PCIe/mini-SATA

Slots).............................................................................. 13

2.5 Jumpers Setup............................................................... 14

2.6 Onboard Headers and Connectors................................ 16

3 UEFI SETUP UTILITY......................................... 21

3.1 Introduction .................................................................... 21

3.1.1 UEFI Menu Bar .................................................... 21

3.1.2 Navigation Keys ................................................... 22

3.2 Main Screen................................................................... 22

3.3 Advanced Screen........................................................... 23

3.3.1 CPU Conguration ............................................... 24

3.3.2 Chipset Conguration........................................... 26

3.3.3 Storage Conguration .......................................... 27

3.3.4 Intel(R) Smart Connect Technology ..................... 28

3.3.5 Super IO Conguration ........................................ 29

3.3.6 ACPI Conguration............................................... 30

3.3.7 USB Conguration ............................................... 31

3.4 Hardware Health Event Monitoring Screen ................... 32

3.5 Security Screen ............................................................. 33

3.6 Boot Screen ................................................................... 34

3.7 Exit Screen .................................................................... 36

4 Software Support .............................................. 37

4.1 Install Operating System................................................ 37

4.2 Support CD Information ................................................. 37

4.2.1 Running Support CD............................................ 37

4.2.2 Drivers Menu........................................................ 37

4.2.3 Utilities Menu........................................................ 37

4.2.4 Contact Information.............................................. 37

Chapter 1: Introduction

Thank you for purchasing ASRock SBC-211 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration

guide to BIOS setup and information of the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock SBC-211 Motherboard (3.5” SBC (5.8-in x 4.0-in) / (148 x 102 mm))

ASRock SBC-211 Driver CD

ASRock SBC-211 Jumper setting instruction

1.2 Specications

Form

Factor Dimensions 3.5" SBC (5.8-in x 4.0-in) / (148 x 102 mm)

Processor

System

CPU

Intel®new Atom™ Baytrail-E3800 Series

Supports Hyper-Threading Technology

Default E3826 Dual core processor

Core

Number (By CPU, Max 4)

Max Speed (By CPU)

Cache (By CPU)

Chipset N/A

BIOS UEFI

Expansion

Slot

PCI 0

Mini-PCIe 1 (Half Size) + 1 (Full Size) shared with mSATA

mSATA 1 (Full Size) shared with SATAII_2

PCIe 0

CFast Card

Socket 0

Memory

Technology Single Channel DDR3L 1066/1333 MHz SDRAM

Max. 8GB

Socket 1 x SO-DIMM

Graphics

Controller Intel®Gen7 Intel Graphics DX 11, OGL3.2

VRAM Shared Memory

VGA Supports max. resolution 1920 x 1200

LVDS Dual channel 24-bit, max resolution 1920 x 1200

@60Hz

HDMI Supports HDMI 1.4a, max resolution 1920 x

1200

DVI N/A

DisplayPort N/A

Multi Display Yes (Dual Display)

Ethernet

Ethernet 10/100/1000 Mbps

Controller GbE LAN: Realtek RTL8111G-CG

Connector 2 x RJ-45

SATA

Max Data

Transfer

Rate

SATA2 (3.0Gb/s)

Rear I/O

VGA 1

DVI 0

HDMI 1

DisplayPort 0

Ethernet 2

USB 2 x USB 3.0 compliant

Audio 1 ( Line out)

Serial 0

PS/2 0

Internal

Connector

USB 6 ( 3*2.54 pitch header USB 2.0 compliant)

LVDS/

Inverter 1/1

VGA 0

Serial 4 (RS-232)

SATA 2x SATA2 (3.0Gb/s) (SATAII_2 is shared

with mSATA)

Parallel 0

IrDA 0

GPIO 8-bit 4 x GPI + 4 x GPO

SATA PWR

Output Con 1

Speaker

Header 1

Watchdog

Timer

Output From Super I/O to drag RESETCON#

Interval 256 segments, 0,1,2…255sec/min

Power

Requirements

Input PWR 9-36V DC-In using 4-pin ATX PWR Con

Power On

AT/ATX Supported

AT: Directly PWR on as power input ready

ATX: Press button to PWR on after power

input ready

Environment Temperature 0ºC – 60ºC

1.3 Motherboard Layout

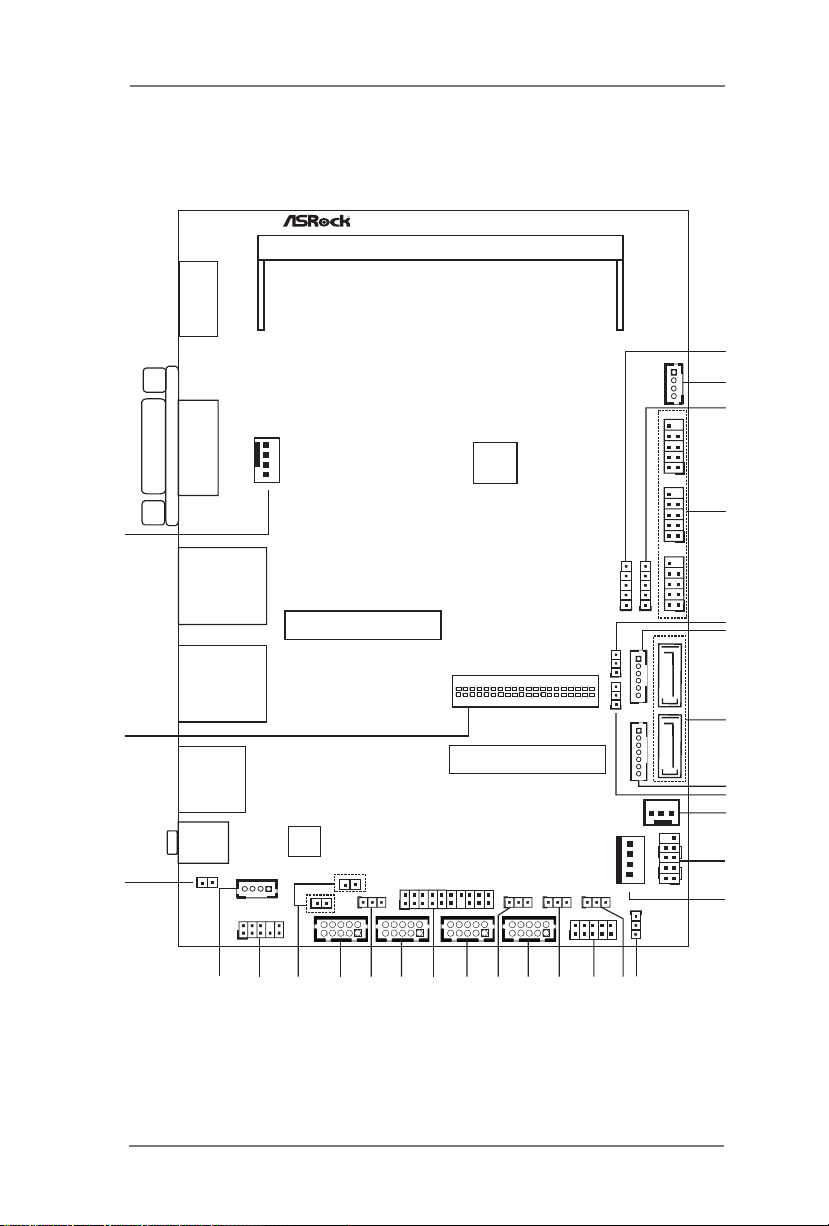

AUDIO

CODEC

BIOS

Chip

SBC-211

1920

2224

CPU_FAN1

PWR_JP1

JGPIO1

mini-PCIe

TPM1

CHA_FAN1

SPEAKER1

LAN1

VGA1

Line Out

HDMI1

ATX1 2V 1

BLT_VOL1

HDLED RESET

PLED PWRBTN

PANEL1

mini-PCIe / mini-SATA

CI1

SATA_PWR1

LVDS 1

BLT_PWR1

Industrial

SET_CM1

LAN2

USB 3.0

T: USB1

B: USB0

COM1 COM2 COM3 COM4

CI2

JGPIO_PWR1

CLRMOS1

USB4_5

USB2_3

USB0_1

BUZZ1

DDR3 (Support DDR3L Only)

BKT_PWR1

PNL_PWR1

SATAI I_ 1

SATAI I_ 2

BLT_PWM1

MSATA_SEL1

HD_AUDIO1

JGPIO_SET1

1 : Panel Power Selection (PNL_PWR1)

2 : ATX Power Connector

: Backlight Power Selection (BKT_PWR1)

4 :

USB2.0 Headers

(USB0_1, USB2_3, USB4_5)

5 : mSATA Selection

6 : Inverter Power Control Wafer (BLT_PWR1)

7 : SATA2 Connectors (SATAII_1, SATAII_2)

8 : Backlight & Amp Volume Control

(BLT_VOL1)

9 : Backlight Control Level (BLT_PWM1)

10 :

3-Pin Chassis FAN Connector

11 :

System Panel Header

2 : SATA Power Output Connector

13 : GPIO Default Setting

14 : Clear CMOS Header

15 : Digital Input / Output Pin Header

16 : Digital Input / Output Power Select

17 : COM Port Header (COM4)

18 : ATX/AT Mode Selection

19 : COM Port Header (COM3)

20 : TPM Header

21 : COM Port Header (COM2)

22 : COM1 Pin9 PWR Setting

23 : COM Port Header (COM1)

24 : Chassis Intrusion Headers

(CI1, CI2)

25 :

Front Panel Audio Header

26 : 3W Audio AMP Output Wafer

27 : 2-Pin Buzzer Header

28 : LVDS Panel Connector

4-Pin CPU FAN Connector

1.4 I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

O󰀨 No Link O󰀨 10Mbps connection

Blinking Data Activity O󰀨 100Mbps connection

On Link Green 1Gbps connection

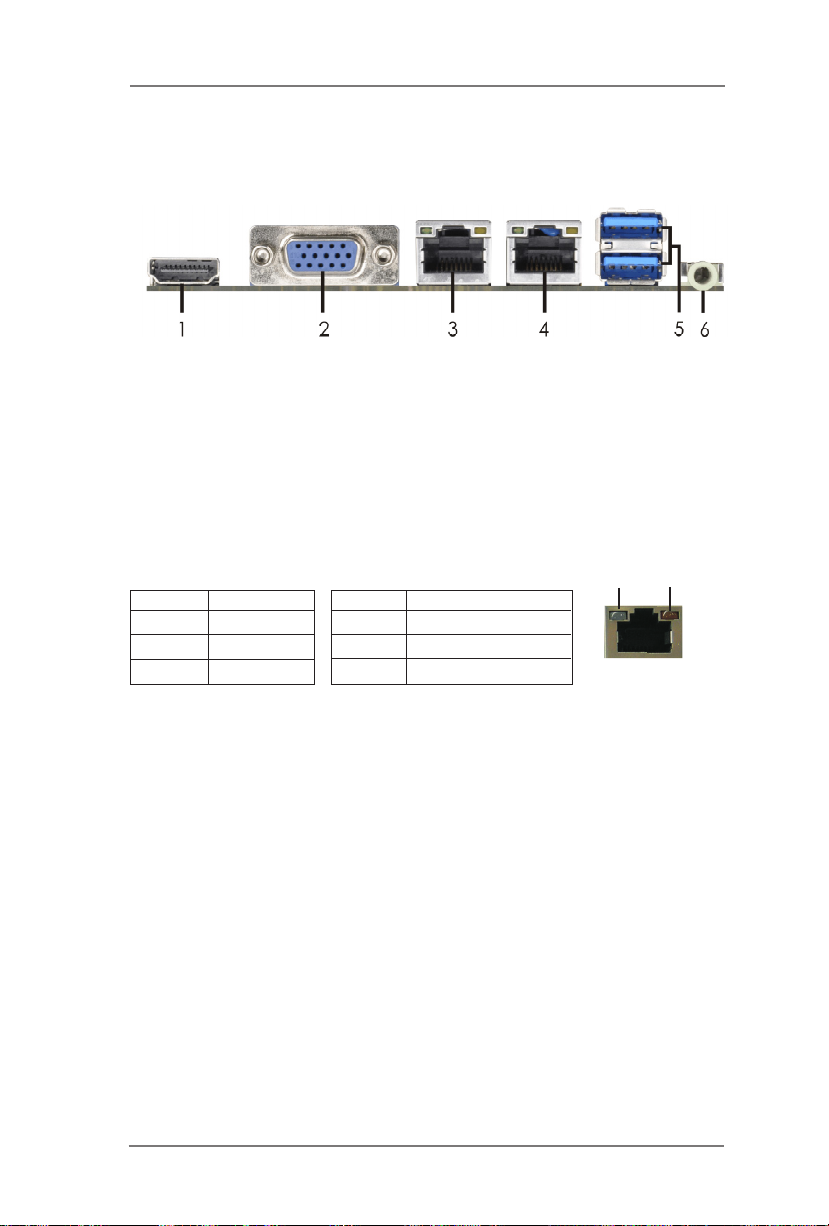

1 HDMI Port (HDMI1)

2 VGA Port (VGA1)

3 LAN RJ-45 Port (LAN1)*

4 LAN RJ-45 Port (LAN2)*

5 USB 3.0 Ports (USB01)

6 Line out (Green)

ACT/LINK

LED

SPEED

LED

LAN Port

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK P4VM890 - V2.1 Manuel utilisateur

ASROCK

ASROCK H410M-HDV/M.2 Manuel utilisateur

ASROCK

ASROCK C70M1 R2.0 Manuel utilisateur

ASROCK

ASROCK X79 Extreme7 Manuel utilisateur

ASROCK

ASROCK EP2C612D16FM Manuel utilisateur

ASROCK

ASROCK Z87M Extreme4 Manuel utilisateur

ASROCK

ASROCK Z390 Phantom Gaming 9 Manuel utilisateur

ASROCK

ASROCK 890FX Deluxe3 Manuel utilisateur

ASROCK

ASROCK IMB-158 Manuel utilisateur

ASROCK

ASROCK Z370 Taichi Manuel utilisateur

ASROCK

ASROCK P55 DELUXE3 - V1.0 Manuel utilisateur

ASROCK

ASROCK H55M PRO Manuel utilisateur

ASROCK

ASROCK ALIVENF5SLI-1394 Manuel utilisateur

ASROCK

ASROCK G41MH-GE Manuel utilisateur

ASROCK

ASROCK 880GMH-LE USB3 - NOTICE 2 Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z68 Professional Gen3 Manuel utilisateur

ASROCK

ASROCK X570S PG Riptide Manuel utilisateur

ASROCK

ASROCK 2Core1333-2.66G Manuel utilisateur

ASROCK

ASROCK K8SLI-ESATA2 Manuel utilisateur

ASROCK

ASROCK B85 Pro4 Manuel utilisateur

ASROCK

ASROCK 970 Pro2 Manuel utilisateur

ASROCK

ASROCK H87M Manuel utilisateur

ASROCK

ASROCK P4V88 Manuel utilisateur

ASROCK

ASROCK M810LMR Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
