ASROCK K7VM2 R3.0 Manuel utilisateur

K7VM2

User Manual

Version 3.1

Published July 2003

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

ASRock Website: http://www.asrock.com

Contents

1 Introduction.................................................... 4

1.1 Package Contents ........................................................... 4

1.2 Specifications ................................................................. 5

1.3 Motherboard Layout ....................................................... 7

1.4 ASRock I/OTM .................................................................. 8

2 Installation ...................................................... 9

2.1 Screw Holes ................................................................... 9

2.2 Pre-installation Precautions ............................................ 9

2.3 CPU Installation ............................................................... 10

2.4 Installation of Heatsink and CPU fan .............................. 10

2.5 Installation of Memory Modules (DIMM) .......................... 11

2.6 Expansion Slots .............................................................. 11

2.7 Jumpers Setup ................................................................ 12

2.8 Connectors ..................................................................... 15

3 BIOS Setup ...................................................... 17

3.1 BIOS Setup Utility ............................................................ 17

3.1.1 BIOS Menu Bar ..................................................... 17

3.1.2 Legend Bar ........................................................... 17

3.2 Main Menu ....................................................................... 18

3.3 Advanced, Security, Power, Boot, and Exit Menus ...... 20

4 Software Support ........................................... 21

4.1 Installing Operating System ............................................ 21

4.2 Support CD Information ................................................... 21

4.2.1 Running Support CD ............................................. 21

4.2.2 Drivers Menu ........................................................ 21

4.2.3 Utilities Menu ......................................................... 21

4.2.4 ASRock “PC-DIY Live Demo” Program ................. 21

4.2.5 Contact Information ............................................... 21

Appendix ........................................................... 22

1. Advanced Menu ............................................................. 22

2. Security Menu ................................................................. 26

3. Power Menu ................................................................... 27

4. Boot Menu ....................................................................... 28

5. Exit Menu ......................................................................... 29

Chapter 1 Introduction

Thank you for purchasing ASRock K7VM2 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-

step installation guide for new DIY system builders. Chapter 3 and 4 contain basic

BIOS setup and support CD information. For advanced users’ reference, the Appen-

dix appearing on page 22 offers more advanced BIOS setup information.

Because the motherboard specifications and the BIOS software

might be updated, the content of this manual will be subject to

change without notice. In case any modifications of this manual

occur, the updated version will be available on ASRock website

without further notice. You may find the latest memory and CPU

support lists on ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents

ASRock K7VM2 motherboard

(Micro ATX form factor: 9.6" x 7.5", 24.4 x 19.1 cm)

ASRock K7VM2 Quick Installation Guide

ASRock AMD-VIA Series Support CD

1 cable for IDE devices (1 x ATA 66/100/133)

1 cable for floppy drive (1 x ribbon cable)

1 ASRock I/O shield

1 COM port bracket

1.2 Specifications

Platform: Micro ATX form factor (9.6" x 7.5", 24.4 x 19.1 cm)

CPU: Supports Socket A (462 pins) for

AMDAthlonTM / AthlonTM XP/ DuronTM processor

Chipsets: North Bridge: VIA KM266, FSB@200/266 MHz, AGP 4X

South Bridge: VIA VT8235, supports USB 2.0, ATA 133

Memory: 2 DDR DIMM slots: DDR1 and DDR2

PC1600 (DDR200) / PC2100 (DDR266), Max. 2GB

IDE: IDE1: ATA 133 / Ultra DMA Mode 6;

IDE2: ATA 133 / Ultra DMA Mode 6;

Can connect up to 4 IDE devices

Floppy Port: Supports 2 floppy disk drives

Audio: 2 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing;

Chassis temperature sensing;

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 1);

Voltage monitoring: +12V, +5V, +3V, Vcore;

CPU fan tachometer; Chassis fan tachometer

PCI slots: 2 slots with PCI Specification 2.2

AGP slot: 1 universal AGP slot, supports 3.3V/1.5V, 4X/2X/1X AGP card

AMR slot: 1 slot, supports AMR modem card

USB 2.0: 4 default USB 2.0 ports and 1 extra set of header for two

additional USB 2.0 ports upgrade (see CAUTION 2)

ASRock I/OTM:PS/2: 1 keyboard port / 1 mouse port;

1 RJ 45 port; 4 rear default USB 2.0 ports;

1 VGA port; 1 parallel port: ECP/EPP support;

Audio Jack: Line Out / Line In / Microphone + Game port

BIOS: AMI legal BIOS; Supports “Plug and Play”;

ACPI 1.1 compliance wake up events;

SMBIOS 2.3.1 support;

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 3)

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

CAUTION!

1. While CPU overheat is detected, the system will automati-

cally shutdown. Please check if the CPU fan on the

motherboard functions properly before you resume the

system. To improve heat dissipation, remember to spray

thermal grease between the CPU and the heatsink when

you install the PC system.

2. Power Management for USB 2.0 works fine under

Microsoft®Windows®XP. It may not work properly under

Microsoft®Windows®98/ME/2000. Please refer to

Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

3. Although K7VM2 offers stepless control, it is not

recommended to perform over clocking. When the CPU

frequency of K7VM2 is set to perform over clocking,

other clocks, such as PCI clock, AGP clock, and Memory

clock will also be overclocked proportionally.

Frequencies other than the recommended CPU bus

frequencies may cause the instability of the system or

damage the CPU.

PCI 2

PCI 1

2MB

BIOS USB45

IR1

K7VM2

SPEAKER1

FLOPPY1

CHA_FAN1

ATXPWR1

IDE1 IDE2

ATA133

USB 2.0

REV. 3.00

Super

I/O

AGP1

CPU_FAN1

AUDIO1

Mic

GAME AUDIO1

USB 2.0

Ports

LAN

Mic in

Line out

GAME AUDIO1

PARALLEL PORT

PS/2

Mouse

PS/2

Keyboard

VGA

Line

Line in

USB 2.0

Ports

FSB_SEL1

VIA

VT8235

VIA

KM266

Chipset

PS2_USB_PWR1

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

CLRCMOS2

CMOS

Battery

HDLED RST

PLED PWRBTN

PANEL 1

JR1 JL1

FID0

FID1

FID2

FID3

AMR1

CLRCMOS1

LAN

PHY

AUDIO

CODEC

COM1

19.1cm (7.5 in)

24.4cm (9.6 in)

12 45637

1617

192021

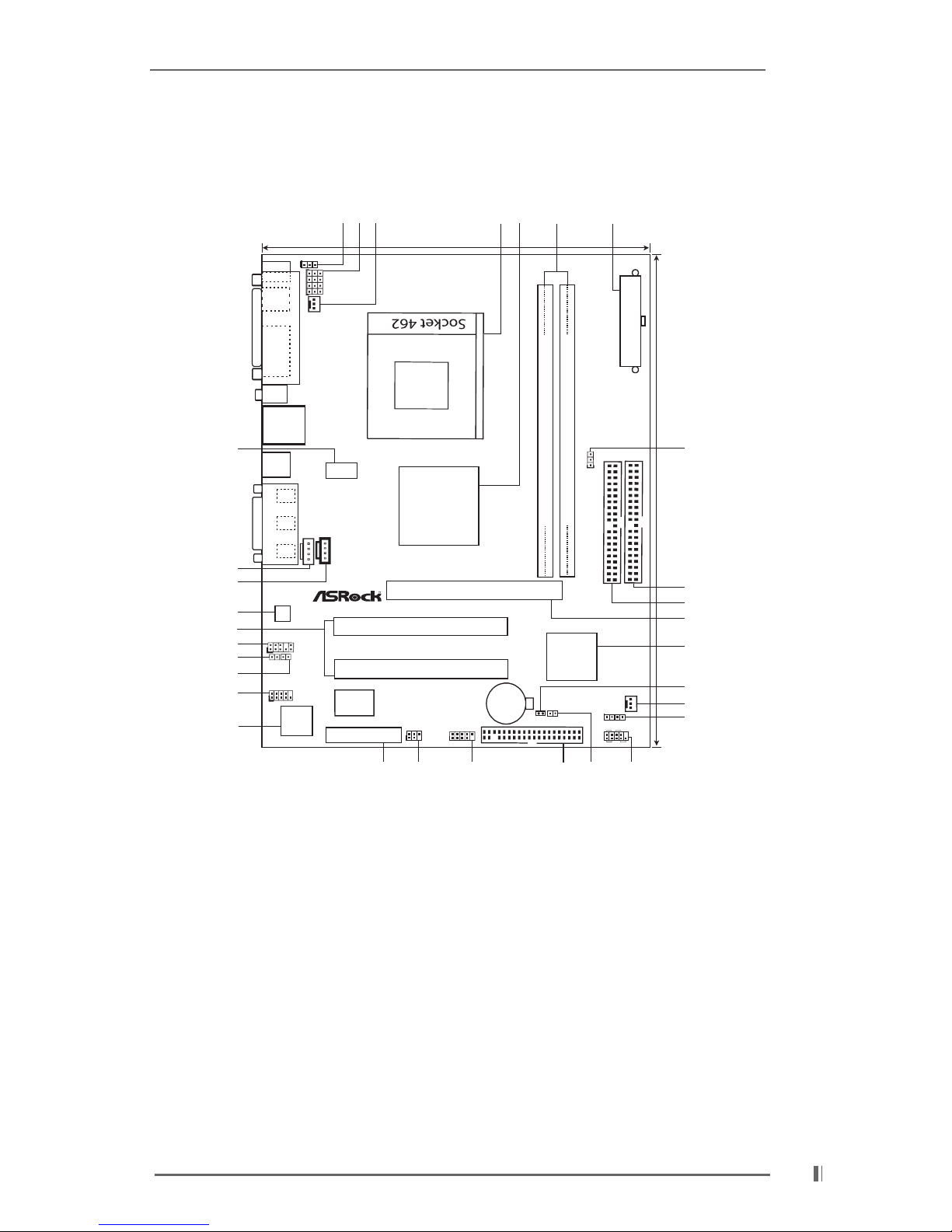

1.3 Motherboard Layout

1 PS2_USB_PWR1 jumper 2 FID Jumpers (FID0, FID1, FID2, FID3)

3 CPU fan connector (CPU_FAN1) 4 CPU socket

5 North Bridge controller 6 184-pin DDR DIMM slots (DDR 1- 2)

7 ATX power connector (ATXPWR1) 8 FSB select jumpers (FSB_SEL1)

9 Secondary IDE connector (IDE2, Black) 10 Primary IDE connector (IDE1, Blue)

11 AGP slot (AGP1) 12 South Bridge controller

13 Clear CMOS (CLRCMOS1, solder points) 14 Chassis fan connector (CHA_FAN1)

15 External speaker connector (SPEAKER 1) 16 System panel connector (PANEL1)

17 Clear CMOS (CLRCMOS2, 2-pin jumper) 18 Floppy connector (FLOPPY1)

19 USB 2.0 header (USB45, Blue) 20 Infrared module connector (IR1)

21 AMR slot (AMR1) 22 Flash Memory

23 Serial port connector (COM1) 24 JL1 jumper

25 JR1 jumper 26 Front panel audio connector (AUDIO1)

27 PCI slots (PCI 1- 2) 28 AUDIO CODEC

29 Internal audio connector: CD1 (Black) 30 Internal audio connector: AUX1 (White)

31 LAN PHY

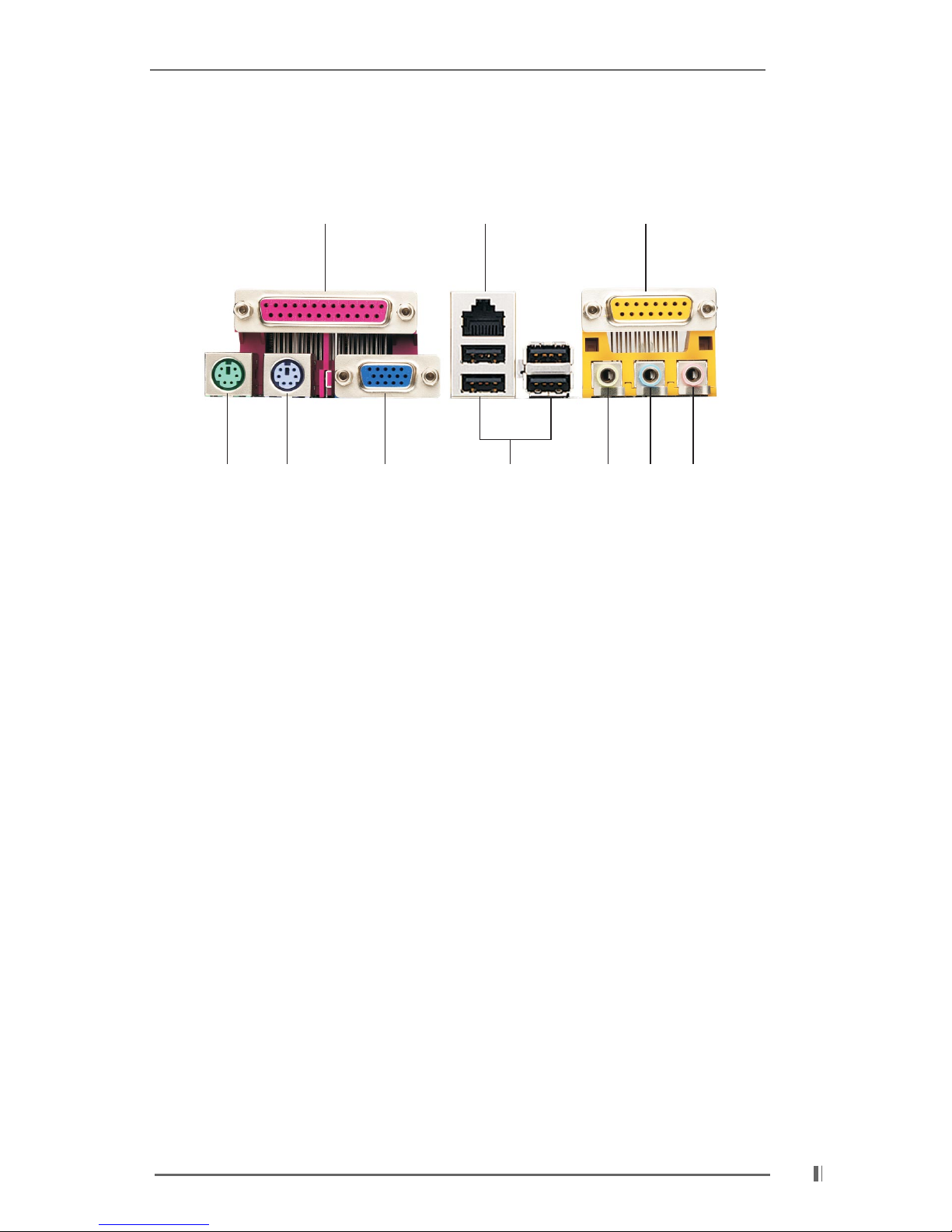

1.4 ASRock I/OTM

1 Parallel port 2 RJ-45 port

3 Game port 4 Microphone (Pink)

5 Line In (Light Blue) 6 Line Out (Lime)

7 USB 2.0 ports 8 VGA port

9 PS/2 keyboard port (Purple) 10 PS/2 mouse port (Green)

11 23

1098 765

Chapter 2 Installation

K7VM2 is a Micro ATX form factor (9.6" x 7.5", 24.4 x 19.1 cm) motherboard. Before

you install the motherboard, study the configuration of your chassis to ensure that

the motherboard fits into it.

Make sure to unplug the power cord before installing or

removing the motherboard. Failure to do so may cause physical

injuries to you and damages to motherboard components.

2.1 Screw Holes

Place screws into the holes indicated by circles to secure the motherboard to the

chassis.

Do not over-tighten the screws! Doing so may damage the

motherboard.

2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure that the power

is switched off or the power cord is detached from the power supply.

Failure to do so may cause severe damage to the motherboard,

peripherals, and/or components.

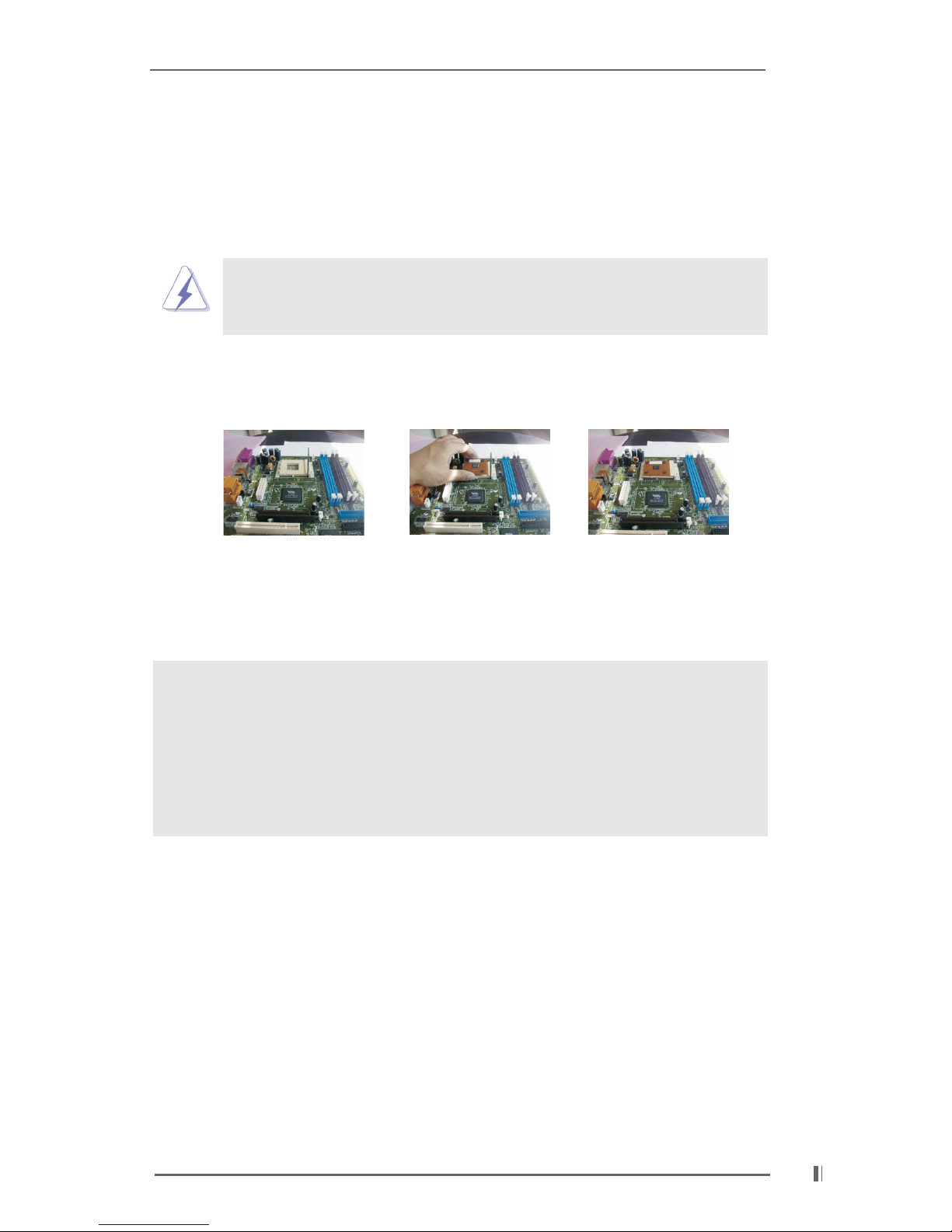

2.3 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90oangle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the

CPU into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

2.4 Installation of CPU Fan and Heatsink

AMDAthlonTM / AthlonTM XP/ DuronTM family CPUs with a speed of 600 MHz and

higher require larger heatsink and cooling fan. Thermal grease between the

CPU and the heatsink is also needed to improve heat transfer. Make sure that

the CPU and the heatsink are securely fastened and in good contact with

each other. For proper installation, please kindly refer to the instruction

manuals of vendors of CPU fan and heatsink.

Step 1 Step 2, 3 Step 4

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK K10N7SLI Manuel utilisateur

ASROCK

ASROCK 890GX Pro3 Manuel utilisateur

ASROCK

ASROCK H310M-ITX/ac Manuel utilisateur

ASROCK

ASROCK H470 Steel Legend Manuel utilisateur

ASROCK

ASROCK G41M-GS3 Manuel utilisateur

ASROCK

ASROCK H81TM-ITX R2.0 Manuel utilisateur

ASROCK

ASROCK X58 EXTREME - Manuel utilisateur

ASROCK

ASROCK 939A785GMH 128M - V1.0 Manuel utilisateur

ASROCK

ASROCK Z87 Extreme4 Manuel utilisateur

ASROCK

ASROCK G965M-S Manuel utilisateur

ASROCK

ASROCK IMB-A1300 Manuel de service

ASROCK

ASROCK X399 Gaming Manuel utilisateur

ASROCK

ASROCK GENOA2D24G-2L+ Manuel utilisateur

ASROCK

ASROCK IMB-150 Manuel de service

ASROCK

ASROCK K10N78M PRO Manuel utilisateur

ASROCK

ASROCK 890GX EXTREME4 Manuel utilisateur

ASROCK

ASROCK H61M-GS Manuel utilisateur

ASROCK

ASROCK 970M Pro3 Manuel utilisateur

ASROCK

ASROCK H61M-VG3 Manuel utilisateur

ASROCK

ASROCK Z370 Extreme4 Manuel utilisateur

ASROCK

ASROCK IMB-198 Manuel utilisateur

ASROCK

ASROCK PENRYN1600SLI-110DB Manuel utilisateur

ASROCK

ASROCK PHANTOM GAMING B650I LIGHTNING WiFi Manuel utilisateur

ASROCK

ASROCK H110M-HDVP Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
