IMB-1001

User Manual

Version 1.0

Published April 2019

Version 1.0

Published April 2019

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

CAUTION:

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Contents

1 Introduction ....................................................... 5

1.1 Package Contents ......................................................... 5

1.2 Specications................................................................. 6

1.3 Motherboard Layout....................................................... 8

1.4 I/O Panel........................................................................ 10

2 Installation ......................................................... 11

2.1 Screw Holes................................................................... 11

2.2 Pre-installation Precautions ........................................... 11

2.3 Installation of Memory Modules (SO-DIMM).................. 12

2.4 Expansion Slot............................................................... 13

2.5 Jumpers Setup............................................................... 14

2.6 Onboard Headers and Connectors................................ 17

3 UEFI SETUP UTILITY......................................... 23

3.1 Introduction .................................................................... 23

3.1.1 UEFI Menu Bar .................................................... 23

3.1.2 Navigation Keys ................................................... 24

3.2 Main Screen................................................................... 24

3.3 Advanced Screen........................................................... 25

3.3.1 CPU Conguration ............................................... 26

3.3.2 Chipset Conguration........................................... 27

3.3.3 Storage Conguration .......................................... 29

3.3.4 Super IO Conguration ........................................ 30

3.3.5 ACPI Conguration............................................... 31

3.3.6 USB Conguration ............................................... 32

3.3.7 Trusted Computing............................................... 33

3.4 Hardware Health Event Monitoring Screen ................... 34

3.5 Security Screen ............................................................. 35

3.6 Boot Screen ................................................................... 36

3.7 Exit Screen .................................................................... 38

4 Software Support .............................................. 39

4.1 Install Operating System................................................ 39

4.2 Support CD Information ................................................. 39

4.2.1 Running Support CD............................................ 39

4.2.2 Drivers Menu........................................................ 39

4.2.3 Utilities Menu........................................................ 39

4.2.4 Contact Information.............................................. 39

Chapter 1: Introduction

Thank you for purchasing ASRock IMB-1001 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration

guide to BIOS setup and information of the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock IMB-1001 Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock IMB-1001 Driver CD

ASRock IMB-1001 Jumper Setting Instruction

1 x I/O Panel Shield

1.2 Specications

Form

Factor Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor

System

CPU Intel®Celeron®Processor J1900, QC, 2.00GHz,

10W

Chipset SoC

BIOS UEFI

Expansion

Slot

PCIe 1 x PCIe x1 slot

Mini-PCIe 1 x Full/Half size with PCIe x1 and USB 2.0

mSATA 0

M.2 1 x M.2 (Key M, 2242/2260/2280) with shared

SATA2 for SSD

Memory

Technology Single Channel DDR3L 1333 MHz

Max. 8GB

Socket 1 x SO-DIMM

Graphics

Controller Integrated Intel®Gen7 Intel®Graphics DX 11,

OGL3.2

VGA Supports max resolution up to 1920 x

1200@60Hz

DVI N/A

LVDS Dual Channel 24-bit, max resolution up to 1920

x 1200@60Hz

HDMI Supports max resolution up to 1920 x 1200

DisplayPort N/A

MultiDisplay Dual Display

Ethernet

Ethernet 10/100/1000 Mbps

Controller 2 x Realtek RTL8111G

Connector 2 x RJ-45

Rear I/O

VGA 1

DVI N/A

HDMI 1

DisplayPort N/A

Ethernet 2

USB 3 x USB 2.0, 1 x USB3.1

Audio 2 (Mic-in, Line-out)

Serial N/A

PS/2 N/A

Internal

Connector

USB 5 x USB 2.0 (2 x header, 1 x TypeA)

LVDS/

Inverter 1/1

VGA 1

Serial 5 x COM (RS-232), 1 x COM (RS-

232/422/485)

SATA 2 x SATA2, one is shared with M.2 Key M

Parallel 1 (shared with GPIO)

GPIO 8-bit 8 x GPI, 8 x GPO

SATA PWR

Output Con 1

Speaker

Header 1

TPM 1 x Header

Watchdog

Timer

Output Output from super I/O to drag RESETCON#

Interval 256 Segments, 0,1,2…255 Sec/Min

Power

Requirements

Input PWR 12V DC-in (DC Jack / 4-pin DC-in PWR

Con)

Power On

AT/ATX Supported

-AT : Directly PWR on as power input ready

-ATX : Press button to PWR on after power

input ready

Environment

Temperature 0ºC – 60ºC

Storage

Temp -40ºC – 85ºC

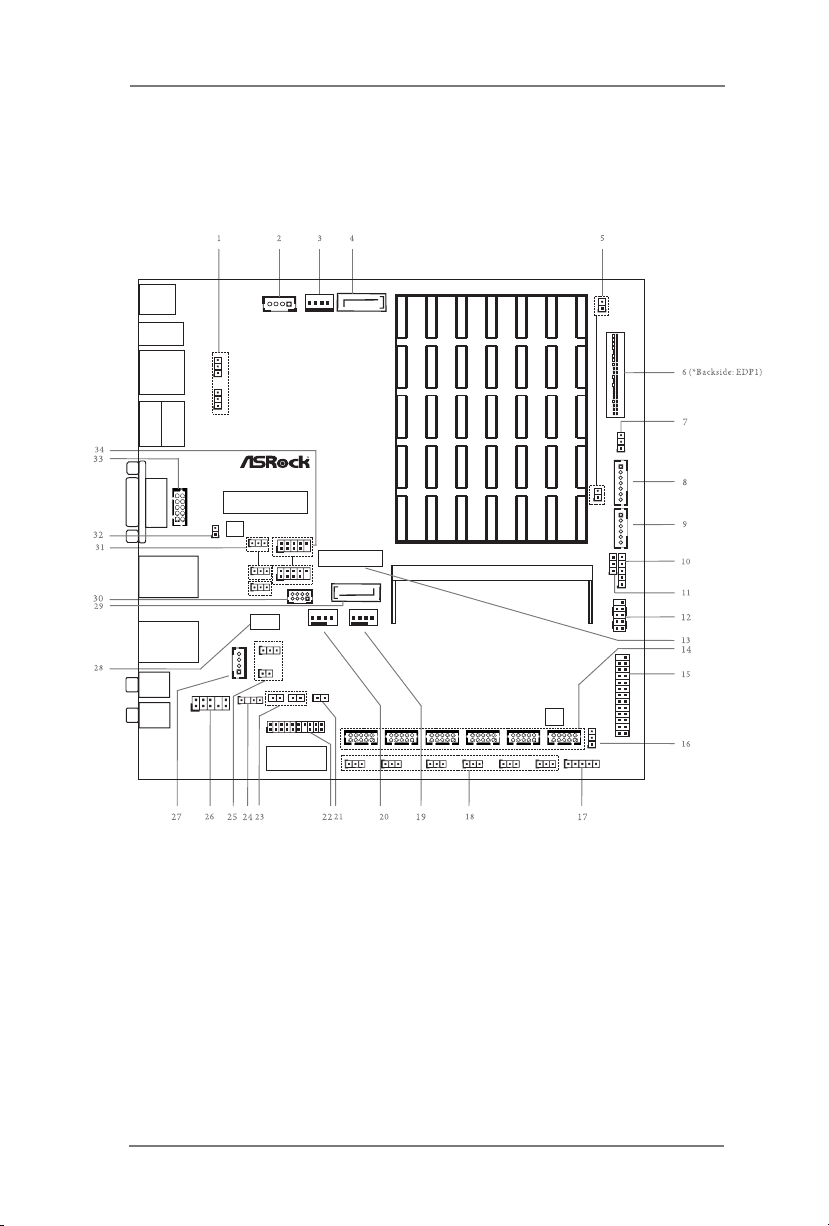

1.3 Motherboard Layout

Mic In

BIOS

Chip

USB2_4_5

HD_AUDIO1

IMB-1001

SATA2_1

CPU_FAN1

PWR_BAT1

PCIE1

DC_JACK1

mini-PCIe

LPC1

PS2_KB_MS1

VGA2

CLRMOS1

SPEAKER1

LAN1

VGA1

Line Out

HDMI1

BLT_VOL1

HDLED RESET

PLED PWRBTN

PANEL1

Ci1

SATA_PWR1

BLT_PWR1

PNL_PWR1

BKT_PWR1

Industrial

SPDIF1

DDR3_A1 (Support DDR3L Only)

M.2 KEY M

USB 2.0

: USB3

USB 2.0

T: USB1

B: USB0

LAN2

LVDS1

BLT_PWM1

LPT_GPIO1

CHA_FAN1

CI2

COM1

JGPIO_SET1

BL1

BL2

FROM_UPS1

USB2_PWR0_1

USB3_PWR1

USB2_PWR4_5

USB2_PWR6_7

USB2_6_7

JGPIO_PWR1

PWR_COM1

PWR_COM2

PWR_COM3

PWR_COM4

PWR_COM5

PWR_COM6

COM2

COM3

COM4

COM5

COM6

CLRMOS2

USB 3.0

: USB0

BUZZ1

USB2_PWR8

SATA2_2

USB2_8

SIO_AT1

1 : USB Power Setting Jumpers

(USB3_PWR1 (For

USB3_0_USB2_3

))

(USB2_PWR0_1 (For

USB2_0_1

))

2 : 4-pin DC-in PWR Connector (Input +12V) & UPS Module Power Output Connector

3 : SATA Power Output Connector

4 : SATA2 Connector (SATA2_1)

5 : BL1, BL2

6 :

LVDS Panel Connector

* eDP Connector (Optional) (on the Backside of PCB)

7 : Backlight Control Level (BLT_PWM1)

8 : Backlight Volume Control (BLT_VOL1)

9 :

Backlight Power Connector (BLT_PWR1)

10 : Panel Power Select (LCD_VCC) (PNL_PWR1)

11 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)

12 :

System Panel Header

13 :

M.2 KEY M (M2)

14 : Internal COM Port Headers

COM3 (RS232/422/485)

COM1, 2, 4, 5, 6 (RS232)

15 : Printer Port / GPIO Header (LPT_GPIO1)

16 : Digital Input / Output Default Value Setting (JGPIO_SET1)

17 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)

18 : COM Port Pin9 PWR Setting Jumpers

PWR_COM1 ~ 6 (For COM Port1 ~ 6)

19 :

4-Pin CPU FAN Connector (+12V)

20 :

4-Pin Chassis FAN Connector (+12V) (Optional)

21 : SIO_AT1

22 : LPC Header

23 : Chassis Intrusion Headers (CI1, CI2)

24 : SPDIF Header

25 : Clear CMOS Headers (CLRMOS1, CLRMOS2)

26 :

Front Panel Audio Header

27 : 3W Audio AMP Output Wafer

28 : USB2.Port (USB2_8)

29 : SATA2 Connector (SATA2_2) (Shared with

M.2 KEY M (M2)

)

30 :

PS2 Keyboard/Mouse Header

31 : USB Power Setting Jumpers

(USB2_PWR4_5 (For

USB2_4_5

))

(USB2_PWR6_7 (For

USB2_6_7

))

(USB2_PWR8 (For

USB2_8

))

32 : PWR_BAT1

33 : VGA Header (VGA2)

34 : USB2.0 Connectors (USB2_4_5, USB2_6_7)

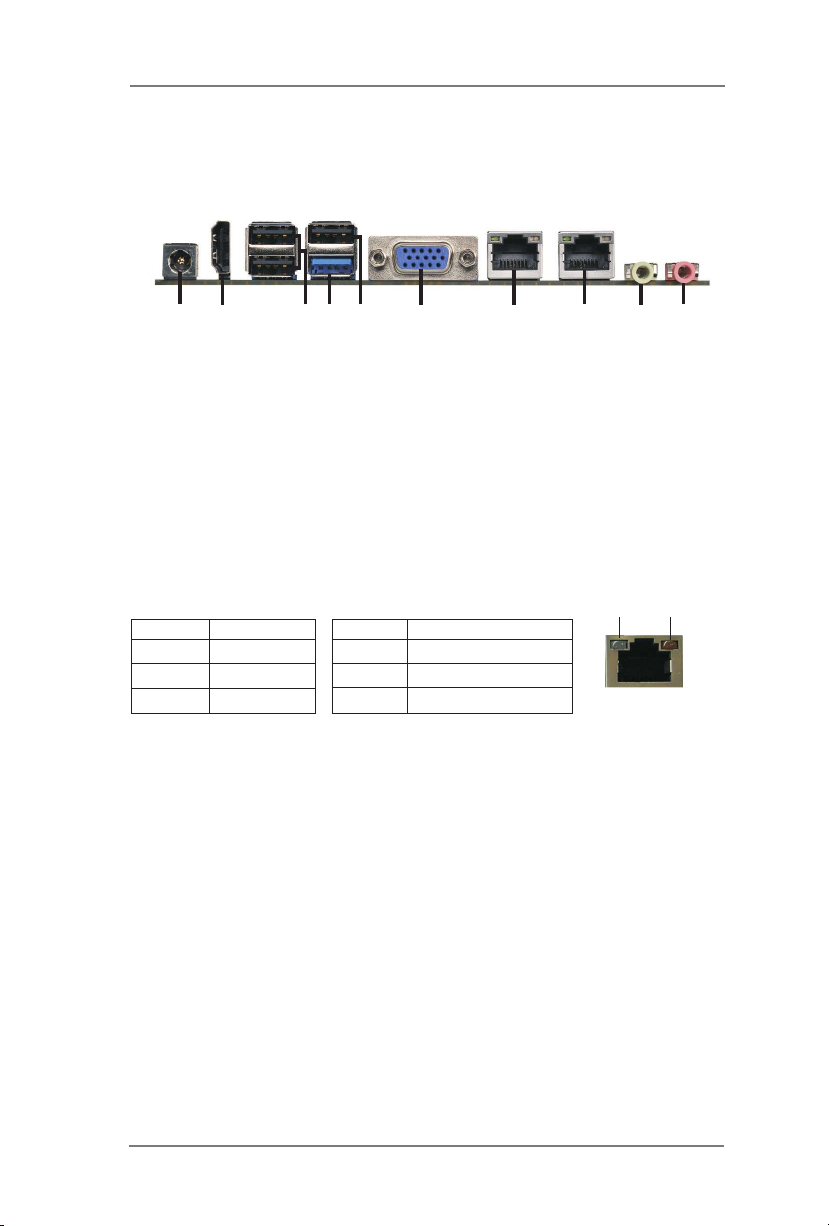

1.4 I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 DC Jack

2 HDMI Port (HDMI1)

3 USB 2.0 Ports (USB2_0_1)

4 USB 3.0 Port (USB3_0)

5 USB 2.0 Port (USB2_3)

6 VGA Port (VGA1)

7 LAN RJ-45 Port (LAN1)*

8 LAN RJ-45 Port (LAN2)*

9 Line out (Green)

10 Microphone (Pink)

ACT/LINK

LED

SPEED

LED

LAN Port

124

358

710

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK FM2A75M-ITX R2.0 Manuel utilisateur

ASROCK

ASROCK G41M-VGS3 Guide d'installation

ASROCK

ASROCK 939S56-M Manuel utilisateur

ASROCK

ASROCK IMB-R1000 Manuel utilisateur

ASROCK

ASROCK IMB-1005 Manuel de service

ASROCK

ASROCK Z77M Manuel utilisateur

ASROCK

ASROCK Z77 Extreme4 Manuel utilisateur

ASROCK

ASROCK EPC612D8A-TB Manuel utilisateur

ASROCK

ASROCK B360M-HDV Manuel utilisateur

ASROCK

ASROCK ION 330 - V1.1 Manuel utilisateur

ASROCK

ASROCK 4CORE1600-DVI - V1.0 Manuel utilisateur

ASROCK

ASROCK Z370 Killer SLI Manuel utilisateur

ASROCK

ASROCK AD410PV - V1.0 Manuel utilisateur

ASROCK

ASROCK M3A785GXH/128M Manuel utilisateur

ASROCK

ASROCK H81M-G Manuel utilisateur

ASROCK

ASROCK P43D1600TWINS Manuel utilisateur

ASROCK

ASROCK Z77 Pro4 Manuel utilisateur

ASROCK

ASROCK ALIVEXFIRE-ESATA2 R3.0 - Manuel utilisateur

ASROCK

ASROCK H61M-PS4 Manuel utilisateur

ASROCK

ASROCK P67 PRO3 - Manuel utilisateur

ASROCK

ASROCK 4COREDUAL-SATA2 - 11-2007 Manuel utilisateur

ASROCK

ASROCK B75M-DGS Manuel utilisateur

ASROCK

ASROCK X79 Extreme6 Manuel utilisateur

ASROCK

ASROCK H110M-I Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
