ASROCK IMB-R1000 Manuel utilisateur

IMB-R1000

User Manual

Version 1.0

Published July 2019

Version 1.0

Published July 2019

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRockInd Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility

for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRockInd does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRockInd, its directors, ocers, employees, or agents be liable

for any indirect, special, incidental, or consequential damages (including damages

for loss of prots, loss of business, loss of data, interruption of business and the

like), even if ASRockInd has been advised of the possibility of such damages arising

from any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRockInd Website: http://www.asrockind.com

Contents

1. Introduction ................................................................ 5

1.1 Package Contents.......................................................... 5

 1.2 Specications ................................................................. 6

1.3 Motherboard Layout ..................................................... 7

1.4 I/O Panel ...................................................................... 9

2. Installation .................................................................. 11

2.1 Installing Memory Modules (DIMM) ............................... 12

2.2 Expansion Slot ............................................................... 13

2.3 Jumpers Setup ............................................................... 15

2.4 Onboard Headers and Connectors ................................ 18

3. UEFI SETUP UTILITY.................................................. 23

3.1 Introduction .................................................................... 23

3.1.1 UEFI Menu Bar ..................................................... 23

3.1.2 Navigation Keys .................................................... 24

3.2 Main Screen ................................................................... 25

3.3 Advanced Screen........................................................... 26

  3.3.1CPUConguration ............................................... 27

  3.3.2ChipsetConguration........................................... 28

  3.3.3StorageConguration .......................................... 30

  3.3.4SuperIOConguration ........................................ 31

  3.3.5ACPIConguration............................................... 32

  3.3.6USBConguration ............................................... 33

3.3.7 Trusted Computing............................................... 34

3.4 Hardware Health Event Monitoring Screen.................... 35

3.5 Security Screen.............................................................. 36

3.6 Boot Screen ................................................................... 37

3.7 Exit Screen..................................................................... 39

4. Software Support ....................................................... 40

4.1 Install Operating System ................................................ 40

4.2 Support CD Information ................................................. 40

4.2.1 Running The Support CD..................................... 40

4.2.2 Drivers Menu........................................................ 40

4.2.3 Utilities Menu........................................................ 40

4.2.4 Contact Information.............................................. 40

 4.3 AMDEyenityMultidisplayTechnologySetting.............. 41

1. Introduction

Thank you for purchasing ASRockInd IMB-R1000 motherboard, a reliable

motherboard produced under ASRockInd’s consistently stringent quality

control. It delivers excellent performance with robust design conforming to

ASRockInd’s commitment to quality and endurance.

In this manual, chapter 1 and 2 contains the introduction of the mother-

board and step-by-step hardware installation guide. Chapter 3 and 4 con-

tainsthecongurationguideofUEFIsetupandinformationoftheSupport

CD.

BecausethemotherboardspecicationsandtheBIOSsoftware

might be updated, the content of this manual will be subject to

changewithoutnotice.Incaseanymodicationsofthismanual

occur, the updated version will be available on ASRockInd web-

sitewithoutfurthernotice.YoumayndthelatestCPUsupport

lists on ASRockInd website as well.

ASRockInd website https://www.asrockind.com/

If you require technical support related to this motherboard,

pleasevisitourwebsiteforspecicinformationaboutthemodel

you are using.

https://www.asrockind.com/support/index.asp

1.1 Package Contents

ASRockInd IMB-R1000 Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRockInd IMB-R1000 Quick Installation Guide

ASRockInd IMB-R1000 Support CD

1 x I/O Panel Shield

1.2 Specications

Form

Factor Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor

System

CPU

AMD Ryzen FP5 BGA package, 14nm

process, with CPU option 12W~25W (IMB-

R1000M(R1606G), R1000V(R1505G))

Chipset SoC

Expansion

Slot

PCIe 1 x PCIe x 4

Mini-PCIe 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0

M.2

1 x M.2 (Key E, 2230) with PCIe x1 and USB2.0

for Wireless

1 x M.2 (Key M, 2242/2260/2280) with SATA for

SSD

Memory

Technology Dual Channel DDR4 2400 MT/s

Max. 32 GB

Socket 2 x SO-DIMM

Graphics

VGA Supports max resolution up to 1920x1200

DVI N/A

LVDS Dual Channel 24-bit, max resolution up to

1920x1200@60Hz (Shared with DP1)

HDMI N/A

DisplayPort Max resolution up to 3840x2160@60Hz

MultiDisplay TripleDisplay(SupportAMDEyenity

multidisplay technology)

eDP Max resolution up to 3840x2160@60Hz

Ethernet Ethernet 10/100/1000 Mbps

Controller 2 x R8111G

Rear I/O

VGA N/A

DVI N/A

HDMI N/A

DisplayPort 3 x DP 1.3 (Support DP++)

Ethernet 2

USB 2 x USB3.1 (Gen 2), 2 x USB2.0

Audio 2 (Mic-in, Line-out)

Serial 2 x COM (RS-232/422/485)

* For detailed product information, please visit our website: http://www.asrockind.com

Internal

Connector

USB 4 x USB2.0, 1 x USB 2.0 (Type A)

LVDS/

inverter 1

eDP 1 (Shared with DP0)

VGA 1 (Shared with DP3)

Serial 4 x COM (RS-232, COM6 shared with

ccTalk)

SATA 2 x SATA3 (6.0Gb/s)

GPIO 8 x GPI, 8 x GPO (Shared with LPT)

SATA PWR

Output 1

Speaker

Header 1

LPT Header 1

ccTalk 1

Watchdog

Timer

Output From Super I/O to drag RESETCON#

Interval 256 Segments, 0, 1, 2, ...255sec

Power

Requirements

Input PWR

12V/19V~28V DC-in (DC Jack/ 4-pin ATX

PWR Con.)

*This Internal PWR connector connected

to DC_In Jack in design, and support same

PWR Level

Power On

AT/ATX Supported

AT: Directly PWR on as Power input ready

ATX: Press Button to PWR on after Power

input ready

Environment Operating

Temp 0ºC – 60ºC

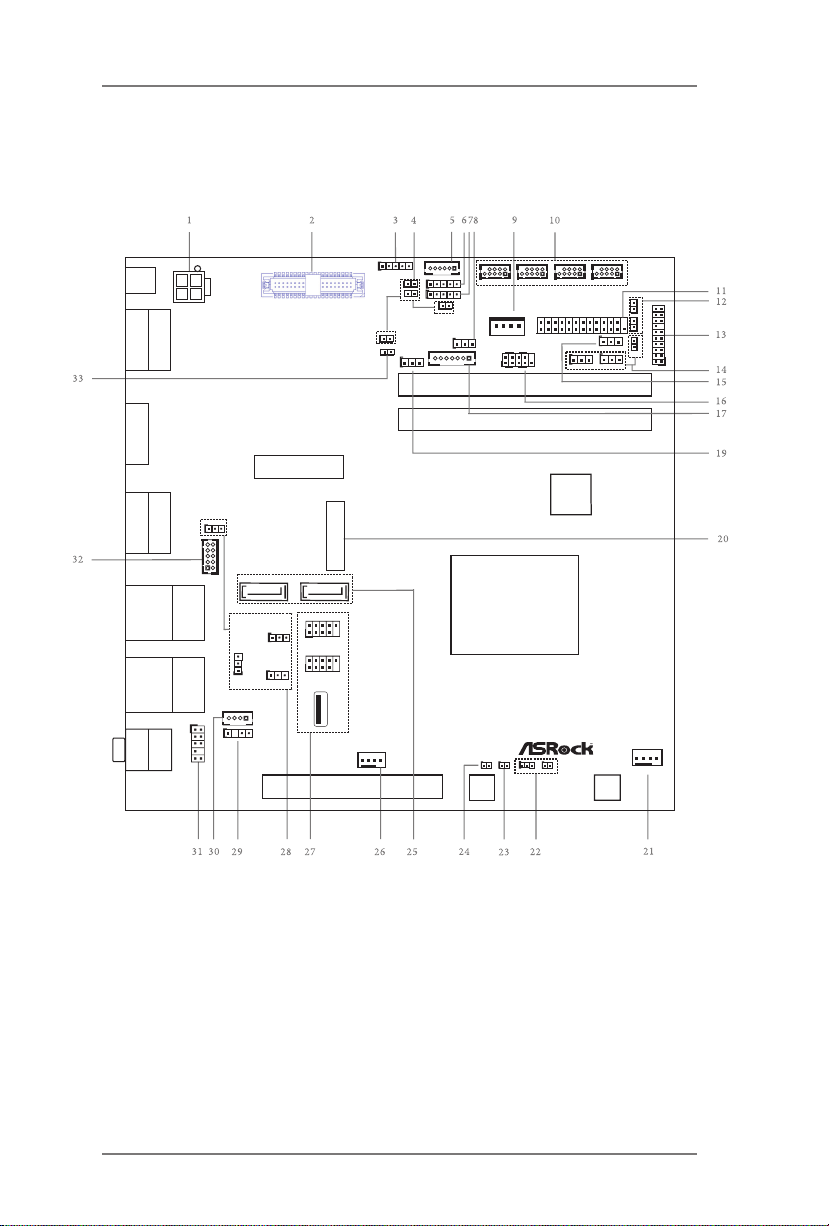

1.3 Motherboard Layout

PCIE1

HDLED RESET

PLED PWRBTN

PANEL1

Super

I/O

SATA3 _2

SATA3 _1

CLRCMOS2

CPU_FAN1

CI2 CI 1

Top:

LAN2

USB 2.0

T: USB2

B: USB3

LVDS1

BLT_PWR1

BLT_VOL1

BUZZ1

Line Out

Mic In

SPEAKER1

IMB-R1000

PNL_PWR1

LPC1

Industrial

BIOS

ROM

CHA_FAN1

LPT_GPIO1

USB3_PWR1

USB2H_PWR3

USB2H_2_3

CLRCMOS1

Top:

LAN1

USB 3.0

T: USB2

B: USB1

DP0

COM6

VGA1

DDR4_A1

SPDIF1

M.2 WiFi ( )M2_2

mini-PCIe

DC_JACK1

DP1

COM3

COM4

ATX1 2V1

COM5

COM1

COM2

DDR4_B1

HD_AUDIO1

USB2H_PWR2

USB2H_PWR1

PWR_BAT1

BUZZ2

SATA_PWR1

CC_TALK_OUT1

JGPIO_SET1

CC_TALK3

CC_TALK2

BLT_PWM1

JGPIO_PWR1

BL2

BL3

VGA_SEL1

BKT_PWR1

BL1

BL4

SIO_AT1

USB2H_0_1

USB2_3

DP3

1 : ATX Power Connector

2 : LVDS Panel Connector

* eDP Connector (on the Backside of PCB)

3 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)

4 : BL1, BL2

5 : Inverter Power Control Wafer (BLT_PWR1)

6 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)

7 : Panel Power Select (R_LVDD) (PNL_PWR1)

8 : Backlight Control Level (CON_LBKLT_CTL) (BLT_PWM1)

9 : SATA Power Output Connector

10 : COM Port Headers (COM1, 2, 5, 6) (RS232)

11 : Printer Port / GPIO Header (LPT_GPIO1)

12 : Chassis Intrusion Headers

(CI1, CI2)

13 : LPC Header

14 : CC_TALK_OUT1, CC_TALK2, CC_TALK3

15 :

Digital Input / Output Power Select (JGPIO_SET1)

16 :

System Panel Header

17 : Backlight & Amp Volume Control (BLT_VOL1)

19 : VGA_SEL1

20 :

Key-E

M.2 Socket

(M2_2)

21 :

CPU FAN Connector (+12V)

22 : Clear CMOS Headers (CLRCMOS1, CLRCMOS2)

23 : PWR_BAT1

24 : Buzzer (BUZZ2)

25 : SATA3 Connectors (SATA3_1, SATA3_2)

26 :

Chassis FAN Connector (+12V)

27 :

USB 2.0 Headers (

USB2H_0_1, USB2H_2_3

)

USB 2.0 Port (5VSB Only) (

USB2_3)

28 : USB Power Setting Jumpers

USB2H_PWR1 (For USB2H_0_1)

USB2H_PWR2 (For USB2H_2_3)

USB2H_PWR3 (For USB2H_2_3 on rear I/O)

USB3_PWR1 (For USB3_1_2 on rear I/O)

29 : SPDIF Header

30 : 3W Audio AMP Output Wafer

31 :

Front Panel Audio Header

32 : VGA Header

33 : ATX/AT Mode Jumper (SIO_AT1)

Back Siode :

Key-M

M.2 Socket

(M2)

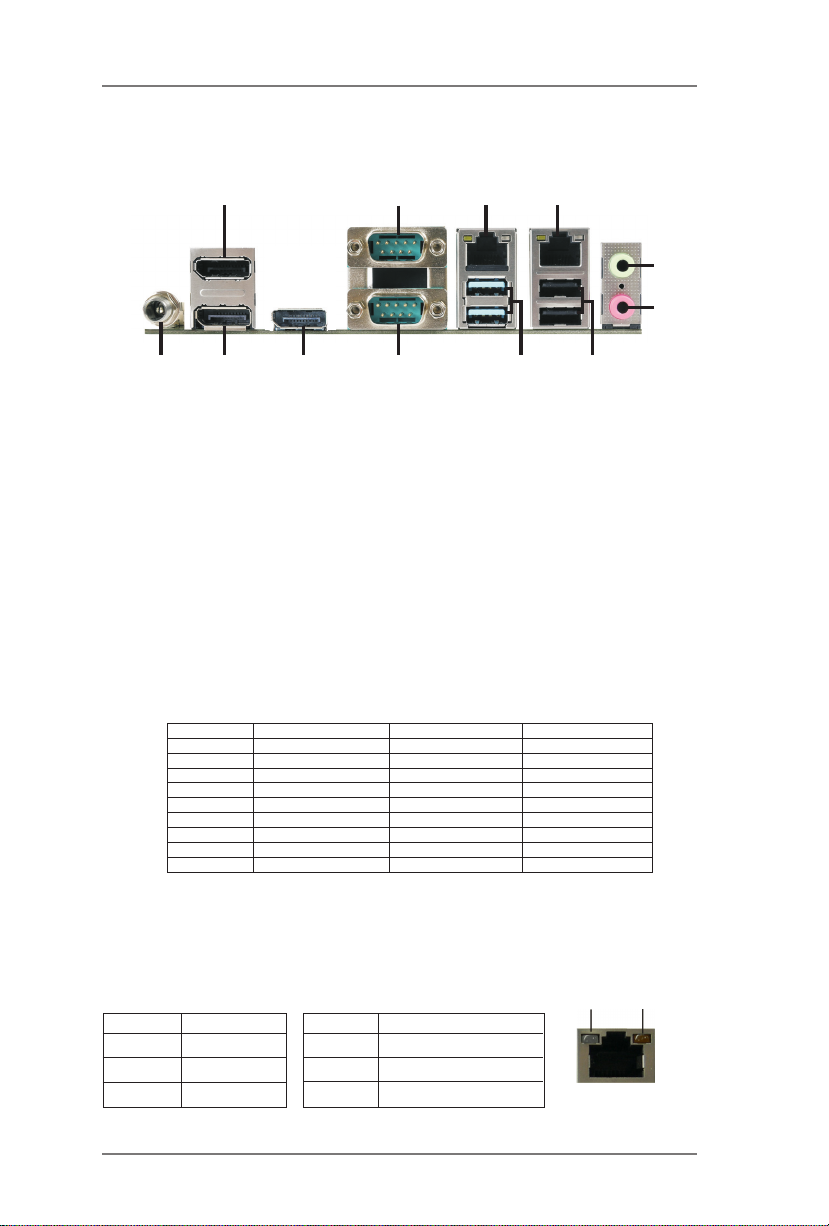

1.4 I/O Panel

1 DisplayPort (DP0)

2 Serial Port (COM3)*

3 LAN RJ-45 Port (LAN1)**

4 LAN RJ-45 Port (LAN2)**

5 Front Speaker (Lime)

6 Microphone (Pink)

7 USB 2.0 Ports (USB2H_2_3)

8 USB 3.0 Ports (USB3_1_2)

9 Serial Port (COM4)*

10 DisplayPort (DP3)

11 DisplayPort (DP1)

12 DC Jack (DC_JACK1)***

124

12 10

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

O󰀨NoLinkO󰀨10Mbpsconnection

Blinking Data Activity Yellow 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

* This motherboard supports RS232/422/485 on COM3, 4 ports. Please refer to below table for

thepindenition.Inaddition,COM3,4ports(RS232/422/485)canbeadjustedinBIOSsetup

utility>AdvancedScreen>SuperIOConguration.Youmayrefertopage31fordetails.

COM3, 4 Port Pin Denition

PIN RS232 RS422 RS485

1 DCD, Data Carrier Detect TX- RTX-

2 RXD, Receive Data RX+ N/A

3 TXD, Transmit Data TX+ RTX+

4 DTR, Data Terminal Ready RX- N/A

5 GND GND GND

6 DSR, Data Set Ready N/A N/A

7 RTS, Request To Send N/A N/A

8 CTS, Clear To Send N/A N/A

9 N/A N/A N/A

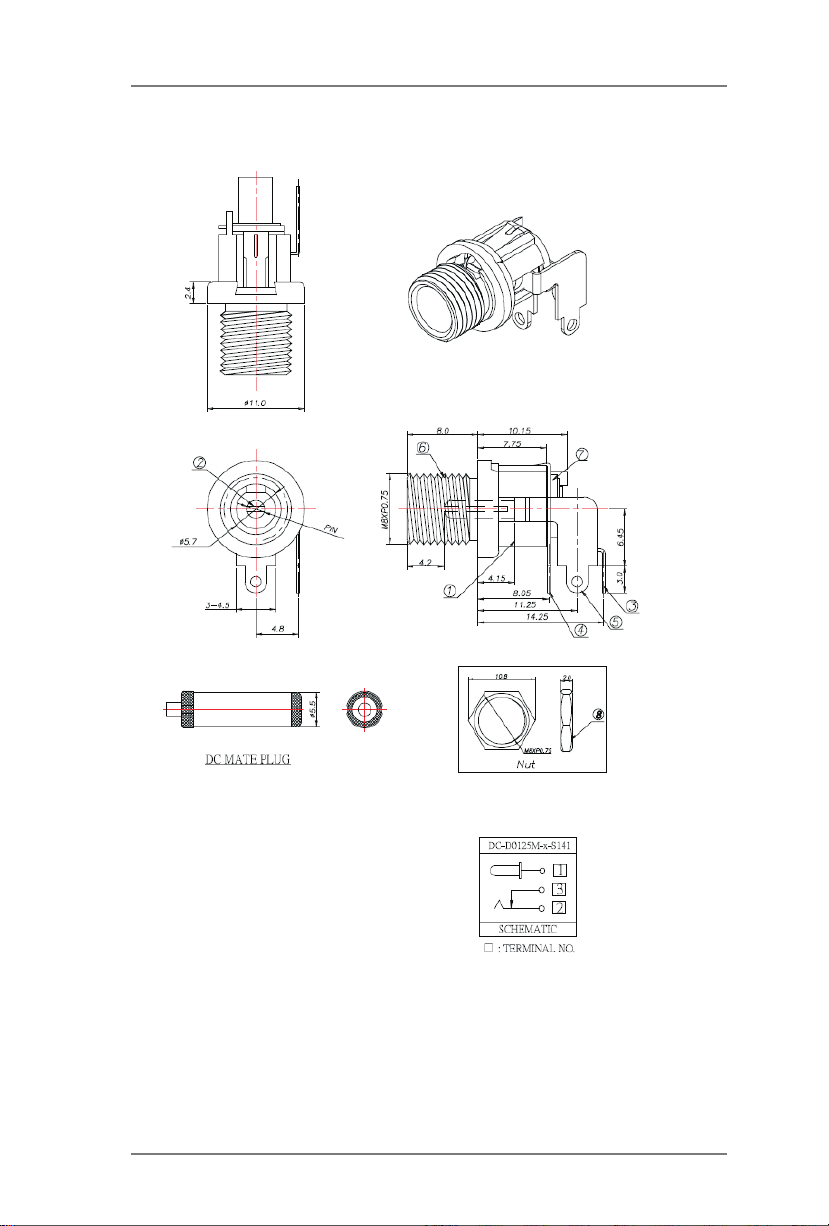

***PleaserefertobelowpicturesforDCjackspecications.

Autres manuels pour IMB-R1000

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK X58 Extreme3 Manuel utilisateur

ASROCK

ASROCK FM2A68M-DG3+ Manuel utilisateur

ASROCK

ASROCK P4I65PE-M Manuel utilisateur

ASROCK

ASROCK B650M PRO RS Manuel utilisateur

ASROCK

ASROCK CML-HDV/M.2 TPM Manuel utilisateur

ASROCK

ASROCK 990FX EXTREME3 Manuel utilisateur

ASROCK

ASROCK DN2800MT Manuel utilisateur

ASROCK

ASROCK EPC621D6U Manuel utilisateur

ASROCK

ASROCK Z68 Extreme4 Gen3 Manuel utilisateur

ASROCK

ASROCK Z97 Anniversary Manuel utilisateur

ASROCK

ASROCK Z170M-ITX/ac Manuel utilisateur

ASROCK

ASROCK GE PRO-HT R3.0 Manuel utilisateur

ASROCK

ASROCK ALIVENF5SLI-1394 Manuel utilisateur

ASROCK

ASROCK P4 COMBO Manuel utilisateur

ASROCK

ASROCK H87M Pro4 Manuel utilisateur

ASROCK

ASROCK J4105B-ITX Manuel utilisateur

ASROCK

ASROCK B660M-ITX/eDP Manuel utilisateur

ASROCK

ASROCK K10N780SLIX3-WIFI Manuel utilisateur

ASROCK

ASROCK FM2A88X-ITX Manuel utilisateur

ASROCK

ASROCK Z690 Extreme Manuel utilisateur

ASROCK

ASROCK FM2A75M Pro4 Manuel utilisateur

ASROCK

ASROCK K10N78FULLHD-HSLI - R2.0 Manuel utilisateur

ASROCK

ASROCK 970M Pro3 Manuel utilisateur

ASROCK

ASROCK Z270M-ITX/AC Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
