ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identica-

tion or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or tness for a particular purpose. In no event shall ASRock, its

directors, ofcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of prots, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published March 2013

2ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Motherboard

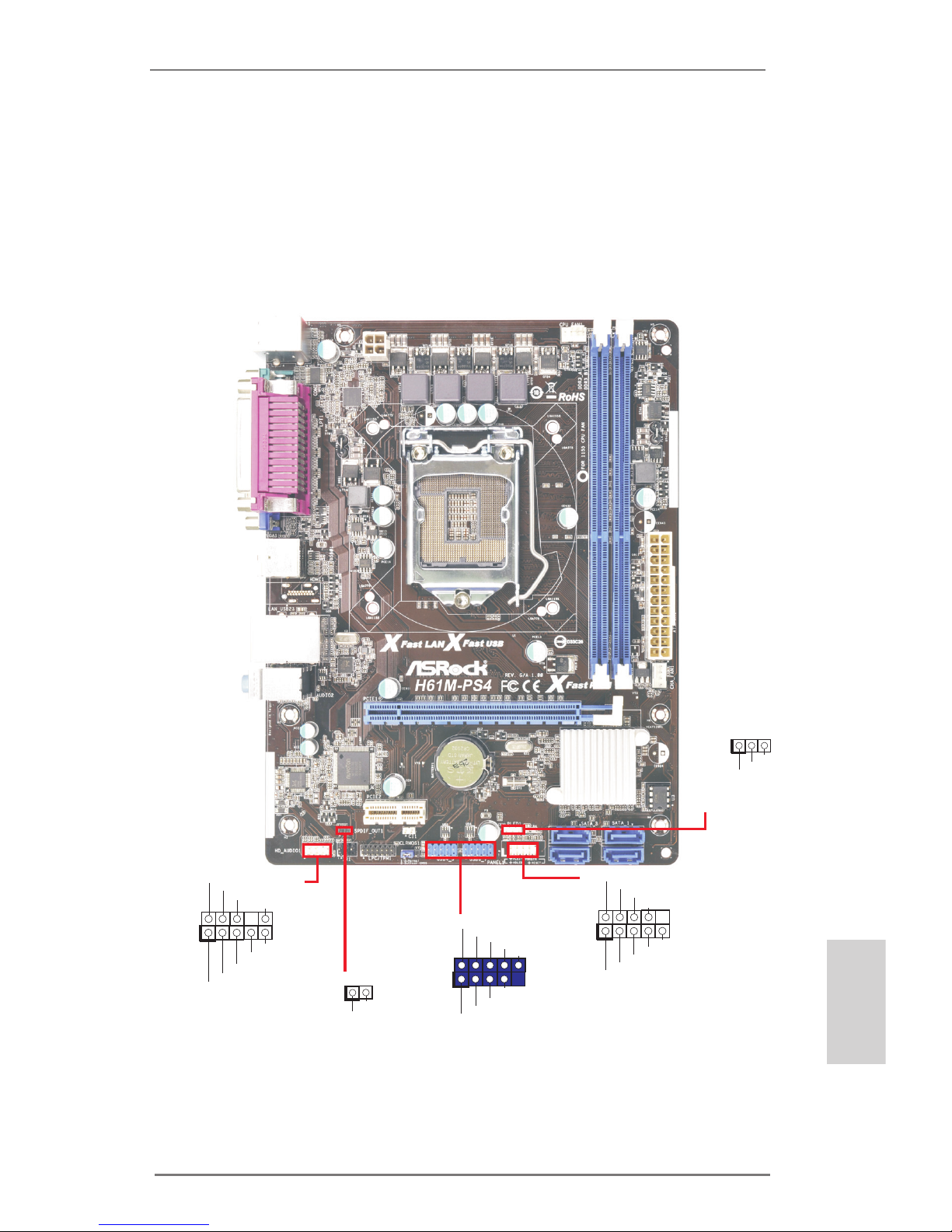

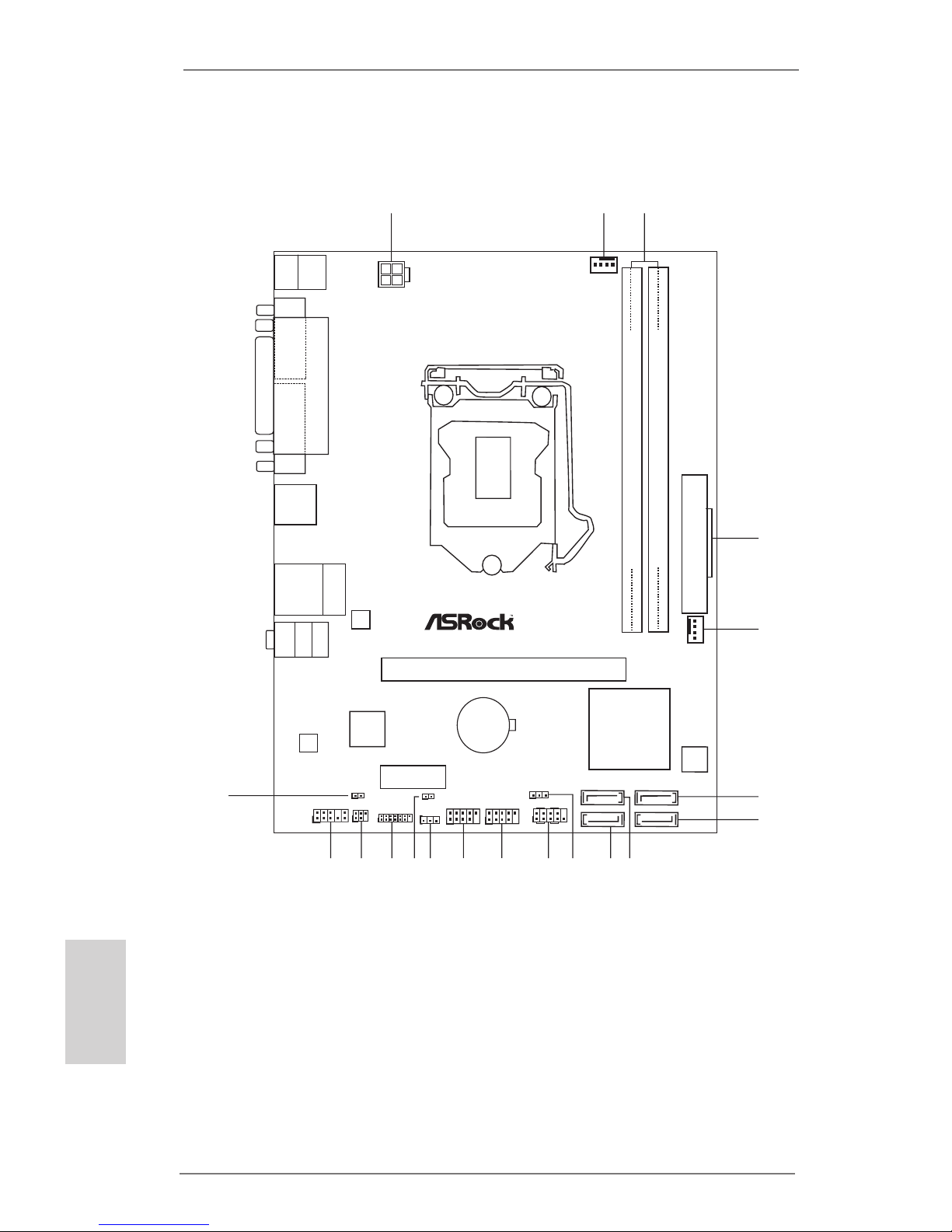

Motherboard Layout

English

1 ATX 12V Power Connector (ATX12V1) 10 Power LED Header (PLED1)

2 CPU Fan Connector (CPU_FAN1) 11 System Panel Header (PANEL1)

3 2 x 240-pin DDR3 DIMM Slots 12 USB 2.0 Header (USB6_7)

(Dual Channel: DDR3_A1, DDR3_B1) 13 USB 2.0 Header (USB4_5)

4 ATX Power Connector (ATXPWR1) 14 Clear CMOS Jumper (CLRCMOS1)

5 Chassis Fan Connector (CHA_FAN1) 15 Chassis Intrusion Header (CI1)

6 SATA2 Connector (SATA_1) 16 LPC / TPM Header (LPC/TPM1)

7 SATA2 Connector (SATA_0) 17 Infrared Module Header (IR1)

8 SATA2 Connector (SATA_3) 18 Front Panel Audio Header (HD_AUDIO1)

9 SATA2 Connector (SATA_2) 19 SPDIF Out Connector (SPDIF_OUT1)

* The parallel port (LPT1) and serial port (COM1) on the I/O panel are for H61M-PS4 only.

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

Intel

H61

PCIE1

AUDIO

CODEC

ATX12V1

USB6_7

HDLED RESET

PLED PWRBTN

PANEL1

CLRCMOS1

PLED1

CPU_FAN1

HD_AUDIO1

USB4_5

CMOS

BATTERY

PCIE2

LAN

CI1

XFast RAM

XFast USB

XFast LAN

RoHS

ATXPWR1

32Mb

BIOS

SATA_ 2 SATA_0

SATA_ 3 SATA_1

SPDIF_OUT1

IR1

LPC/TPM1

Super

I/O

CHA_FAN1

PS2

Keyboard

PS2

Mouse

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

Top:

RJ-45

USB 2.0

T: USB2

B: USB3

USB 2.0

T: USB0

B: USB1

PARALLEL PORT*

COM1* VGA1

123

14 13

ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Motherboard

English

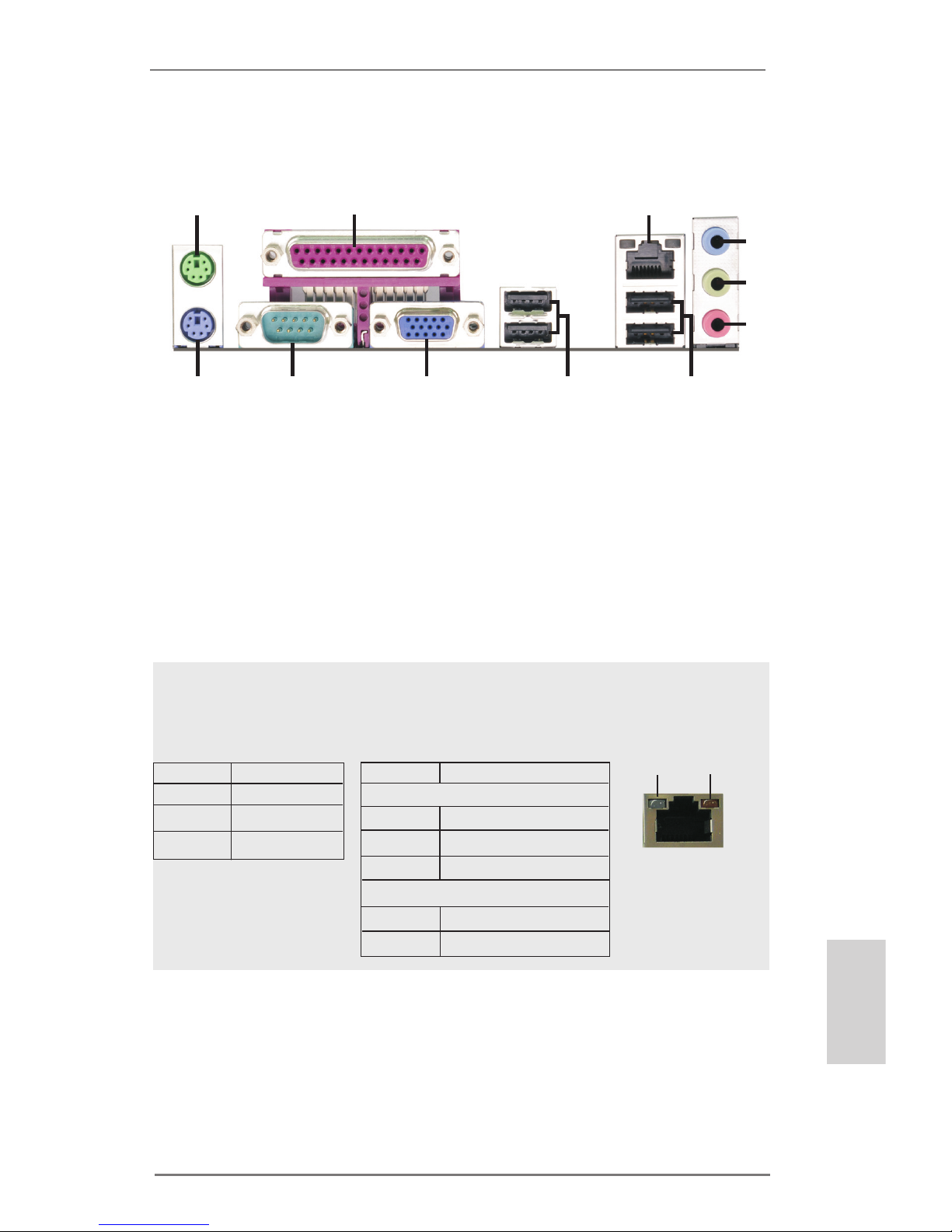

I/O Panel

1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB23)

2 Parallel Port (LPT1)* 8 USB 2.0 Ports (USB01)

3 LAN RJ-45 Port 9 D-Sub Port (VGA1)

4 Line In (Light Blue) 10 Serial Port (COM1)*

5 Front Speaker (Lime) 11 PS/2 Keyboard Port (Purple)

6 Microphone (Pink)

* The parallel port (LPT1) and serial port (COM1) on the I/O panel are for H61M-PS4 only.

12*

10*11 8 7

There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link H61M-PS4 / H61M-VG4:

Blinking Data Activity Off 10Mbps connection

On Link Orange 100Mbps connection

Green 1Gbps connection

H61M-VS4:

Off 10Mbps connection

On 100Mbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

4ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Motherboard

English

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will nd “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®8 / 7 / VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Conguration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Motherboard

English

1. Introduction

Thank you for purchasing ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 moth-

erboard, a reliable motherboard produced under ASRock’s consistently stringent

quality control. It delivers excellent performance with robust design conforming to

ASRock’s commitment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Motherboard

(Micro ATX Form Factor)

ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Quick Installation Guide

ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit, it is recommended to set the BIOS option in Storage Con-

guration to AHCI mode. For the BIOS setup, please refer to the “User

Manual” in our support CD for details.

6ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Motherboard

English

1.2 Specications

Platform - Micro ATX Form Factor

- All Solid Capacitor design (H61M-PS4 / H61M-VG4)

- Solid Capacitor for CPU power (H61M-VS4)

CPU - Supports 3rd and 2nd Generation Intel®CoreTM i7 / i5 / i3 in

LGA1155 Package

- Supports Intel®Turbo Boost 2.0 Technology

- Supports K-Series unlocked CPU

Chipset - Intel®H61

- Supports Intel®Rapid Start Technology and Smart Connect

Technology

Memory - Dual Channel DDR3 Memory Technology

- 2 x DDR3 DIMM slots

- Supports DDR3 1600/1333/1066 non-ECC, un-buffered

memory (DDR3 1600 with Intel®Ivy Bridge CPU, DDR3

1333 with Intel®Sandy Bridge CPU)

- Max. capacity of system memory: 16GB (see CAUTION 1)

- Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2 with

Intel®Ivy Bridge CPU

Expansion Slot - 1 x PCI Express 3.0 x16 slot (blue @ x16 mode)

* PCIE 3.0 is only supported with Intel®Ivy Bridge CPU. With

Intel®Sandy Bridge CPU, it only supports PCIE 2.0.

- 1 x PCI Express 2.0 x1 slot

Graphics * Intel®HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU

integrated.

- Supports Intel®HD Graphics Built-in Visuals: Intel® Quick

Sync Video 2.0, Intel®InTruTM 3D, Intel®Clear Video HD

Technology, Intel®InsiderTM, Intel®HD Graphics 2500/4000

with Intel®Ivy Bridge CPU

- Supports Intel®HD Graphics Built-in Visuals: Intel® Quick

Sync Video, Intel®InTruTM 3D, Intel®Clear Video HD

Technology, Intel®HD Graphics 2000/3000, Intel®Advanced

Vector Extensions (AVX) with Intel®Sandy Bridge CPU

- Pixel Shader 5.0, DirectX 11 with Intel®Ivy Bridge CPU.

Pixel Shader 4.1, DirectX 10.1 with Intel®Sandy Bridge

CPU.

- Max. shared memory 1760MB with Intel®Ivy Bridge CPU.

Max. shared memory 1759MB with Intel®Sandy Bridge

CPU.

ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Motherboard

English

- Supports D-Sub with max. resolution up to 2048x1536 @

75Hz

Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

LAN H61M-PS4 / H61M-VG4

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efcient Ethernet 802.3az

- Supports PXE

H61M-VS4

- Realtek PCIE x1 LAN 8105E

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1 (H61M-PS4)

- 1 x Parallel Port (ECP/EPP support) (H61M-PS4)

- 1 x D-Sub Port

- 4 x USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Line in/Front Speaker/Microphone

Storage - 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and

Hot Plug functions

Connector - 1 x IR header

- 1 x Power LED header

- 1 x Chassis Intrusion header

- 1 x LPC/TPM header

- 1 x CPU Fan connectors (4-pin)

- 1 x Chassis Fan connector (4-pin)

- 1 x 24 pin ATX power connector

- 1 x 4 pin 12V power connector

- 1 x Front panel audio connector

- 1 x SPDIF Out connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

8ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Motherboard

English

CAUTION!

1. Due to the operating system limitation, the actual memory size

may be less than 4GB for the reservation for system usage

under Windows®8 / 7 / VistaTM / XP. For Windows®OS with 64-

bit CPU, there is no such limitation. You can use ASRock XFast

RAM to utilize the memory that Windows®cannot use.

- Supports jumperfree

- SMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, Google Chrome

Browser and Toolbar

Hardware - CPU/Chassis Temperature Sensing

Monitor - CPU/Chassis Fan Tachometer

- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by

CPU Temperature)

- CPU/Chassis Fan Multi-Speed Control

- CASE OPEN detection

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit / XP / XP 64-bit compliant

Certications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

overclocking.

ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Motherboard

English

1.3 Pin Header Easy Installation Guide

ASRock motherboard is equipped with pin headers with obvious colors which indi-

cate you to recognize the crucial headers more easily. Please refer to below illustra-

tions for the pin denition of onboard headers. If you want to have more information

about the usage of these headers, please refer to “Jumpers Setup“ and “Onboard

Headers and Connectors“ for details.

GND

PRESENCE#

MIC_RET

MIC2_L

MIC2_R

OUT2_R

J_SENSE

OUT2_L

OUT_RET

Front Panel Audio Header

PLED+

PLED-

PWRBTN#

HDLED+

HDLED-

GND

REST#

GND

DUMMY

System Panel Header

USB 2.0 Header

USB_PWR

P- P+

USB_PWR

P- P+

GND

DUMMY

SPDIF_OUT Header

SPDIFOUT

GND

Power LED Header

PLED+

PLED-

PLED+

10 ASRock H61M-PS4 / H61M-VG4 / H61M-VS4 Motherboard

English

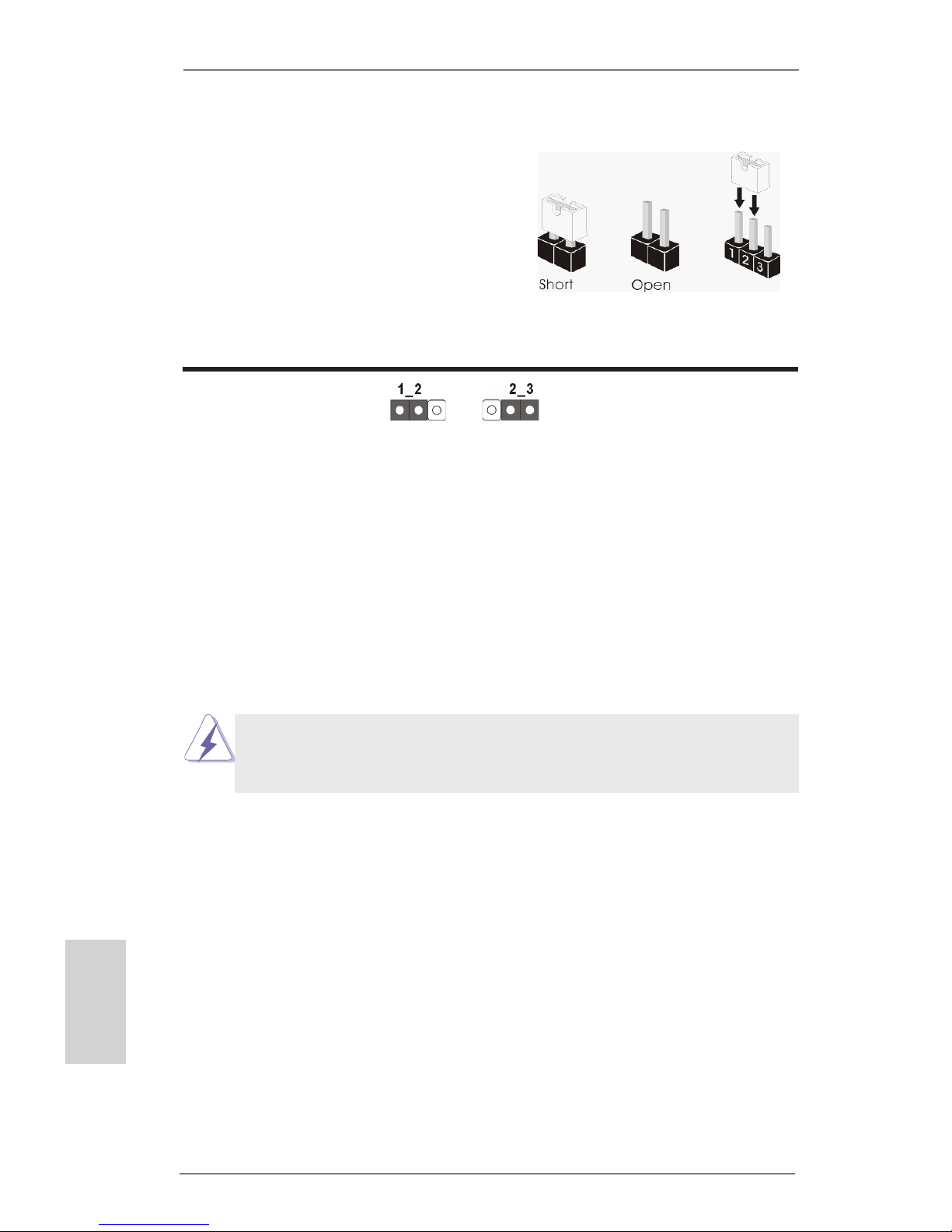

1.4 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 14)

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just nish updating the BIOS, you must boot up

the system rst, and then shut it down before you do the clear-CMOS action.

Please be noted that the password, date, time and user default prole will be

cleared only if the CMOS battery is removed.

Clear CMOSDefault

If you clear the CMOS, the case open may be detected. Please adjust

the BIOS option “Clear Status” to clear the record of previous chassis

intrusion status.

Autres manuels pour H61M-PS4

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK 775VM800Pro-DDR2 Manuel utilisateur

ASROCK

ASROCK IMB-785 Manuel de service

ASROCK

ASROCK J4125-ITX Manuel utilisateur

ASROCK

ASROCK P4S61 Manuel utilisateur

ASROCK

ASROCK Z97 Pro3 Manuel utilisateur

ASROCK

ASROCK Z77 Extreme6 Manuel utilisateur

ASROCK

ASROCK B365M Pro4-F Manuel utilisateur

ASROCK

ASROCK FM2A88M-HD+ R3.0 Manuel utilisateur

ASROCK

ASROCK ALIVEXFIRE-ESATA2 Manuel utilisateur

ASROCK

ASROCK K8 COMBO-Z Manuel utilisateur

ASROCK

ASROCK IMB-X1712 Manuel de service

ASROCK

ASROCK A230GC - V1.0 Manuel utilisateur

ASROCK

ASROCK IMB-151 Manuel de service

ASROCK

ASROCK X99 WS Manuel utilisateur

ASROCK

ASROCK Z87 Extreme9/ac Manuel utilisateur

ASROCK

ASROCK H310M-G/M.2 Manuel utilisateur

ASROCK

ASROCK Q87WSA-DL Manuel utilisateur

ASROCK

ASROCK C226M WS Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z170 Gaming K4 Series Manuel utilisateur

ASROCK

ASROCK AD2550B-ITX Manuel utilisateur

ASROCK

ASROCK FM2A68M-HD+ Manuel utilisateur

ASROCK

ASROCK X79 Extreme4-M Manuel utilisateur

ASROCK

ASROCK FM2A58+ BTC Manuel utilisateur

ASROCK

ASROCK AB350 Pro4 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
