ASROCK IBOX-155B Manuel utilisateur

iBOX-155

User Manual

Version 1.0

Published January 2016

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock’s Website: www.ASRock.com

Replaceable batteries

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

Contact Information

If you need to contact ASRock or want to know more about ASRock, you’re welcome

to visit ASRock’s website at www.ASRock.com; or you may contact your dealer for

further information.

ASRock Incorporation

6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Product Specications 2

1.3 Block Diagram 3

Chapter 2 Product Overview 4

2.1 Inside View 4

2.2 Front View 5

2.3 Rear View 6

Chapter 3 Hardware Installation 7

3.1 Removing the Chassis Bottom Cover 8

3.2 Installing Memory Modules (SO-DIMM) 9

3.3 Installing the 2.5-inch Hard Drive 10

3.4 Installing the WiFi module and the WiFi antennas

(Optional) 12

3.5 Replacing the Chassis Bottom Cover 14

Chapter 4 Motherboard 15

4.1 Motherboard Layout 15

4.2 Motherboard Specications 17

4.3 Jumpers Setup 19

4.4 Onboard Headers and Connectors 21

4.5 Expansion Slots (mini-PCIe and mini-PCIe/mini-SATA Slots) 26

iBOX-155

PB 1

English

Chapter 1 Introduction

ank you for purchasing iBOX-155, a reliable embedded box PC produced under

ASRock’s consistently stringent quality control. It delivers excellent performance

with robust design conforming to ASRock’s commitment to quality and endurance.

1.1 Package Contents

• iBOX-155

• IMB-155 (pre-installed motherboard)

• 1 x SATA 1 to 1 Power Cable

• 4 x HDD Screws (M3x4)

• 2 x Screws for mSATA / mini-PCIe slot (M2x3)

• Power Adapter

• User Manual

Because the hardware specications might be updated, the content of this documentation

will be subject to change without notice. In case any modications of this documentation

occur, the updated version will be available on ASRock’s website without further notice. If

you require technical support related to this product, please visit our website for specic

information about the model you are using.

ASRock’s Website: www.asrock.com

e illustrations shown in this manual are examples only, the actual system may dier

slightly .

If any items are missing or appear damaged, contact your authorized dealer.

2 3

English

1.2 Product Specications

iBOX-155

Processor System

CPU Intel® Pentium/Celeron Braswell SoC

Default N3150 Quad core 6W processor

Memory 2 x DDR3L 1333/1600MHz SO-DIMM up to 8GB

Chipset N/A

Graphic Intel® Gen8 Graphic

LAN Chipset Realtek RTL8111G

Watch Dog 256 Segments,0,1,2,…255sec/min

Rear I/O

Serial Port 1 x RS-232/485/422 / 1 x RS-232

USB 4 USB 3.0 ports / 2 USB2.0 ports

LAN 2 x RJ45 for GbE

Video output 1 x VGA output/1 x HDMI

Audio 1 x Line- out / 1 x MIC-in

Expansion 1 x mini PCIe / 1 x mSATA

Storage

Type 1 x 2.5" HDD/SSD

OS Support

Windows 8.1/10, Linux

Certications

CE, FCC, Class A

Environmental

Operating Temp 0°C~50°C

Storage Temp -20°C~80°C

Humidity 10%~90%

Mechanical

Material Top cover -aluminum extrusion/ Base- metal

Dimension 200 x 200 x 35mm

Weight 1.8 Kg

Mounting mounting bracket ( optional)

* For detailed product information, please visit our website: http://www.asrock.com

iBOX-155

2 3

English

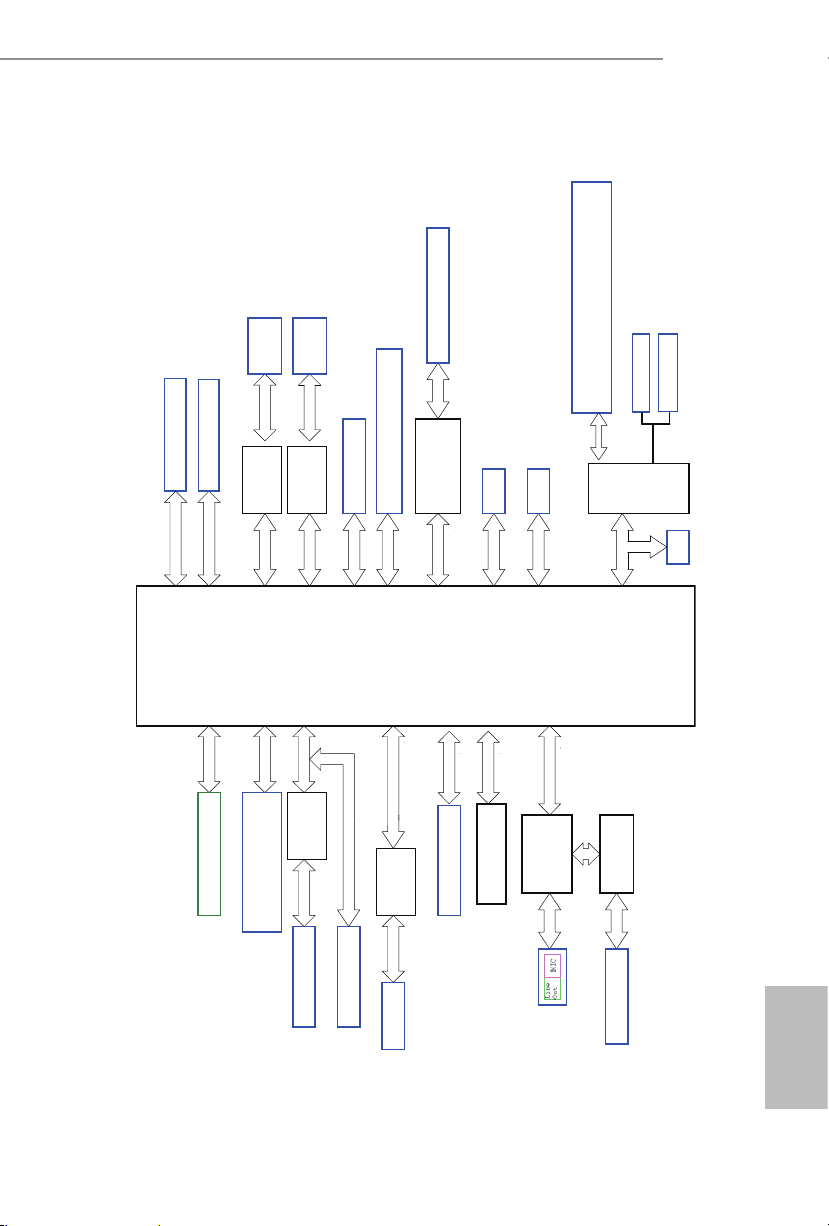

1.3 Block Diagram

Hc!MBO

SK56!$2

TBUB4/1!Cvt

IENJ

EEJ!Qpsu!1

TQJ!!GMBTI

TBUB4/1!Cvt

2/9W075Nc

SUM9222H.DH

Sfbmufl

EEJ!Qpsu!2

Dispoufm

!ODU7217

EES4M!271102444

Bvejp!Bnqmjgjfs

Bvejp!Dpefd

BMD998

BMD233

UQN

6Hcqt

5!Sfbs!VTC4/1!qpsut

MQD

Joufm

Csbtxfmm!TpD

WSE!po!Cpbse

TQJ

TBUB4`2

Sfbmufl

Diboofm!C

DI8622C

TJP

Ovwpupo

MWET!)ifbefs*

MWET

35NI{

239.cju!Evbm.Diboofm!Nfnpsz!y!3!Tmput

Diboofm!B

Tfsjbm!Qpsu!+!7

!.!Joufsobm!Ifbefs!+3

!.!Joufsobm!Ifbefs!+5

EJP!Qpsu

Qbsbmmfm!Qpsu

Njoj!QDJf)Gvmm0ibmg!tj{f*

QDJf!y2

TQL!)ifbefs*

DSU!WHB!

Hc!MBO

SK56!$3

SUM9222H.DH

Sfbmufl

QDJf!y2

QDJf!y2!Tmpu

591Ncqt

HM961H

Hfoftzt

VTC!3/1!Ivc

Gspou!ifbefs!VTC3/1!qpsut!+5

)ST.34305330596*

)ST.343*

N.TBUB

)Tibsfe*

EES4M!271102444

)Tvqqpsu!5l3l-!CPN!pqujpo*

EEJ!Qpsu!3

QUO4467

EQ!up!DSU

fEQ!)ifbefs*

Tibsf!xjui!MWET!)CPN!Pqujpo*

4 5

English

Chapter 2 Product Overview

is chapter provides diagrams showing the location of important components of

the iBOX-155.

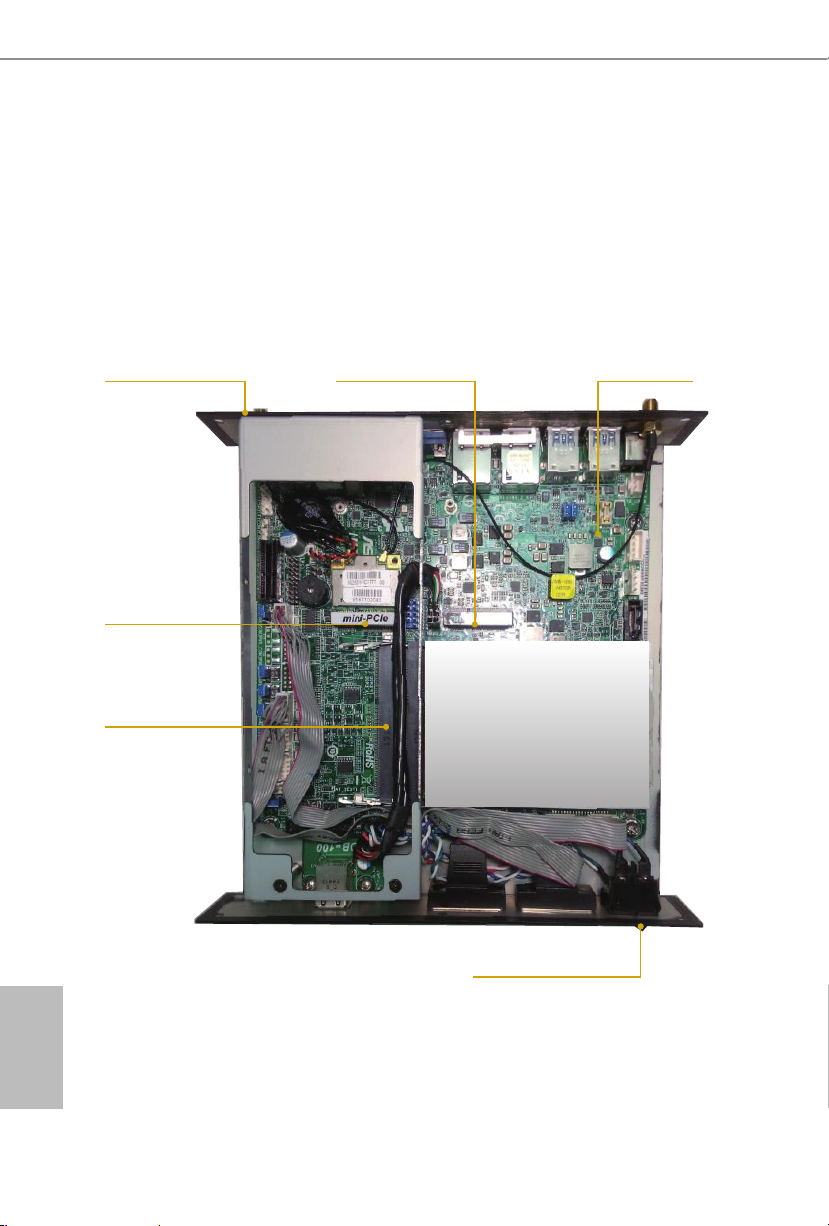

2.1 Inside View

Rear Panel

Front Panel

SO-DIMM sockets

M/B

mini-SATA slot

mini-PCIe slot

iBOX-155

4 5

English

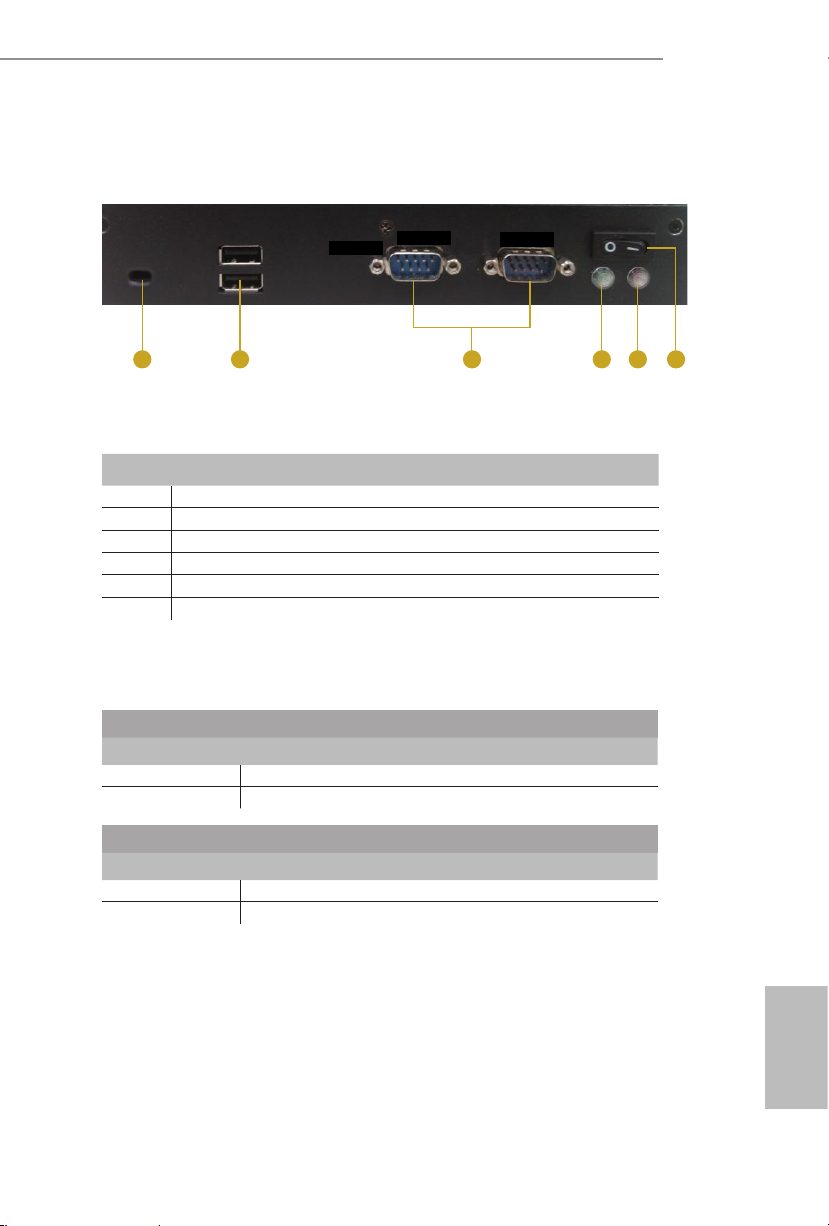

2.2 Front View

1 3 5 62 4

No. Description

1 Kenshington Lock

2 2 x USB 2.0 Ports

3 2 x COM Ports

4HDD LED

5Power LED

6On-/o Switch

Status LED Denitions

Power LED

Status Description

Solid Green Power on

O Power o

HDD Status LED

Status Description

Red HDD installed

O HDD uninstalled

6 7

English

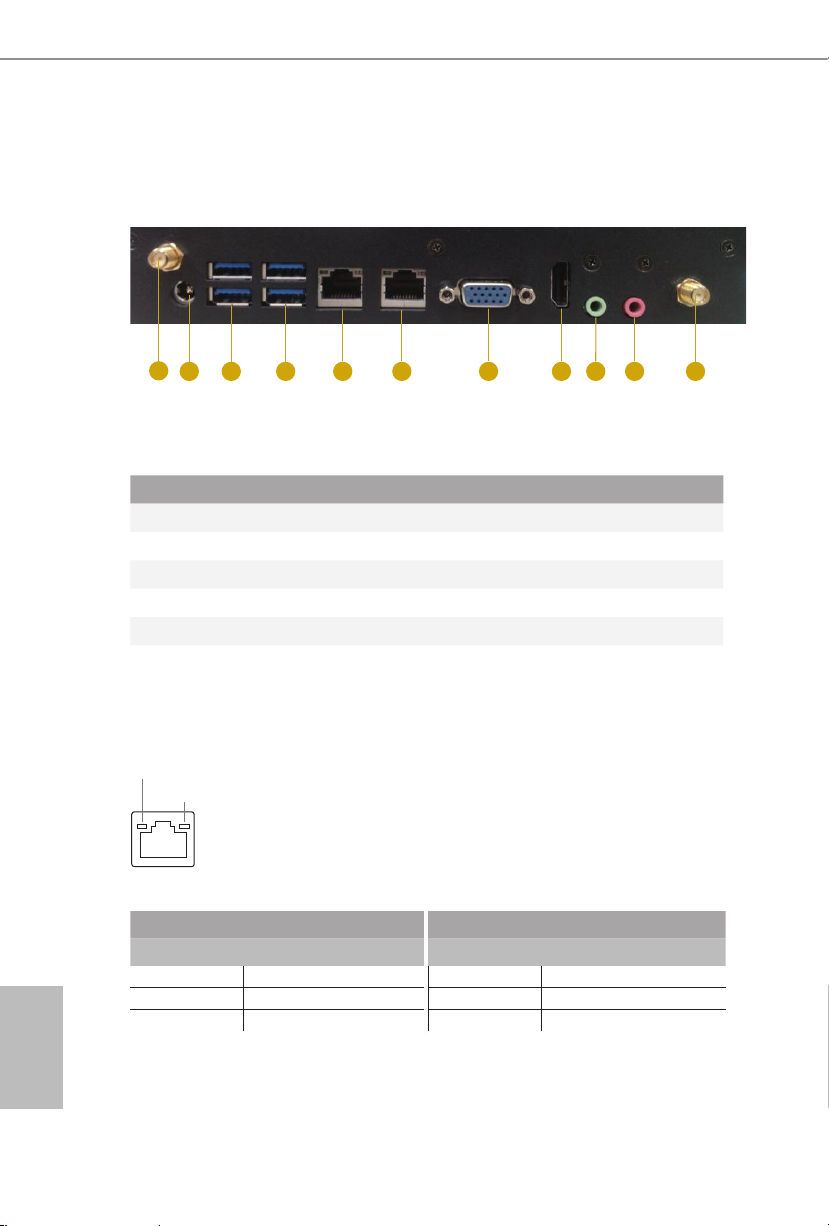

2.3 Rear View

192 3 4 5 6 7 8 10 11

No. Description No. Description

1Antenna Port 7 VGA Port (VGA1)

2 DC Jack (DC IN) 8 HDMI Port (HDMI1)

3 2 x USB 3.0 Ports (USB3_0_1) 9 Line out (Lime)

4 2 x USB 3.0 Ports (USB3_2_3) 10 Microphone (Pink)

5 LAN RJ-45 Port (LAN1)* 11 Antenna Port

6 LAN RJ-45 Port (LAN2)*

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

O Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port
