ASRock H61M-GS / H61M-S Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁca-

tion or explanation and to the owners’ beneﬁt, without intent to infringe.

Disclaimer:

Speciﬁcations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁtness for a particular purpose. In no event shall ASRock, its

directors, ofﬁcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published May 2012

2ASRock H61M-GS / H61M-S Motherboard

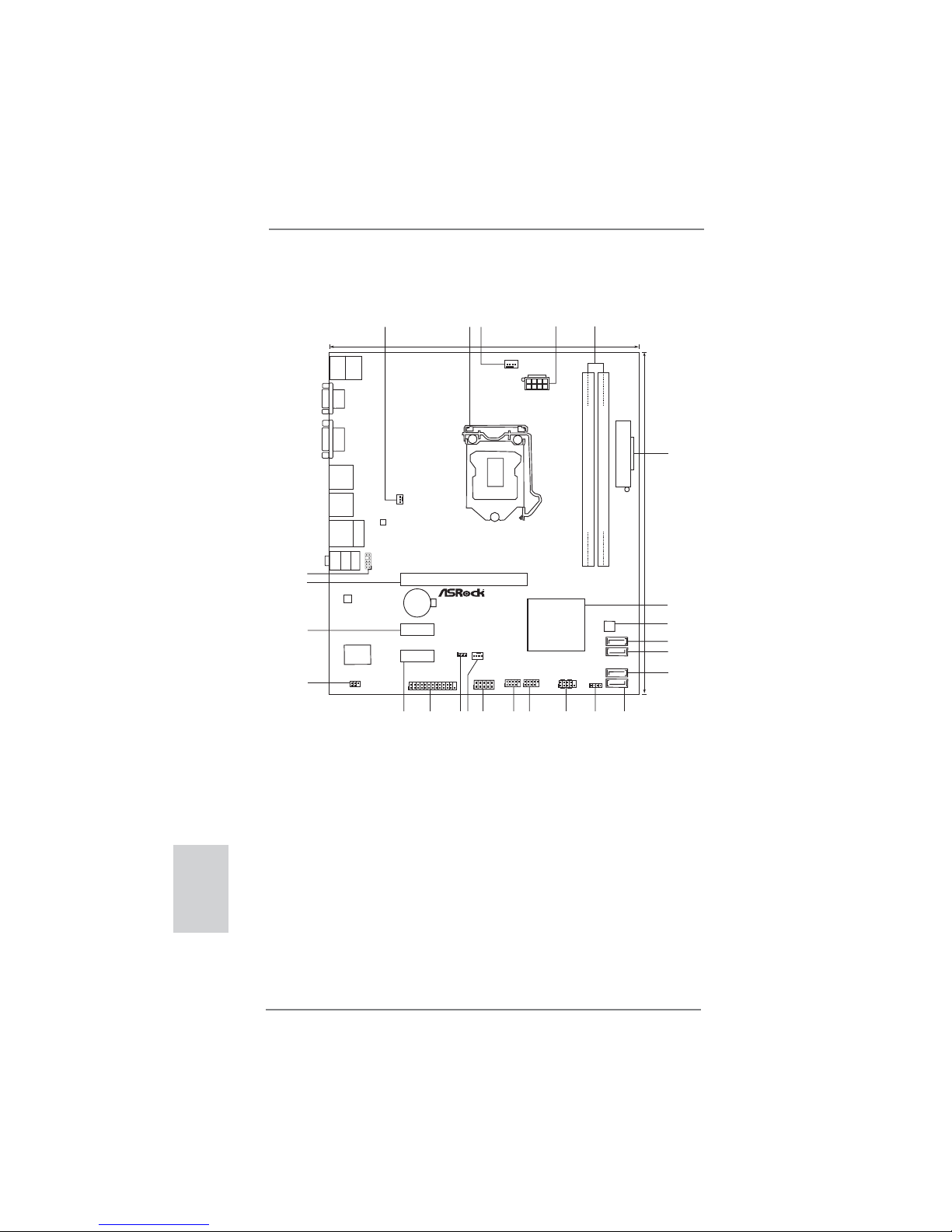

Motherboard Layout (H61M-GS / H61M-S)

English

1 Power Fan Connector (PWR_FAN1) 14 System Panel Header (PANEL1, White)

2 1155-Pin CPU Socket 15 USB 2.0 Header (USB6_7, Blue)

3 CPU Fan Connector (CPU_FAN1) 16 USB 2.0 Header (USB8_9, Blue)

4 ATX 12V Power Connector (ATX12V1 17 COM Port Header (COM1)

5 2 x 240-pin DDR3 DIMM Slots 18 Chassis Fan Connector (CHA_FAN1)

(Dual Channel: DDR3_A1, DDR3_B1, Blue) 19 Clear CMOS Jumper (CLRCMOS1)

6 ATX Power Connector (ATXPWR1) 20 Print Port Header (LPT1, White)

7 Intel H61 Chipset 21 PCI Express 2.0 x1 Slot (PCIE3, White)

8 32Mb SPI Flash 22 Infrared Module Header (IR1)

9 SATA2 Connector (SATA2_0, Blue) 23 PCI Express 2.0 x1 Slot (PCIE2, White)

10 SATA2 Connector (SATA2_1, Blue) 24 PCI Express 2.0 x16 Slot (PCIE1, Blue)

11 SATA2 Connector (SATA2_2, Blue) 25 Front Panel Audio Header

12 SATA2 Connector (SATA2_3, Blue) (HD_AUDIO1, White)

13 Chassis Speaker Header (SPEAKER 1, White)

Intel

H61

ATXPWR1

Designed in Taipei

19.8cm (7.8 in)

24.4cm (9.6 in)

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

Dual Channel DDR3

PCIE1

Top:

RJ-45

USB 2.0

T: USB4

B: USB5

PS2

Keyboard

VGA1

USB 2.0

T: US B0

B: USB1

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

Super

I/O

CMOS

Battery

ATX12V1

DX10.1

PWR_FAN1

CPU_FAN1

PCI Express 2.0

ErP/EuP Ready

LAN

PHY

HD_AUDIO1

AUDIO

CODEC

COM1

RoHS

IR1

USB6_7

CLRCMOS1

32Mb

BIOS

SATA2_3

HDLED RESET

PLED PWRBTN

PANEL 1

SPEAKER1

CHA_FAN1

LPT1

12345

14 13

SATA2_2

PS2

Mouse

USB 2.0

T: US B2

B: USB3

SATA2_1

SATA2_0

USB8_9

PCIE2

PCIE3

DVI1

ASRock H61M-GS / H61M-S Motherboard

English

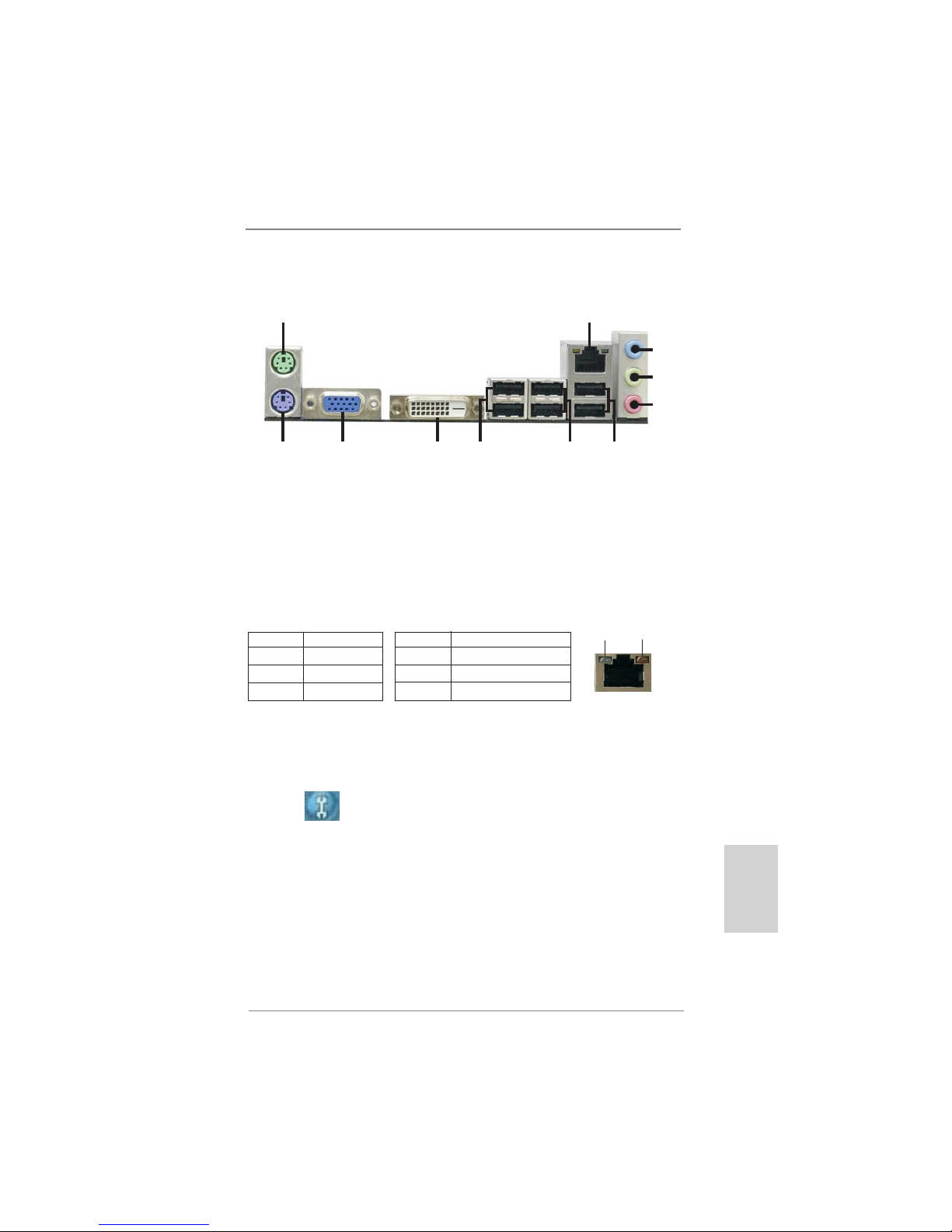

I/O Panel (H61M-GS)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB23)

* 2 LAN RJ-45 Port 8 USB 2.0 Ports (USB01)

3 Line In (Light Blue) 9 VGA/DVI-D Port

** 4 Front Speaker (Lime) 10 VGA/D-Sub Port

5 Microphone (Pink) 11 PS/2 Keyboard Port (Purple)

6 USB 2.0 Ports (USB45)

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will ﬁnd “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®7 / VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Conﬁguration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

4ASRock H61M-GS / H61M-S Motherboard

English

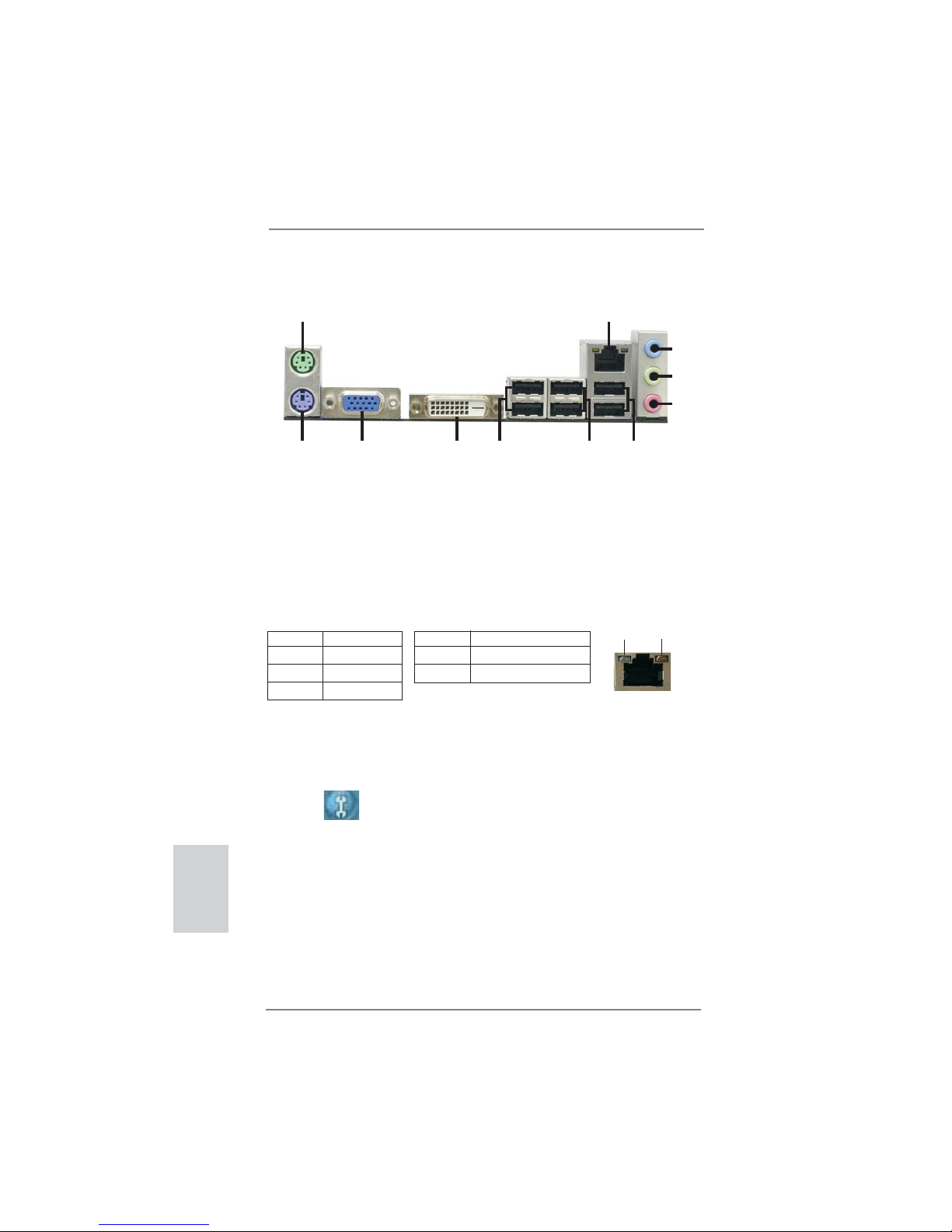

I/O Panel (H61M-S)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link

ACT/LINK

LED

SPEED

LED

LAN Port

1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB23)

* 2 LAN RJ-45 Port 8 USB 2.0 Ports (USB01)

3 Line In (Light Blue) 9 VGA/DVI-D Port

** 4 Front Speaker (Lime) 10 VGA/D-Sub Port

5 Microphone (Pink) 11 PS/2 Keyboard Port (Purple)

6 USB 2.0 Ports (USB45)

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will ﬁnd “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®7 / VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Conﬁguration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

ASRock H61M-GS / H61M-S Motherboard

English

1. Introduction

Thank you for purchasing ASRock H61M-GS / H61M-S motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It

delivers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock H61M-GS / H61M-S Motherboard

(Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm)

ASRock H61M-GS / H61M-S Quick Installation Guide

ASRock H61M-GS / H61M-S Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conﬁguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

6ASRock H61M-GS / H61M-S Motherboard

English

1.2 Specifications

Platform - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm

- Solid Capacitor for CPU power

CPU - Supports 3rd and 2nd Generation Intel®CoreTM i7 / i5 / i3 in

LGA1155 Package

- Supports Intel®Turbo Boost 2.0 Technology

- Supports K-Series unlocked CPU

- Supports Hyper-Threading Technology (see CAUTION 1)

Chipset - Intel®H61

- Supports Intel®Rapid Start Technology and Smart Connect

Technology

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 2)

- 2 x DDR3 DIMM slots

- Supports DDR3 1600/1333/1066 non-ECC, un-buffered

memory (DDR3 1600 with Intel®Ivy Bridge CPU, DDR3

1333 with Intel®Sandy Bridge CPU)

- Max. capacity of system memory: 16GB (see CAUTION 3)

- Supports Intel®Extreme Memory Proﬁle (XMP) 1.3 / 1.2 with

Intel®Ivy Bridge CPU

Expansion Slot - 1 x PCI Express 3.0 x16 slot (blue @ x16 mode)

* PCIE 3.0 is only supported with Intel®Ivy Bridge CPU. With

Intel®Sandy Bridge CPU, it only supports PCIE 2.0.

- 2 x PCI Express 2.0 x1 slots

Graphics * Intel®HD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

- Supports Intel®HD Graphics Built-in Visuals: Intel®Quick

Sync Video 2.0, Intel®InTruTM 3D, Intel®Clear Video HD

Technology, Intel®InsiderTM, Intel®HD Graphics 2500/4000

with Intel®Ivy Bridge CPU

- Supports Intel®HD Graphics Built-in Visuals: Intel®Quick

Sync Video, Intel®InTruTM 3D, Intel®Clear Video HD

Technology, Intel®HD Graphics 2000/3000, Intel®Advanced

Vector Extensions (AVX) with Intel®Sandy Bridge CPU

- Pixel Shader 5.0, DirectX 11 with Intel®Ivy Bridge CPU.

Pixel Shader 4.1, DirectX 10.1 with Intel®Sandy Bridge

CPU.

- Max. shared memory 1760MB with Intel®Ivy Bridge CPU.

Max. shared memory 1759MB with Intel®Sandy Bridge

CPU. (see CAUTION 4)

ASRock H61M-GS / H61M-S Motherboard

English

- Dual VGA Output: support DVI-D and D-Sub ports by

independent display controllers

- Supports DVI with max. resolution up to 1920x1200 @

60Hz

- Supports D-Sub with max. resolution up to 2048x1536

@ 75Hz

- Supports HDCP function with DVI port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI port

Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

LAN - H61M-GS

Atheros®PCIE x1 Gigabit LAN AR8151,

speed 10/100/1000 Mb/s

- H61M-S

Atheros®PCIEx1 LAN AR8152, speed 10/100 Mb/s

- Supports Wake-On-LAN

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Line in/Front Speaker/Microphone

Connector - 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and

Hot Plug functions

- 1 x IR header

- 1 x Print Port header

- 1 x COM port header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 32Mb AMI BIOS

- AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

8ASRock H61M-GS / H61M-S Motherboard

English

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or

using the third-party overclocking tools. Overclocking may affect your system

stability, or even cause damage to the components and devices of your system.

It should be done at your own risk and expense. We are not responsible for possible

damage caused by overclocking.

- SMBIOS 2.3.1 Support

- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage

Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX

Multimedia Suite - OEM

Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 5)

- ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 6)

- ASRock APP Charger (see CAUTION 7)

- ASRock SmartView (see CAUTION 8)

- ASRock XFast USB (see CAUTION 9)

- ASRock XFast LAN (see CAUTION 10)

- ASRock XFast RAM (see CAUTION 11)

- Hybrid Booster:

- ASRock U-COP (see CAUTION 12)

- Boot Failure Guard (B.F.G.)

- Combo Cooler Option (C.C.O.) (see CAUTION 13)

- Good Night LED

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed

Auto-Adjust by CPU Temperature)

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit

/ XP / XP 64-bit compliant

Certiﬁcations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 14)

* For detailed product information, please visit our website: http://www.asrock.com

ASRock H61M-GS / H61M-S Motherboard

English

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page

42 of “User Manual” in the support CD.

2. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 15 for proper installation.

3. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®7 /

VistaTM / XP. For Windows®OS with 64-bit CPU, there is no such limita-

tion. You can use ASRock XFast RAM to utilize the memory that Win-

dows®cannot use.

4. The maximum shared memory size is deﬁned by the chipset vendor and

is subject to change. Please check Intel®website for the latest informa-

tion.

5. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ﬁne-tune

different system functions in a user-friendly interface, which is including

Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In

Hardware Monitor, it shows the major readings of your system. In Fan

Control, it shows the fan speed and temperature for you to adjust. In

Overclocking, you are allowed to overclock CPU frequency for optimal

system performance. In OC DNA, you can save your OC settings as a

proﬁle and share with your friends. Your friends then can load the OC

proﬁle to their own system to get the same OC settings. In IES (Intelligent

Energy Saver), the voltage regulator can reduce the number of output

phases to improve efﬁciency when the CPU cores are idle without

sacrificing computing performance. Please visit our website for the

operation procedures of ASRock Extreme Tuning Utility (AXTU).

ASRock website: http://www.asrock.com

6. ASRock Instant Flash is a BIOS ﬂash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems ﬁrst like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS ﬁle to your USB ﬂash drive, ﬂoppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional ﬂoppy diskette or other complicated ﬂash utility. Please

be noted that the USB ﬂash drive or hard drive must use FAT32/16/12 ﬁle

system.

10 ASRock H61M-GS / H61M-S Motherboard

English

7. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful

solution for you - ASRock APP Charger. Simply installing the APP Char-

ger driver, it makes your iPhone charged much quickly from your com-

puter and up to 40% faster than before. ASRock APP Charger allows you

to quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1), Sus-

pend to RAM (S3), hibernation mode (S4) or power off (S5). With APP

Charger driver installed, you can easily enjoy the marvelous charging

experience than ever.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

8. SmartView, a new function of internet browser, is the smart start page for

IE that combines your most visited web sites, your history, your Facebook

friends and your real-time newsfeed into an enhanced view for a more

personal Internet experience. ASRock motherboards are exclusively

equipped with the SmartView utility that helps you keep in touch with

friends on-the-go. To use SmartView feature, please make sure your

OS version is Windows®7 / 7 64 bit / VistaTM / VistaTM 64 bit, and your

browser version is IE8. ASRock website: http://www.asrock.com/Feature/

SmartView/index.asp

9. ASRock XFast USB can boost USB storage device performance. The

performance may depend on the property of the device.

10. ASRock XFast LAN provides a faster internet access, which includes

below benefits. LAN Application Prioritization: You can configure your

application priority ideally and/or add new programs. Lower Latency in

Game: After setting online game priority higher, it can lower the latency in

game. Trafﬁc Shaping: You can watch Youtube HD video and download

ﬁles simultaneously. Real-Time Analysis of Your Data: With the status

window, you can easily recognize which data streams you are currently

transferring.

11. ASRock XFast RAM is a new function that is included into ASRock Ex-

treme Tuning Utility (AXTU). It fully utilizes the memory space that cannot

be used under Windows®OS 32-bit CPU. ASRock XFast RAM shortens

the loading time of previously visited websites, making web surﬁng faster

than ever. And it also boosts the speed of Adobe Photoshop 5 times

faster. Another advantage of ASRock XFast RAM is that it reduces the

frequency of accessing your SSDs or HDDs in order to extend their lifes-

pan.

12. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC sys-

tem.

Autres manuels pour H61M-GS

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK 945GCM-S Manuel utilisateur

ASROCK

ASROCK FM2A78M-DG3+ Manuel utilisateur

ASROCK

ASROCK ROME2D32GM-2T Manuel utilisateur

ASROCK

ASROCK Z590 Phantom Gaming-ITX/TB4 Manuel utilisateur

ASROCK

ASROCK H61M-PS4 Manuel utilisateur

ASROCK

ASROCK Z77E-ITX Manuel utilisateur

ASROCK

ASROCK SP55M PRO - Manuel utilisateur

ASROCK

ASROCK 939Dual-VSTA Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z77 Professional Manuel utilisateur

ASROCK

ASROCK X370M-HDV Manuel utilisateur

ASROCK

ASROCK AD2550RA/U3S3 Manuel utilisateur

ASROCK

ASROCK CONROE1333-1394 - V1.0 Manuel utilisateur

ASROCK

ASROCK 775VM8 Manuel utilisateur

ASROCK

ASROCK Fatal1ty H97 Performance Series Manuel utilisateur

ASROCK

ASROCK IMB-791 Manuel de service

ASROCK

ASROCK FM2A88X Pro3+ Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z170 Gaming K4 Series Manuel utilisateur

ASROCK

ASROCK E350M1-USB3 - Manuel utilisateur

ASROCK

ASROCK ALIVENF5-ESATA2 R3.0 Manuel utilisateur

ASROCK

ASROCK FM2A75M Pro4 Manuel utilisateur

ASROCK

ASROCK IMB-192 Manuel de service

ASROCK

ASROCK 2Core1066-2.13G Manuel utilisateur

ASROCK

ASROCK Z690 PG Riptide Manuel utilisateur

ASROCK

ASROCK G41M-LE Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
