ASRock H67M-ITX/HT / H67M-ITX Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁca-

tion or explanation and to the owners’ beneﬁt, without intent to infringe.

Disclaimer:

Speciﬁcations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁtness for a particular purpose. In no event shall ASRock, its

directors, ofﬁcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published January 2011

2ASRock H67M-ITX/HT / H67M-ITX Motherboard

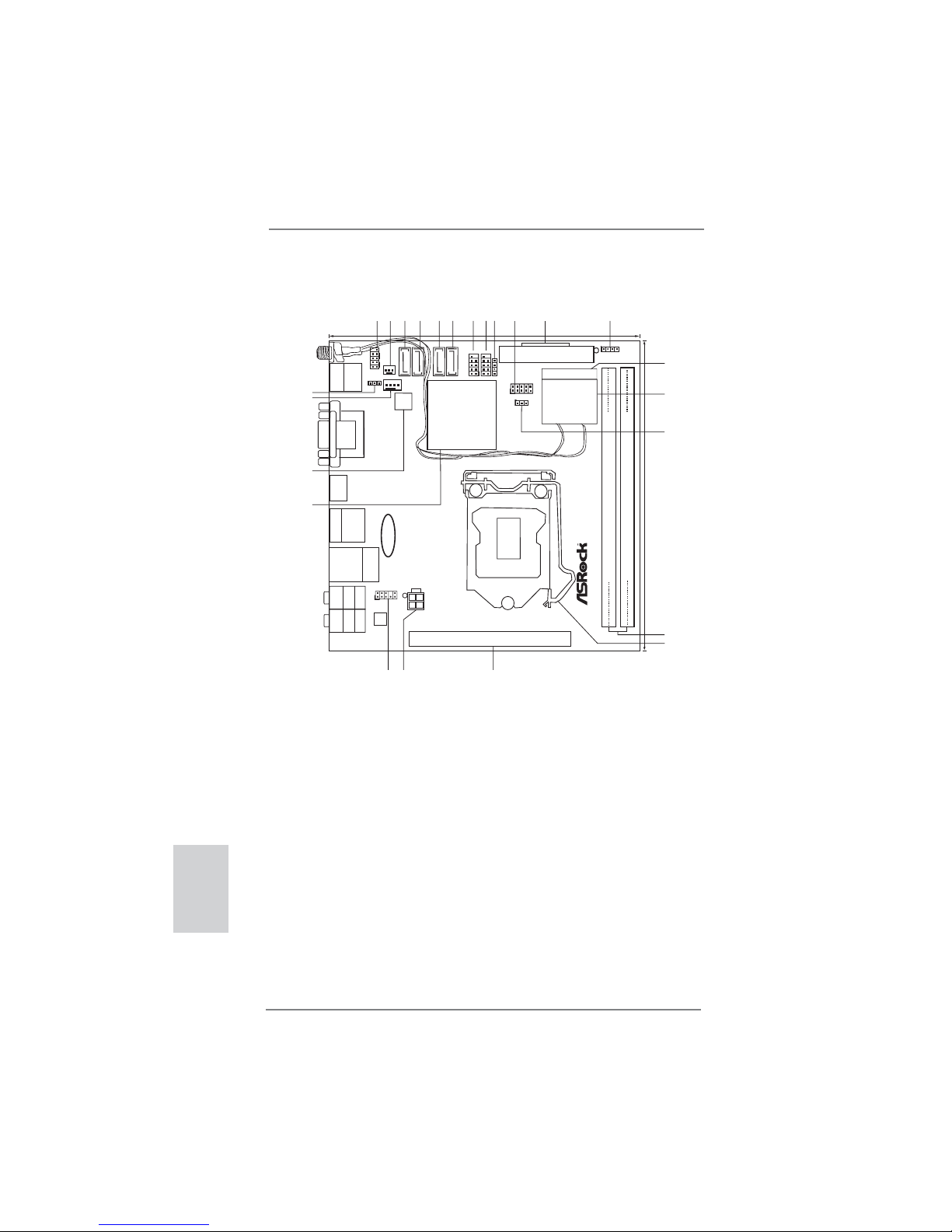

Motherboard Layout (H67M-ITX/HT)

English

1 System Panel Header (PANEL1, White) 14 WiFi-802.11n Module

2 Chassis Fan Connector (CHA_FAN1) 15 Clear CMOS Jumper (CLRCMOS1)

3 SATA3 Connector (SATA_0 (port 0), White) 16 2 x 240-pin DDR3 DIMM Slots

4 SATA3 Connector (SATA_1 (port 1), White) (Dual Channel: DDR3_A1, DDR3_B1, Blue)

5 SATA2 Connector (SATA_2 (port 4), Blue) 17 1155-Pin CPU Socket

6 SATA2 Connector (SATA_3 (port 5), Blue) 18 PCI Express 2.0 x16 Slot (PCIE1, Blue)

7 USB 2.0 Header (USB6_7, Blue) 19 ATX 12V Power Connector (ATX12V1)

8 USB 2.0 Header (USB8_9, Blue) 20 Front Panel Audio Header

9 Consumer Infrared Module Header (CIR1) (HD_AUDIO1, White)

10 COM Port Header (COM1) 21 Intel H67 Chipset

11 ATX Power Connector (ATXPWR1) 22 64Mb SPI Flash

12 Chassis Speaker Header (SPEAKER 1, White) 23 CPU Fan Connector (CPU_FAN1)

13 Mini PCI Express Slot (MINI_PCIE1) 24 Power LED Header (PLED1)

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

Intel

H67

ErP/EuP Ready

H67M-ITX/HT

PCIE1

AUDIO

CODEC

64Mb

BIOS

17.0cm (6.7 in)

ATXPWR1

ATX12V1

CMOS

Battery

MINI_PCIE1

USB6_7

USB8_9

SATA_2 (port 4)

SATA_3 (port 5)

SATA_0 (port 0)

SATA_1

(port 1)

HDLED RESET

PLED PWRBTN

PANEL1

CLRCMOS1

PLED1

SPEAKER1

CIR1

CHA_FAN1

CPU_FAN1

COM1

HD_AUDIO1

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

Top:

RJ-45

USB 3.0

T: USB4

B: USB5

ESATA1

USB 2.0

T: USB2

B: USB3

VGA1

DVI_CON1

HDMI1

USB 2.0

T: USB0

B: USB1

PS2

Keyboard

RoHS

WiFi-802.11n

Module

12345611 12

789

ASRock H67M-ITX/HT / H67M-ITX Motherboard

English

Motherboard Layout (H67M-ITX)

1 System Panel Header (PANEL1, White) 13 Clear CMOS Jumper (CLRCMOS1)

2 Chassis Fan Connector (CHA_FAN1) 14 2 x 240-pin DDR3 DIMM Slots

3 SATA3 Connector (SATA_0 (port 0), White) (Dual Channel: DDR3_A1, DDR3_B1, Blue)

4 SATA3 Connector (SATA_1 (port 1), White) 15 1155-Pin CPU Socket

5 SATA2 Connector (SATA_2 (port 4), Blue) 16 PCI Express 2.0 x16 Slot (PCIE1, Blue)

6 SATA2 Connector (SATA_3 (port 5), Blue) 17 ATX 12V Power Connector (ATX12V1)

7 USB 2.0 Header (USB6_7, Blue) 18 Front Panel Audio Header

8 USB 2.0 Header (USB8_9, Blue) (HD_AUDIO1, White)

9 Consumer Infrared Module Header (CIR1) 19 Intel H67 Chipset

10 COM Port Header (COM1) 20 64Mb SPI Flash

11 ATX Power Connector (ATXPWR1) 21 CPU Fan Connector (CPU_FAN1)

12 Chassis Speaker Header (SPEAKER 1, White) 22 Power LED Header (PLED1)

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

Intel

H67

ErP/EuP Ready

H67M-ITX

PCIE1

AUDIO

CODEC

64Mb

BIOS

17.0cm (6.7 in)

ATXPWR1

ATX12V1

CMOS

Battery

USB6_7

USB8_9

HDLED RESET

PLED PWRBTN

PANE L1

CLRCMOS1

PLED1

SPEAKER1

CIR1

CHA_FAN1

CPU_FAN1

COM1

HD_AUDIO1

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

Top:

RJ-45

USB 3.0

T: US B 4

B: USB5

ESATA1

USB 2.0

T: USB2

B: USB3

VGA1

DVI_CON1

HDMI1

USB 2.0

T: USB0

B: USB1

PS2

Keyboard

RoHS

12345611 12

789

SATA_2 (port 4)

SATA_3 (port 5)

SATA_0 (port 0)

SATA_1

(port 1)

4ASRock H67M-ITX/HT / H67M-ITX Motherboard

English

I/O Panel (H67M-ITX/HT)

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or

(No. 9) (No. 6) (No. 5) Side Speaker

(No. 8)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

1 USB 2.0 Ports (USB01) ** 9 Front Speaker (Lime)

2 VGA/D-Sub Port 10 Microphone (Pink)

3 USB 2.0 Ports (USB23) 11 USB 3.0 Ports (USB45)

* 4 LAN RJ-45 Port 12 eSATA2 (port 3) Port

5 Central / Bass (Orange) 13 VGA/HDMI Port

6 Rear Speaker (Black) 14 VGA/DVI-D Port

7 Optical SPDIF Out Port 15 PS/2 Keyboard Port (Purple)

8 Line In (Light Blue) 16 Antenna Ports

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will ﬁnd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

14 12

ASRock H67M-ITX/HT / H67M-ITX Motherboard

English

I/O Panel (H67M-ITX)

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or

(No. 9) (No. 6) (No. 5) Side Speaker

(No. 8)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

1 USB 2.0 Ports (USB01) ** 9 Front Speaker (Lime)

2 VGA/D-Sub Port 10 Microphone (Pink)

3 USB 2.0 Ports (USB23) 11 USB 3.0 Ports (USB45)

* 4 LAN RJ-45 Port 12 eSATA2 (port 3) Port

5 Central / Bass (Orange) 13 VGA/HDMI Port

6 Rear Speaker (Black) 14 VGA/DVI-D Port

7 Optical SPDIF Out Port 15 PS/2 Keyboard Port (Purple)

8 Line In (Light Blue)

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will ﬁnd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

6ASRock H67M-ITX/HT / H67M-ITX Motherboard

English

Remote Receiver and Remote Controller

(H67M-ITX/HT)

H67M-ITX/HT is bundled with one Remote Receiver and one Remote Controller.

You can enjoy more of your favorite entertainment by MCE (Media Center Edition)

Remote Controller. The MCE features the entertainment center which allows you

to enjoy a more convenient way of power on/off the system, watching DVDs, TV,

listening to music, and so on by the easy-operate Remote Controller. The Remote

Receiver is able to receive the multi-direction infrared signals from the Remote

Controller (top, down and front), which is compatible with most of the chassis on the

market. For the installation guide, please refe to page 24 for details.

* OS support: Windows®VistaTM / 7 (above Home Premium)

Some remote controller functions listed above are only available with the

relative hardware equipments. If the hardware equipments you adopt

are not compatible with the system, you are not allowed to use these

functions. This product is designed to meet MCE standards.

Remote Receiver

Remote Controller

Remote Controller Introduction

ASRock H67M-ITX/HT / H67M-ITX Motherboard

English

WiFi-802.11n Module and ASRock WiFi

2.4GHz Antenna (H67M-ITX/HT)

WiFi-802.11n module is an easy-to-use wireless local area network (WLAN) adapter

to support WiFi function. With WiFi-802.11n module, you can easily create a

wireless environment and enjoy the convenience of wireless network

connectivity. Therefore, from anywhere within the signal range, you will be able to

play LAN games, connect to the internet, access and share printers, and make

Internet phone calls easily.

WiFi-802.11n Module

Antenna Ports

ASRock WiFi 2.4GHz Antenna

8ASRock H67M-ITX/HT / H67M-ITX Motherboard

English

WiFi-802.11n module supports Station mode. You can use the wireless function to

connect the access point (AP), or connect with other stations in the wireless range

instead. There are two choices provided in station mode: Infrastructure mode

and Ad-hoc mode. Please read below introduction for the differences of these two

modes.

Infrastructure Mode

If you have a present access point (AP) in your wireless network environment for

this station to join, you can set up WiFi-802.11n module in Infrastructure mode. In

this mode, WiFi-802.11n module acts as a wireless adapter. In other words, it is

centered on an AP that provides Internet access and LAN communication for the

wireless stations, such as PC, notebook and other devices.

Ad-hoc Mode

If you don’t have a present access point in your wireless network environment, you

can set up WiFi-802.11n module in Ad-hoc mode. The wireless network brings

together workstations, PC, notebook and other devices for wireless communication.

* The transmission speed may vary according to the environment.

ASRock H67M-ITX/HT / H67M-ITX Motherboard

1. Introduction

Thank you for purchasing ASRock H67M-ITX/HT / H67M-ITX motherboard, a reli-

able motherboard produced under ASRock’s consistently stringent quality control. It

delivers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock H67M-ITX/HT / H67M-ITX Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock H67M-ITX/HT / H67M-ITX Quick Installation Guide

ASRock H67M-ITX/HT / H67M-ITX Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

1 x 3D Red/Cyan Anaglyph Glasses (Optional)

1 x Remote Receiver (Optional) (H67M-ITX/HT)

1 x Remote Controller (Optional) (H67M-ITX/HT)

1 x ASRock WiFi 2.4GHz Antenna (Optional) (H67M-ITX/HT)

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conﬁguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

English

10 ASRock H67M-ITX/HT / H67M-ITX Motherboard

English

1.2 Specifications

Platform - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

- All Solid Capacitor design (100% Japan-made high-quality

Conductive Polymer Capacitors)

CPU - Supports 2nd Generation Intel®CoreTM i7 / i5 / i3 in

LGA1155 Package

- Supports Intel®Turbo Boost 2.0 Technology

- Supports K-Series unlocked CPU

- Supports Hyper-Threading Technology (see CAUTION 1)

Chipset - Intel®H67

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 2)

- 2 x DDR3 DIMM slots

- Supports DDR3 1333/1066 non-ECC, un-buffered

memory

- Max. capacity of system memory: 16GB (see CAUTION 3)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)

- 1 x Mini-PCI Express expansion slot: For WiFi module

(H67M-ITX/HT)

Graphics * * Requires a Processor with Intel®Graphics Technology

- Intel®HD Graphics 2000/3000

- Pixel Shader 4.1, DirectX 10.1

- Max. shared memory 1759MB (see CAUTION 4)

- Three VGA Output options: D-Sub, DVI-D and HDMI

(see CAUTION 5)

- Supports HDMI 1.4a Technology with max. resolution up to

1920x1200 @ 60Hz

- Supports DVI with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 2048x1536 @

75Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI

(Compliant HDMI monitor is required) (see CAUTION 6)

- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a

- Supports HDCP function with DVI and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI and HDMI ports

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

- Supports THX TruStudio PROTM (H67M-ITX/HT)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK E350M1 - Manuel utilisateur

ASROCK

ASROCK K10N750SLI-WIFI Manuel utilisateur

ASROCK

ASROCK ALIVENF6G-GLAN Manuel utilisateur

ASROCK

ASROCK H87M Manuel utilisateur

ASROCK

ASROCK P4VM800 Manuel utilisateur

ASROCK

ASROCK H67M-GE/HT Manuel utilisateur

ASROCK

ASROCK 90-MXB150-A0UAYZ Manuel utilisateur

ASROCK

ASROCK 4CoreDual-VSTA Manuel utilisateur

ASROCK

ASROCK IMB-1216 Manuel utilisateur

ASROCK

ASROCK A790GXH128M - Manuel utilisateur

ASROCK

ASROCK H81TM-ITX R2.0 Manuel utilisateur

ASROCK

ASROCK J4125M Manuel utilisateur

ASROCK

ASROCK EPYC3251D4I-2T Manuel utilisateur

ASROCK

ASROCK B460M Pro4/ac Manuel utilisateur

ASROCK

ASROCK 775V88-M+ Manuel utilisateur

ASROCK

ASROCK H510 Pro BTC+ Manuel utilisateur

ASROCK

ASROCK P43DE - V1.0 Manuel utilisateur

ASROCK

ASROCK ALIVENF5-ESATA2 PLUS - V1.0 Manuel utilisateur

ASROCK

ASROCK Q170M vPro+ Manuel utilisateur

ASROCK

ASROCK H81M-ITX Manuel utilisateur

ASROCK

ASROCK H370M-HDV/M.2 Manuel utilisateur

ASROCK

ASROCK H67DE3 Manuel utilisateur

ASROCK

ASROCK EP2C612 WS Manuel utilisateur

ASROCK

ASROCK NF6-GLAN Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
