ASROCK FM2A88M+ BTC Manuel utilisateur

Version 1.0

Published April 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

English

FM2A88M+ BTC

Motherboard Layout

SOCKET FM2b

AMD

A88X

(Bolton-D4)

Chipset

16171920222324

Sup er

I/O

AUDIO

CODEC

64Mb

BIOS

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

CHA_FAN1

HD_AUDIO1

USB45

RoHS

PCIE3

PCIE4

SATA_2 SATA_4

SATA_1 SATA_3

SATA_6

SATA_5

SATA_7SATA_8

31 2

CMOS

BATTERY

ATXPWR1

PCIE2

CPU_FAN1

PCIE1

FM2A88M+ BTC

ATX12V 1

USB3_ 2_3

PCI Express 3.0

USB67

TPMS1

LPT1

PCIE_PWR1

SPEAKER1

HDLE D RESET

PLED P WRBTN

PANEL 1

CLR CMO S1

CPU_FAN2

PWR_FAN1

CHA_FAN2

LAN

Top:

LINE IN

Cente r:

FRONT

Botto m:

MIC IN

PS2

Mouse

PS2

Keyb oa rd

USB 3.0

T: USB0

B: USB1

RJ-45 LAN

USB 2.0

T: USB2

B: USB3

USB 2.0

T: USB0

B: USB1

VGA1

DVI1

USB01_PWR1

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 Power Fan Connector (PWR_FAN1)

3 CPU Fan Connector (CPU_FAN1)

4 CPU Fan Connector (CPU_FAN2)

5 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

6 ATX Power Connector (ATXPWR1)

7 USB 3.0 Header (USB3_2_3)

8SATA3 Connectors (SATA _7)

9SATA3 Connectors (SATA _8)

10 Chassis Fan Connector (CHA_FAN1)

11 Clear CMOS Jumper (CLRCMOS1)

12 Chassis Speaker Header (SPEAKER1)

13 System Panel Header (PANEL1)

14 SATA3 Connectors (SATA _6)

15 SATA3 Connectors (SATA _5)

16 SATA3 Connectors (SATA _4)

17 SATA3 Connectors (SATA _3)

18 SATA3 Connectors (SATA _1)

19 SATA3 Connectors (SATA _2)

20 USB 2.0 Header (USB45)

21 USB 2.0 Header (USB67)

22 TPM Header (TPMS1)

23 Print Port Header (LPT1)

24 Front Panel Audio Header (HD_AUDIO1)

25 PCIe Power Connector (PCIE_PWR1)

26 Chassis Fan Connector (CHA_FAN2)

27 USB Power Jumper (USB01_PWR1)

English

FM2A88M+ BTC

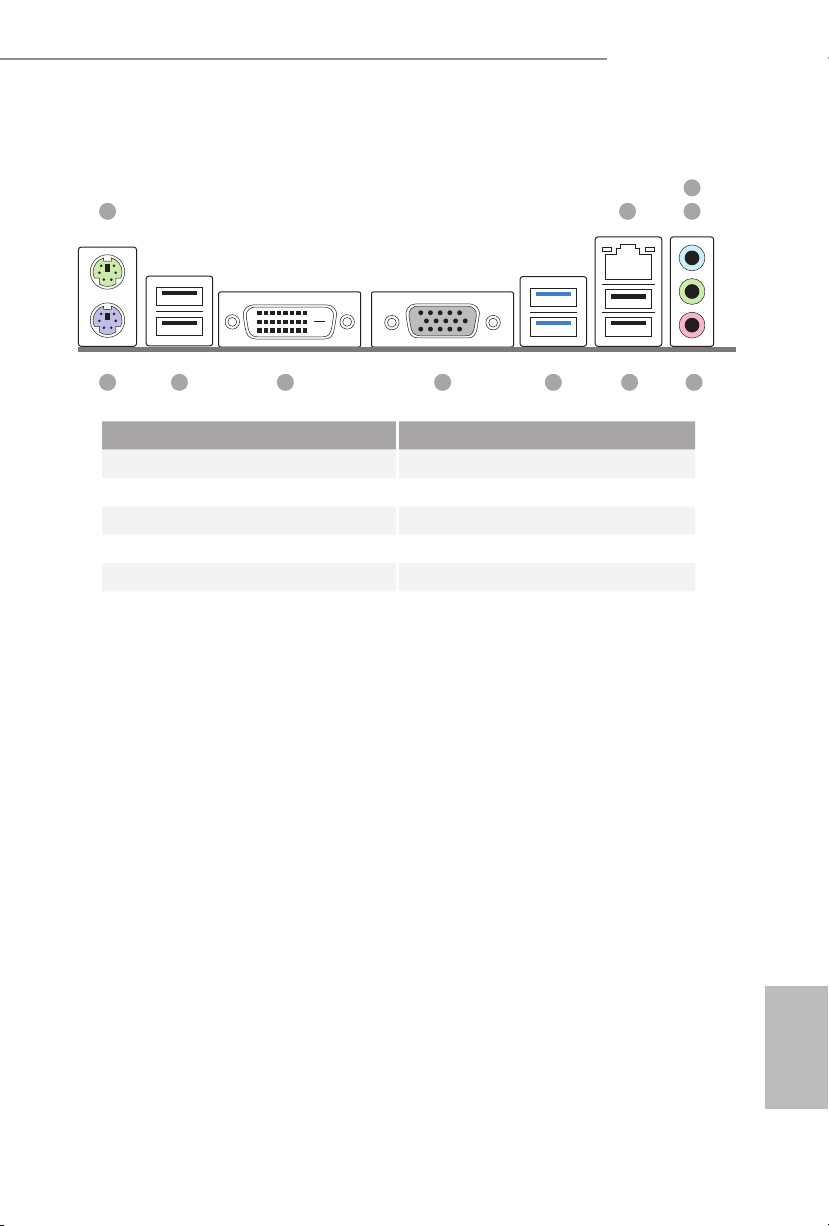

I/O Panel

No. Description No. Description

1 PS/2 Mouse Port (Green) 7 USB 3.0 Ports (USB23)

2 LAN RJ-45 Port* 8 D-Sub Port (VGA1)

3 Line In (Light Blue) 9 DVI-D Port (DVI1)

4 Front Speaker (Lime) 10 USB 2.0 Ports (USB01)

5Microphone (Pink) 11 PS/2 Keyboard Port (Purple)

6 USB 2.0 Ports (USB45)

1 2 4

567891011

English

* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indica-

tions.

Activity / Link LED Speed LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

English

FM2A88M+ BTC

1. Introduction

Thank you for purchasing ASRock FM2A88M+ BTC motherboard, a reliable moth-

erboard produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

 Becausethemotherboard specicationsandtheBIOS softwaremight

be updated, the content of this manual will be subject to change without

notice.Incaseanymodicationsofthismanualoccur,theupdatedver-

sion will be available on ASRock website without further notice. You may

ndthelatestVGAcardsandCPUsupportlistsonASRockwebsiteas

well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

ourwebsiteforspecicinformationaboutthemodelyouareusing.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock FM2A88M+ BTC Motherboard (ATX Form Factor)

ASRock FM2A88M+ BTC Quick Installation Guide

ASRock FM2A88M+ BTC Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

English

1.2 Specications

Platform • Micro ATX Form Factor

• All Solid Capacitor design

• High Density Glass Fabric PCB

CPU • Supports Socket FM2+ 95W / FM2 100W processors

• 4 + 2 Power Phase design

Chipset • AMD A88X (Bolton-D4)

Memory • Dual Channel DDR3 Memory Technology

• 2 x DDR3 DIMM Slots

• Supports DDR3 1866/1600/1333/1066 non-ECC, un-

buffered memory (see CAUTION 1)

• Max. capacity of system memory: 32GB (see CAUTION

• Supports Intel®ExtremeMemoryProle(XMP)1.3/1.2

• SupportsAMDMemoryProleTechnology(AMP)

• 15μGoldContactinDIMMSlots

Expan-

sion

Slot

• 1 x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode)

* PCIE 3.0 is only supported with FM2+ CPU. With FM2

CPU, it only supports PCIE 2.0.

• 3 x PCI Express 2.0 x1 Slots

• 15μGoldContactinVGAPCIeSlot(PCIE1)

Graphics • Integrated AMD RadeonTM R7/R5 Series Graphics in

A-series APU

• DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX

11, Pixel Shader 5.0 with FM2 CPU.

• Max. shared memory 2GB

• Dual VGA output: support DVI-D and D-Sub by

independent display controllers

• Supports Dual-link DVI-D with max. resolution up to

2560x1600 @ 60Hz

English

FM2A88M+ BTC

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports AMD Steady VideoTM 2.0: New video post

processing capability for automatic jitter reduction on

home/online video

• Supports HDCP with DVI-D Port

• Supports Full HD 1080p Blu-ray (BD) playback with

DVI-D Port

Audio • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

• Supports Surge Protection (ASRock Full Spike Protec-

tion)

• TI®NE5532PremiumHeadsetAmplier(Supportsupto

600 ohm headsets) (Line-Out on rear I/O only)

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Wake-On-WAN (see CAUTION 3)

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports LAN Cable Detection

• SupportsEnergyEfcientEthernet802.3az

• Supports PXE

Rear

Panel I/O

• 1 x PS/2 Mouse Port

• 1 x PS/2 Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 4 x USB 2.0 Ports (Supports ESD Protection (ASRock

Full Spike Protection))

• 2 x USB 3.0 Ports (AMD A88X (Bolton-D4))

(Supports ESD Protection (ASRock Full Spike

Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and

SPEED LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

English

Storage • 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID

0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot

Plug

Connec-

tor

• 1 x Print Port Header

• 1 x TPM Header

• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)

• 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)

• 1 x Power Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x PCIe Power Connector

• 1 x Front Panel Audio Connector

• 1 x USB Power Jumper (Ultra USB Power)

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

(Supports ESD Protection (ASRock Full Spike Protec-

tion))

• 1 x USB 3.0 Header by AMD A88X (Bolton-D4) (Sup-

ports 2 USB 3.0 ports) (Supports ESD Protection (AS-

Rock Full Spike Protection))

BIOS

Feature

• 64Mb AMI UEFI Legal BIOS with GUI support

• Supports “Plug and Play”

• ACPI 1.1 Compliant wake up events

• Supports jumperfree

• SMBIOS 2.3.1 support

• DRAM, CPU, SB Voltage multi-adjustment

Support

• Drivers, Utilities, AntiVirus Software (Trial Version),

Google Chrome Browser and Toolbar, Start8 (30 days

trial)

Hardware

Monitor

• CPU temperature sensing

• Chassis temperature sensing

• CPU Fan Tachometer

• Chassis Fan Tachometer

• CPU/Chassis Quiet Fan

• CPU/Chassis Fan multi-speed control

• Voltage monitoring: +12V, +5V, +3.3V, Vcore

English

FM2A88M+ BTC

OS • Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit /

8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

* For the updated Windows® 10 driver, please visit

ASRock’s website for details: http://www.asrock.com

* Carrizo FM2r2 processor supports Windows® 10 64-

bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is

required)

WARNING

Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

overclocking.

* For detailed product information, please visit our website: http://www.asrock.com

CAUTION!

1. Whether 1866/1600MHz memory speed is supported depends

on the CPU you adopt. If you want to adopt DDR3 1866/1600

memory module on this motherboard, please refer to the mem-

ory support list on our website for the compatible memory mod-

ules.

ASRock website http://www.asrock.com

2. Due to the operating system limitation, the actual memory size

may be less than 4GB for the reservation for system usage un-

der Windows®10 / 8.1 / 8 / 7. For Windows®64-bit OS with 64-

bit CPU, there is no such limitation. You can use ASRock XFast

RAM to utilize the memory that Windows®cannot use.

3. Wake-On-WAN allows you to wake up this system from remote

mobile devices, such as smart phones, tables, or other PCs.

It needs third-party softwares and applications to utilize this

feature. Please visit our website for Home Cloud topic.

Autres manuels pour FM2A88M+ BTC

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK EPC602D8A Manuel utilisateur

ASROCK

ASROCK H55M-LE - - 01-2010 Manuel utilisateur

ASROCK

ASROCK H570 Steel Legend Manuel utilisateur

ASROCK

ASROCK Z77 Extreme9 Manuel utilisateur

ASROCK

ASROCK ALIVENF4G-DVI Manuel utilisateur

ASROCK

ASROCK N73PV-S - INSTALLATION - 12-2006 Manuel utilisateur

ASROCK

ASROCK X370 Pro4 Manuel utilisateur

ASROCK

ASROCK H61M-ITX/SI Manuel utilisateur

ASROCK

ASROCK A785GM Manuel utilisateur

ASROCK

ASROCK K8UPGRADE-760GX Manuel utilisateur

ASROCK

ASROCK B150M-PIO2 Manuel utilisateur

ASROCK

ASROCK 4U4G Series Manuel utilisateur

ASROCK

ASROCK P67 TRANSFORMER - Manuel utilisateur

ASROCK

ASROCK A520M/ac Manuel utilisateur

ASROCK

ASROCK Z490 Extreme4 Manuel utilisateur

ASROCK

ASROCK G41MH-LE3 Manuel utilisateur

ASROCK

ASROCK H510M-ITX/ac Manuel utilisateur

ASROCK

ASROCK 970 Extreme4 Manuel utilisateur

ASROCK

ASROCK 775i65GV Manuel utilisateur

ASROCK

ASROCK FM2A75 Pro4 Manuel utilisateur

ASROCK

ASROCK 880GXHU3/128M Manuel utilisateur

ASROCK

ASROCK 890GX EXTREME4 Manuel utilisateur

ASROCK

ASROCK N68-GS Manuel utilisateur

ASROCK

ASROCK H110M-PIO Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
