2ASRock 775i65GV Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 16 System Panel Header (PANEL1)

2 775-Pin CPU Socket 17 Infrared Module Header (IR1)

3 North Bridge Controller 18 Clear CMOS Jumper (CLRCMOS0)

4 CPU Fan Connector (CPU_FAN1) 19 Floppy Connector (FLOPPY1)

5 184-pin DDR DIMM Slots (DDR1- 2, Dual Channel) 20 AMR Slot (AMR1)

6 ATX Power Connector (ATXPWR1) 21 Internal Audio Connector: CD1 (Black)

7 Primary IDE Connector (IDE1, Blue) 22 Internal Audio Connector: AUX1 (White)

8 Secondary IDE Connector (IDE2, Black) 23 PCI Slots (PCI1- 3)

9 ASRock Graphics Interface Slot (1.5V_AGP1) 24 JR1 Jumper / JL1 Jumper

10 South Bridge Controller 25 Front Panel Audio Header (AUDIO1)

11 Secondary Serial ATA Connector (SATA2) 26 COM Port Header (COM1)

12 Primary Serial ATA Connector (SATA1) 27 Shared USB 2.0 Header (USB4_5, Blue)

13 Chassis Speaker Header (SPEAKER 1) 28 BIOS FWH Chip

14 Chassis Fan Connector (CHA_FAN1) 29 FSB Select Jumper (FSB1)

15 USB 2.0 Header (USB67, Blue) 30 ATX 12V Connector (ATX12V1)

ASRock 775i65GV Motherboard

EnglishEnglish

English

ASRock I/O PlusASRock I/O Plus

ASRock I/O PlusTMTM

TMTM

1 Parallel Port 7 USB 2.0 Ports (USB01)

2 RJ-45 Port 8 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 9 VGA Port

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 Shared USB 2.0 Ports (USB45)

4ASRock 775i65GV Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock 775i65GV motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest memory and CPU support lists onASRock website as

well. ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock 775i65GV Motherboard

(Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm)

ASRock 775i65GV Quick Installation Guide

ASRock 775i65GV Support CD (including LGA 775 CPU Installation Live Demo)

One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One SerialATA (SATA) Data Cable

One SerialATA (SATA) HDD Power Cable (Optional)

OneASRock I/O PlusTM Shield

One COM Port Bracket

OneASRock MR Card (Optional)

ASRock 775i65GV Motherboard

EnglishEnglish

English

1.2 Specifications1.2 Specifications

1.2 Specifications

Platform: Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm

CPU: 775-Pin Socket

supporting Intel®Pentium® 4 / Celeron®processor (in 775-land

LGA package)

Chipsets: North Bridge:

Intel®865GV chipset, FSB @ 800 / 533 MHz,

supports Hyper-Threading Technology (see CAUTION 1)

South Bridge:

Intel®ICH5, supports SATA 1.5Gb/s

Memory: 2DDRDIMMslots:DDR1andDDR2

supports PC3200 (DDR400) / PC2700 (DDR333) /

PC2100 (DDR266), Max. 2GB (see CAUTION 2)

Dual Channel Memory Technology support

(see CAUTION 3)

IDE: IDE1:ATA100 / UltraDMAMode 5

IDE2:ATA100 / UltraDMAMode 5

Supports up to 4 IDE devices

Serial ATA: Supports up to 2 SATA devices at 1.5Gb/s data transfer rate.

(No Support for “RAID” and “Hot Plug” functions)

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

PCI LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor:CPU temperature sensing

Motherboard temperature sensing

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 4)

CPU fan tachometer

Chassis fan tachometer

Voltage monitoring: +12V, +5V, +3.3V, Vcore

PCI slots: 3 PCI slots with PCI Specification 2.2 (see CAUTION 5)

AMR slot: 1 slot, supports ASRock MR card (Optional)

AGI slot: 1 AGI [ASRock Graphics Interface] slot (see CAUTION 6)

USB 2.0: 8 USB 2.0 ports:

includes 6 default USB 2.0 ports on the rear panel,

plus one header to support 2 additional USB 2.0 ports

(see CAUTION 7)

ASRock I/O PlusTM:1 PS/2 mouse port, 1 PS/2 keyboard port,

1 VGAport, 1 parallel port: ECP/EPP support,

6 default USB 2.0 ports,

1 RJ-45 port,

Audio Jack: Line In / Line Out / Microphone

6ASRock 775i65GV Motherboard

EnglishEnglish

English

COM Port: 1 COM Port Header to support a COM port module

BIOS: AMI legal BIOS, Supports “Plug and Play”,

ACPI 1.1 compliance wake up events,

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 8)

OS: Microsoft®Windows®98 SE / ME / 2000 / XP compliant

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page 27

of “User Manual” in the Support CD.

2. Please check the table below for the memory support frequency and its

corresponding CPU FSB frequency.

CPU FSB Frequency Memory Support Frequency

800 DDR266, DDR320*, DDR400

533 DDR266, DDR333

400 DDR266

*When you use an FSB800-CPU on this motherboard, it will run at

DDR320 if you adopt a DDR333 memory module.

3. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

4. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

5. Because the installed AMR card will occupy the same external connecting

position with the PCI card that are installed in “PCI3” slot, you will not be

able to install any PCI card in “PCI3” slot if anAMR card has already been

installed in the AMR slot.

6. The AGI [ASRock Graphics Interface] slot is a special design that only

supports compatibleAGP VGA cards. For the information of the compatible

AGP VGA cards, please refer to the “Supported AGP VGA Cards List” on

page 7 and page 8. For the proper installation of AGP VGA card, please

refer to the installation guide on page 13.

7. Power Management for USB 2.0 works fine under Microsoft®Windows®XP

SP1 / 2000 SP4. It may not work properly under Microsoft®Windows®98/

ME. Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

8. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

ASRock 775i65GV Motherboard

1.31.3

1.3 Supported AGP VGA Cards ListSupported AGP VGA Cards List

Supported AGP VGA Cards ListSupported AGP VGA Cards List

Supported AGP VGA Cards List

(for Windows 2000/Windows XP)

I. AGP 4X

Graphics Chip ModelName

Vendor

n-VIDIA ASUS AGP-V7100

ASUS AGP-V7100PRO

ASUS AGP-V7100 MAGIC / 32M

ASUSAGP-V7700Ti

ASUS AGP-V8170DDR

ASUS AGP-V8170SE / LP

ASUS AGP-V8200 T2

ASUS AGP-V8200 T5

ASUS AGP-V8440

ASUS AGP-V8460 Ultra

GAINWARD-GF3-TI500/64M

GAINWARD-GF3-TI500/128M

Inno3D GeForce2 MX400

Leadtek WinFast A170 TH

Leadtek WinFast A170 DDR

Leadtek WinFast A250LE TD

Leadtek WinFast GeForce2 MX MX64

Leadtek WinFast GeForce2 H MX400

MSI-GF4-MX440SE

PROLINKGF4-MX440

SPARKLEGF4-MX440

ATI Gigabyte GV-AP64D

Gigabyte GV-AP64D-H

Gigabyte GV-AR64S-H

POWERCOLOR RADEON 9000

POWERCOLOR RADEON 9100

TRANSCENDTS64MVDR7

SiS SYNNEX GCM-SiS315EA32

For the latest updates of the supported AGP VGA cards list, please visit

ASRock website for details.

ASRock website: http://www.asrock.com/support/index.htm

EnglishEnglish

English

8ASRock 775i65GV Motherboard

II. AGP 8X

Graphics Chip ModelName

Vendor

n-VIDIA ALBATRONGF4-MX440 64M

AOPENAeolus FX5600S-DV128

AOPEN Aeolus FX5200-V128

ASUS AGP-V9180

ASUS AGP-V9280 VIEDO SUITE

ASUS AGP-V9520 MAGIC/T

ASUS V9900

ASUS V9900 ULTRA

ELSA-GLADIC 518

ELSA-GLADIC 518 P

Inno3D GeForce FX5600

LEADTEK A280 LE

LEADTEKA340TDH

MSI Ti4800SE-VTD8X

PALITGF4 MX440 8X 64MB

PROLINK GeForceFX5900

PROLINK GF4-TI4200

SPARKLEGF4-MX440-8X

ATI CLUB3DATI R9800

Gigabyte GV R9000 PRO

Gigabyte RADEON 9500

Gigabyte RADEON 9700 PRO

POWER COLOR 9200

SAPHIRE RADEON 9200-128MB

SiS POWER COLOR XABRE600

For the latest updates of the supported AGP VGA cards list, please visit

ASRock website for details.

ASRock website: http://www.asrock.com/support/index.htm

EnglishEnglish

English

ASRock 775i65GV Motherboard

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-Pin CPU,

please follow the steps below.

Before you insert the 775-Pin CPU into the socket, please check if the

CPU surface is unclean or if there is any bent pin on the socket. Do

not force to insert the CPU into the socket if above situation is found.

Otherwise, the CPU will be seriously damaged.

EnglishEnglish

English

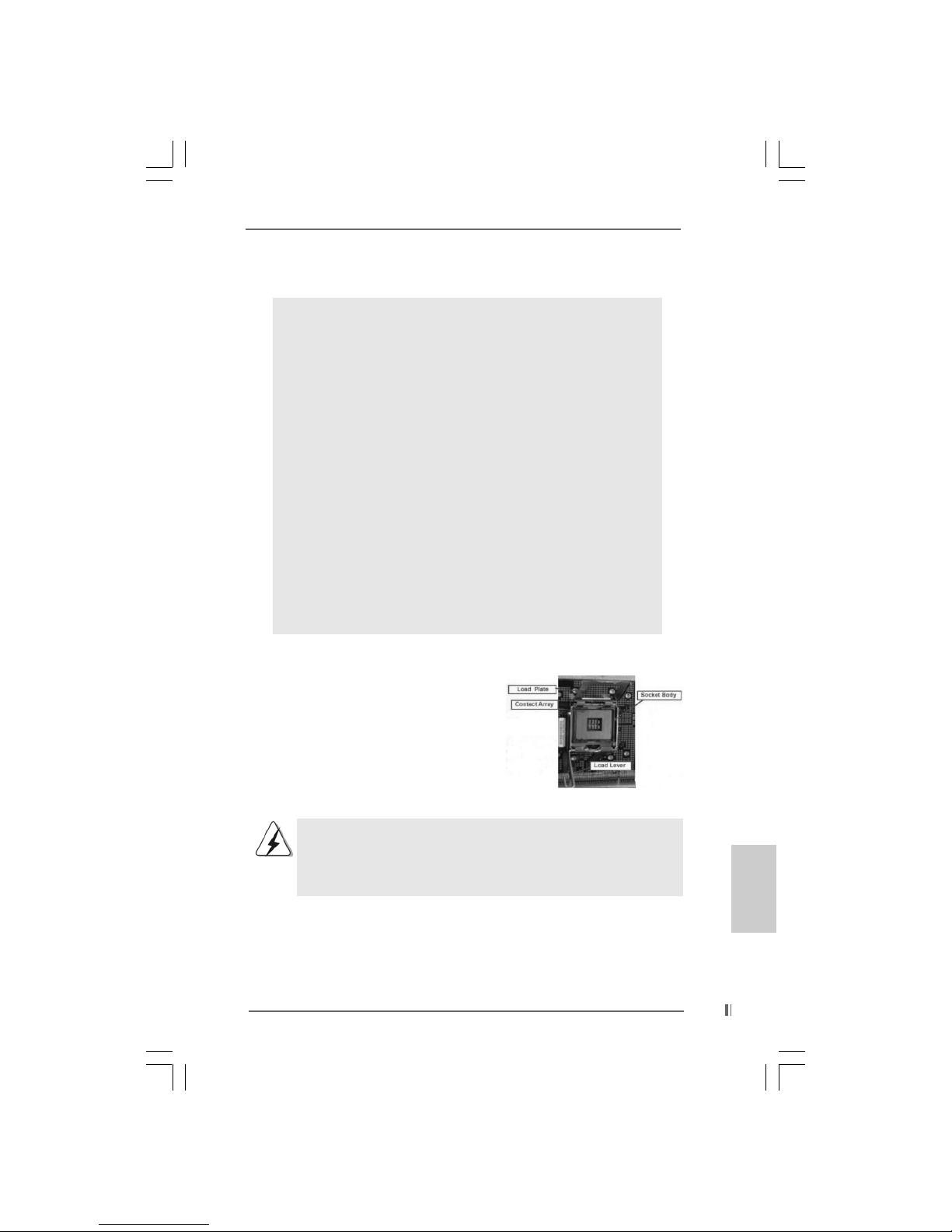

775-Pin Socket Overview

1010

10 ASRock 775i65GV Motherboard

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Insert the 775-Pin CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two

orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to

support the load plate edge, engage PnP cap

with right hand thumb and peel the cap from the

socket while pressing on center of PnP cap to

assist in removal.

black line

775-Pin CPU

775-PinSocket

Pin1

alignment key alignment key

Pin1

orientation

key notch orientation

key notch

EnglishEnglish

English

Autres manuels pour 775i65GV

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK N3700-ITX Manuel utilisateur

ASROCK

ASROCK P4I45E R3.0 Manuel utilisateur

ASROCK

ASROCK ALIVENF4G-DV - Manuel utilisateur

ASROCK

ASROCK R0ME2D16-2T Manuel utilisateur

ASROCK

ASROCK ALIVENF7G-HDREADY Manuel utilisateur

ASROCK

ASROCK WOLFDALE1333-GLAN Manuel utilisateur

ASROCK

ASROCK Z87M Pro4 Manuel utilisateur

ASROCK

ASROCK X570 Taichi Manuel utilisateur

ASROCK

ASROCK FM2A75 Pro4 Manuel utilisateur

ASROCK

ASROCK P4VM800 Manuel utilisateur

ASROCK

ASROCK G43TWINS-FULLHD Manuel utilisateur

ASROCK

ASROCK IMB-152 Manuel utilisateur

ASROCK

ASROCK H61DE/SI Manuel utilisateur

ASROCK

ASROCK FM2A88M Extreme4+ R2.0 Manuel utilisateur

ASROCK

ASROCK FM2A88X+ BTC Manuel utilisateur

ASROCK

ASROCK IMB-1712 Manuel de service

ASROCK

ASROCK N68-VGS3 UCC - Manuel utilisateur

ASROCK

ASROCK A785GXH128M Manuel utilisateur

ASROCK

ASROCK B250M PRO4 Manuel utilisateur

ASROCK

ASROCK Z170 Extreme6+ Manuel utilisateur

ASROCK

ASROCK H61DE Manuel utilisateur

ASROCK

ASROCK G41M-S Manuel utilisateur

ASROCK

ASROCK G41C-GS Manuel utilisateur

ASROCK

ASROCK FM2A55M-DGS Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
