ASROCK X370 Pro4 Manuel utilisateur

Version 1.0

Published January 2018

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per AsRock X370 Pro4 o

cerca il tuo prodotto tra le migliori offerte di Schede Madri

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer

Law. You are entitled to a replacement or refund for a major failure and compensation for

any other reasonably foreseeable loss or damage caused by our goods. You are also entitled

to have the goods repaired or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure. If you require assistance please call ASRock Tel

: +886-2-28965588 ext.123 (Standard International call charges apply)

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

English

X370 Pro4

Motherboard Layout

BIOS

ROM

ATXPWR1

Super

I/O

CLRCMOS1

USB_3_4

HD_AUDIO1

CPU_FAN1

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

RJ-45 LAN

SOCKET AM4

Front USB 3.0

COM1

HDMI1

CMOS

Battery

ATX12V1

M2_1

Ultra M.2

PCIe Gen3 x4

USB3_5_6

CHA_FAN3

HDLED RESET

PLED PWRBTN

PANEL1

RoHS

SPK_PLED1

PCI Express 3.0

DDR4_A1 (64 bit, 288-pin module)

DDR4_A2 (64 bit, 288-pin module)

DDR4_B1 (64 bit, 288-pin module)

DDR4_B2 (64 bit, 288-pin module)

PCIE1

M2_2

AMD

Promontory

X370

USB 3.0

T: USB1

B: USB2

USB 3.0

T: USB3

B: USB4

AMD_FAN_LED1

USB_1_2

TPMS1

SATA3_1

SATA3_2

SATA3_A1

X370 Pro4

PCIE2

PCIE3

PCIE5

PCIE6

PCIE4

CHA_FAN1 CHA_FAN2

RGB_HEADER1

SATA3_A2

SATA3_3

SATA3_4

USB 3. 0

T: USB31_TA_1

B: USB31_TC_1

USB 2.0

T: USB1

B: USB2

PS2

Keyboard

/Mouse

DVI1

VGA1

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

5 AMD Fan LED Header (AMD_FAN_LED1)

6 RGB LED Header (RGB_HEADER1)

7 ATX Power Connector (ATXPWR1)

8 USB 3.1 Gen1 Header (USB3_5_6)

9 SATA3 Connector (SATA3_2)

10 SATA3 Connector (SATA3_1)

11 SATA3 Connector (SATA3_A1)

12 SATA3 Connector (SATA3_A2)

13 SATA3 Connector (SATA3_3)

14 SATA3 Connector (SATA3_4)

15 Power LED and Speaker Header (SPK_PLED1)

16 System Panel Header (PANEL1)

17 Chassis Fan Connector (CHA_FAN2)

18 Chassis Fan Connector (CHA_FAN1)

19 Clear CMOS Jumper (CLRCMOS1)

20 USB 2.0 Header (USB_3_4)

21 USB 2.0 Header (USB_1_2)

22 COM Port Header (COM1)

23 TPM Header (TPMS1)

24 Front Panel Audio Header (HD_AUDIO1)

25 Chassis Fan Connector (CHA_FAN3)

English

X370 Pro4

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB12) 8 USB 3.1 Gen1 Ports (USB3_12)

2 DVI-D Port 9 USB 3.1 Gen1 Port (USB31_TA_1)

3 LAN RJ-45 Port* 10 USB 3.1 Gen1 Type-C Port (USB31_TC_1)

4 Line In (Light Blue)** 11 HDMI Port

5 Front Speaker (Lime)** 12 D-Sub Port

6 Microphone (Pink)** 13 PS/2 Mouse/Keyboard Port

7 USB 3.1 Gen1 Ports (USB3_34)

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

8 791113

English

** To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-

channel audio feature through the audio driver.

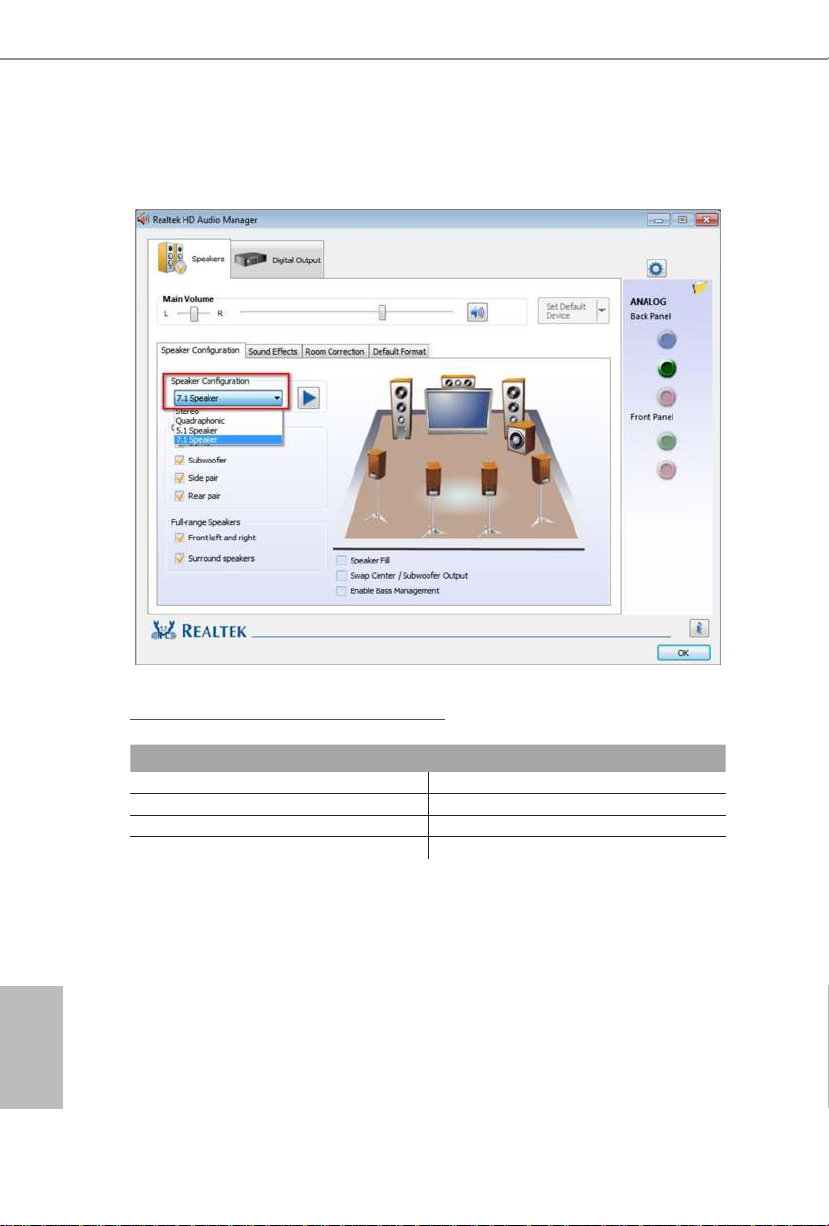

Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.

Function of the Audio Ports in 7.1-channel Conguration:

Port Function

Light Blue (Rear panel) Rear Speaker Out

Lime (Rear panel) Front Speaker Out

Pink (Rear panel) Central /Subwoofer Speaker Out

Lime (Front panel) Side Speaker Out

English

X370 Pro4

Chapter 1 Introduction

ank you for purchasing ASRock X370 Pro4 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

• ASRock X370 Pro4 Motherboard (ATX Form Factor)

• ASRock X370 Pro4 Quick Installation Guide

• ASRock X370 Pro4 Support CD

• 1 x I/O Panel Shield

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 2 x Screws for M.2 Sockets (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this manual will be subject to change without notice. In case any modica-

tions of this manual occur, the updated version will be available on ASRock’s website

without further notice. If you require technical support related to this motherboard,

please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well.

ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • ATX Form Factor

• Solid Capacitor design

CPU • Supports AMD Socket AM4 A-Series APUs (Bristol Ridge)

and Ryzen CPUs (Summit Ridge)

• Digi Power design

• 9 Power Phase design

• Supports 95W Air Cooling

Chipset • AMD Promontory X370

Memory • Dual Channel DDR4 Memory Technology

• 4 x DDR4 DIMM Slots

• AMD Ryzen series CPUs support DDR4 3200+(OC)/2933

(OC)/2667/2400/2133 ECC & non-ECC, un-buered

memory*

• AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC

& non-ECC, un-buered memory*

* Please refer to Memory Support List on ASRock’s website for

more information. (http://www.asrock.com/)

* Please refer to page 22 for DDR4 UDIMM maximum frequency

support.

• Max. capacity of system memory: 64GB

• 15μ Gold Contact in DIMM Slots

Expansion

Slot

AMD Ryzen series CPUs

• 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at

x16 (PCIE2) / x4 (PCIE4))*

AMD 7th A-Series APUs

• 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE2); dual at x8

(PCIE2) / x2 (PCIE4))*

* Supports NVMe SSD as boot disks

* If M2_1 is occupied, PCIE4 will be disabled.

• 4 x PCI Express 2.0 x1 Slots

• Supports AMD Quad CrossFireXTM and CrossFireXTM**

** is feature is only supported with Ryzen Series CPUs (Summit

Ridge).

English

X370 Pro4

Graphics • Integrated AMD RadeonTM R7/R5 Series Graphics in A-series

APU

• DirectX 12, Pixel Shader 5.0

• Max. shared memory 2GB

• ree graphics output options: D-Sub, DVI-D and HDMI

• Supports Triple Monitor

• Supports HDMI with max. resolution up to 4K x 2K

(4096x2160) @ 24Hz / (3840x2160) @ 30Hz

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port (Compliant

HDMI monitor is required)

• Supports HDCP with DVI-D and HDMI Ports

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI Ports

Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892

Audio Codec)

* To congure 7.1 CH HD Audio, it is required to use an HD

front panel audio module and enable the multi-channel audio

feature through the audio driver.

• Premium Blu-ray Audio support

• Supports Surge Protection

• ELNA Audio Caps

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

English

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 1 x HDMI Port

• 2 x USB 2.0 Ports (Supports ESD Protection)

• 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)

• 5 x USB 3.1 Gen1 Ports (Supports ESD Protection (Supports

ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage • 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*

• 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup-

port NCQ, AHCI and Hot Plug

* M2_2 and SATA3_3 share lanes. If either one of them is in use,

the other one will be disabled.

• 1 x Ultra M.2 Socket (M2_1), supports type 2242/2260/2280

M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen

CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)**

• 1 x M.2 Socket (M2_2), supports type

2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module**

** If M2_1 is occupied, PCIE4 will be disabled.

** Supports NVMe SSD as boot disks

** Supports ASRock U.2 Kit

Connector • 1 x COM Port Header

• 1 x TPM Header

• 1 x Power LED and Speaker Header

• 1 x RGB LED Header

* Supports up to 12V/3A, 36W LED Strip

• 1 x AMD Fan LED Header

• 1 x CPU Fan Connector (4-pin)

* e CPU Fan Connector supports the CPU fan of maximum

1A (12W) fan power.

• 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed

Control)

* CHA_FAN2 and CHA_FAN3 can auto detect if 3-pin or 4-pin

fan is in use.

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK EP2C612D16T-4L Manuel utilisateur

ASROCK

ASROCK Z590 PRO4 Manuel utilisateur

ASROCK

ASROCK EP2C612D16NM Manuel utilisateur

ASROCK

ASROCK A790GX-128M Manuel utilisateur

ASROCK

ASROCK K10N750SLI-110DB Manuel utilisateur

ASROCK

ASROCK M3A790GXH 128M - V1.0 Manuel utilisateur

ASROCK

ASROCK H77 Pro4-M Manuel utilisateur

ASROCK

ASROCK PENRYN1600SLIX3-WIFI Manuel utilisateur

ASROCK

ASROCK B450M Steel Legend Manuel utilisateur

ASROCK

ASROCK Z390 Phantom Gaming 9 Manuel utilisateur

ASROCK

ASROCK 4Core1333-Viiv Manuel utilisateur

ASROCK

ASROCK CONROE865GV Manuel utilisateur

ASROCK

ASROCK A785GMH128M Manuel utilisateur

ASROCK

ASROCK H81M-ITX Manuel utilisateur

ASROCK

ASROCK 4CORE1600-DVI - V1.0 Manuel utilisateur

ASROCK

ASROCK K10N78D Manuel utilisateur

ASROCK

ASROCK A55M-HVS Manuel utilisateur

ASROCK

ASROCK Z68 Extreme7 Gen3 Manuel utilisateur

ASROCK

ASROCK A785GXH 128M Manuel utilisateur

ASROCK

ASROCK W480M WS Manuel utilisateur

ASROCK

ASROCK Z77M Manuel utilisateur

ASROCK

ASROCK 970 Extreme3 Manuel utilisateur

ASROCK

ASROCK 2Core1066-2.13G Manuel utilisateur

ASROCK

ASROCK P43DE Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
