ank you for purchasing ASRock B95M-DGS motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

In this manual, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

1.1 Package Contents

• ASRock B95M-DGS Motherboard (Micro ATX Form Factor)

• ASRock B95M-DGS Quick Installation Guide

• ASRock B95M-DGS Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

B95M-DGS

English

Chapter 1 Introduction

ank you for purchasing ASRock B95M-DGS motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

In this manual, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

1.1 Package Contents

• ASRock B95M-DGS Motherboard (Micro ATX Form Factor)

• ASRock B95M-DGS Quick Installation Guide

• ASRock B95M-DGS Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

• Solid Capacitor design

• High Density Glass Fabric PCB

CPU • Supports New 4th and 4th Generation Intel® CoreTM i7/i5/i3/

Xeon®/Pentium®/Celeron® Processors (Socket 1150)

• Supports Intel® Turbo Boost 2.0 Technology

Chipset • Intel® B85

Memory • Dual Channel DDR3 Memory Technology

• 2 x DDR3 DIMM Slots

• Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 16GB (see CAUTION)

• Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

• 1 x PCI Express 2.0 x1 Slot

Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

• Pixel Shader 5.0, DirectX 11.1

• Max. shared memory 1792MB

• Dual graphics output: support DVI-D and D-Sub by

independent display controllers

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports HDCP with DVI-D Port

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

Port

B95M-DGS

English

Audio • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

• Supports Surge Protection (ASRock Full Spike Protection)

• ELNA Audio Caps

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Wake-On-WAN

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage • 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug

Connector • 1 x Print Port Header

• 1 x COM Port Header

• 1 x Chassis Intrusion Header

• 1 x TPM Header

• 1 x CPU Fan Connector (4-pin)

• 1 x Chassis Fan Connector (4-pin)

• 1 x Power Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

• 1 x 4 pin 12V Power Connector

• 1 x Front Panel Audio Connector

English

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

BIOS

Feature

• 32Mb AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 1.1 Compliant wake up events

• SMBIOS 2.3.1 support

• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjust-

ment

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis/Power Fan Tachometer

• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

• CPU/Chassis Fan multi-speed control

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-

bit / 7 32-bit / 7 64-bit

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including adjust-

ing the setting in the BIOS, applying Untied Overclocking Technology, or using third-

party overclocking tools. Overclocking may aect your system’s stability, or even cause

damage to the components and devices of your system. It should be done at your own

risk and expense. We are not responsible for possible damage caused by overclocking.

* For detailed product information, please visit our website: http://www.asrock.com

Due to limitation, the actual memory size may be less than 4GB for the reservation

for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat-

ing systems do not have such limitations. You can use ASRock XFast RAM to utilize

the memory that Windows® cannot use.

B95M-DGS

English

1.3 Motherboard Layout

Intel

B85

DDR3_B1 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

CMOS

Battery

Super

I/O

ATXPWR1

LAN

Top:

RJ-45

USB 2.0

T: USB2

B: USB3

CLRCMOS1

SPEAKER1

HDLED RESET

PLED PWRBTN

PANEL1

USB4_5

COM1

HD_AUDIO1

B95M-DGS

CHA_FAN1

RoHS

CPU_FAN1

32Mb

BIOS

VGA1

Audio

CODEC

PCIE1

Front USB 3.0

PWR_FAN1

TPMS1

LPT1

CI1

USB3_2_3

SATA3_3

PCIE2

USB 3.0

T: USB0

B: USB1

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

USB6_7

ATX12V1

SATA3_1

SATA3_2

SATA3_0

PCI Express 3.0

USB 2.0

T: USB0

B: USB1

PS2

Keyboard/

Mouse

DVI1

English

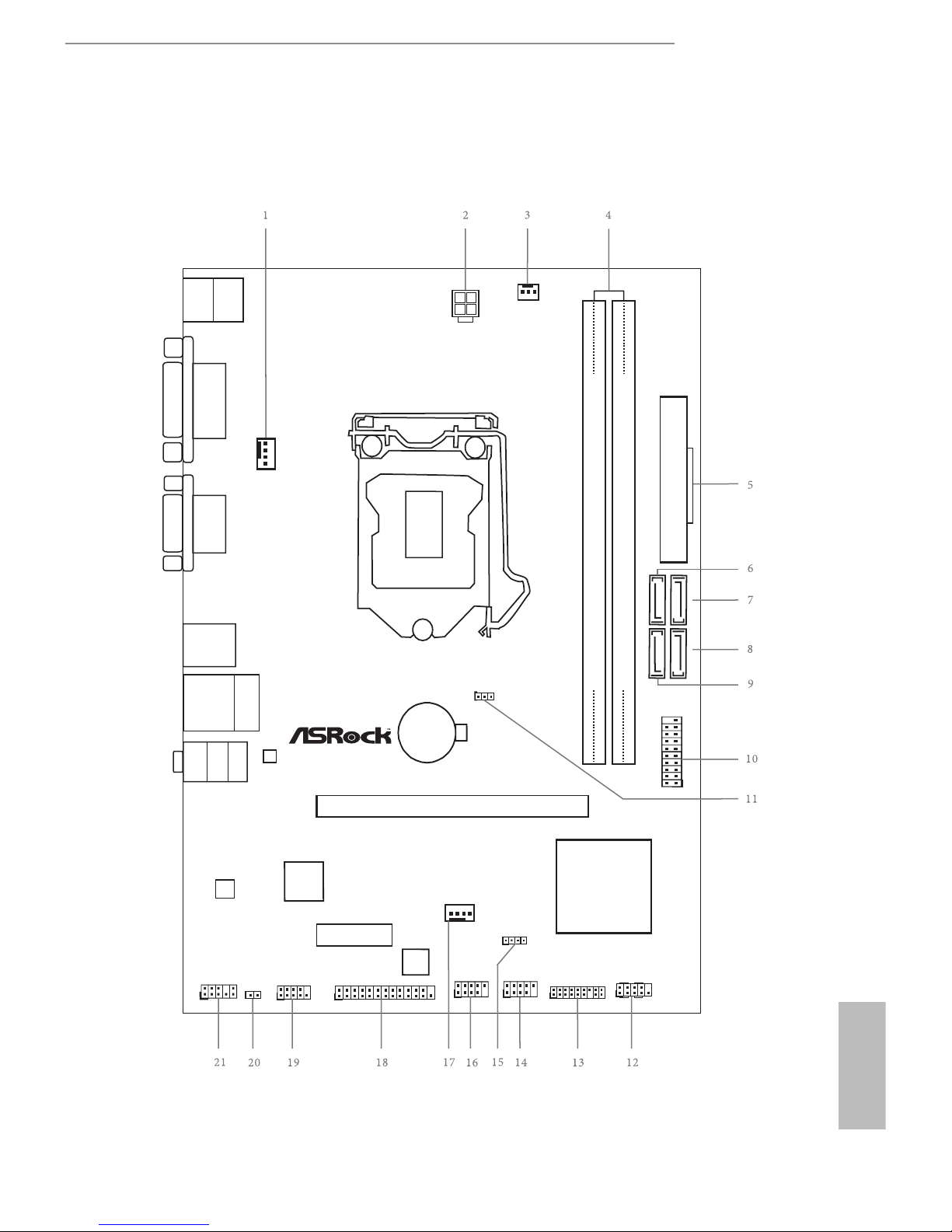

No. Description

1 CPU Fan Connector (CPU_FAN1)

2 ATX 12V Power Connector (ATX12V1)

3 Power Fan Connector (PWR_FAN1)

4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

5 ATX Power Connector (ATXPWR1)

6 SATA3 Connector (SATA3_3)

7 SATA3 Connector (SATA3_2)

8 SATA3 Connector (SATA3_0)

9 SATA3 Connector (SATA3_1)

10 USB 3.0 Header (USB3_2_3)

11 Clear CMOS Jumper (CLRCMOS1)

12 System Panel Header (PANEL1)

13 TPM Header (TPMS1)

14 USB 2.0 Header (USB6_7)

15 Chassis Speaker Header (SPEAKER1)

16 USB 2.0 Header (USB4_5)

17 Chassis Fan Connector (CHA_FAN1)

18 Print Port Header (LPT1)

19 COM Port Header (COM1)

20 Chassis Intrusion Header (CI1)

21 Front Panel Audio Header (HD_AUDIO1)

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK Z97M-ITX Manuel utilisateur

ASROCK

ASROCK 990FX EXTREME3 Manuel utilisateur

ASROCK

ASROCK H67M-GE/THW Manuel utilisateur

ASROCK

ASROCK FM2A55M-DGS R2.0 Manuel utilisateur

ASROCK

ASROCK H61M-DEL Manuel utilisateur

ASROCK

ASROCK H81M-ITX Manuel utilisateur

ASROCK

ASROCK Q1900DC-ITX Manuel utilisateur

ASROCK

ASROCK B550 EXTREME4 Manuel utilisateur

ASROCK

ASROCK IMB-183 Manuel utilisateur

ASROCK

ASROCK N68-VGS3 UCC - Manuel utilisateur

ASROCK

ASROCK IMB-1001 Manuel utilisateur

ASROCK

ASROCK X99 Extreme4 Manuel utilisateur

ASROCK

ASROCK P4I945GC Manuel utilisateur

ASROCK

ASROCK H87 Pro4 Manuel utilisateur

ASROCK

ASROCK H81M-GL Manuel utilisateur

ASROCK

ASROCK H110 Pro BTC+ Manuel utilisateur

ASROCK

ASROCK H61M-DPS Manuel utilisateur

ASROCK

ASROCK CONROE1333-DVI/H Manuel utilisateur

ASROCK

ASROCK Z690 Steel Legend WiFi 6E/D5 Manuel utilisateur

ASROCK

ASROCK N3150B-ITX Manuel utilisateur

ASROCK

ASROCK A780GMH 128M - V1.1 Manuel utilisateur

ASROCK

ASROCK G43TWINS-FULLHD Manuel utilisateur

ASROCK

ASROCK 4COREN73PV-HD720P - V3.1 Manuel utilisateur

ASROCK

ASROCK Intel W790 Series Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
