English

B365M Phantom Gaming 4

Intel

B365

DDR4_A2 (64 bit, 288-pin module)

DDR4_A1 (64 bit, 288-pin module)

DDR4_B2 (64 bit, 288-pin module)

DDR4_B1 (64 bit, 288-pin module)

ATX12V1

Top:

RJ-45

Top:

Central/Bass

Center:

REAR SPK

Top:

LIN E IN

Center:

FRONT

Bottom:

Optical

SPDIF

Bottom:

MIC I N

HDLED RESET

PLED PWRBTN

PANEL1

COM1

HD_AUDIO1

SATA3_2_3

SATA3_4_5

RoHS

USB5_6

USB3_4

SATA3_0

PS2

Keyboard

/Mouse

PCIE2

21 15

1619

M2_3

CT1

CHA_FAN2/

CPU_FAN2/

2324

AUDIO

CODEC

Ult r a M.2

PC Ie Ge n3 x 4

USB 3.1 Gen1

T: USB3

B: USB4

USB 3.1 Gen1

T: USB1

B: USB2

BIOS

ROM

USB 2.0

T: USB1

B: USB2

RGB_LED1

RGB_LED2

A_RGB_LED1

USB3_5_6

CHA_FAN3/

B365M Phantom Gaming 4

CPU_FAN1

CLRMOS1

TPMS1

CHA_FAN1/

SATA3_1

PCIE1

LAN

HDMI1

DP1

USB 3.1 Gen 1

USB31_TC_1

PCIE3

CMOS

Battery

M2_1

M2_2

ATXPWR1

SPK_CI1

CPU

DRAM

VGA

BOOT

Motherboard Layout

English

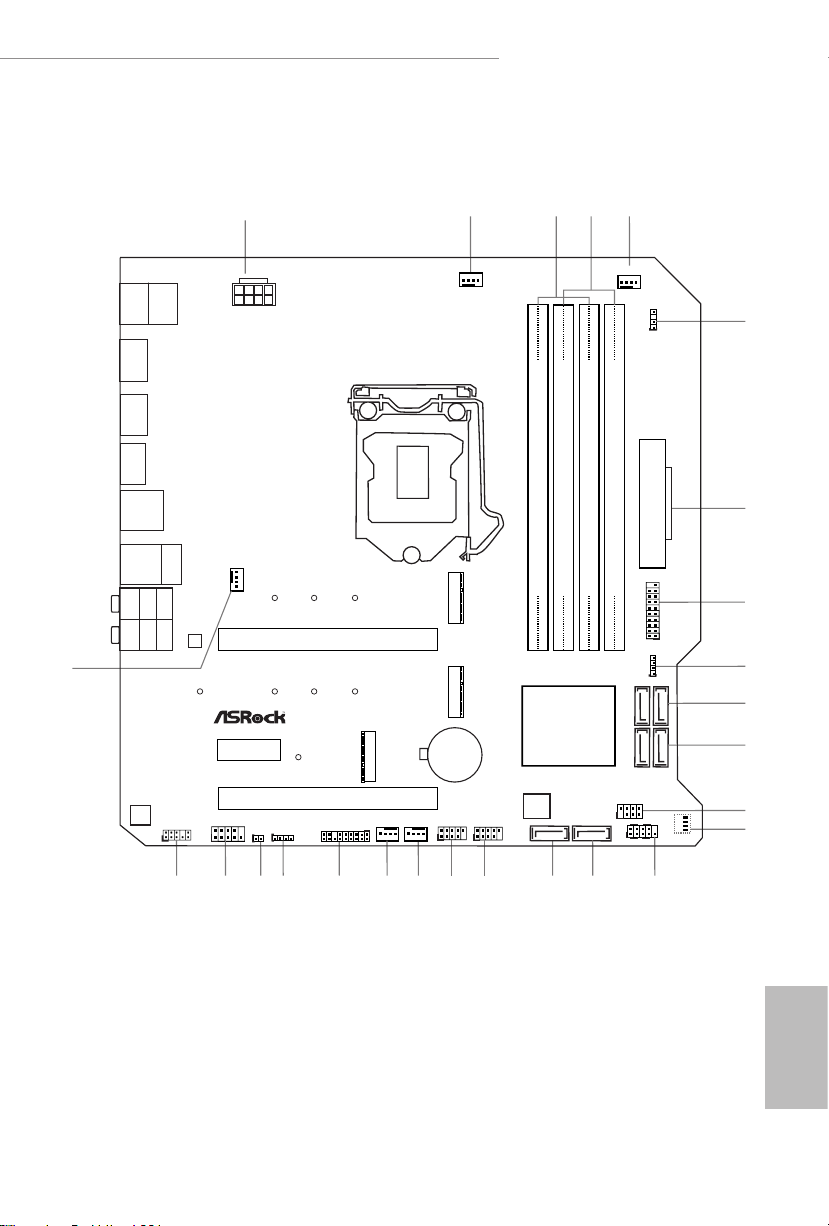

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

5 CPU/Water Pump Fan Connector (CPU_FAN2/WP)

6 Addressable LED Header (A_RGB_LED1)

7 ATX Power Connector (ATXPWR1)

8 USB 3.1 Gen1 Header (USB3_5_6)

9 RGB LED Header (RGB_LED2)

10 SATA3 Connectors (SATA3_2_3)

11 SATA3 Connectors (SATA3_4_5)

12 Power LED and Speaker Header (SPK_PLED1)

13 Post Status Checker (PSC)

14 System Panel Header (PANEL1)

15 SATA3 Connector (SATA3_0)

16 SATA3 Connector (SATA3_1)

17 USB 2.0 Header (USB5_6)

18 USB 2.0 Header (USB3_4)

19 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

20 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)

21 TPM Header (TPMS1)

22 RGB LED Header (RGB_LED1)

23 Clear CMOS Jumper (CLRMOS1)

24 COM Port Header (COM1)

25 Front Panel Audio Header (HD_AUDIO1)

26 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

English

B365M Phantom Gaming 4

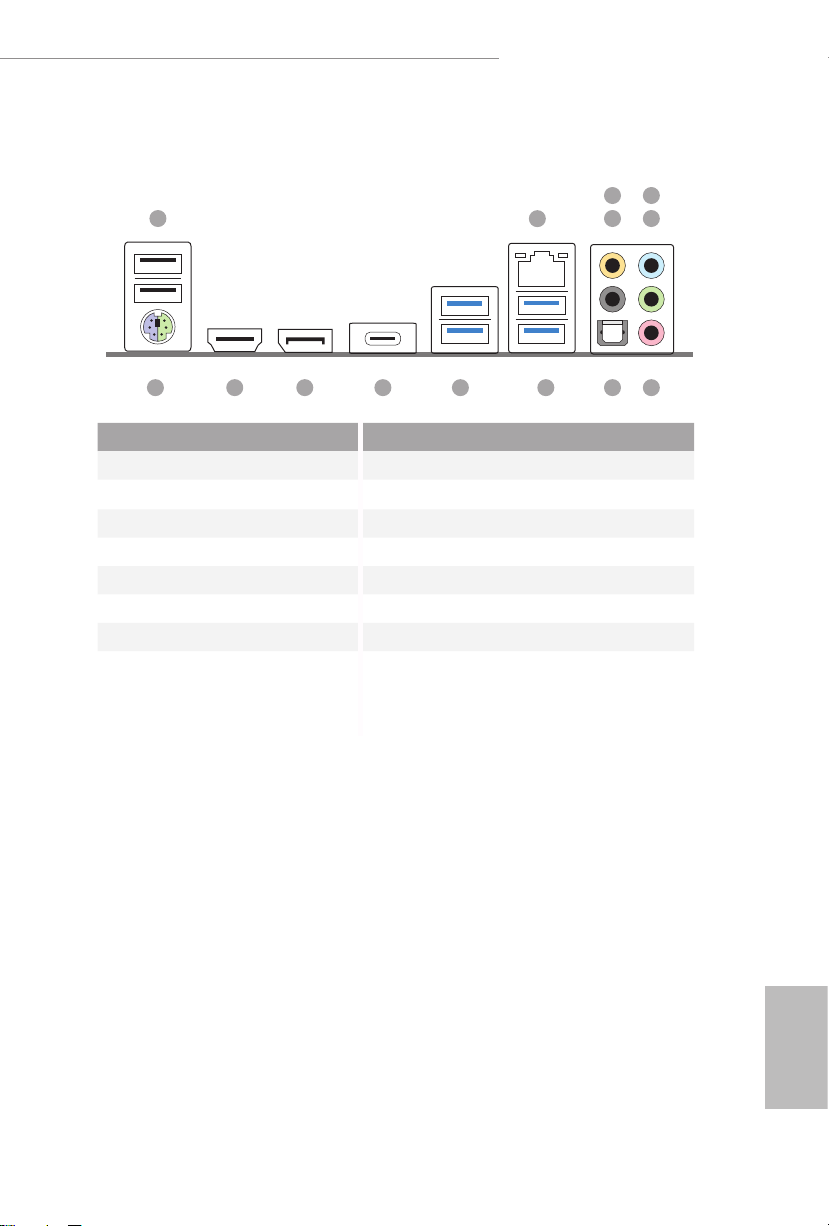

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB12) 8 Optical SPDIF Out Port

2 LAN RJ-45 Port* 9 USB 3.1 Gen1 Ports (USB3_1_2)

3 Central / Bass (Orange) 10 USB 3.1 Gen1 Ports (USB3_3_4)

4 Rear Speaker (Black) 11 USB 3.1 Gen1 Type-C Port (USB3_TC_1)

5 Line In (Light Blue) 12 DisplayPort 1.2

6 Front Speaker (Lime)** 13 HDMI Port

7Microphone (Pink) 14 PS/2 Mouse/Keyboard Port

7814 13 12

1 6

11 10 9

English

Chapter 1 Introduction

ank you for purchasing ASRock B365M Phantom Gaming 4 motherboard, a

reliable motherboard produced under ASRock’s consistently stringent quality

control. It delivers excellent performance with robust design conforming to

ASRock’s commitment to quality and endurance.

1.1 Package Contents

• ASRock B365M Phantom Gaming 4 Motherboard (Micro ATX Form Factor)

• ASRock B365M Phantom Gaming 4 Quick Installation Guide

• ASRock B365M Phantom Gaming 4 Support CD

• 1 x I/O Panel Shield

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 3 x Screws for M.2 Socket (Optional)

• 1 x Stando for M.2 Socket (Optional)

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No.6)

Rear Speaker

(No. 4)

Central / Bass

(No. 3)

Line In

(No. 5)

2V -- -- --

4V V -- --

6V V V --

8V V V V

ACT/LINK LED

SPEED LED

LAN Port

English

B365M Phantom Gaming 4

Chapter 1 Introduction

ank you for purchasing ASRock B365M Phantom Gaming 4 motherboard, a

reliable motherboard produced under ASRock’s consistently stringent quality

control. It delivers excellent performance with robust design conforming to

ASRock’s commitment to quality and endurance.

1.1 Package Contents

• ASRock B365M Phantom Gaming 4 Motherboard (Micro ATX Form Factor)

• ASRock B365M Phantom Gaming 4 Quick Installation Guide

• ASRock B365M Phantom Gaming 4 Support CD

• 1 x I/O Panel Shield

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 3 x Screws for M.2 Socket (Optional)

• 1 x Stando for M.2 Socket (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

CPU • Supports 9th and 8th Gen Intel® CoreTM Processors (Socket

1151)

• Supports CPU up to 95W

• Digi Power design

• 8 Power Phase design

• Supports Intel® Turbo Boost 2.0 Technology

Chipset • Intel® B365

Memory • Dual Channel DDR4 Memory Technology

• 4 x DDR4 DIMM Slots

• Supports DDR4 2666/2400/2133 non-ECC, un-buered

memory

• Supports ECC UDIMM memory modules (operate in non-

ECC mode)

• Max. capacity of system memory: 128GB

• Supports Intel® Extreme Memory Prole (XMP) 2.0

• 15μ Gold Contact in DIMM Slots

Expansion

Slot

• 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16

(PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))

* Supports NVMe SSD as boot disks

• 1 x PCI Express 3.0 x1 Slot (Flexible PCIe)

• Supports AMD Quad CrossFireXTM and CrossFireXTM

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

• 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

• Supports Intel® UHD Graphics Built-in Visuals : Intel®

Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® UHD Graphics

• DirectX 12

English

B365M Phantom Gaming 4

• HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit,

HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode

only), MPEG2, MJPEG, VC-1 (Decode only)

• Dual graphics outputs: HDMI and DisplayPort 1.2

• Supports HDMI 1.4 with max. resolution up to 4K x 2K

(4096x2160) @ 30Hz

• Supports DisplayPort 1.2 with max. resolution up to 4K x 2K

(4096x2304) @ 60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant

HDMI monitor is required)

• Supports HDCP 2.2 with HDMI and DisplayPort 1.2 Ports

• Supports 4K Ultra HD (UHD) playback with HDMI and

DisplayPort 1.2 Ports

Audio • 7.1 CH HD Audio with Content Protection (Realtek

ALC1200 Audio Codec)

• Premium Blu-ray Audio support

• Supports Surge Protection

• PCB Isolate Shielding

• Gold Audio Jacks

• Supports DTS Connect

LAN • Gigabit LAN 10/100/1000 Mb/s

• Giga PHY Intel® I219V

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x HDMI Port

• 1 x DisplayPort 1.2

• 1 x Optical SPDIF Out Port

• 2 x USB 2.0 Ports (Supports ESD Protection)

• 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)

• 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)

English

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

Front Speaker / Microphone (Gold Audio Jacks)

Storage • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

17), NCQ, AHCI and Hot Plug*

* If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will

be disabled.

• 1 x Ultra M.2 Socket (M2_1), supports M Key type

2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32

Gb/s)**

• 1 x Ultra M.2 Socket (M2_2), supports M Key type

2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2

PCI Express module up to Gen3 x4 (32 Gb/s)**

** Supports Intel® OptaneTM Technology

** Supports NVMe SSD as boot disks

** Supports ASRock U.2 Kit

Connector • 1 x COM Port Header

• 1 x TPM Header

• 1 x Chassis Intrusion and Speaker Header

• 2 x RGB LED Headers

* Support in total up to 12V/3A, 36W LED Strip

• 1 x Addressable LED Header

* Supports in total up to 5V/3A, 15W LED Strip

• 1 x CPU Fan Connector (4-pin)

* e CPU Fan Connector supports the CPU fan of maximum

1A (12W) fan power.

• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan

Speed Control)

* e CPU/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan

Speed Control)

* e Chassis/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and

CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

Autres manuels ASROCK Carte mère

ASROCK

ASROCK Fatal1ty 990FX Killer Manuel utilisateur

ASROCK

ASROCK J3710M Manuel utilisateur

ASROCK

ASROCK Z490 Phantom Gaming 4/ac Manuel utilisateur

ASROCK

ASROCK H410TM-ITX Manuel utilisateur

ASROCK

ASROCK 4U8G Series Manuel utilisateur

ASROCK

ASROCK H61M-DEL Manuel utilisateur

ASROCK

ASROCK H110M-GL/D3 Manuel utilisateur

ASROCK

ASROCK Z87 Pro4 Manuel utilisateur

ASROCK

ASROCK Z490 Taichi Manuel utilisateur

ASROCK

ASROCK FM2A75 PRO04+ Manuel utilisateur

ASROCK

ASROCK PHANTOM GAMING B650I LIGHTNING WiFi Manuel utilisateur

ASROCK

ASROCK Z87E-ITX Manuel utilisateur

ASROCK

ASROCK B660M Phantom Gaming 4 Manuel utilisateur

ASROCK

ASROCK Z170M OC Formula Manuel utilisateur

ASROCK

ASROCK WRX80 CREATOR Manuel utilisateur

ASROCK

ASROCK FM2A55 Pro Manuel utilisateur

ASROCK

ASROCK Z170A-X1/3.1 Manuel utilisateur

ASROCK

ASROCK Super Alloy B150M COMBO-G Manuel utilisateur

ASROCK

ASROCK B650D4U Manuel utilisateur

ASROCK

ASROCK H97M-ITX/ac Manuel utilisateur

ASROCK

ASROCK 748-M Manuel utilisateur

ASROCK

ASROCK H97M Pro4 Manuel utilisateur

ASROCK

ASROCK B150 Combo Manuel utilisateur

ASROCK

ASROCK CONROE865PE Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
